Description

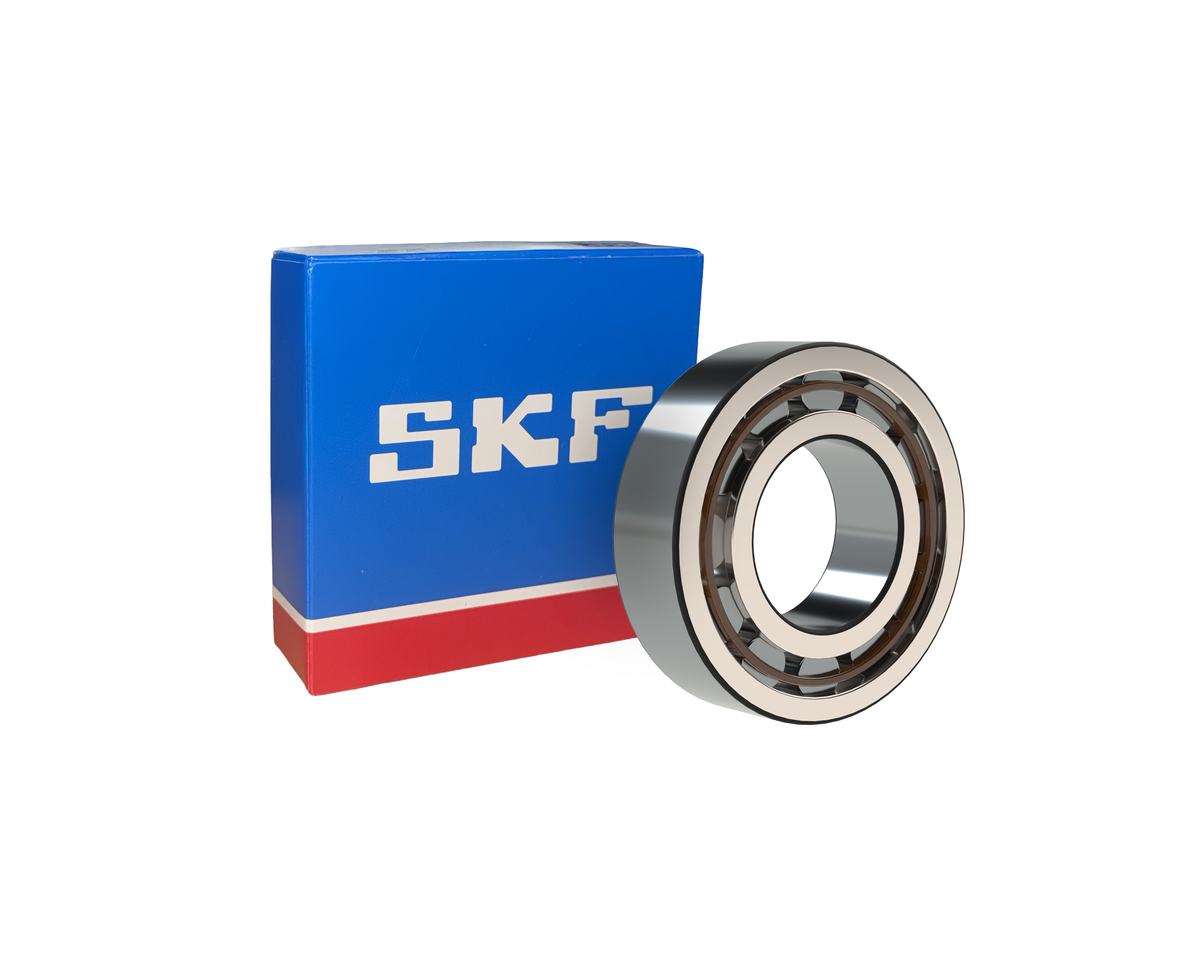

Cylindrical roller bearings carry heavy radial loads at high speeds with low friction, and many designs are separable for easy mounting.
Key Features
- High radial load capacity at high speed
- Open design for versatile mounting
- Cylindrical bore for press-fit mounting
- Strongly increased radial clearance
- Precision manufactured to exacting quality standards
Specifications
Dimensions
| Bore Diameter | 60 mm |
| Outside Diameter | 130 mm |
| Width | 46 mm |
Properties
| Tolerance class | Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or |
| Version | Improved interior construction |
| Design | Support bearing (axial displacement), inner ring removable o |
| Roller rows | Single row bearing |
| Outer ring | Without groove/lubrication holes |
| Seal | None, open bearing |
| Clearance | Strongly increased radial clearance |
| Cage | Polyamide cage |
| Temperature range | -30 to +120 °C |
| Current insulation | No current insulation |
| Bore | Cylindrical bore |
Logistics
| Product Net Weight | 2.808 kg |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
