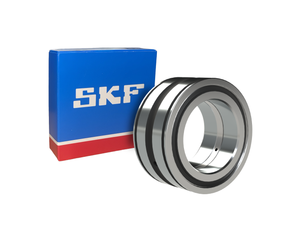

SKF NNF5017 ADA-2LSV Cylindrical Roller Bearing - 85 mm ID, 130 mm OD, 60 mm Width, Cylindrical Bore, Normal
- Regular price
- $964.07
- Sale price
- $964.07
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Key Features
- High radial load capacity
- High load carrying capacity
- Protected against contamination
- Precision tolerance class
Description
Cylindrical Roller Bearing sealed design
Cylindrical Roller Bearings have high radial load carrying capacity and are suitable for high speeds. The bearings are separable which facilitates mounting and dismounting. The sealed design provides protection against contamination. Manufactured to precision tolerance class for demanding applications. Suitable for use in a wide range of industrial applications where reliability and performance are essential.
Specifications
Dimensions
| Bore Diameter | 85 mm |
| Outside Diameter | 130 mm |
| Width | 60 mm |
Properties
| Bore | Cylindrical bore |
| Cage | None, full complement bearing |
| Clearance | Normal radial clearance |
| Current insulation | No current insulation |
| Design | Fixed bearing |
| Outer ring | Two ring grooves and a lubrication hole in outer ring |
| Roller rows | Double row bearing |
| Seal | Lip seal on both sides |
| Temperature range | -20 to +80 °C |
| Tolerance class | Tolerance class P0/PN2 / ABEC 1 |
Logistics
| Product Net Weight | 2.633 |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
