Belt Alignment Tool TKBA 40 – Precision V-Belt Pulley Alignment Made Easy

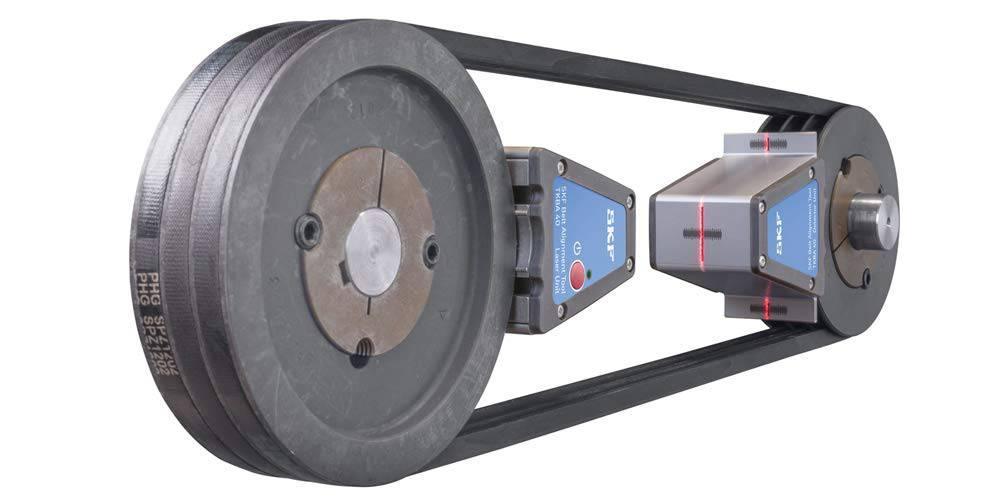

Proper alignment of belt-driven machinery is critical to extending belt and pulley lifespan, minimizing vibration, and reducing energy costs. The SKF TKBA 40 Belt Alignment Tool is a high-accuracy solution for V-belt pulley alignment, enabling precise adjustments to improve overall machine performance.
This innovative tool aligns pulley grooves with exceptional precision, addressing vertical angles, horizontal angles, and parallel misalignments. Its simple yet effective design ensures fast, hassle-free setup, making it an essential tool for maintenance teams.
Key Features of the SKF TKBA 40 Belt Alignment Tool
- Precise Groove Alignment: Accurately aligns the grooves of V-belt pulleys to enhance belt and pulley life while reducing wear and tear.
- Multi-Angle Correction: Corrects for vertical angles, horizontal angles, and parallel misalignment to ensure optimal machine performance.

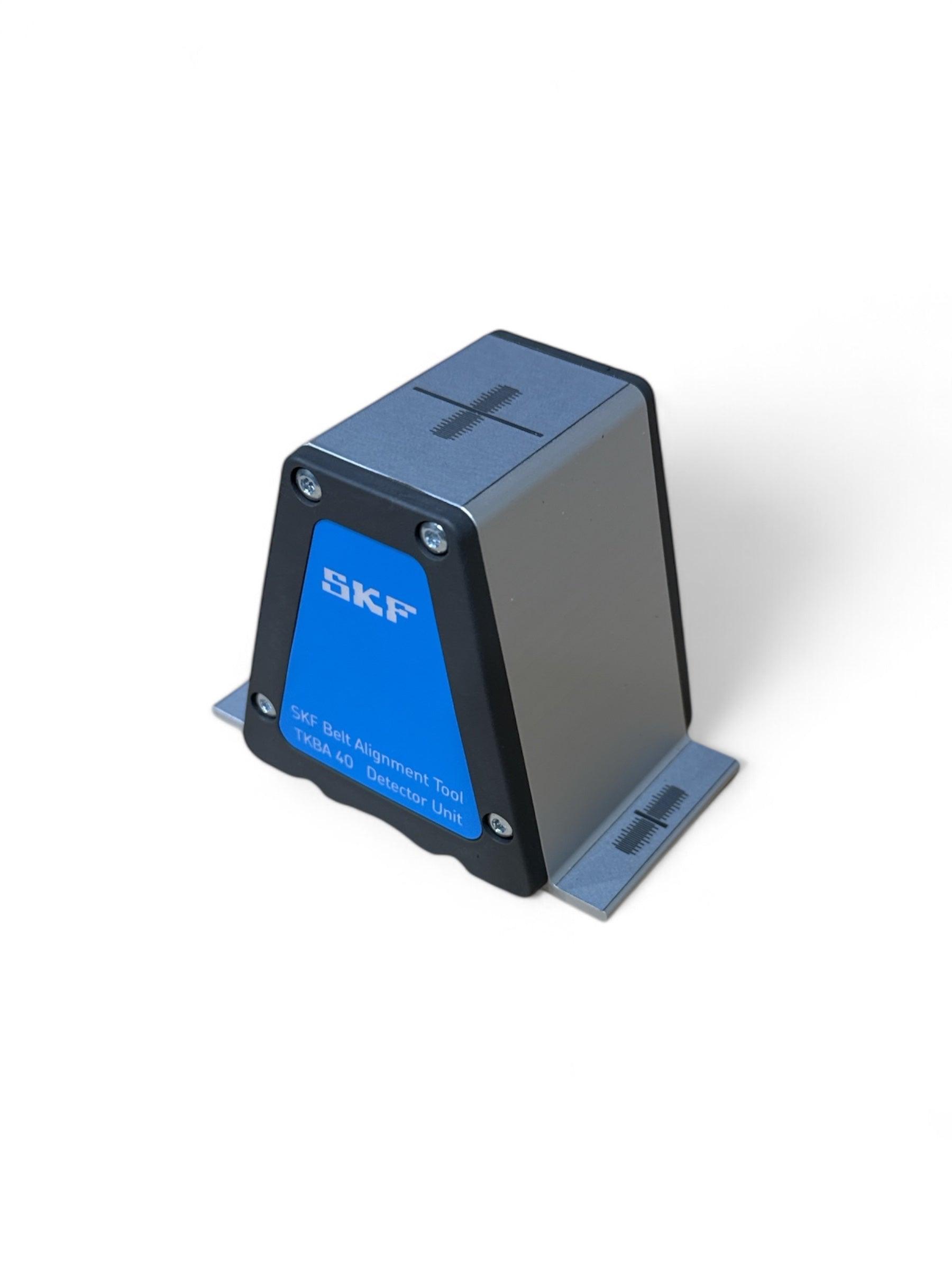

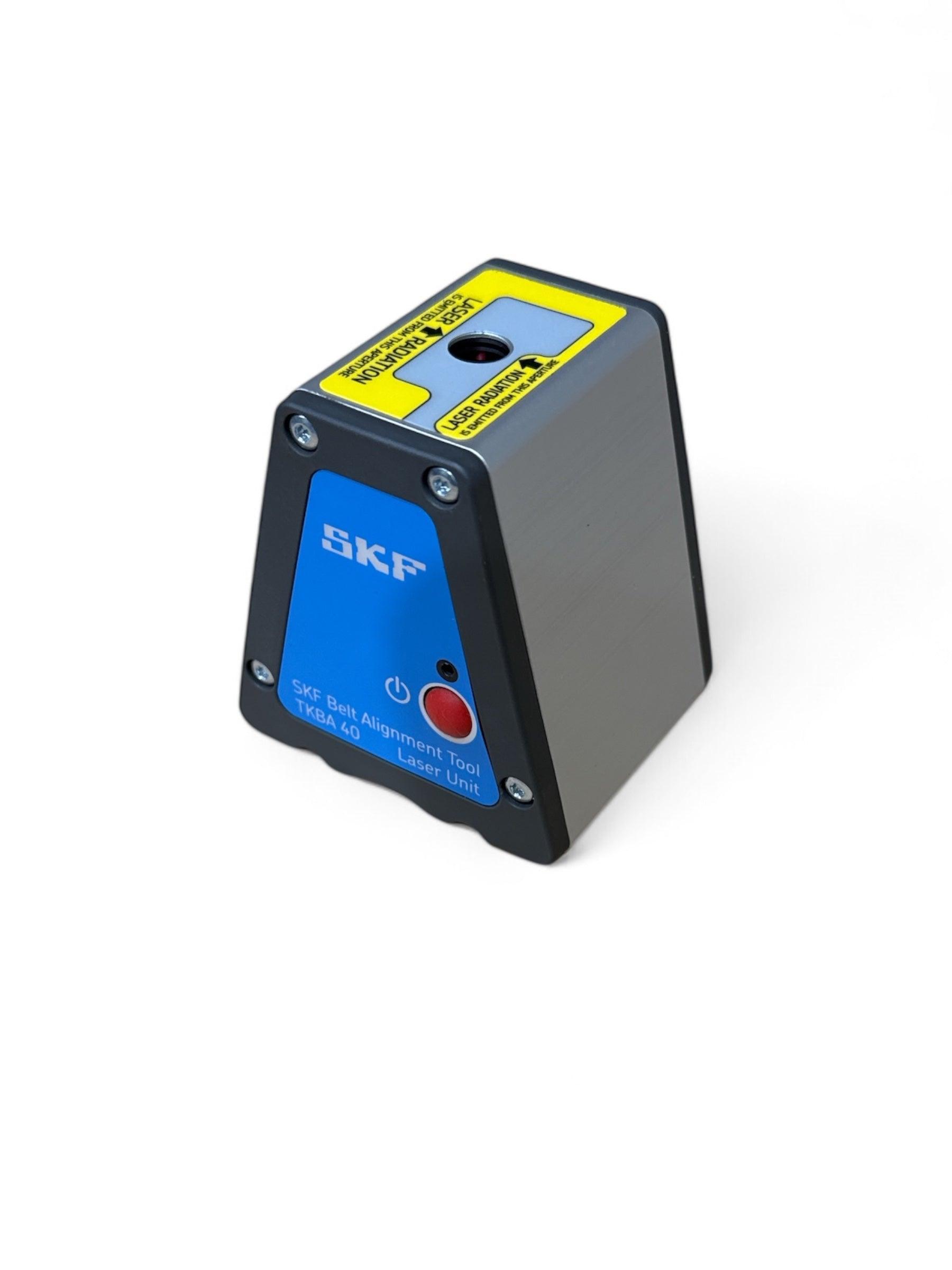

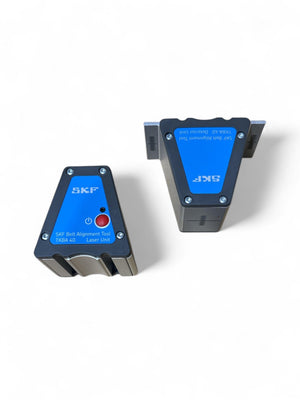

- Two-Component System: Includes a laser-emitting unit and a receiver unit for easy and accurate alignment.

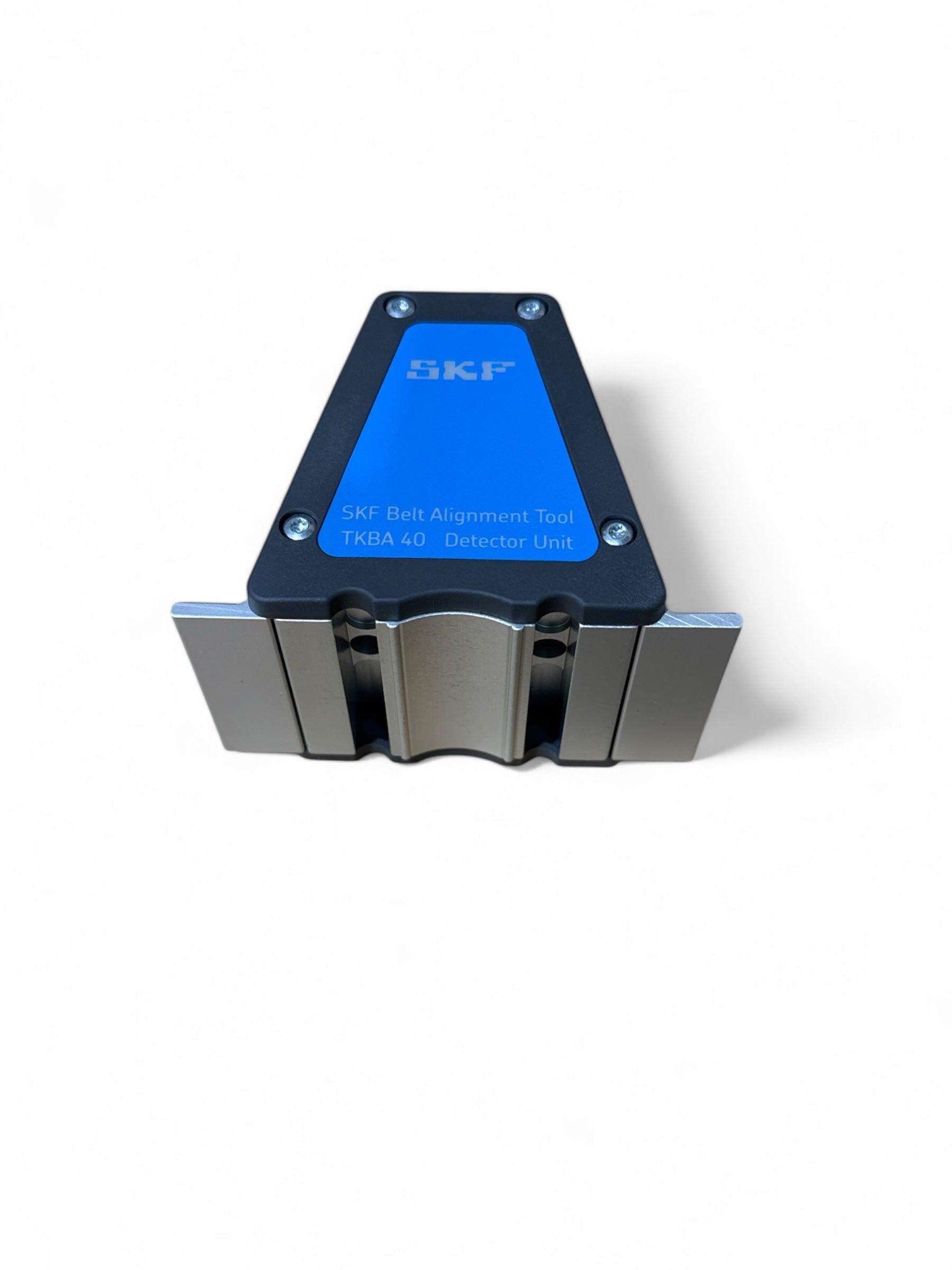

- Quick Setup: Powerful magnets and V-guides allow the tool to be easily attached to pulleys, minimizing downtime.
- User-Friendly Design: Simple, straightforward operation makes the TKBA 40 suitable for both experienced and novice users.
Why Choose the SKF TKBA 40?
The TKBA 40 is engineered for reliability and precision, making it a trusted choice for maintaining belt-driven machinery. By ensuring accurate alignment, it helps businesses reduce energy costs, prevent unnecessary wear, and improve overall operational efficiency.
TKBA 40 Specifications
| Designation | TKBA 40 |
|---|---|
| Type of Laser | Red laser diode |
| Laser | 1 × Built-in class 2 laser, <1 mW, 632 nm |
| Laser Line Length | 3 m at 2 m (9.8 ft at 6.6 ft) |
| Measurement Accuracy Angular | Better than 0.2° |
| Measurement Accuracy Offset | Better than 0.5 mm (0.02 in.) |
| Measurement Distance | 50 mm to 6,000 mm (2 in. to 20 ft) |
| Control | Laser on/off switch |
| Transmitter Housing Material | Extruded aluminium |
| Receiver Housing Material | Aluminium |
| Fixtures Mounting | Magnetic, groove mounted (optional side adapter TMEB A2) |

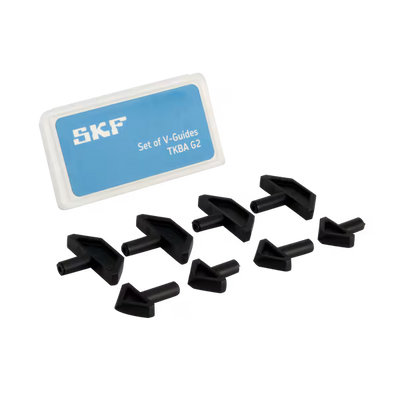

| V-guides |
|
| Battery | 2× AAA Alkaline type IEC LR03 |
| Operation Time | 20 hours continuous operation |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | –20 to +65 °C (–4 to +150 °F) |
| Relative Humidity | 10 to 90% RH non-condensing |
| IP Rating | IP 40 |
| Calibration Certificate | Valid for two years |
| Transmitter Unit Dimensions | 70 × 74 × 61 mm (2.8 × 2.9 × 2.4 in.) |
| Receiver Unit Dimensions | 96 × 74 × 61 mm (3.8 × 2.9 × 2.4 in.) |
| Carrying Case Dimensions | 260 × 85 × 180 mm (10.2 × 3.3 × 7.1 in.) |
| Transmitter Unit Weight | 320 g (0.7 lb) |
| Receiver Unit Weight | 270 g (0.6 lb) |
| Total Weight (incl. case) | 1.2 kg (2.7 lb) |

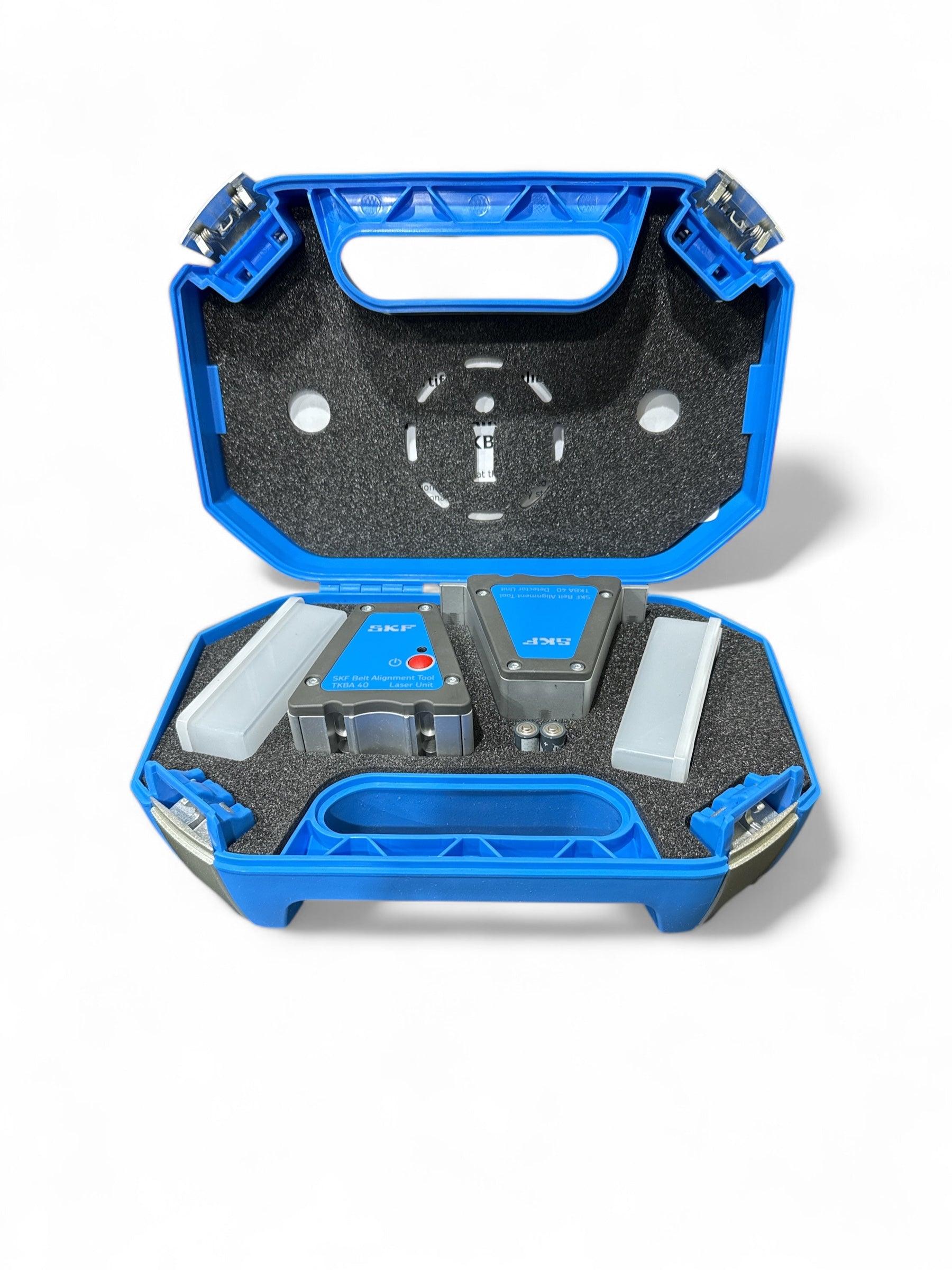

| Case Contents |
|
Belt Alignment Tool TKBA 40 – Precision V-Belt Pulley Alignment Made Easy
Proper alignment of belt-driven machinery is critical to extending belt and pulley lifespan, minimizing vibration, and reducing energy costs. The SKF TKBA 40 Belt Alignment Tool is a high-accuracy solution for V-belt pulley alignment, enabling precise adjustments to improve overall machine performance.
This innovative tool aligns pulley grooves with exceptional precision, addressing vertical angles, horizontal angles, and parallel misalignments. Its simple yet effective design ensures fast, hassle-free setup, making it an essential tool for maintenance teams.
Key Features of the SKF TKBA 40 Belt Alignment Tool
- Precise Groove Alignment: Accurately aligns the grooves of V-belt pulleys to enhance belt and pulley life while reducing wear and tear.
- Multi-Angle Correction: Corrects for vertical angles, horizontal angles, and parallel misalignment to ensure optimal machine performance.

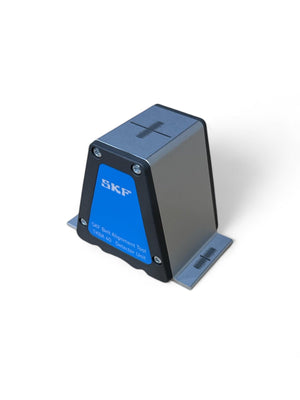

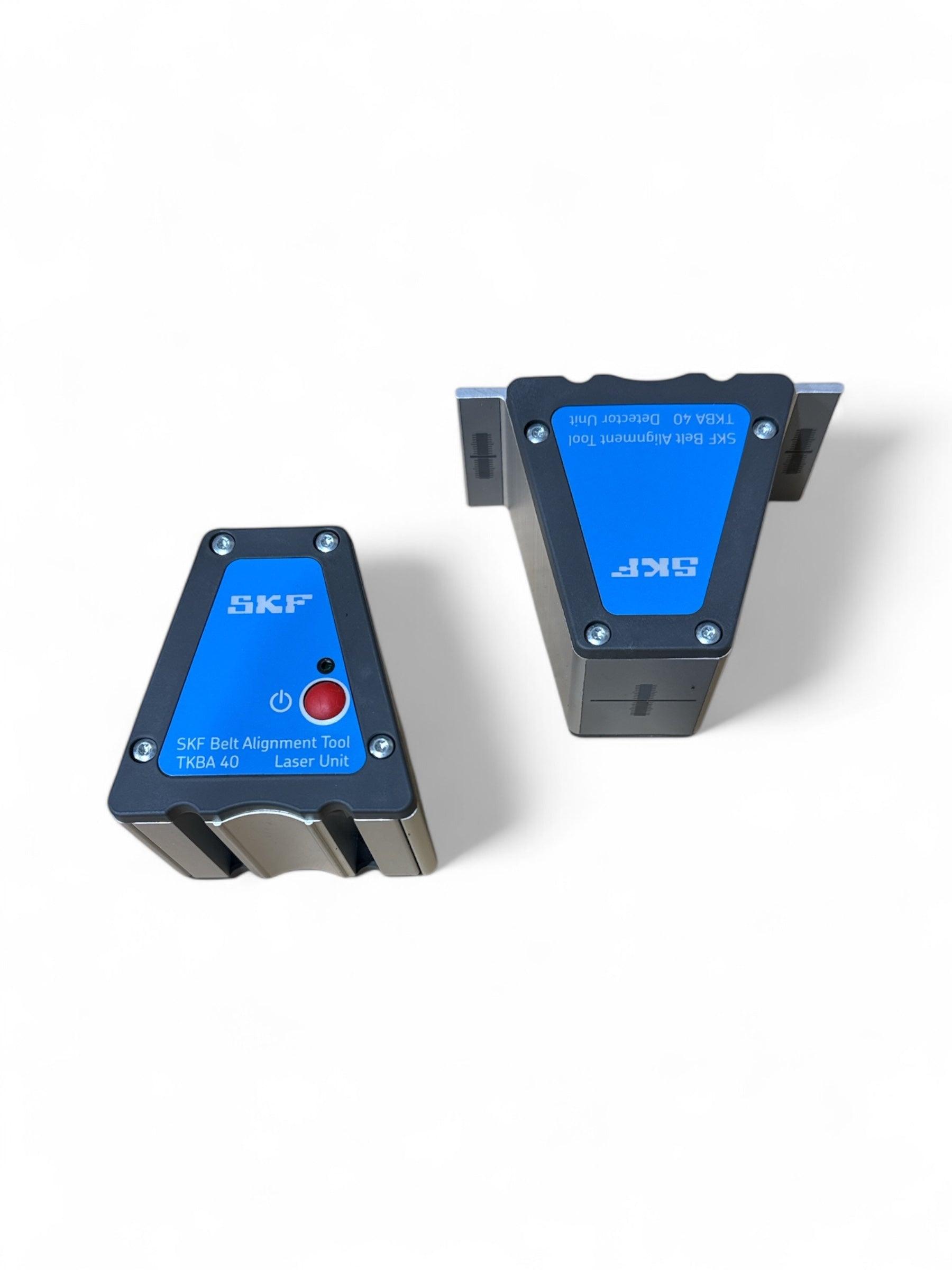

- Two-Component System: Includes a laser-emitting unit and a receiver unit for easy and accurate alignment.

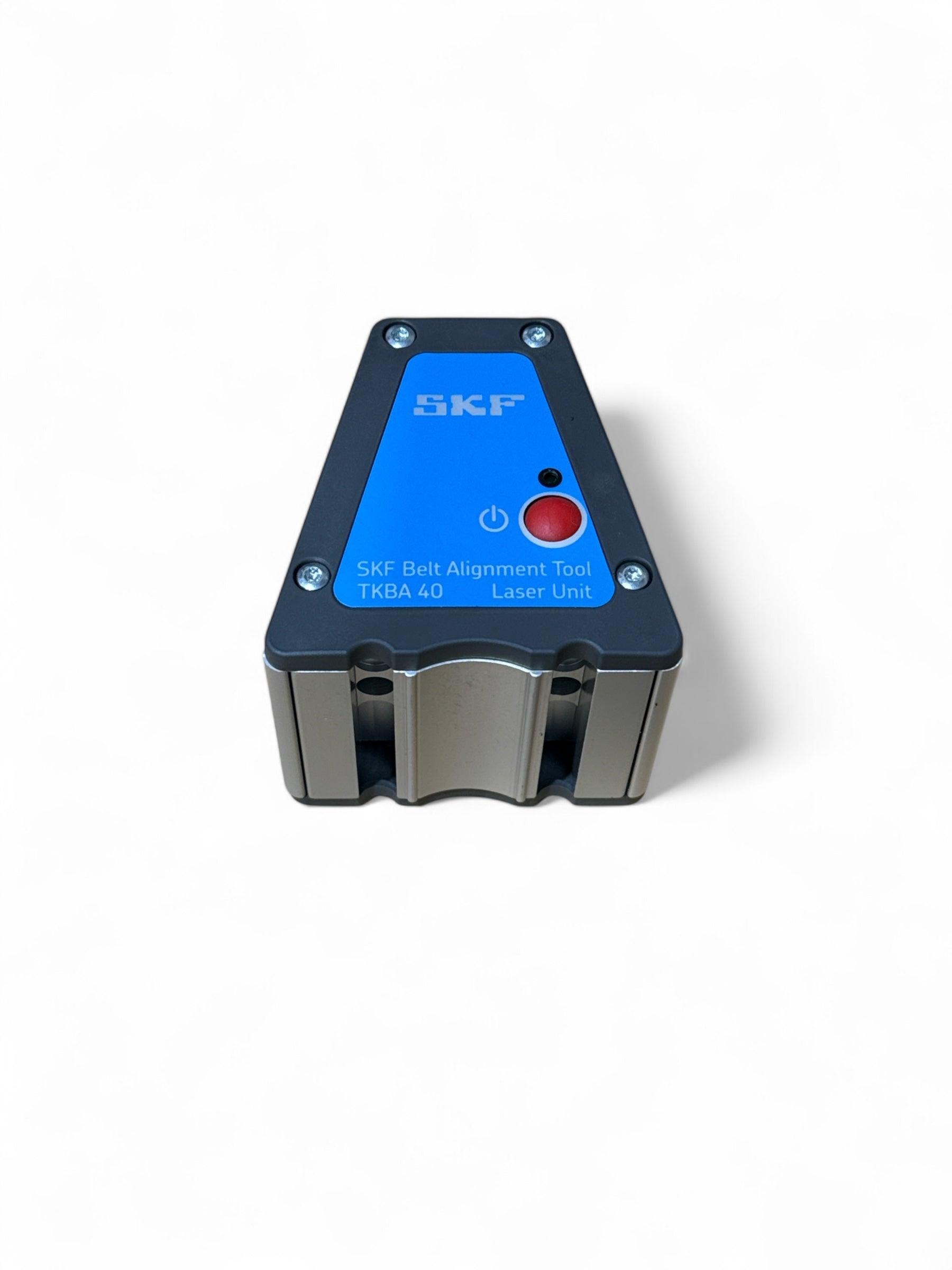

- Quick Setup: Powerful magnets and V-guides allow the tool to be easily attached to pulleys, minimizing downtime.
- User-Friendly Design: Simple, straightforward operation makes the TKBA 40 suitable for both experienced and novice users.
Why Choose the SKF TKBA 40?
The TKBA 40 is engineered for reliability and precision, making it a trusted choice for maintaining belt-driven machinery. By ensuring accurate alignment, it helps businesses reduce energy costs, prevent unnecessary wear, and improve overall operational efficiency.
TKBA 40 Specifications
| Designation | TKBA 40 |
|---|---|
| Type of Laser | Red laser diode |
| Laser | 1 × Built-in class 2 laser, <1 mW, 632 nm |
| Laser Line Length | 3 m at 2 m (9.8 ft at 6.6 ft) |
| Measurement Accuracy Angular | Better than 0.2° |
| Measurement Accuracy Offset | Better than 0.5 mm (0.02 in.) |
| Measurement Distance | 50 mm to 6,000 mm (2 in. to 20 ft) |
| Control | Laser on/off switch |
| Transmitter Housing Material | Extruded aluminium |
| Receiver Housing Material | Aluminium |
| Fixtures Mounting | Magnetic, groove mounted (optional side adapter TMEB A2) |
| V-guides |
|
| Battery | 2× AAA Alkaline type IEC LR03 |
| Operation Time | 20 hours continuous operation |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | –20 to +65 °C (–4 to +150 °F) |
| Relative Humidity | 10 to 90% RH non-condensing |
| IP Rating | IP 40 |
| Calibration Certificate | Valid for two years |
| Transmitter Unit Dimensions | 70 × 74 × 61 mm (2.8 × 2.9 × 2.4 in.) |
| Receiver Unit Dimensions | 96 × 74 × 61 mm (3.8 × 2.9 × 2.4 in.) |
| Carrying Case Dimensions | 260 × 85 × 180 mm (10.2 × 3.3 × 7.1 in.) |
| Transmitter Unit Weight | 320 g (0.7 lb) |
| Receiver Unit Weight | 270 g (0.6 lb) |
| Total Weight (incl. case) | 1.2 kg (2.7 lb) |
| Case Contents |
|
SKF TKBA 40 Red Laser High-accuracy tool for V-belt pulley alignment
