SKF TMHC 110E Hydraulic Puller Kit, Jaw Puller and Strong Back Puller, 112 Ton Capacity
- Regular price
- $1,490.00
- Sale price
- $1,490.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- A versatile puller kit facilitates safe and easy dismounting in a variety of applications
- Hydraulic spindle facilitates easy and quick dismounting
- High load rating of 100 kN (11.2 US ton)
- The strong back puller includes two different arm lengths for maximum reach of 120 mm (4.7 in.)
- The jaw puller can be assembled as a three-arm or two-arm puller depending on the space and demands of the application
- The firm grip of the strong back puller behind the bearing’s inner ring reduces the force required to dismount the bearing
- Supplied with extension rods to allow quick adaptation to pulling lengths up to 245 mm (9.6 in.)
- The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage
Description

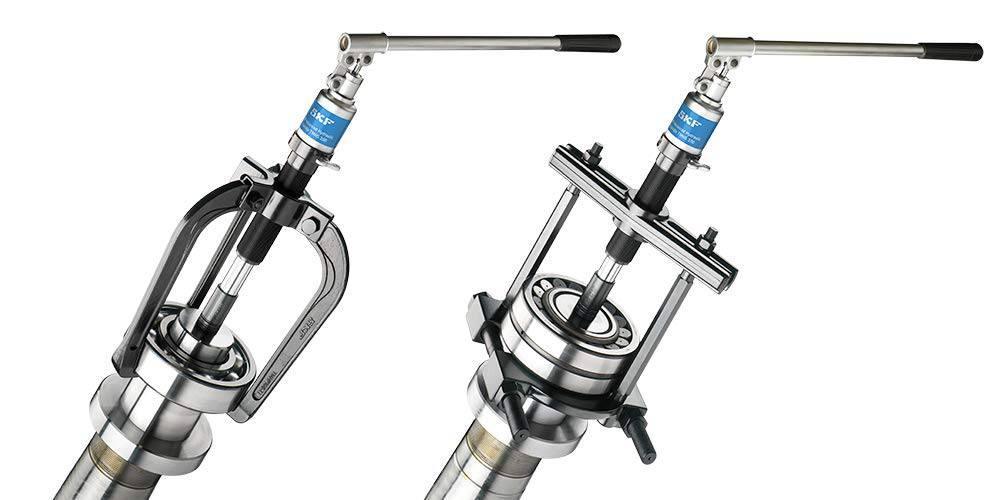

The SKF TMHC 110E is a hydraulic puller kit, which combines a jaw puller and a strong back puller with up to 100 kN (11.2 ton US) pulling power. The versatile puller kit facilitates safe and easy dismounting in a variety of applications.
Specifications
Technical Specifications
| Designation | TMHC 110E |
| Description | Advanced hydraulic puller kit |

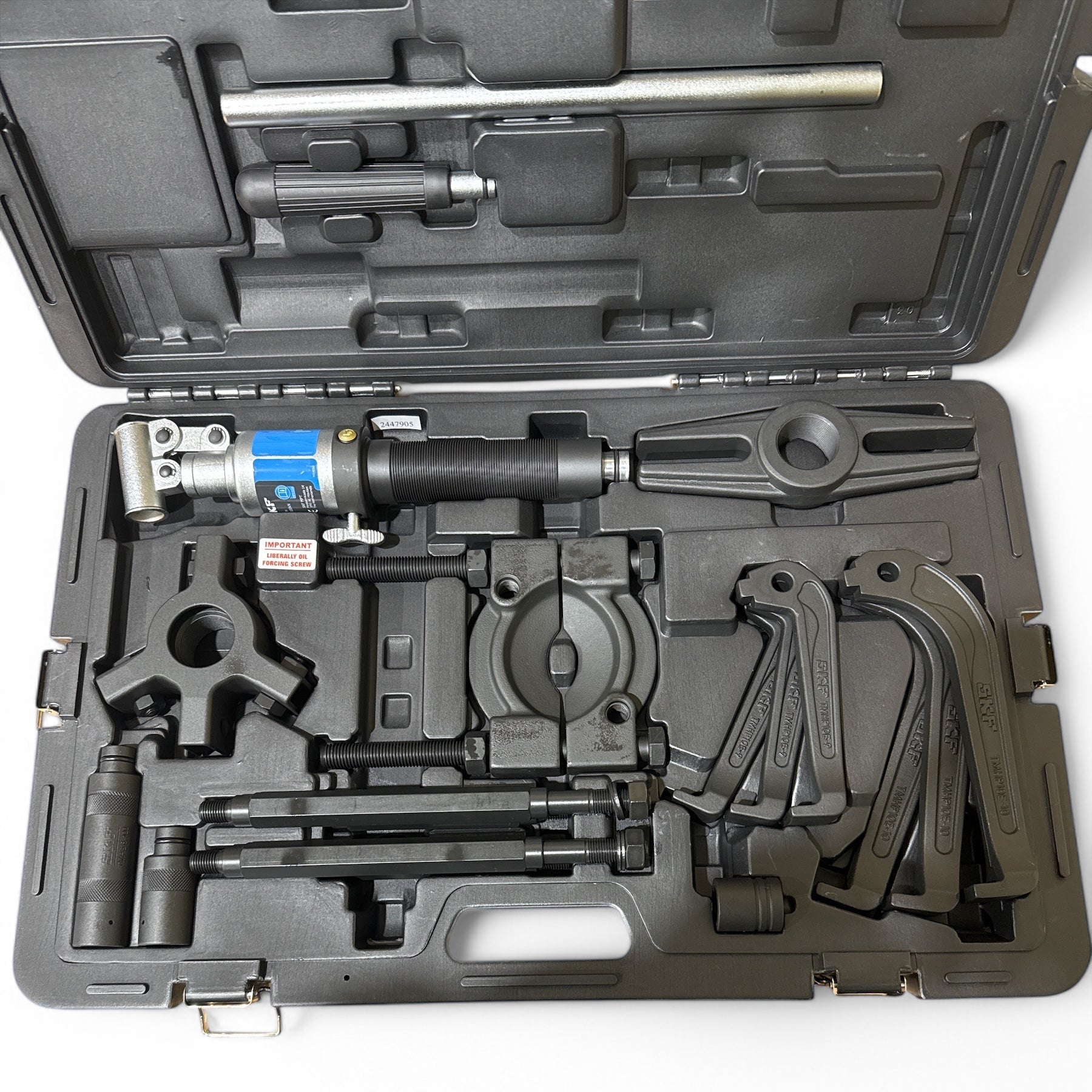

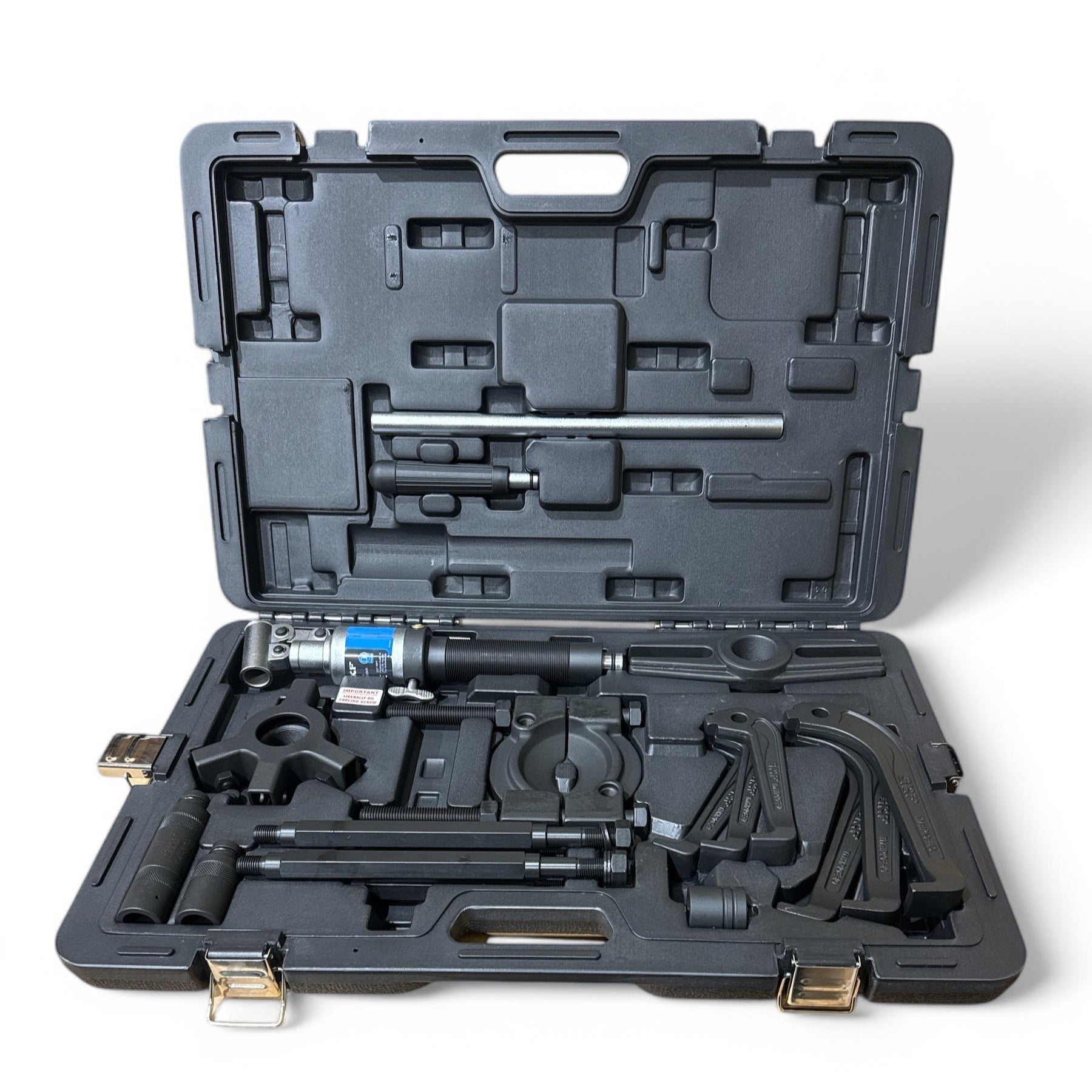

| Contents | 1 x arm-assembly stand 3 x arms, set 1 (TMHP10E-9) 3 x arms, set 2 (TMHP10E-10) 1 x separator set 1 x beam 2 x main rods 2 x extension rods, 125 mm (4.9 in) 1 x hydraulic spindle TMHS 100 2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in) 1 x nosepiece with centre point for hydraulic spindle |
| Maximum stroke | 80 mm (3.1 in) |
| Nominal working force | 100 kN (11.2 US ton force) |
| Weight | 13.5 kg (29.8 lb) |
| Cycle life hydraulic cylinder | Minimum 5000 cycles up to 100 kN (11.2 US ton force) |
| Threading hydraulic cylinder | UN 1½'' x 16 tpi |
| Safety valve setting hydraulic cylinder | 105 kN (11.8 US ton force) |

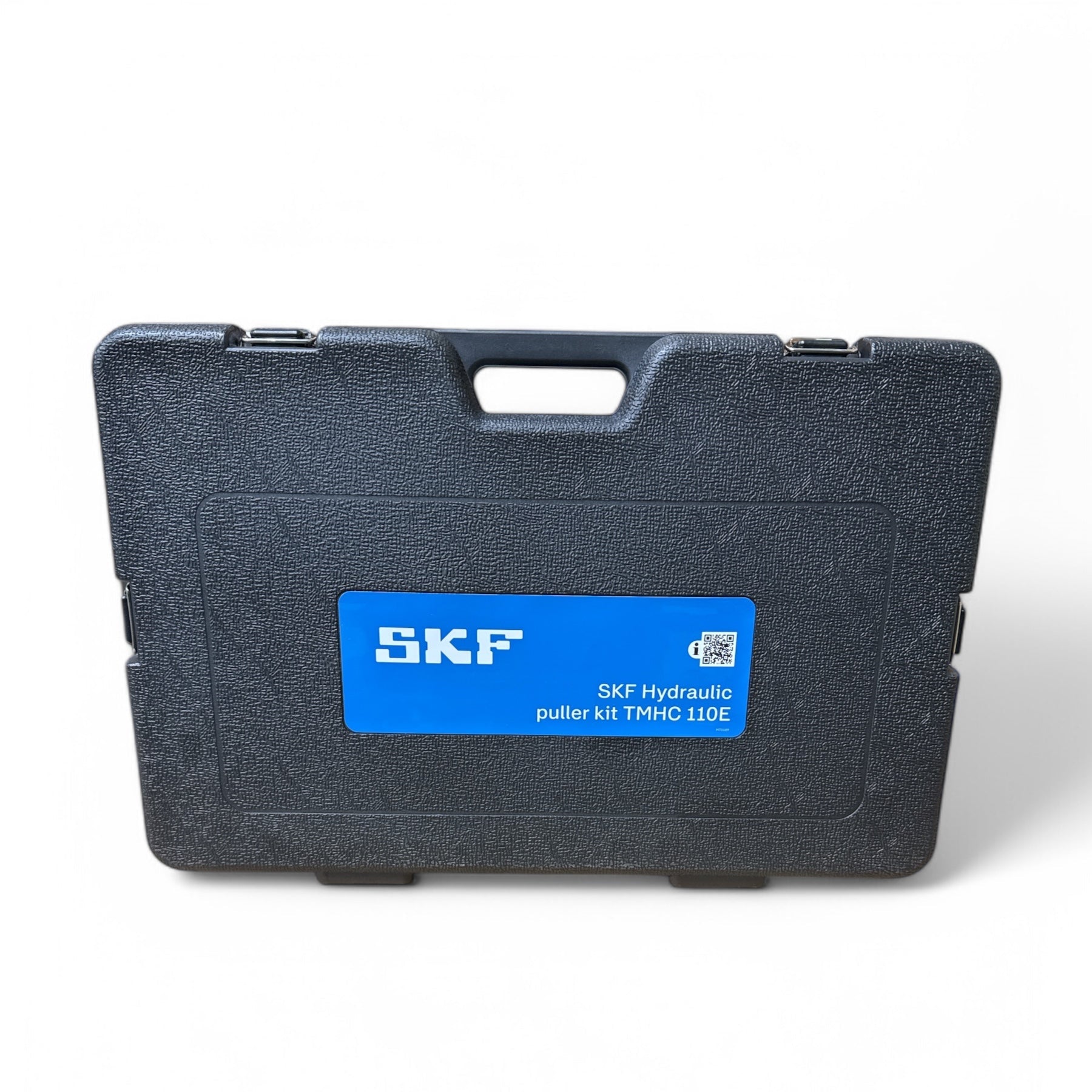

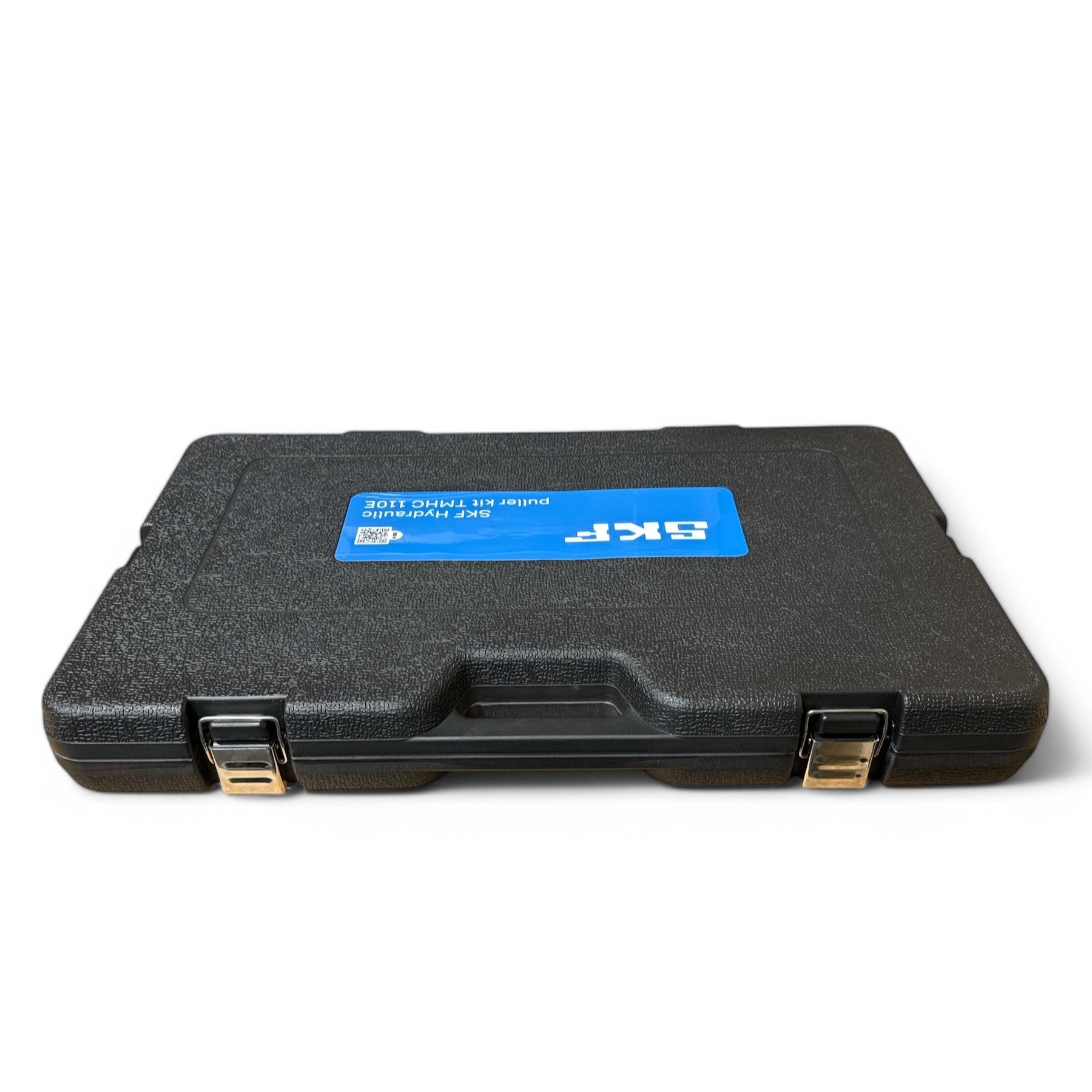

| Carrying case dimensions | 580 x 410 x 70 mm (23 x 16 x 2.8 in) |
Jaw Puller Specifications
| Effective arms length, arms set 1 (TMHP10E-9) | 65 mm (2.5 in) |
| Width of grip, arms set 1 | 50-110 mm (2-4.3 in) |
| Claw height | 8 mm (0.3 in) |
| Effective arms length, arms set 2 (TMHP10E-10) | 115 mm (4.5 in) |
| Width of grip, arms set 2 | 75-170 mm (2.9-6.7 in) |
| Claw height | 8 mm (0.3 in) |
Strong Back Puller Specifications
| Maximum reach | 250 mm (9.8 in) |
| Shaft diameter range | 20 - 100 mm (0.8 - 4 in) |
Publications
| Product data sheet | TMHC 110E (291.5 KB) |
| Instructions for use | TMHC 110E (2.8 MB) |
Spare Parts
| Designation | Description |
|---|---|
| TMHP 10E-5 | Four arm stand with bolts and nuts for TMHP 10E and TMHC 110E |
| TMHP 10E-9 | Arm for TMHC 110E, 140 mm long |
| TMHP 10E-10 | Arm for TMHP 10E and TMHC 110E, 190 mm long |
| TMBS 100E-1 | Beam for TMBS 100E and TMHC 110E |
| TMBS 100E-2 | Main rods with washers and nuts for TMBS 100E, 150E and TMHC 110E |
| TMBS 100E-3 | Extension rod for TMBS 100E, 150E and TMHC 110E, 125 mm long |
| TMBS 100E-5 | Separator with bolts and nuts for TMBS 100E and TMHC 110E |
| TMHS 100 | Advanced hydraulic spindle, 100 kN |
| TMHS 100-1 | Advanced hydraulic spindle, 100 kN, spindle only |
| TMHS 8T | Set of extension pieces and nose piece for TMHS 100 and 8E |
