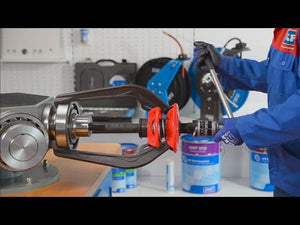

Safe and simple bearing dismounting

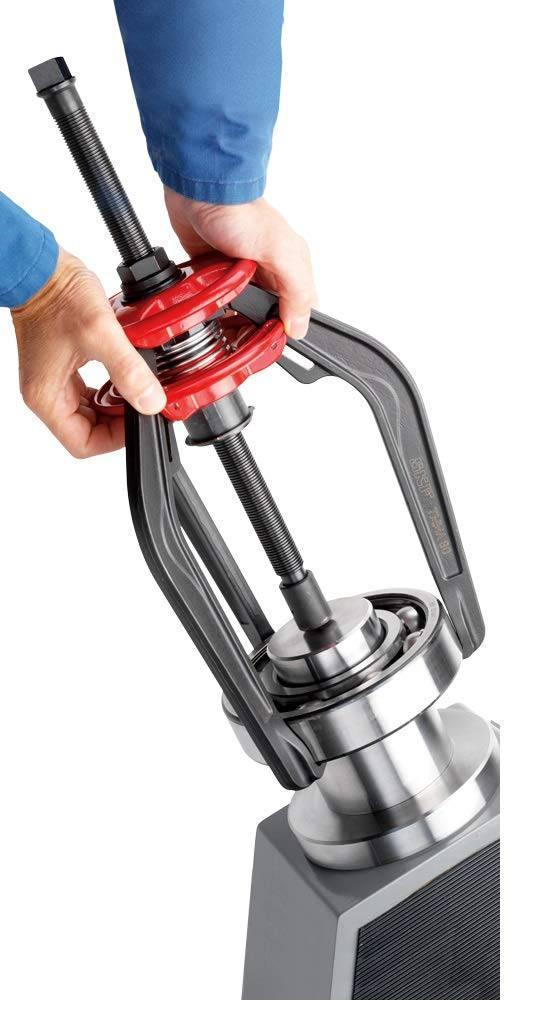

Equipped with spring-operated arms and a solid design, the SKF EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.

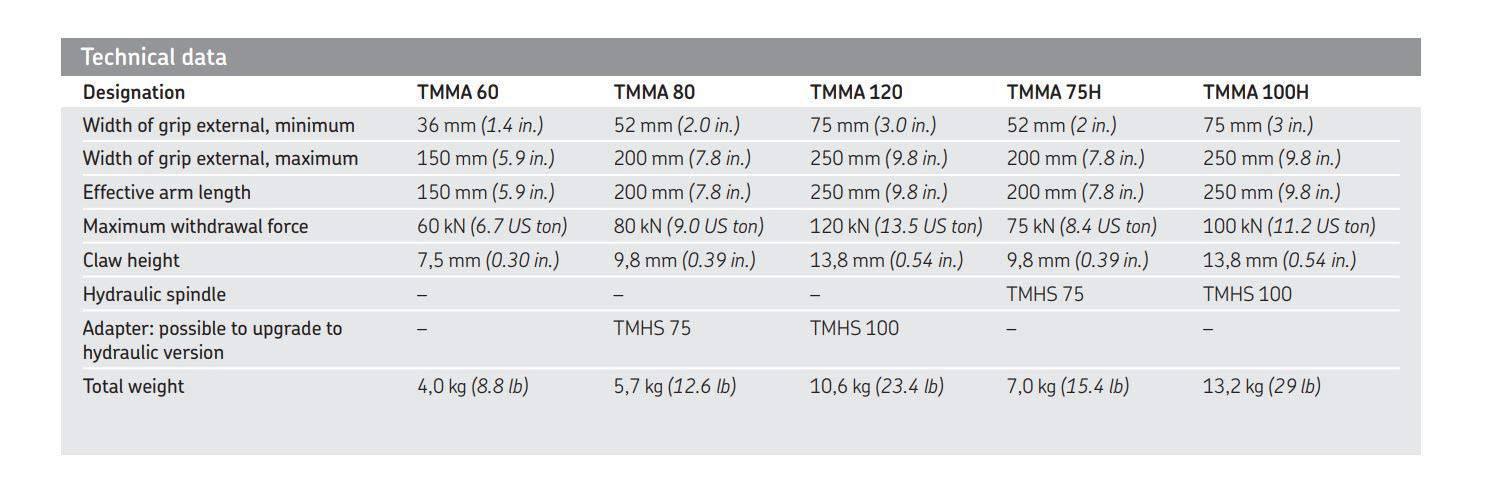

TMMA 80 Puller Technical Data

Category	Property	Value
General	Width of grip external, minimum	52 mm (2.0 in.)
	Width of grip external, maximum	200 mm (7.8 in.)
	Effective arm length	200 mm (7.8 in.)
	Maximum withdrawal force	80 kN (9.0 ton US)
	Total weight	5.7 kg (12.6 lb)
Claw dimensions	Claw height	9.8 mm (0.39 in.)
	Claw length	18 mm (0.7 in.)
	Claw width	28 mm (1.1 in.)
Force generators	Hexagon on puller or adapter	30 mm
	Hexagon on mechanical spindle	22 mm
	Max torque	175 Nm (125 lbf ft)
Other	Diameter nose piece	26 mm (1.0 in.)
Other	Adapter: possible to upgrade to hydraulic version	Yes
