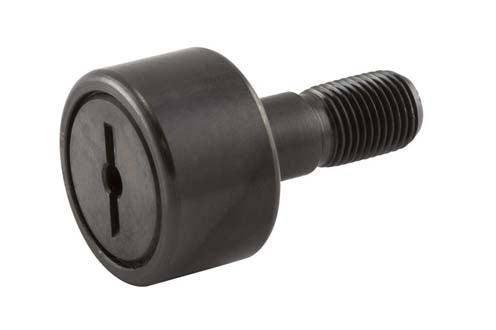

Description

Roller Shape	Flat
Roller Diameter	1.3750 in
Roller Width	0.7500 in
Roller Material	Chrome Steel
Bearing Element	Needle Rollers
Stud Diameter	0.5000 in
Stud Length	1.2500 in
Closure Type	Open
Head Type	Slotted Head
Thread Size	1/2-20
Operating Temperature Range	Maximum of +225 °F
Radial Dynamic Load Capacity	5240 lbf
Radial Static Load Capacity	6810 lbf
Maximum RPM	2600 rpm
Lubrication Hole Location	Inner Ring
Finish/Coating	Oxide
Standards Met	ANSI/ABMA Std. 18.2
Weight	0.37 lbs
