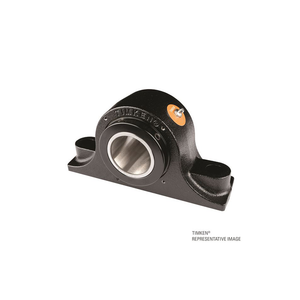

Timken E-P2B-TRB-2 Pillow Block Assembly – Type E Tapered Roller Bearing Housed Unit, 2-Bolt Base, Cast Iron Housing, High-Performance Seals, E-Coated Housing and Collar.
- Regular price
- $444.00
- Sale price
- $444.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Heavy-duty housings for maximum strength and rigidity
- Factory-greased and sealed for minimal maintenance
- High-temperature and corrosion-resistant options available
- Interchangeable with most industry-standard units
Description
Timken Mounted Bearings
Timken Mounted Bearings are engineered for long-lasting performance and reliability in demanding industrial applications. Each unit combines a precision-manufactured bearing insert with a robust housing to provide a ready-to-install solution that withstands heavy loads, vibration, and harsh operating environments.
Built with premium steel components, Timken mounted units deliver superior corrosion resistance, optimized sealing protection, and extended service life. Available in pillow block, flange, take-up, and other configurations, these bearings simplify installation and alignment while reducing maintenance downtime.
Ideal for conveyors, material handling systems, agricultural equipment, and manufacturing machinery, Timken Mounted Bearings ensure dependable operation where uptime and precision matter most.
Specifications
Key Dimensions
| Bore Diameter | 2 in |
| Bolt Center To Center Length | 7.0000 in |
| Base To Bore Centerline | 2.2500 in |
| Overall Length | 8.8750 in |
| Overall Height | 4.5000 in |
| Base Width | 2.5000 in |
| Overall Width | 3.5000 in |
| Bolt Size | 0.6250 in |
Performance
| Radial Dynamic Load Capacity | 10300 lbf |
| Radial Static Load Capacity | 43000 lbf |
| Max RPM | 2590 rpm |
| Operating Temperature Range | -30 to +180 °F |
Properties
| Product Type | Pillow Block Roller Bearing Units |
| Type Of Bearing | Tapered Roller |
| Bore Type | Round |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
| Housing Construction | Solid |
| Duty Type | Heavy Duty |
| Bearing Material | Bearing Steel |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Finish Coating | E-coat |
| Seal Type | Triple Barrier Seal |
| Lubrication Type | Lubrication Fitting |
| Mounting Type | 2-Bolt Base |
| Number Of Mounting Holes | 2 |
| Special Features | Snap Ring on OD |
| Standards Met | ANSI/ABMA, ISO |
| Weight | 11.81 lbs |
| Manufacturer UPC Number | 053893593944 |
