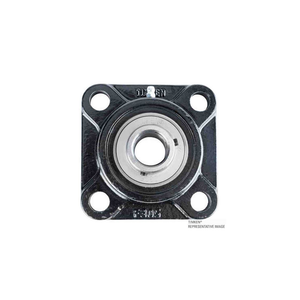

Timken UCF215-48 Four-Bolt Flanged Ball Bearing Unit, 3in Bore, Set Screw Lock.
- Regular price
- $354.00
- Sale price
- $354.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Heavy-duty housings for maximum strength and rigidity
- Factory-greased and sealed for minimal maintenance
- High-temperature and corrosion-resistant options available
- Interchangeable with most industry-standard units
Description
Timken Mounted Bearings
Timken Mounted Bearings are engineered for long-lasting performance and reliability in demanding industrial applications. Each unit combines a precision-manufactured bearing insert with a robust housing to provide a ready-to-install solution that withstands heavy loads, vibration, and harsh operating environments.
Built with premium steel components, Timken mounted units deliver superior corrosion resistance, optimized sealing protection, and extended service life. Available in pillow block, flange, take-up, and other configurations, these bearings simplify installation and alignment while reducing maintenance downtime.
Ideal for conveyors, material handling systems, agricultural equipment, and manufacturing machinery, Timken Mounted Bearings ensure dependable operation where uptime and precision matter most.
Specifications
Key Dimensions
| Bore Diameter | 3 in |
| Bolt Center To Center Length | 6.2656 in |
| Overall Length Diameter | 7.8750 in |
| Overall Width | 3.0938 in |
| Length Through Bore | 3.0600 in |
| Bolt Size | 0.6250 in |
Performance
| Radial Dynamic Load Capacity | 67.4 kN |
| Radial Static Load Capacity | 48.3 kN |
| Lubrication Type | Relubricatable |
Properties
| Product Type | Flange-Mount Ball Bearing Units |
| Type Of Bearing | Ball |
| Bore Type | Straight |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
| Bearing Material | Bearing Steel |
| Cage Material | Steel |
| End Type | Open |
| Mounting Type | 4-Bolt Flange |
| Series | UCF |
| Replacement Bearing | UCF215-48 |
| Weight | 14.1 lbs |
| Manufacturer UPC Number | 087796073937 |
