SKF TKSA 71 Shaft Alignment Tool - Precision and Reliability for Optimal Machinery Performance
Brand:
SKF
- Regular price
- $10,910.00
- Sale price
- $10,910.00
- Regular price
-
$14,326.24
Shipping calculated at checkout.
Free shipping on orders over $100
Use code at checkout.
FREESHIP
1 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Need Help?
Call us 1 (248) 429-9073
Oxford, Michigan
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features

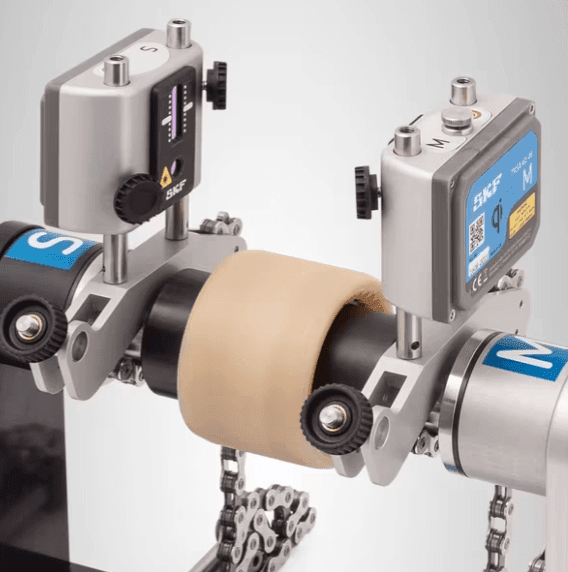

- High-Precision Laser Alignment: The TKSA 71 uses dual laser and sensor technology to provide highly accurate shaft alignment measurements. This ensures precise results that enhance the performance and longevity of machinery.

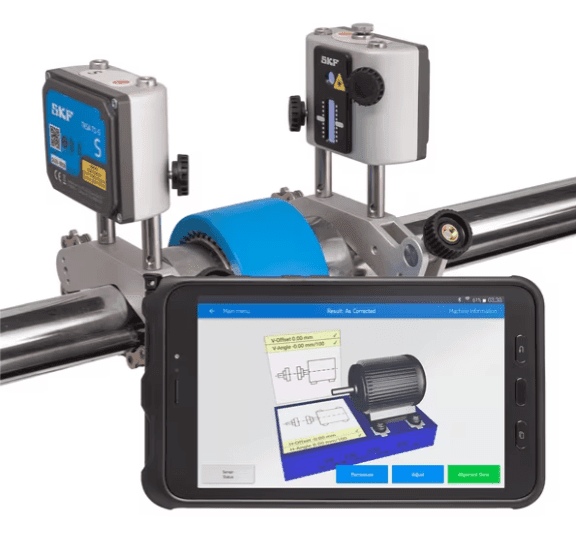

- User-Friendly Operation: Equipped with an intuitive interface and guided workflows, the TKSA 71 simplifies complex alignment tasks. Its large, high-resolution touchscreen display makes it easy to visualize and interpret data.

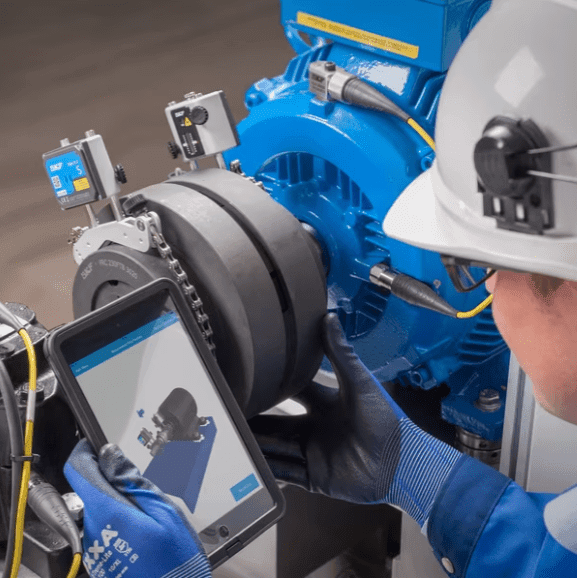

- Versatile Alignment Applications: The tool supports a wide range of alignment applications, including horizontal, vertical, and flange-mounted machinery. It is suitable for motors, pumps, fans, gearboxes, and more.
- Wireless Connectivity: The TKSA 71 features wireless communication between its measuring units, eliminating cable clutter and allowing for more flexible and efficient alignment in confined spaces.
- Powerful Software Integration: With SKF’s advanced alignment software, users can store, analyze, and share alignment reports digitally. The software ensures compliance with alignment standards and provides actionable insights.
- Robust and Durable Design: Built to withstand harsh industrial environments, the TKSA 71 is resistant to dust, water, and impacts, making it a reliable tool for demanding maintenance tasks.
- Live Feedback and Adjustment: The tool provides real-time feedback during alignment, enabling precise adjustments and significantly reducing the time required for alignment tasks.

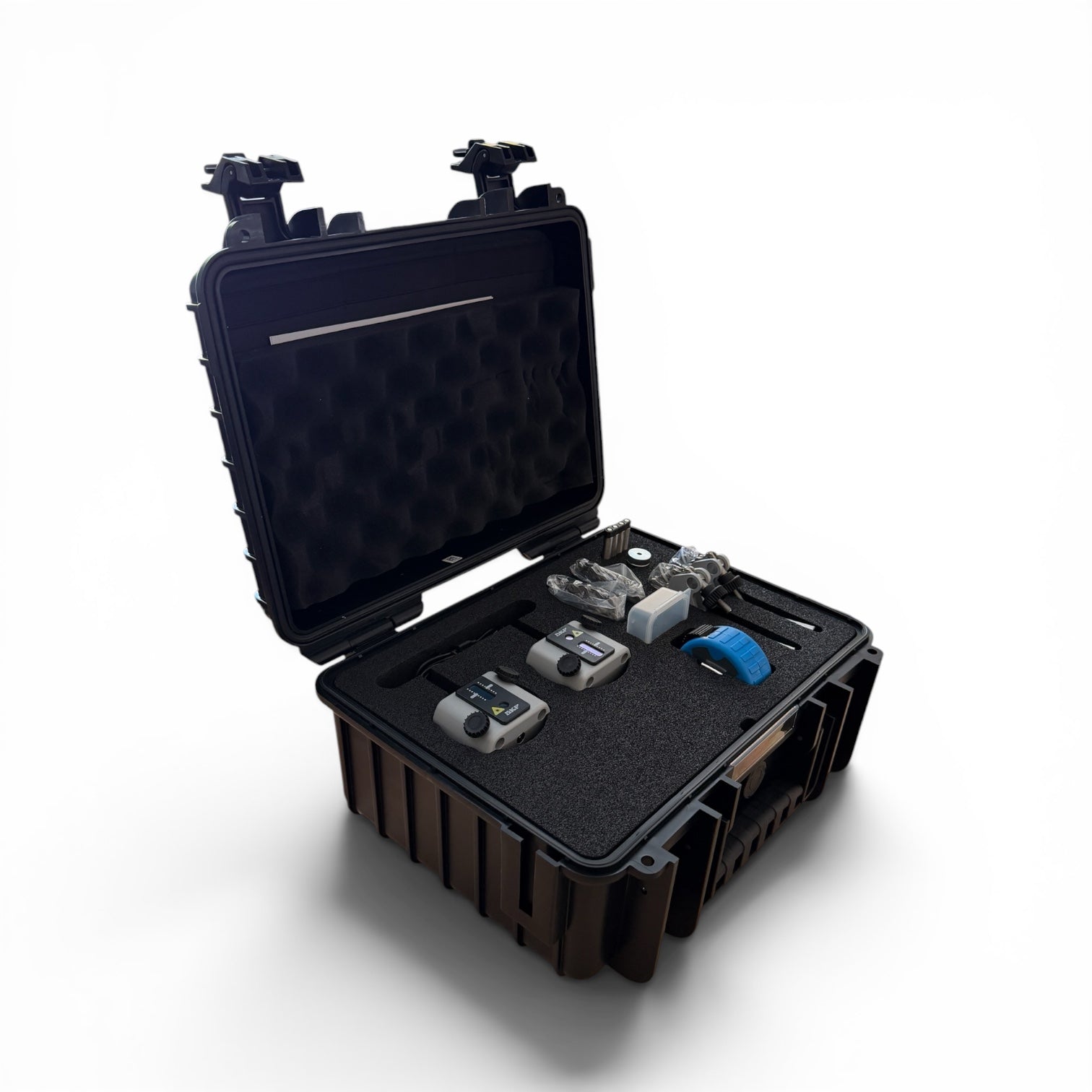

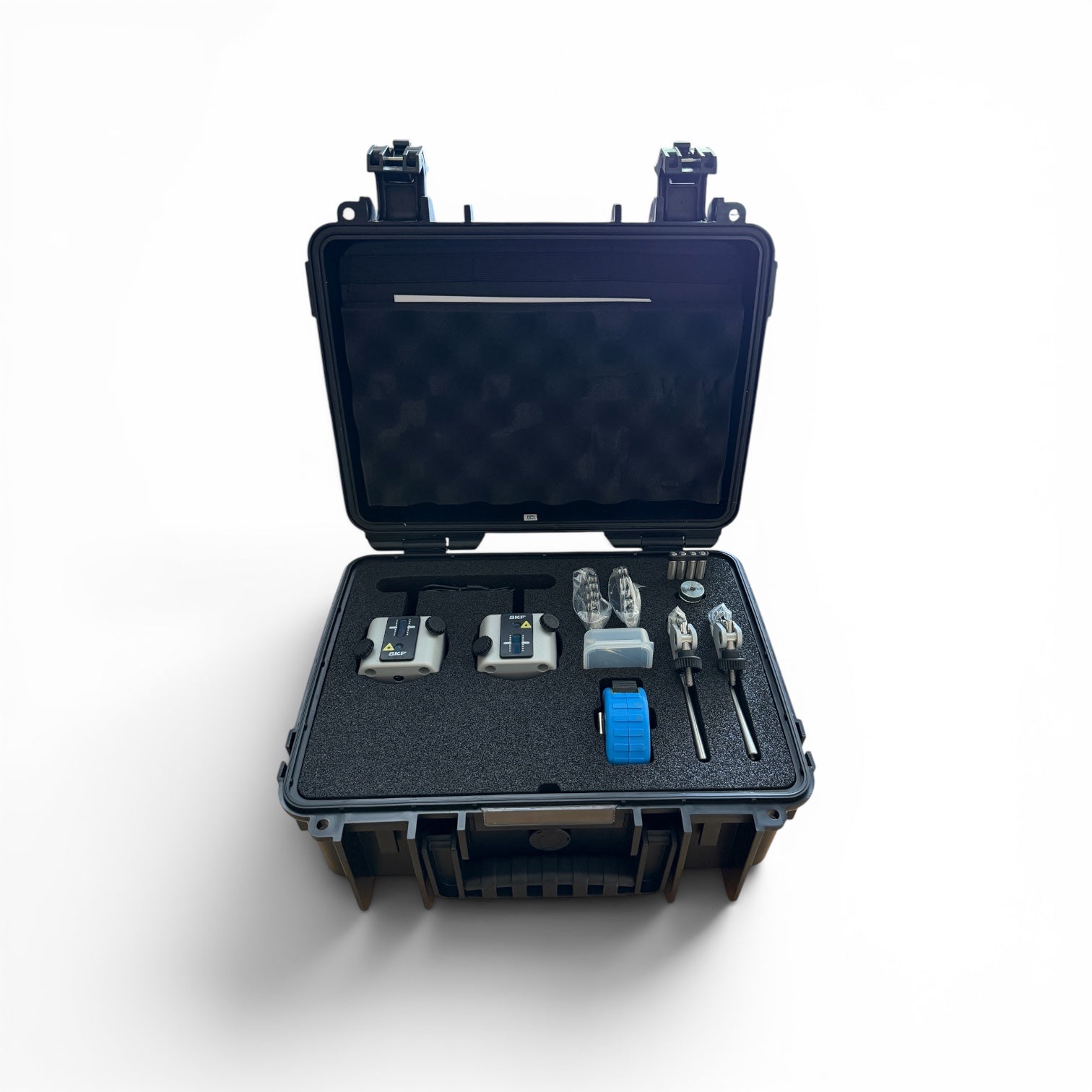

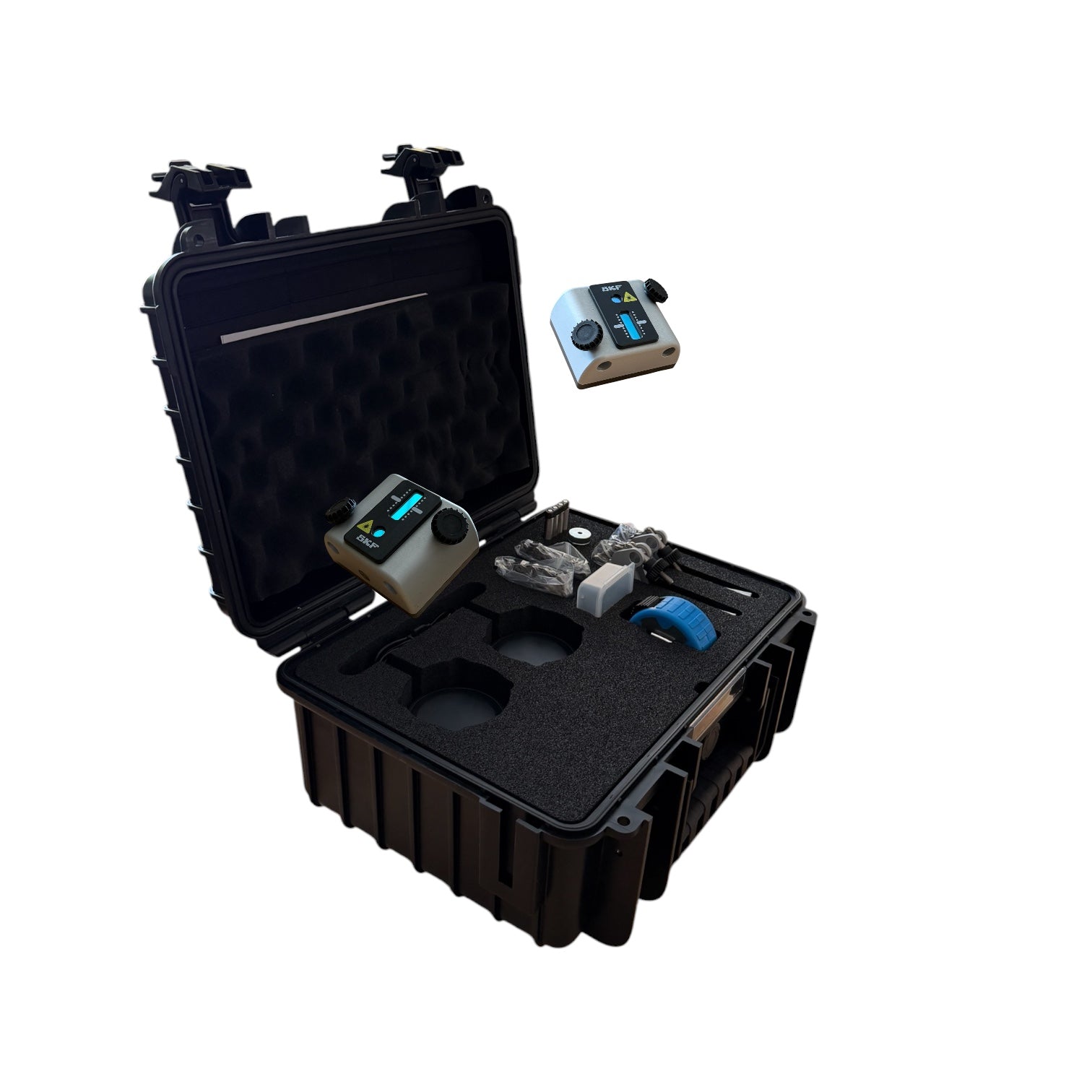

WHAT'S INCLUDED
-
2 x TKSA 71 measuring units (M & S)
-
2 x Standard V-brackets with chains 480 mm (18.9 in.), rods 80 mm (3.1 in.) and magnets
-
2 x Extensions chains 1m (3.3 ft.)
-
1 x USB to Micro USB split charging cable
-
2 x Wireless charging pads
-
1 x Measuring tape 5 m (16.4 ft.)
-
1 x Printed certificate of calibration and conformance
-
1 x Printed quick start guide (English)
-
8 x Extension rods 120 mm (4.7 in.)
-
2 x Magnetic bases (TKSA MAGBASE)
-
2 x Sliding brackets (TKSA 51-SLDBK)
-
2 x Offset brackets 50 mm (2 in.)
-

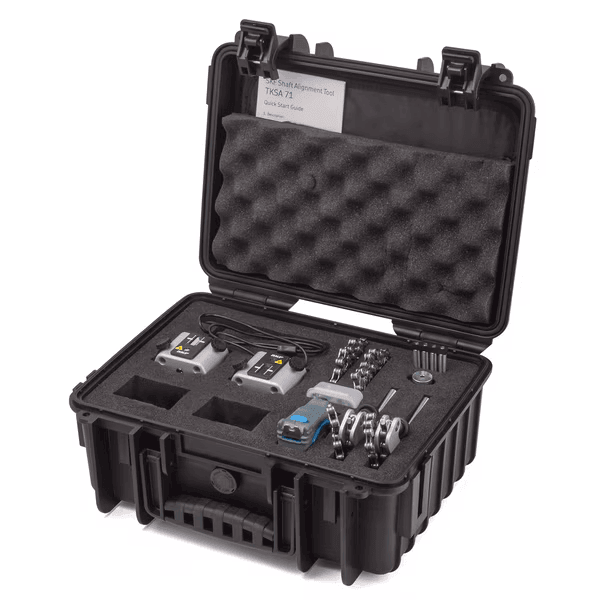

1 x Large, rugged trolley case (IP67), 610 x 430 x 265 mm (24 x 16.9 x 10.4 in.)
Description
Designed for professional alignment in harsh industrial environments, the TKSA 71 complements SKF’s offering with a high-end shaft alignment tool. The instrument is very versatile with ultra-compact measuring units for use in extremely narrow spaces. Its dedicated software applications enable different types of alignments, including horizontal and vertical shafts, spacer shafts and machine trains. Superior alignment performance and long-term industrial durability are achieved with an innovative instrument design that offers high measurement accuracy and excellent protection against dust and water in harsh environments.
Specifications
| Designations | TKSA 71, TKSA 71/PRO |
| Sensors and communication | 20 mm (0.8 in) 2nd gen. PSD with line laser Class 2 Inclinometer ±0.1° Bluetooth 4.0 LE |
| System measuring distance | 0.04 to 10 m (0.13 to 32.8 ft) |
| Measuring errors | <1% ±10 µm |
| Housing material | Anodized aluminum front and PC/ABS plastic back cover |
| Operating time | Up to 8 hours, rechargeable Li-ion battery, wireless fast charging, 10 min. charging for 1h usage |
| Dimensions | 52 × 64 × 33 mm (2.1 × 2.5 × 1.3 in.) |
| Weight | 130 g (0.3 lbs) |
| Operating device | iPad Mini recommended iPad, iPod Touch, iPhone SE, Galaxy devices |
| Software/App update | Apple AppStore or on Google Play store |
| Operating system requirements | Apple iOS 9 or Android 9 (and above) |
| Alignment method | Alignment of horizontal and vertical shafts, 3 position measurement 9-12-3, automatic measurement, measurement (with min. 40° rotation), soft foot, machine trains, values, spacer shafts |
| Live correction values | Vertical and horizontal |
| Extra features | Machine library, QR code reading, target values, disturbance compensation, 3D machine free view, screen rotation on tablets, automatic .pdf report |
| Fixture | 2 × V-brackets with chains, width 15 mm (0.6 in.) |
| Shaft diameters | 20 to 150 mm diameter (0.8 to 5.9 in.), 450 mm (17.7 in.) with extension chains (included) |
| Max. coupling height | 45 mm (1.8 in.) with standard rods plus 120 mm (4.7 in.) per set of extension rods |
| Power adapter | Wireless charging via supplied charging pods Micro USB to USB split charging cable supplied |
| Operating temperature | 0 to 45 °C (32 to 113 °F) |
| IP rating | IP67 for measuring units and carrying case |
| Carrying case dimensions | TKSA 71: 365 × 295 × 170 mm (14.4 × 11.6 × 6.7 in.) TKSA 71/PRO: 610 × 430 × 265 mm (24 × 16.9 × 10.4 in.) |
| Total weight (incl. case) | TKSA 71: 3.9 kg (8.6 lb) TKSA 71/PRO: 12.5 kg (27.6 lb) |
| Calibration certificate | Supplied with 2 years validity |
Spare Parts - TKSA 71
| Designation | Description |
|---|---|
| TKSA 71-M | 1x Measuring unit for "M" movable side (including calibration certificate) |
| TKSA 71-S | 1x Measuring unit for "S" stationary side (including calibration certificate) |
| TKSA 71-WPODS | 2x Wireless charging pods incl. split USB cable for TKSA 71 and 71/PRO |
| TKSA 51-VBK | 1 × Standard V-bracket, supplied with 2x threaded rods of 80 mm (3.2 in.), 1x standard chain of 480 mm (18.9 in.) and 4 × magnets |
| TKSA 51-EXTCH | 2 × Extension chains of 1 m (3.3 ft.) for shaft diameters up to 450 mm (17.7 in.) |
| TKSA 51-ROD80 | 4 × threaded rods of 80 mm (3.1 in.) |
| TKSA 51-ROD120 | 4 × threaded rods of 120 mm (4.7 in.) |
Compare SKF Alignment Tools
| Product |
SKF TKSA 11 - Affordable Advanced Laser Shaft Alignment Tool System
|
SKF TKSA 31 Shaft Alignment Tool - Precision, Efficiency & Durability
|
SKF TKSA 41 Advanced Shaft Alignment Tool – High-Precision Laser Alignment
|
SKF TKSA 51 Shaft Alignment Tool – Laser Precision and Efficiency for Optimal Performance
|
SKF TKSA 71 Shaft Alignment Tool - Precision and Reliability for Optimal Machinery Performance
Vendor:
SKF TKSA 71 Shaft Alignment Tool - Precision and Reliability for Optimal Machinery Performance
|
| Availability | Availability: In stock | Availability: In stock | Availability: In stock | Availability: In stock | Availability: In stock |
| User Interface | User Interface: iOS & Android | User Interface: Touch screen | User Interface: Touch screen | User Interface: iOS & Android | User Interface: iOS & Android |
| Measurement Distance | Measurement Distance: 18,5 cm | Measurement Distance: 2 m* | Measurement Distance: 4 m | Measurement Distance: 5 m | Measurement Distance: 10 m |
| Type of Display Device | Type of Display Device: Phone, Tablet | Type of Display Device: Display device | Type of Display Device: Display device | Type of Display Device: Phone, Tablet | Type of Display Device: Phone, Tablet |
| Display Device Included | Display Device Included: false | Display Device Included: true | Display Device Included: true | Display Device Included: false | Display Device Included: false |
| Measurement Positions | Measurement Positions: 9/12/2003 | Measurement Positions: 9/12/2003 | Measurement Positions: Free | Measurement Positions: Free | Measurement Positions: Free |
| Wireless Measuring Heads | Wireless Measuring Heads: YES | Wireless Measuring Heads: NO | Wireless Measuring Heads: YES | Wireless Measuring Heads: YES | Wireless Measuring Heads: YES |
| Minimal Shaft Rotation | Minimal Shaft Rotation: 180° | Minimal Shaft Rotation: 140° | Minimal Shaft Rotation: 90° | Minimal Shaft Rotation: 40° | Minimal Shaft Rotation: 40° |
| Machine View | Machine View: Fixed 2D view | Machine View: Fixed 3D view | Machine View: Fixed 3D view | Machine View: Free 3D rotation | Machine View: Free 3D rotation |
| Vertical Shaft Alignment | Vertical Shaft Alignment: NO | Vertical Shaft Alignment: NO | Vertical Shaft Alignment: NO | Vertical Shaft Alignment: YES | Vertical Shaft Alignment: YES |
| Soft Foot Correction | Soft Foot Correction: NO | Soft Foot Correction: YES | Soft Foot Correction: YES | Soft Foot Correction: YES | Soft Foot Correction: YES |
| Spacer Shaft | Spacer Shaft: NO | Spacer Shaft: NO | Spacer Shaft: NO | Spacer Shaft: NO | Spacer Shaft: YES |
| Digital Dial Gauge Mode | Digital Dial Gauge Mode: NO | Digital Dial Gauge Mode: NO | Digital Dial Gauge Mode: NO | Digital Dial Gauge Mode: NO | Digital Dial Gauge Mode: YES |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
