Key Features
- Two-piece (split) clamping shaft collar, inch series, mechanical self-locking design
- Carbon steel collar with hardened alloy socket head cap screw fastener
- Black oxide coating with wax finish for corrosion resistance
- Infinite axial adjustment for locating bearings and power-transmission components
- Installs and repositions without removing other components from the shaft
- More secure than set-screw collars; resists loosening from vibration, shock, and torque
- Eliminates the need to cut or repair a shaft keyway; effective on soft and hardened shafts
- Maximum operating temperature 300°F
- Manufactured in the USA and RoHS compliant
Description

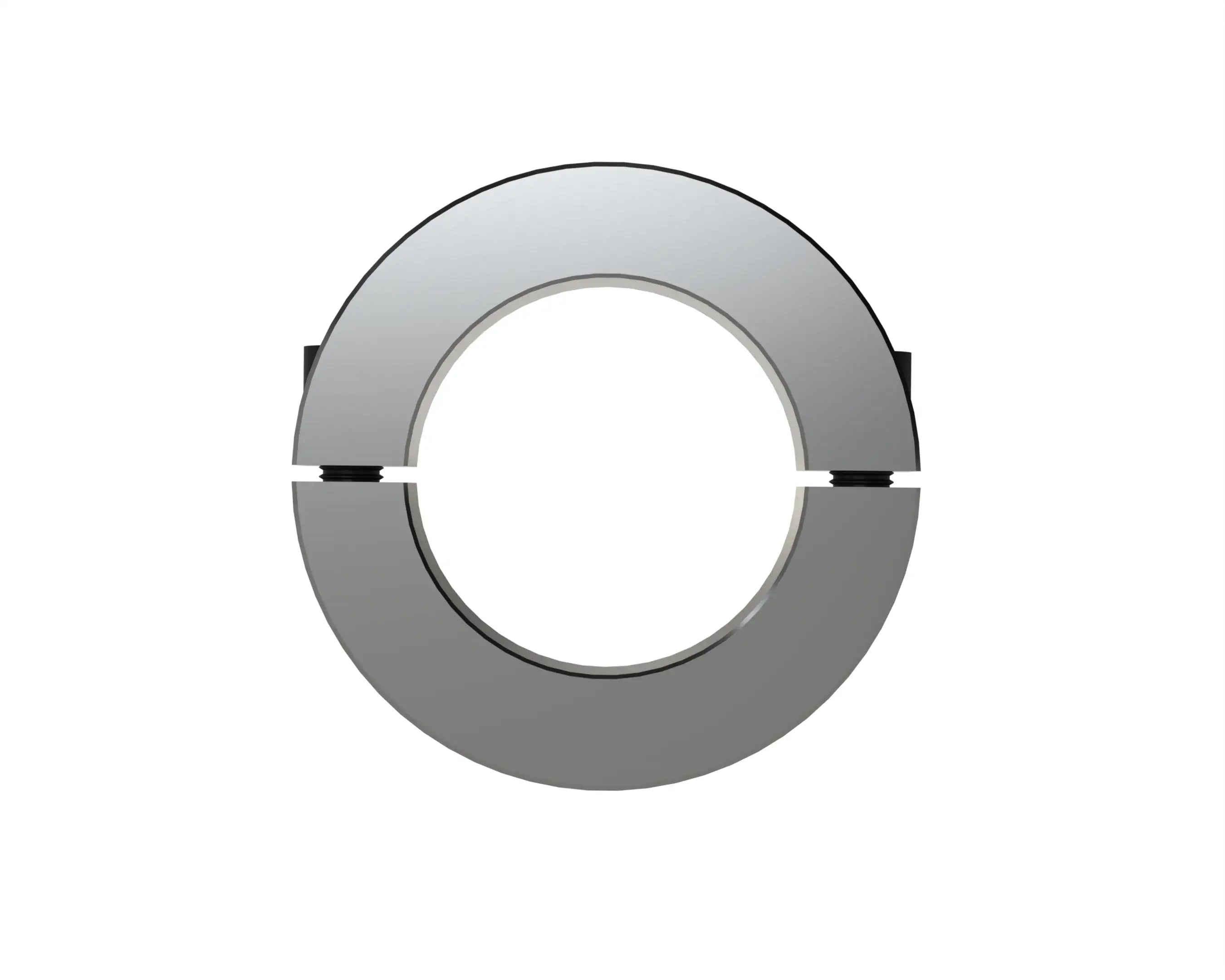

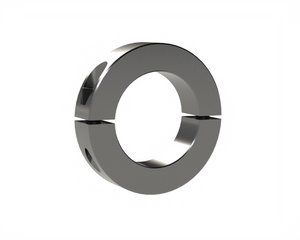

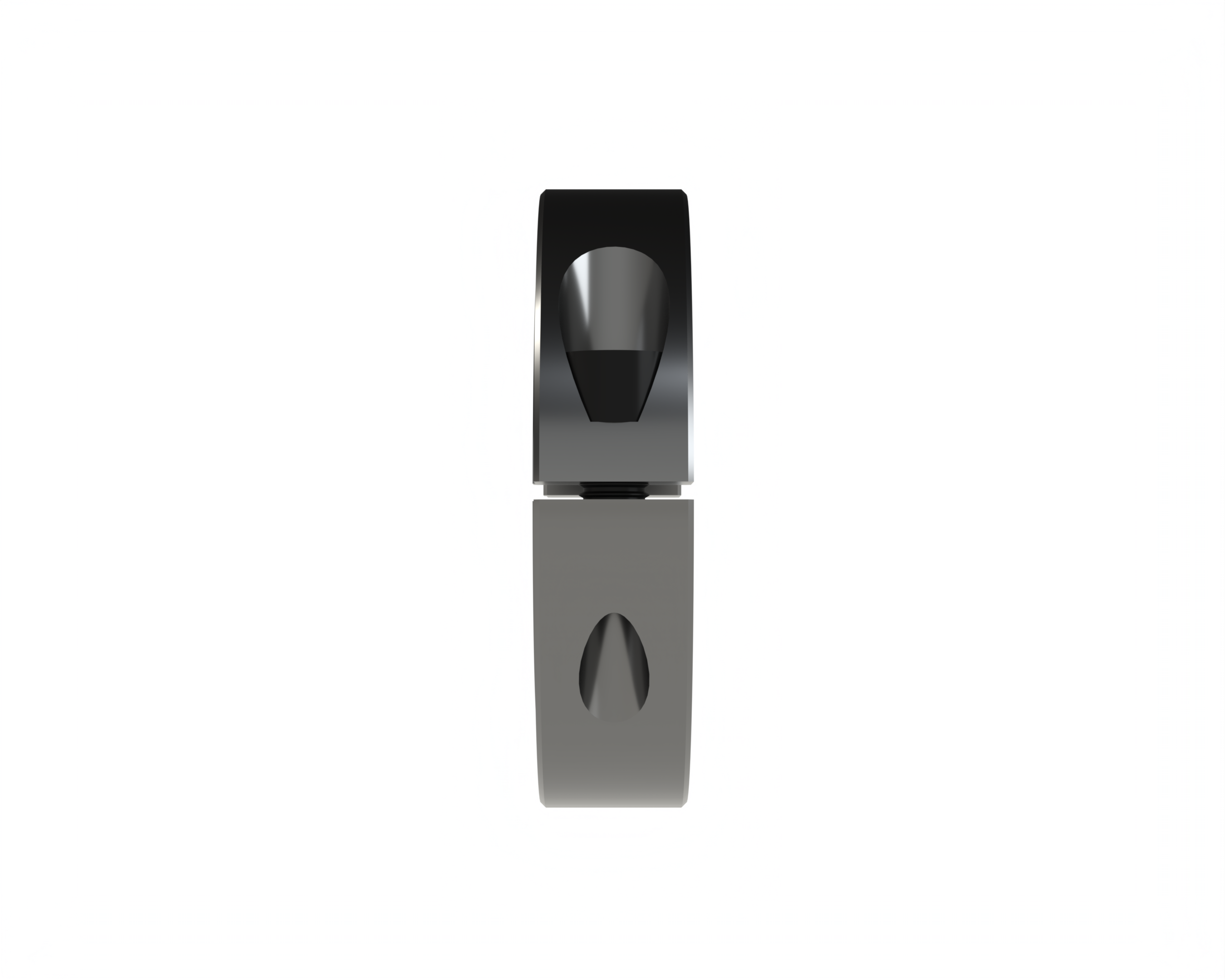

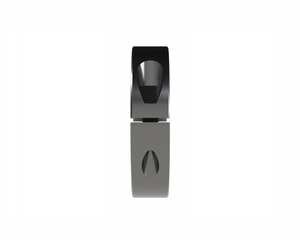

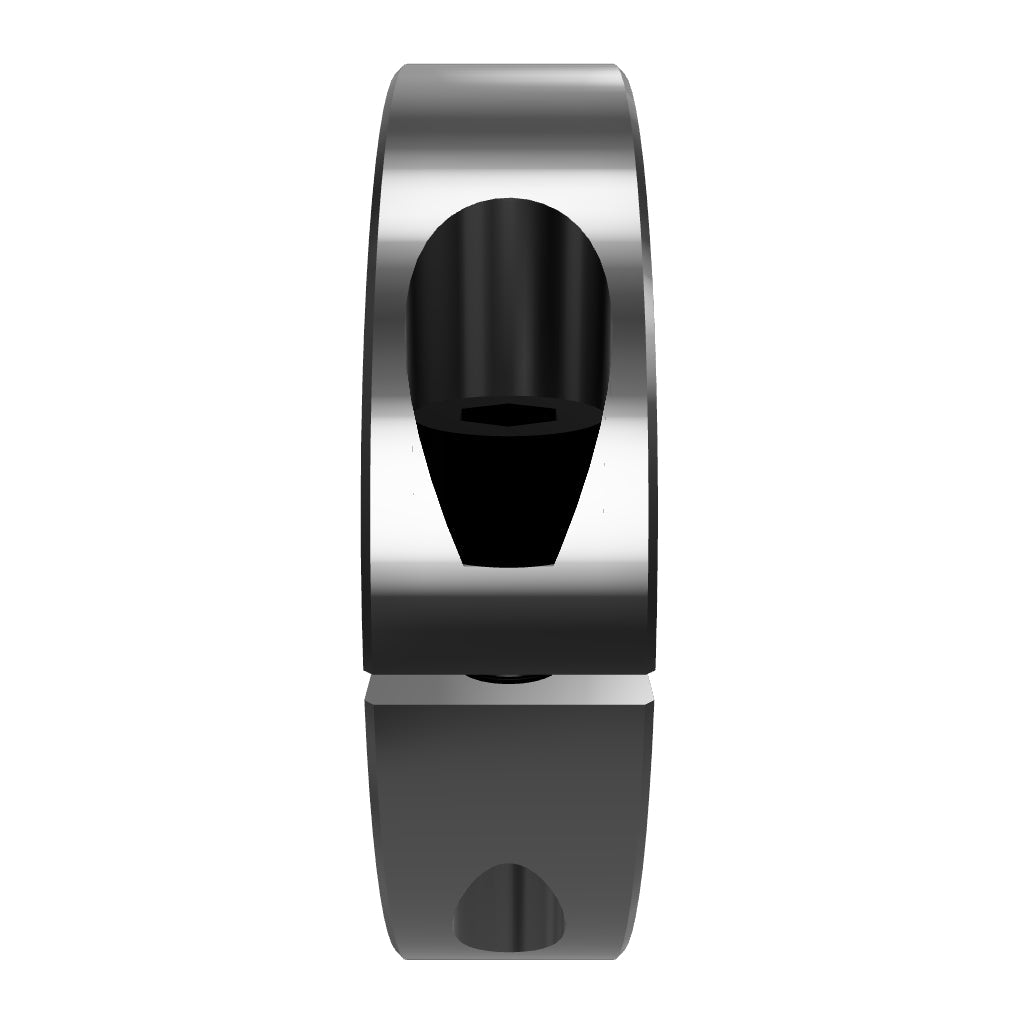

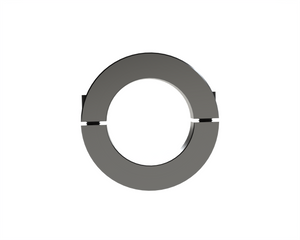

The Whittet-Higgins SC-19 is a two-piece (split) shaft collar machined to inch dimensions, used to create infinitely adjustable shaft stops, shoulders, and axial location of bearings and other power-transmission components. Its clamshell design assembles around the shaft and is drawn tight by hardened alloy socket head cap screws, so it can be installed or repositioned without removing adjacent components from the shaft.
This mechanical self-locking clamp grips both soft and hardened shafts far more securely than a set-screw collar, resisting loosening from vibration, shock, and torque while eliminating any need to cut or repair a shaft keyway. The carbon steel collar carries a black oxide coating with a wax finish for corrosion protection and pairs with a hardened alloy fastener tightened to the suggested torque for its size.
SC-19 is manufactured in the USA and is RoHS compliant, with a maximum operating temperature of 300°F.
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Specifications
SC-19
| Specification | Value |
|---|---|
| Series | Whittet-Higgins SC Series |
| Bore Size | 1.188 in (30.18 mm) |
| Outside Diameter | 2.063 in (52.4 mm) |
| Width | 0.5 in (12.7 mm) |
| Clamp Screw | 1/4-28 |
| Suggested Tightening Torque | 150 in-lb |
| Theoretical Axial Holding Capacity | 1845 lbf |
| Material | Carbon Steel (alloy fastener) |
| Standard | Mechanical Self-Locking |
| Weight (approx.) | 0.28 lb (127.006 g) |
| Country of Origin | USA |
