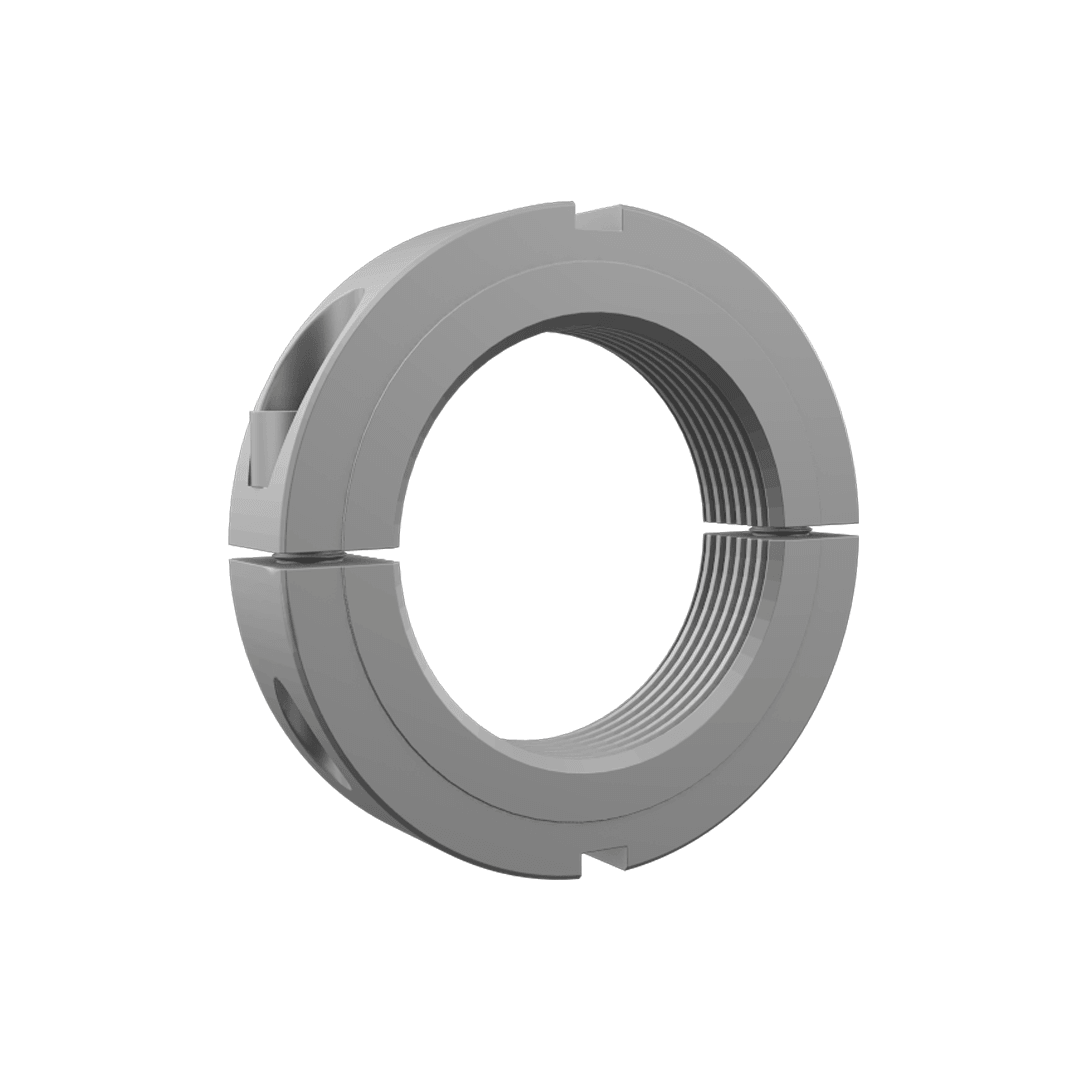

Whittet higgins SNF22-12 Splitnut UNF Fine Thread - Steel
- Regular price
- $55.67
- Sale price
- $55.67
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
| Quantity | Discount |
|---|---|
| 1 Unit | No Discount |
| 20-49 Units | 5% |
| 50-99 Units | 8% |
| 100-199 Units | 15% |
| 200-499 Units | 18% |
| 500+ Units | 25% |
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policy
Key Features
- Two-piece splitnut design, fine thread form, for increased assembly holding power
- Mechanical self-locking via a tangential (X-axis) socket-head cap screw clamp — no lockwasher required
- Greater axial strength and finer adjustment than the coarse-thread SNC series
- Infinite adjustment and preloading capacity; locks and adjusts without damaging shaft threads
- Installs onto the shaft without removing existing power-transmission components or machining a keyway
- Base threaded nut in carbon steel with black-oxide and wax finish; hardened alloy fastener (stainless steel option available)
- Maximum operating temperature 300 degrees F
- Manufactured in the USA and RoHS compliant
Description
The Whittet-Higgins SNF22-12 is a two-piece, fine-thread splitnut that provides mechanical self-locking retention for threaded shafts and bearing assemblies. The split-nut body is drawn together by a tangential (X-axis) socket-head cap screw, clamping it onto the shaft threads to lock and preload the assembly without a separate lockwasher or keyway. It can be installed onto the shaft without removing existing power-transmission components and will not damage the shaft threads when secured.
The fine-thread form delivers greater axial holding strength and finer assembly adjustment than the coarse-thread SNC series, with infinite adjustment and preloading capacity. The base threaded nut is carbon steel with a black-oxide and wax finish for corrosion protection (a stainless steel version is also offered), and it is rated for a maximum operating temperature of 300 degrees F. Manufactured in the USA and RoHS compliant.
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Specifications
SNF22-12
| Specification | Value |
|---|---|
| Series | Whittet-Higgins SNF Series |
| Thread | 1.375-12 |
| Nominal Thread Diameter | 1.375 in (34.92 mm) |
| Outside Diameter | 2.25 in (57.15 mm) |
| Face Diameter | 1.719 in (43.66 mm) |
| Width | 0.563 in (14.3 mm) |
| Clamp Screw | 1/4-28 |
| Suggested Tightening Torque | 150 in-lb |
| Theoretical Axial Holding Capacity | 17000 lbf |
| Material | Carbon Steel (alloy fastener) |
| Standard | Mechanical Self-Locking |
| Weight (approx.) | 0.354 lb (160.572 g) |
| Country of Origin | USA |
