Whittet higgins SNF22-12S Splitnut UNF Fine Thread - Stainless Steel
- T 1.375-12
- D 2.250″
- B 0.563″
Genuine Whittet-Higgins product, Whittet-Higgins
- Regular price
- $130.20
- Sale price
- $130.20
- Regular price
-
Quantity pricingApplied at checkout
- 20–49 5% off$123.69 ea
- 50–99 8% off$119.78 ea
- 100–199 15% off$110.67 ea
- 200–499 18% off$106.76 ea
- 500+ 25% off$97.65 ea
Same-day shipping
Order by 3 PM ET for same-day shipping
Free shipping on orders over $100
Use code at checkout.
Why Apollo USA
Bearing locknuts and retaining parts from Apollo Industries, Oxford, Michigan
Apollo Industries supplies bearings, locknuts, lockwashers and maintenance tools to businesses across the US, with real people on the phone when you need a part matched.
-
Same-day shipping
Order by 3 PM EST for same-day shipping.
-
Free shipping over $100
All orders over $100 ship free by ground with code FREESHIP.
-
90-day returns
Hassle-free returns on unused items within 90 days.
-
Price match
Show us a competitor's advertised price on the same item and we will match it.
-
Expert support
Support staff available by phone, web chat or email.
-
Need tax exemption or quantity pricing?
We offer special rates for businesses and bulk orders.
Talk to a parts specialist
2695 Lake George RdOxford, MI 48370
Overview

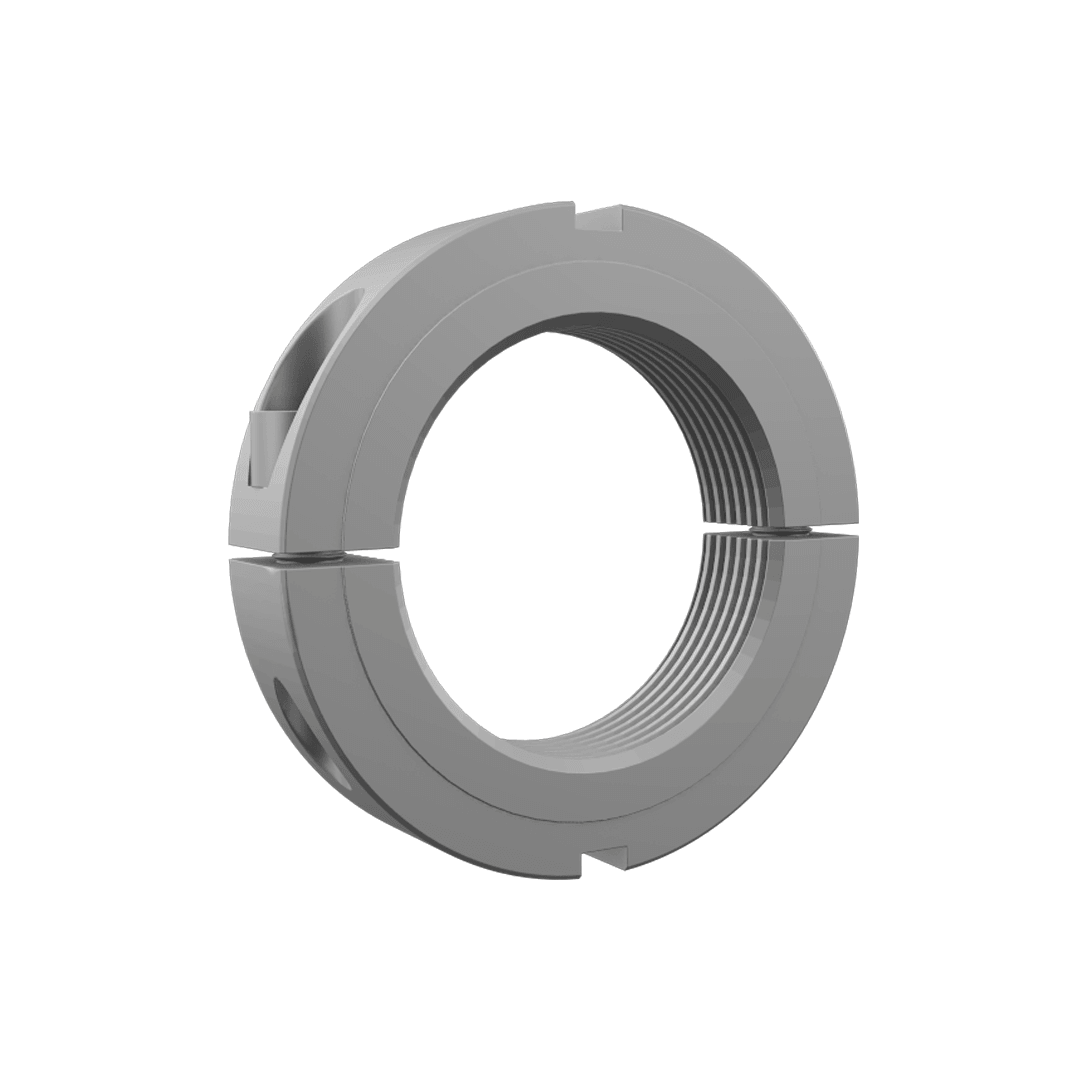

Whittet-Higgins SNF22-12S Splitnut
The Whittet-Higgins SNF22-12S is a two-piece, fine-thread splitnut that provides mechanical self-locking retention for threaded shafts and bearing assemblies. The split-nut body is drawn together by a tangential (X-axis) socket-head cap screw, clamping it onto the shaft threads to lock and preload the assembly without a separate lockwasher or keyway. It can be installed onto the shaft without removing existing power-transmission components and will not damage the shaft threads when secured.
The fine-thread form delivers greater axial holding strength and finer assembly adjustment than the coarse-thread SNC series, with infinite adjustment and preloading capacity. The base threaded nut is carbon steel with a black-oxide and wax finish for corrosion protection (a stainless steel version is also offered), and it is rated for a maximum operating temperature of 300 degrees F. Manufactured in the USA and RoHS compliant.
Key features
- Two-piece splitnut design, fine thread form, for increased assembly holding power
- Mechanical self-locking via a tangential (X-axis) socket-head cap screw clamp — no lockwasher required
- Greater axial strength and finer adjustment than the coarse-thread SNC series
- Infinite adjustment and preloading capacity; locks and adjusts without damaging shaft threads
- Installs onto the shaft without removing existing power-transmission components or machining a keyway
- Base threaded nut in carbon steel with black-oxide and wax finish; hardened alloy fastener (stainless steel option available)
- Maximum operating temperature 300 degrees F
- Manufactured in the USA and RoHS compliant
Specifications
Whittet-Higgins SNF22-12S dimensions & specifications
- PDFSNF22-12S part print (opens in a new tab)
- STEP3D CAD model (opens in a new tab)
- PDFSNF series spec sheet (opens in a new tab)
Files from Whittet-Higgins. They open in a new tab.
- Type
- Two-piece clampnut
- Thread T
- 1.375-12 (34.92 mm, 12 threads per inch)
- Outside diameter (max.) D
- 2.250 in (57.15 mm)
- Face diameter (max.) F
- 1.719 in (43.66 mm)
- Width (max.) B
- 0.563 in (14.30 mm)
- Theoretical axial load
- 37,100 lbf (165.0 kN)
- Socket head cap screw
- 1/4-28
- Suggested screw torque
- 21400 in-lb (2417.9 N·m)
- Material
- Stainless Steel
- Country of origin
- USA
- Series
- Two-piece clampnut SNF series (stainless)
- Weight
- 0.36 lb
- Brand
- Whittet-Higgins
- Part number
- SNF22-12S also written SNF2212S
- UPC / EAN
- 751968272229
Same size, other versions
Other versions of the SNF22-12S
The same size in other Whittet-Higgins series: left-hand thread, stainless steel, high strength, precision or self-locking designs.
-
Whittet-Higgins
SNF22-12Whittet higgins SNF22-12 Splitnut UNF Fine Thread - Steel
Two-piece clampnut SNF series (fine)
$55.67
In stock
-
Whittet-Higgins
CNF22-12Whittet Higgins CNF22-12 One Piece Clampnut UNF Fine Thread - Steel
One-piece clampnut CNF series (fine)
$17.01
In stock
-
Whittet-Higgins
CNF22-12AWhittet Higgins CNF22-12A One Piece Clampnut UNF Fine Thread - Aluminum
One-piece clampnut CNF series (aluminum)
$15.55
In stock
-
Whittet-Higgins
CNF22-12SWhittet Higgins CNF22-12S One Piece Clampnut UNF Fine Thread - Stainless Steel
One-piece clampnut CNF series (stainless)
$33.83
In stock
Part number explained
What every part of SNF22-12S means
- SNF
- Two-piece clampnut, Two-piece clampnut SNF series (stainless)
- 22-12
- Size 22-12: 1.375-12 thread
- S
- Stainless steel
Catalogs & documents
Whittet-Higgins SNF22-12S catalogs & documents
Official catalogs and data from the manufacturer. They open as PDFs in a new tab.
-
Catalog
Whittet-Higgins Handbook of Engineering & Design (rev. 2018) (opens in a new tab)
PDF · 93.0 MB · English
-
Mounting
Whittet-Higgins Assembly Instructions (opens in a new tab)
PDF · 0.2 MB · English
-
Safety
Whittet-Higgins Standard Statements: Prop 65, RoHS3, REACH (opens in a new tab)
PDF · 0.1 MB · English
About the brand
About Whittet-Higgins
Bearing locknuts, lockwashers and retaining devices from Rhode Island since 1914.
Henry Whittet and John Higgins founded the Whittet-Higgins Manufacturing Company in 1914 in the basement of a mill on Congress Avenue in Providence, Rhode Island, making super-precision bearing retaining components and machined parts for local machine builders such as Brown & Sharpe.
In 1967 the company was sold to a young mechanical engineer, and in 1969 it moved to 33 Higginson Avenue in Central Falls, Rhode Island, where it still makes its products. Its first line of 66 locknuts and lockwashers has grown to more than 4,300 standard parts, made on robotic CNC systems.
Besides the standard N/AN and KM locknuts with W and MB lockwashers, Whittet-Higgins makes its own self-locking designs: Bearhug prevailing-torque locknuts, Bearlok, Shoelok and Tangentlok clamping locknuts, clampnuts and splitnuts, plus adapter sets, clamp collars and installation tools. The company is family owned and operated.
Genuine Whittet-Higgins product from an authorized retailer
Founded
1914
Headquarters
Central Falls, Rhode Island, USA
Standard parts
More than 4,300
Made in
Central Falls, Rhode Island
Known for
- Bearing locknuts and lockwashers, inch and metric
- Bearhug self-locking locknuts
- Clampnuts, splitnuts and clamp collars
- Adapter sets and installation tools
Apollo Industries is an authorized Whittet-Higgins retailer. All Whittet-Higgins trademarks and product names are the property of their respective owners.
FAQ
SNF22-12S questions & answers
What size is the Whittet-Higgins SNF22-12S?
The Whittet-Higgins SNF22-12S is a two-piece clampnut. Thread: 1.375-12 (34.92 mm, 12 threads per inch). Outside diameter: 2.250 in (57.15 mm). Face diameter: 1.719 in (43.66 mm). Width: 0.563 in (14.30 mm). These are Whittet-Higgins' maximum sizes from its spec sheet.
What thread does the SNF22-12S fit?
The Whittet-Higgins SNF22-12S fits a 1.375-12 right-hand shaft thread (34.92 mm, 12 threads per inch).
Does the SNF22-12S need a lockwasher?
No. The Whittet-Higgins SNF22-12S locks itself: its two halves are clamped onto the thread with cap screws, so it also goes onto a shaft without taking other parts off. It needs no lockwasher and no keyway in the shaft.
What temperature can the SNF22-12S take?
Whittet-Higgins rates the Two-piece clampnut SNF series (stainless) for up to 300 °F (149 °C).
What is the SNF22-12S made of?
Base threaded nut: stainless steel; Fastener: stainless steel.
Is there a drawing or CAD model of the SNF22-12S?
Yes. Whittet-Higgins publishes a part print (PDF) and a 3D CAD model (STEP) for the SNF22-12S. The drawing on this page is made from the same catalog dimensions.
How do I install the SNF22-12S?
Follow Whittet-Higgins' assembly instructions for this part (PDF).
Is this a genuine Whittet-Higgins clampnut?
Yes. Apollo Industries is an authorized Whittet-Higgins retailer, and every Whittet-Higgins part we sell is genuine, made by Whittet-Higgins in Central Falls, Rhode Island, USA.
Do you ship the SNF22-12S the same day?
In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.
Can I get quantity pricing or buy tax-exempt?
Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.
