NSH / NSHM Series SHOELOK Locknuts

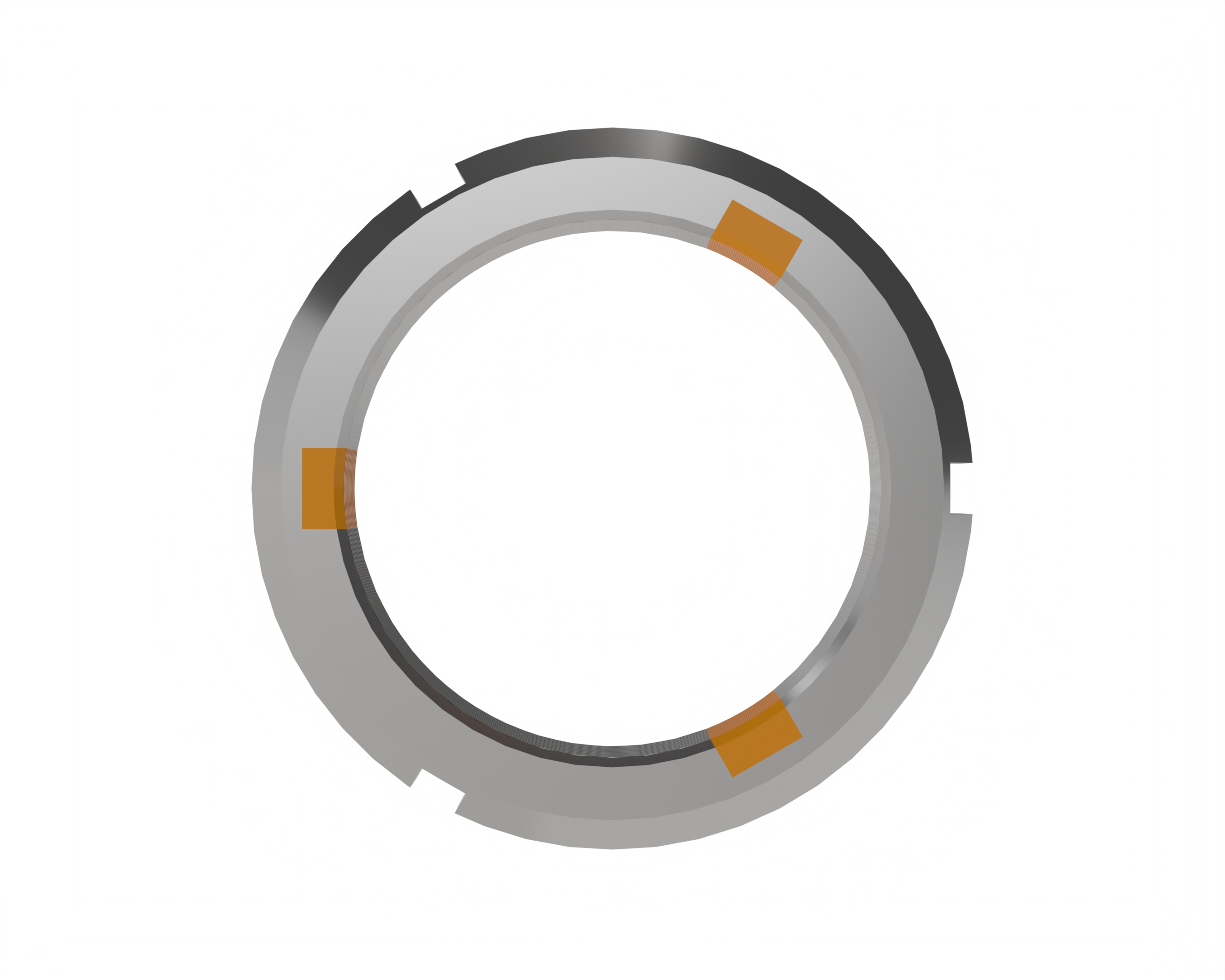

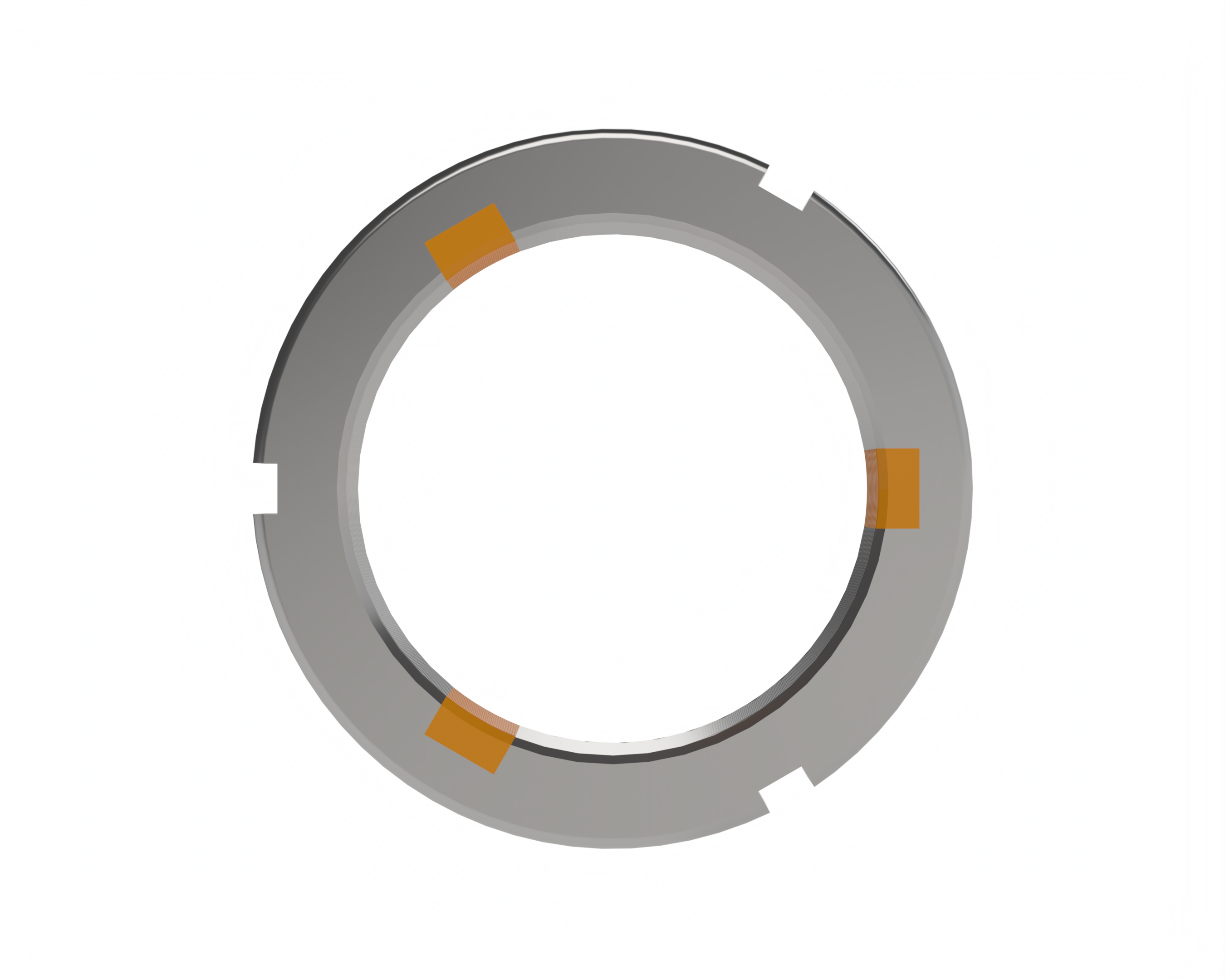

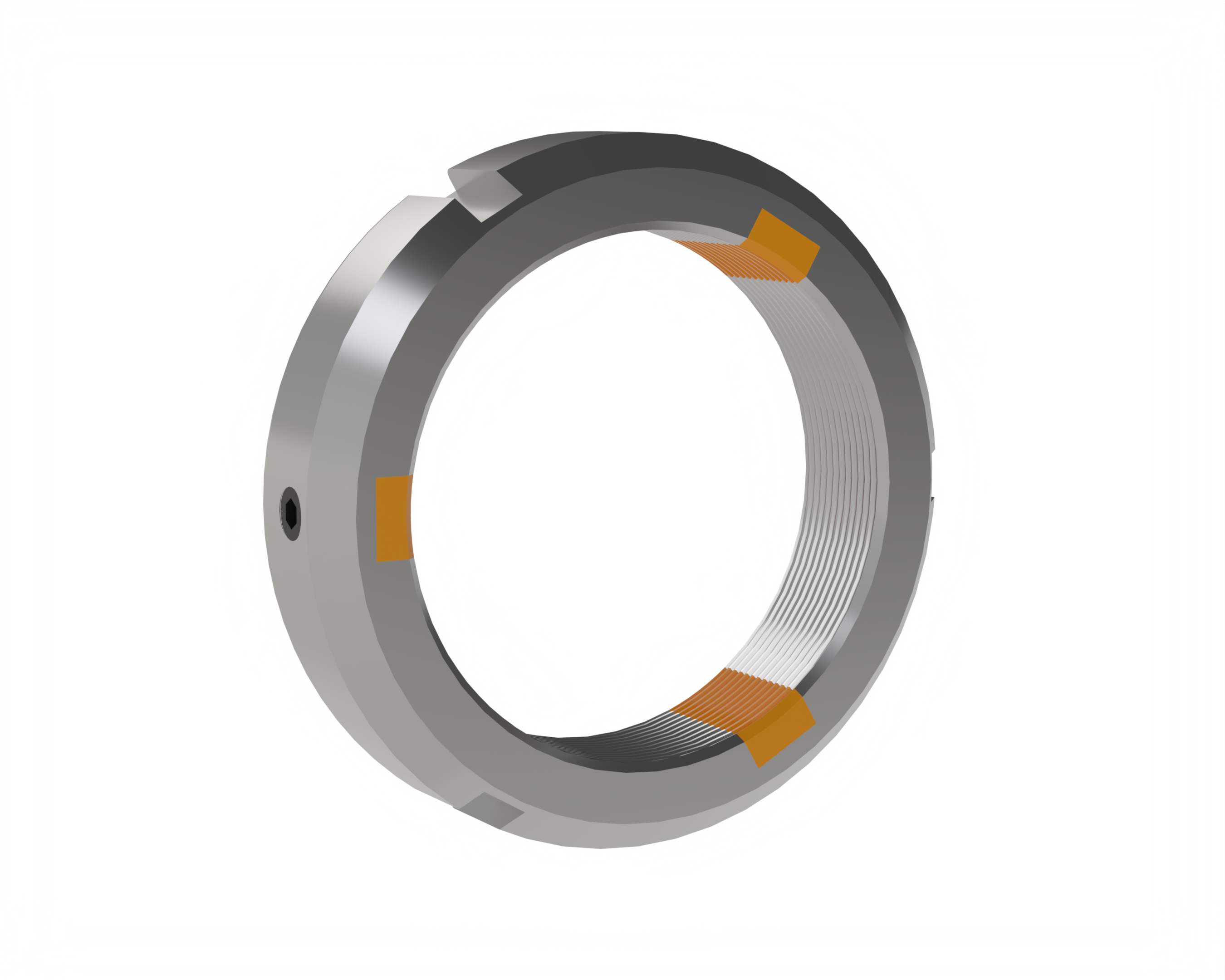

NSH (inch) and NSHM (metric) SHOELOK locknuts lock tangentially: a clamp screw drives a hardened shoe against the shaft thread, wedging the nut in place without a lockwasher, tab, keyway or polymer insert. The lock is all-metal, so it holds at temperature, and it is applied and released with a hex key rather than by bending and re-bending a washer tab.

NSH / NSHM Series Specifications

  • Part numbers: NSH-00 through NSH-40; NSHM-00 through NSHM-40 (66 sizes stocked)
  • Bore / shaft size (inch): 0.664 in to 7.847 in
  • Outside diameter (inch): 0.755 in to 9.84 in
  • Bore / shaft size (metric): 17 mm to 200 mm
  • Outside diameter (metric): 19.2 mm to 249.9 mm
  • Material & temperature: Carbon steel body with hardened alloy clamp screw and shoe; 300°F maximum operating temperature
  • Standards: NSH to ANSI/ABMA 8.2-1999, NSHM to ISO 2982-2:2013(E); made in USA, RoHS

Applications

Bearing retention where the shaft has no keyway for a lockwasher tab, in gearboxes, pumps, spindles, conveyor drives and rebuilt equipment.

Related Whittet-Higgins Series

Apollo is an authorized Whittet-Higgins distributor. Every part on this page is genuine Whittet-Higgins, manufactured in the USA. Need a size that is not listed, or help matching a locknut to its lockwasher and assembly socket? Contact our team.
