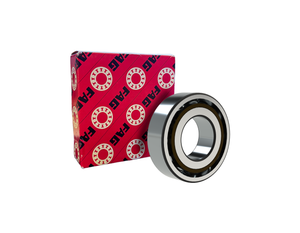

FAG 7214 -B-XL-TVP-UA Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, Normal
- d 70 mm
- D 125 mm
- B 24 mm
- Open (None)
- C0 - Normal
Genuine FAG product, FAG
- Regular price
- $257.88
- Sale price
- $257.88
- Regular price
-
Same-day shipping
Order by 3 PM ET for same-day shipping
Free shipping on orders over $100
Use code at checkout.
FAG 7214-B-XL-TVP-UA
$257.88
Why Apollo USA
Bearings from Apollo Industries, Oxford, Michigan
Apollo Industries supplies bearings, seals and maintenance tools to businesses across the US, with real people on the phone when you need a part matched.
-
Same-day shipping
Order by 3 PM EST for same-day shipping.
-
Free shipping over $100
All orders over $100 ship free by ground with code FREESHIP.
-
90-day returns
Hassle-free returns on unused items within 90 days.
-
Price match
Show us a competitor's advertised price on the same item and we will match it.
-
Expert support
Support staff available by phone, web chat or email.
-
Need tax exemption or quantity pricing?
We offer special rates for businesses and bulk orders.
Talk to a bearing specialist
2695 Lake George RdOxford, MI 48370
Overview
FAG 7214-B-XL-TVP-UA Angular contact ball bearing
Angular Contact Ball Bearing and lightweight cage
Angular Contact Ball Bearings have raceways in the inner and outer rings that are displaced relative to each other in the direction of the bearing axis. They are designed to accommodate combined loads. Manufactured to precision tolerance class for demanding applications. Features a lightweight polyamide cage for reduced noise and friction. Suitable for use in a wide range of industrial applications where reliability and performance are essential.
Key features
- Precision bearing design
- Optimized for moderate to high loads
- Open design for flexibility
- Lightweight and low noise operation
- Precision tolerance class
Specifications
FAG 7214-B-XL-TVP-UA dimensions & specifications
- Bearing type
- Angular contact ball bearing
- Bore diameter d
- 70 mm (2.756 in)
- Outside diameter D
- 125 mm (4.921 in)
- Width B
- 24 mm (0.945 in)
- Seals / shields
- Open (None)
- Internal clearance
- C0 - Normal
- Weight
- 2.47 lb
- Brand
- FAG
- Part number
- 7214-B-XL-TVP-UA also written 7214BXLTVPUA
- UPC / EAN
- 4012801282659
All specifications
Dimensions
| Bore Diameter | 70 mm |
| Outside Diameter | 125 mm |
| Width | 24 mm |
Properties
| Arrangement | Bearing pair with a low axial clearance in O- and X-arrangem |
| Ball rows | Single row bearing |
| Cage | Polyamide cage |
| Clearance | Normal radial clearance |
| Contact angle | 40 degree |
| Material | Standard bearing steel |
| Outer ring | Without flange/groove |
| Seal | None, open bearing |
| Temperature range | -20 to +120 °C |
| Tolerance class | Tolerance class P0/PN2 / ABEC 1 |
Logistics
| Product Net Weight | 1.12 |
Tools & lubrication
Complete the job for your 7214-B-XL-TVP-UA
Mount it without damage and keep it lubricated. Tick what you need and add it with one click.
Catalogs & documents
FAG 7214-B-XL-TVP-UA catalogs & documents
Official catalogs and data from the manufacturer. They open as PDFs in a new tab.
-
Catalog
Schaeffler HR 1 Rolling Bearings (2025) (opens in a new tab)
PDF · 68.5 MB · English
-
Mounting
Schaeffler MH 1 Mounting Handbook (2024) (opens in a new tab)
PDF · 11.6 MB · English
-
Catalog
FAG Generation C deep groove ball bearings (opens in a new tab)
4.8 MB · English
-
Technical
TPI 218: Sealed spherical roller bearings (opens in a new tab)
PDF · 1.8 MB · English
-
Guide
Rolling bearing damage (WL 82 102/2) (opens in a new tab)
PDF · 1.2 MB · English
-
Safety
Schaeffler: Warning, counterfeit! (opens in a new tab)
PDF · 2.4 MB · English
About the brand
About FAG
A Schaeffler brand rooted in Friedrich Fischer's 1883 ball grinding machine.
In 1883 Friedrich Fischer of Schweinfurt invented a machine that ground steel balls perfectly round in large volumes, the foundation of the rolling bearing industry. FAG, registered in 1905 as the acronym of Fischers Aktiengesellschaft, has been a Schaeffler product brand since 2006.
In 1911 FAG supplied all the ball bearings in the Marmon "Wasp", winner of the first Indianapolis 500.
Genuine FAG product
Founded
1883
Headquarters
Herzogenaurach, Germany (Schaeffler)
Known for
- X-life premium bearings
- Spherical roller bearings
- Generation C deep groove ball bearings
- Cylindrical roller bearings
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of FAG. All FAG trademarks and product names are the property of their respective owners. We sell genuine FAG products purchased through independent channels.
FAQ
7214-B-XL-TVP-UA questions & answers
What are the dimensions of the FAG 7214-B-XL-TVP-UA?
The FAG 7214-B-XL-TVP-UA has a 70 mm bore (d), a 125 mm outside diameter (D) and a 24 mm width (B). In inches: 2.756 × 4.921 × 0.945 in.
What type of bearing is the 7214-B-XL-TVP-UA?
The FAG 7214-B-XL-TVP-UA is an angular contact ball bearing.
Is the 7214-B-XL-TVP-UA sealed or shielded?
The FAG 7214-B-XL-TVP-UA is an open bearing (Open (None)): it has no seals or shields.
What internal clearance does the 7214-B-XL-TVP-UA have?
The FAG 7214-B-XL-TVP-UA has C0 - Normal internal clearance.
Is this a genuine FAG bearing?
Yes. Apollo Industries sells genuine FAG products, purchased through independent channels. Apollo is not an authorized distributor, reseller, or representative of FAG.
Do you ship the 7214-B-XL-TVP-UA the same day?
In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.
Can I get quantity pricing or buy tax-exempt?
Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.
