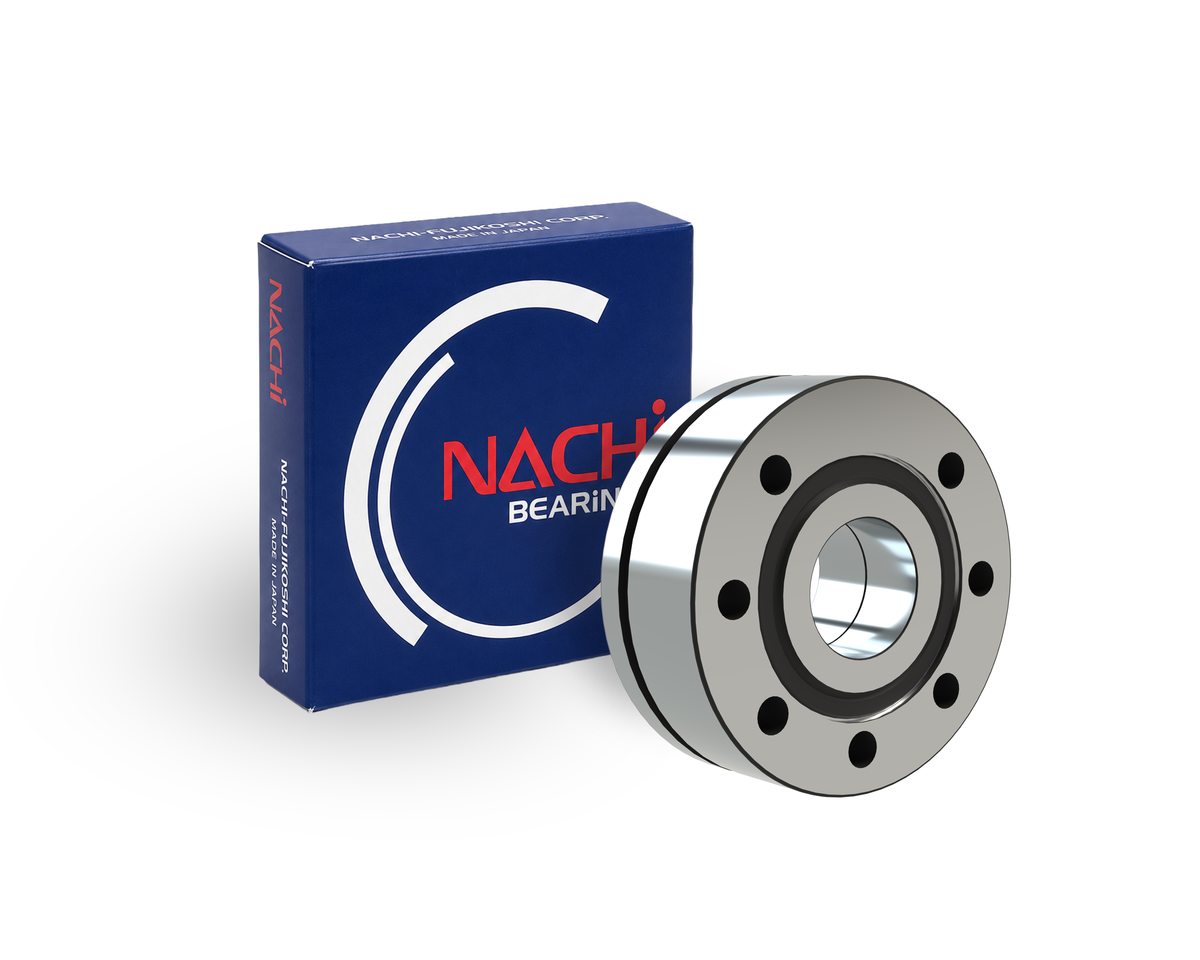

Nachi 30TAU10F -2NSE/GM Axial Angular Contact Ball Bearing - 30 mm ID, 100 mm OD, 38 mm Width
- d 30 mm
- D 100 mm
- B 38 mm
Genuine Nachi product, Nachi
- Regular price
- $709.06
- Sale price
- $709.06
- Regular price
-
Same-day shipping
Order by 3 PM ET for same-day shipping
Free shipping on orders over $100
Use code at checkout.
Nachi 30TAU10F-2NSE/GM
$709.06
Why Apollo USA
Bearings from Apollo Industries, Oxford, Michigan
Apollo Industries supplies bearings, seals and maintenance tools to businesses across the US, with real people on the phone when you need a part matched.
-
Same-day shipping
Order by 3 PM EST for same-day shipping.
-
Free shipping over $100
All orders over $100 ship free by ground with code FREESHIP.
-
90-day returns
Hassle-free returns on unused items within 90 days.
-
Price match
Show us a competitor's advertised price on the same item and we will match it.
-
Expert support
Support staff available by phone, web chat or email.
-
Need tax exemption or quantity pricing?
We offer special rates for businesses and bulk orders.
Talk to a bearing specialist
2695 Lake George RdOxford, MI 48370
Overview
Nachi 30TAU10F-2NSE/GM Thrust bearing
Axial Angular Contact Ball Bearing, double direction ball screw support bearing with lip seals
The Nachi 30TAU10F -2NSE/GM is a medium-sized double-direction axial angular contact ball bearing built specifically to support ball screws, with a 30 mm bore, 100 mm outside diameter and 38 mm width. The 60 degree contact angle puts almost the whole ball load into the axial direction, giving the very high thrust capacity and axial stiffness a screw needs to hold position under cutting load, and because it acts in both directions a single bearing locates the screw completely. It is ground to P4 / ABEC 7, has fixing holes in the outer ring so it bolts straight to the housing face, carries a lubrication groove for regreasing, and is sealed on both sides with lip seals. Rated -20 to +120 degrees C.
Key features
- 60 degree contact angle for maximum axial stiffness
- Locates a ball screw in both directions
- P4 / ABEC 7 precision tolerance class
- Fixing holes for direct bolting to the housing
- Lip seals both sides, relubricatable via lubrication groove
- Operating range -20 to +120 degrees C
Specifications
Nachi 30TAU10F-2NSE/GM dimensions & specifications
- Bearing type
- Thrust bearing
- Bore diameter d
- 30 mm (1.181 in)
- Outside diameter D
- 100 mm (3.937 in)
- Width B
- 38 mm (1.496 in)
- Weight
- 3.88 lb
- Brand
- Nachi
- Part number
- 30TAU10F-2NSE/GM also written 30TAU10F2NSEGM
- UPC / EAN
- 4991893492705
All specifications
Dimensions
| Bore Diameter | 30 mm |
| Outside Diameter | 100 mm |
| Width | 38 mm |
Properties
| Cage | Polyamide cage |
| Contact angle | 60 degree |
| Fixing | With fixing holes |
| Lubrication hole | With lubrication groove |
| Material | Standard bearing steel |
| Operating direction | Double direction bearing |
| Product range | Single bearing |
| Seal | Lip seal on both sides |
| Temperature range | -20 to +120 °C |
| Tolerance class | Tolerance class P4 / ABEC 7 |
Logistics
| Product Net Weight | 1.762 |
Tools & lubrication
Complete the job for your 30TAU10F-2NSE/GM
Mount it without damage and keep it lubricated. Tick what you need and add it with one click.
Catalogs & documents
Nachi 30TAU10F-2NSE/GM catalogs & documents
Official catalogs and data from the manufacturer. They open as PDFs in a new tab.
-
Catalog
Nachi Ball & Roller Bearings (B2100E-4) (opens in a new tab)
PDF · English
-
Catalog
Nachi Deep-groove Ball Bearings, QUEST (B3402E-2) (opens in a new tab)
PDF · English
-
Catalog
Nachi Spherical Roller Bearings (B1032E-5) (opens in a new tab)
PDF · English
-
Catalog
Nachi Radial Ball Bearings (B4031E-2) (opens in a new tab)
PDF · English
About the brand
About Nachi
Nachi-Fujikoshi, founded in Toyama, Japan, in 1928.
Nachi-Fujikoshi was founded on 21 December 1928 in Toyama City, Japan, as Fujikoshi Steel Industry. It makes bearings alongside cutting tools, hydraulics, robots and specialty steel. Its North American headquarters is in Greenwood, Indiana.
Genuine Nachi product
Founded
1928
Headquarters
Toyama, Japan
Known for
- Deep groove ball bearings (QUEST)
- Spherical roller bearings
- Precision bearings
- Ball screw support bearings
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of Nachi. All Nachi trademarks and product names are the property of their respective owners. We sell genuine Nachi products purchased through independent channels.
FAQ
30TAU10F-2NSE/GM questions & answers
What are the dimensions of the Nachi 30TAU10F-2NSE/GM?
The Nachi 30TAU10F-2NSE/GM has a 30 mm bore (d), a 100 mm outside diameter (D) and a 38 mm width (B). In inches: 1.181 × 3.937 × 1.496 in.
What type of bearing is the 30TAU10F-2NSE/GM?
The Nachi 30TAU10F-2NSE/GM is a thrust bearing.
Is this a genuine Nachi bearing?
Yes. Apollo Industries sells genuine Nachi products, purchased through independent channels. Apollo is not an authorized distributor, reseller, or representative of Nachi.
Do you ship the 30TAU10F-2NSE/GM the same day?
In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.
Can I get quantity pricing or buy tax-exempt?
Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.
