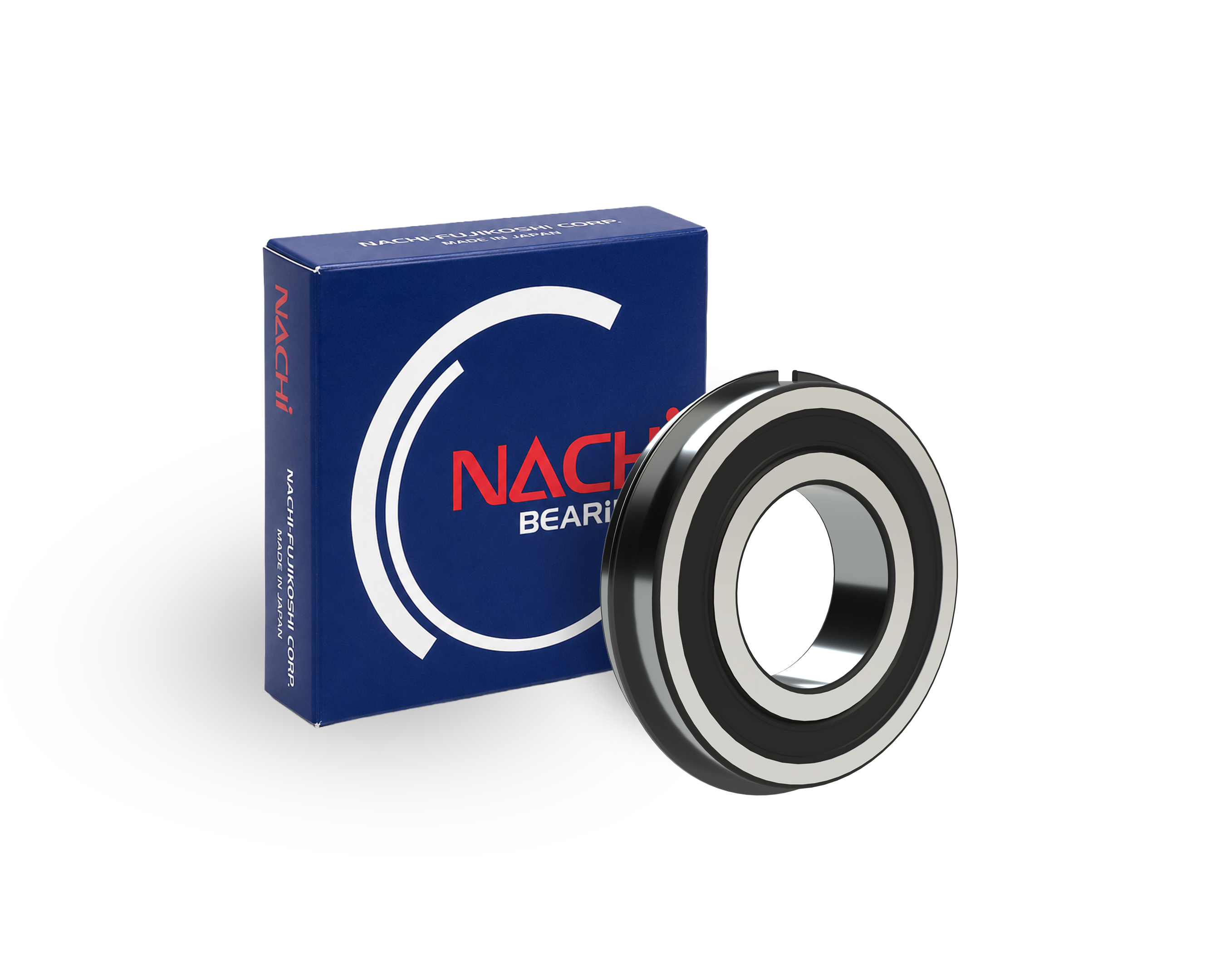

Nachi 6209 -2NSE9NR Deep Groove Ball Bearing - 45 mm ID, 85 mm OD, 19 mm Width
- Regular price
- $95.03
- Sale price
- $95.03
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features
- Contact seals both sides, sealed for life
- Snap ring groove with circlip supplied
- Axial location without a housing shoulder
- Normal CN radial internal clearance
- Pressed sheet steel cage
- Operating range -20 to +130 degrees C
Description
Deep Groove Ball Bearing with contact seals, snap ring groove and normal clearance
The Nachi 6209 -2NSE9NR combines two useful features in one part: contact seals on both sides and a snap ring groove with circlip in the outer ring. Bore is 45 mm, outside diameter 85 mm and width 19 mm. The seals lock the grease in and keep water and dirt out, while the circlip locates the bearing axially in a plain housing bore without a machined shoulder. Normal CN clearance, pressed sheet steel cage, rated -20 to +130 degrees C.
Specifications
Dimensions
| Bore Diameter | 45 mm |
| Outside Diameter | 85 mm |
| Width | 19 mm |
Properties
| Ball rows | Single row bearing |
| Bore | Cylindrical bore |
| Cage | Sheet steel cage |
| Clearance | Normal radial clearance |
| Current insulation | No current insulation |
| Material | Standard bearing steel |
| Material of rolling elements | Standard bearing steel |
| Outer ring | Annular groove with circlip in outer ring |
| Seal | Contact seal on both sides |
| Temperature range | -20 to +130 °C |
| Tolerance class | Tolerance class P0/PN2 / ABEC 1 |
Logistics
| Product Net Weight | 0.41 |
