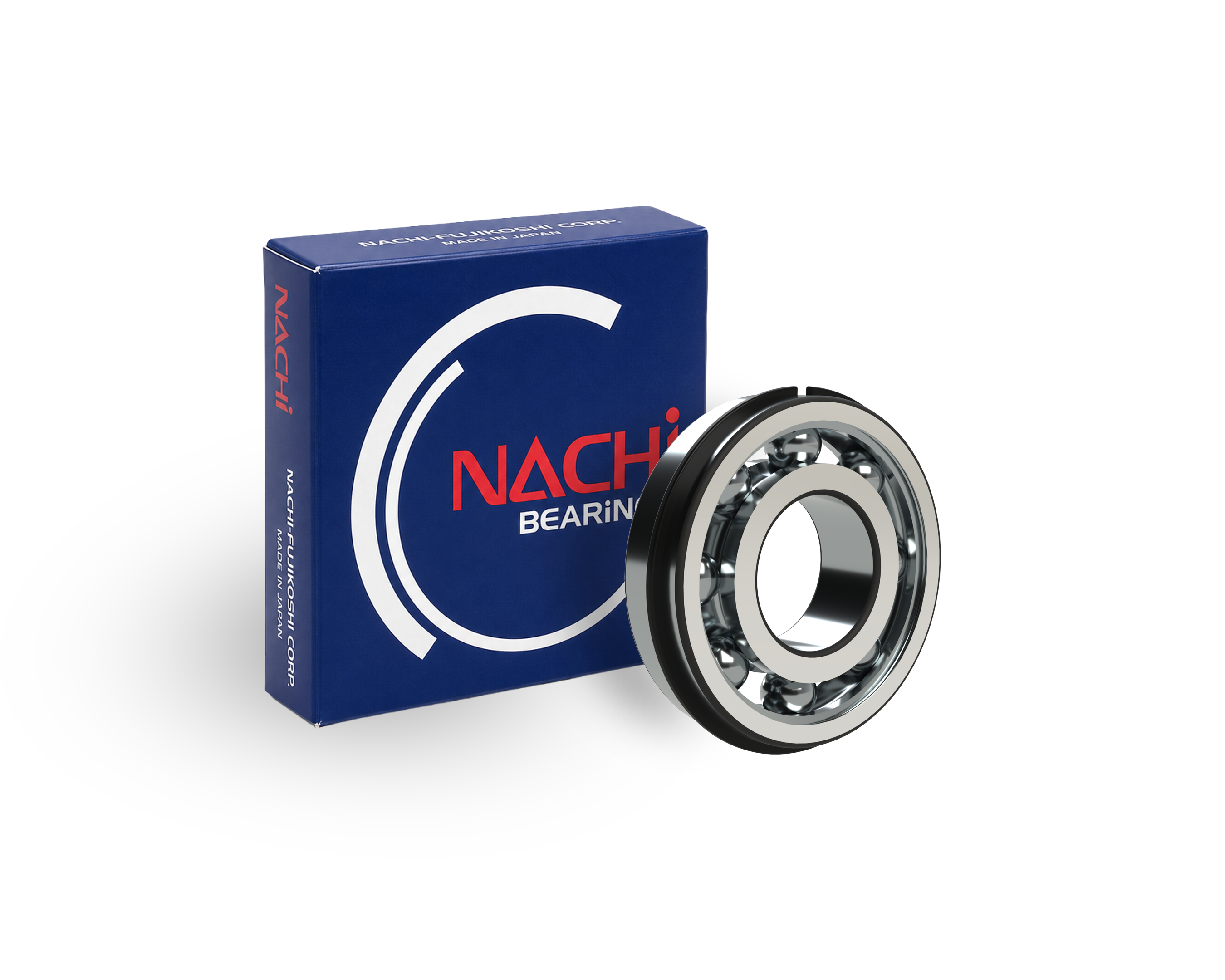

Nachi 6309 NR Deep Groove Ball Bearing - 45 mm ID, 100 mm OD, 25 mm Width
- d 45 mm
- D 100 mm
- B 25 mm
- C0 - Normal
Genuine Nachi product, Nachi
- Regular price
- $45.34
- Sale price
- $45.34
- Regular price
-
Same-day shipping
Order by 3 PM ET for same-day shipping
Free shipping on orders over $100
Use code at checkout.
Nachi 6309 NR
$45.34
Why Apollo USA
Bearings from Apollo Industries, Oxford, Michigan
Apollo Industries supplies bearings, seals and maintenance tools to businesses across the US, with real people on the phone when you need a part matched.
-
Same-day shipping
Order by 3 PM EST for same-day shipping.
-
Free shipping over $100
All orders over $100 ship free by ground with code FREESHIP.
-
90-day returns
Hassle-free returns on unused items within 90 days.
-
Price match
Show us a competitor's advertised price on the same item and we will match it.
-
Expert support
Support staff available by phone, web chat or email.
-
Need tax exemption or quantity pricing?
We offer special rates for businesses and bulk orders.
Talk to a bearing specialist
2695 Lake George RdOxford, MI 48370
Overview
Nachi 6309 NR Deep groove ball bearing
Deep Groove Ball Bearing, open design with snap ring groove and circlip
The Nachi 6309 NR is a medium-sized deep groove ball bearing with a 45 mm bore, 100 mm outside diameter and 25 mm width, machined with an annular groove in the outer ring and supplied with the matching circlip. The snap ring locates the bearing axially against a plain housing bore, which removes the need for a shoulder or end cap and shortens the housing considerably. The bearing is open on both sides, guided by a pressed sheet steel cage, set to normal CN clearance and rated -20 to +150 degrees C.
Key features
- Snap ring groove with circlip supplied
- Locates axially in a plain housing bore
- Saves housing length, no shoulder required
- Open design for oil or grease lubrication
- Normal CN clearance, sheet steel cage
- Operating range -20 to +150 degrees C
Specifications
Nachi 6309 NR dimensions & specifications
- Bearing type
- Deep groove ball bearing
- Bore diameter d
- 45 mm (1.772 in)
- Outside diameter D
- 100 mm (3.937 in)
- Width B
- 25 mm (0.984 in)
- Internal clearance
- C0 - Normal
- Weight
- 1.81 lb
- Brand
- Nachi
- Part number
- 6309 NR also written 6309NR
- UPC / EAN
- 4991893606195
All specifications
Dimensions
| Bore Diameter | 45 mm |
| Outside Diameter | 100 mm |
| Width | 25 mm |
Properties
| Ball rows | Single row bearing |
| Bore | Cylindrical bore |
| Cage | Sheet steel cage |
| Clearance | Normal radial clearance |
| Current insulation | No current insulation |
| Material | Standard bearing steel |
| Material of rolling elements | Standard bearing steel |
| Outer ring | Annular groove with circlip in outer ring |
| Seal | None, open bearing |
| Temperature range | -20 to +150 °C |
| Tolerance class | Tolerance class P0/PN2 / ABEC 1 |
Logistics
| Product Net Weight | 0.82 |
Cross reference
6309 NR cross reference & equivalents
Bearings from other brands with the same boundary dimensions. Check seals, clearance, cage and precision class before you order.
-
SKF
6309 NRSKF 6309 NR Deep Groove Ball Bearing - 45 mm ID, 100 mm OD, 25 mm Width, Cylindrical Bore, Normal
- Same size
- Same clearance
Sale price$104.46
Regular price$104.68In stock
-
NSK
6309 NRNSK 6309 NR Deep Groove Ball Bearing - 45 mm ID, 100 mm OD, 25 mm Width, Cylindrical Bore, Normal
- Same size
- Same clearance
$61.88
In stock
-
Timken
6309-NRTimken 6309-NR Single Row Deep Groove Ball Bearing, Metric Series, 45.0mm Bore, 100.0mm OD, 25.0mm Width, Snap Ring, Cylindrical Bore, Steel Cage, C0 (Normal) Clearance, ISO P0 Tolerance
- Same size
- Same clearance
$113.05
Call for availability -
FAG
6309-NR
Same size, snap ring
-
NTN
6309NR
Same size, snap ring
-
Koyo
6309NR
Same size, snap ring
Reference data only. Verify specifications before you order.
Search more equivalents in the Apollo Bearing IndexTools & lubrication
Complete the job for your 6309 NR
Mount it without damage and keep it lubricated. Tick what you need and add it with one click.
Part number decoded
What every part of 6309 NR means
- 63
- 63xx medium deep groove ball (dimension series 03)
- 09
- Bore code 09 × 5 = 45 mm (ISO convention)
- NR
- Snap ring groove in the outer ring, with the snap ring fitted
Catalogs & documents
Nachi 6309 NR catalogs & documents
Official catalogs and data from the manufacturer. They open as PDFs in a new tab.
-
Catalog
Nachi Ball & Roller Bearings (B2100E-4) (opens in a new tab)
PDF · English
-
Catalog
Nachi Deep-groove Ball Bearings, QUEST (B3402E-2) (opens in a new tab)
PDF · English
-
Catalog
Nachi Spherical Roller Bearings (B1032E-5) (opens in a new tab)
PDF · English
-
Catalog
Nachi Radial Ball Bearings (B4031E-2) (opens in a new tab)
PDF · English
About the brand
About Nachi
Nachi-Fujikoshi, founded in Toyama, Japan, in 1928.
Nachi-Fujikoshi was founded on 21 December 1928 in Toyama City, Japan, as Fujikoshi Steel Industry. It makes bearings alongside cutting tools, hydraulics, robots and specialty steel. Its North American headquarters is in Greenwood, Indiana.
Genuine Nachi product
Founded
1928
Headquarters
Toyama, Japan
Known for
- Deep groove ball bearings (QUEST)
- Spherical roller bearings
- Precision bearings
- Ball screw support bearings
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of Nachi. All Nachi trademarks and product names are the property of their respective owners. We sell genuine Nachi products purchased through independent channels.
FAQ
6309 NR questions & answers
What are the dimensions of the Nachi 6309 NR?
The Nachi 6309 NR has a 45 mm bore (d), a 100 mm outside diameter (D) and a 25 mm width (B). In inches: 1.772 × 3.937 × 0.984 in.
What type of bearing is the 6309 NR?
The Nachi 6309 NR is a deep groove ball bearing.
What internal clearance does the 6309 NR have?
The Nachi 6309 NR has C0 - Normal internal clearance.
What can I use instead of the Nachi 6309 NR?
Equivalents with the same boundary dimensions include SKF 6309 NR, NSK 6309 NR, Timken 6309-NR, FAG 6309-NR, NTN 6309NR, Koyo 6309NR. Check the seals, internal clearance, cage and precision class before you order.
Is this a genuine Nachi bearing?
Yes. Apollo Industries sells genuine Nachi products, purchased through independent channels. Apollo is not an authorized distributor, reseller, or representative of Nachi.
Do you ship the 6309 NR the same day?
In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.
Can I get quantity pricing or buy tax-exempt?
Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.
