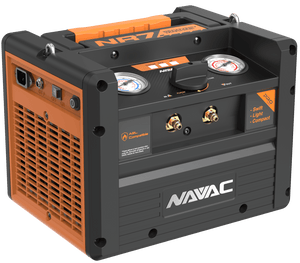

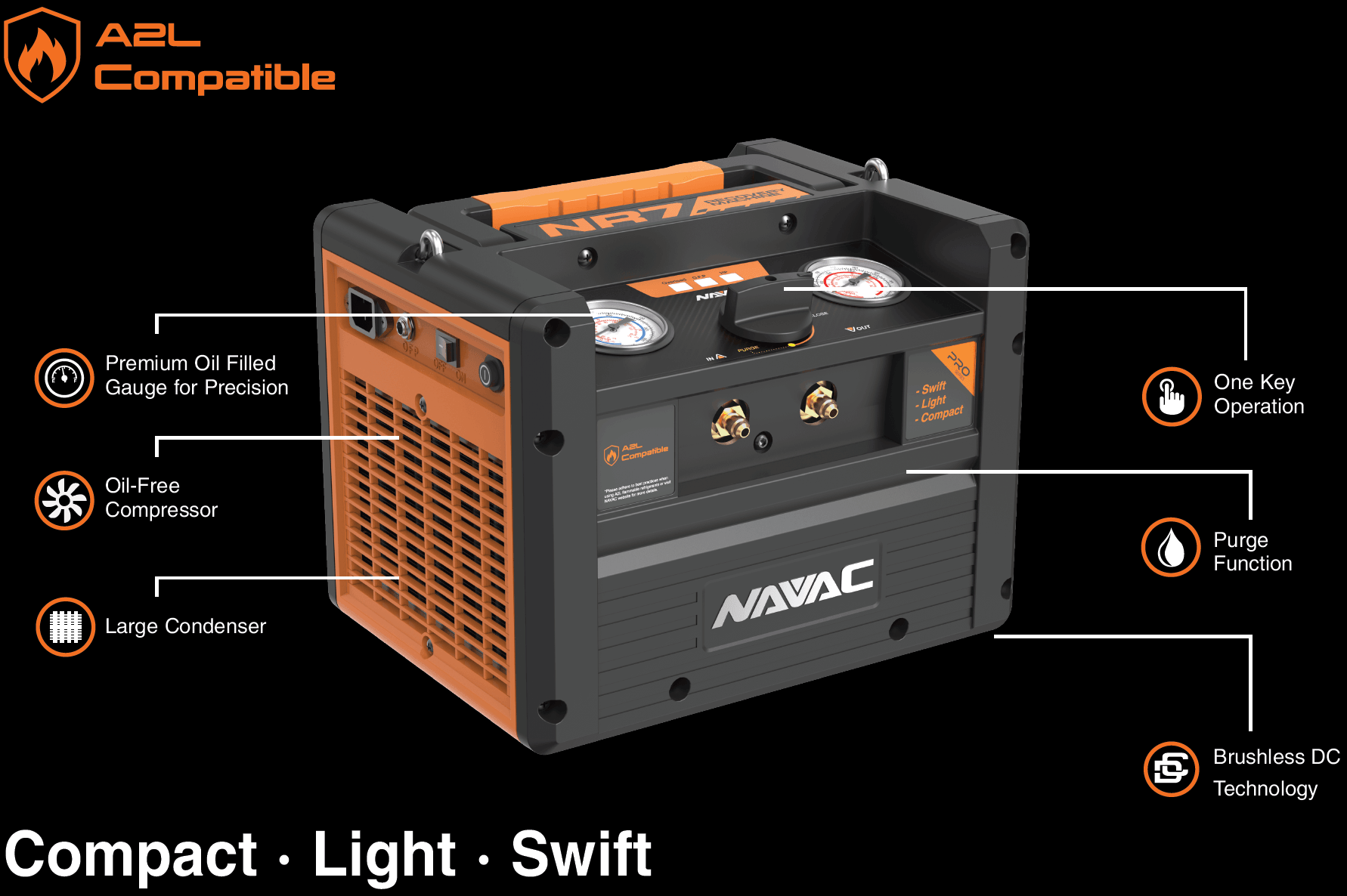

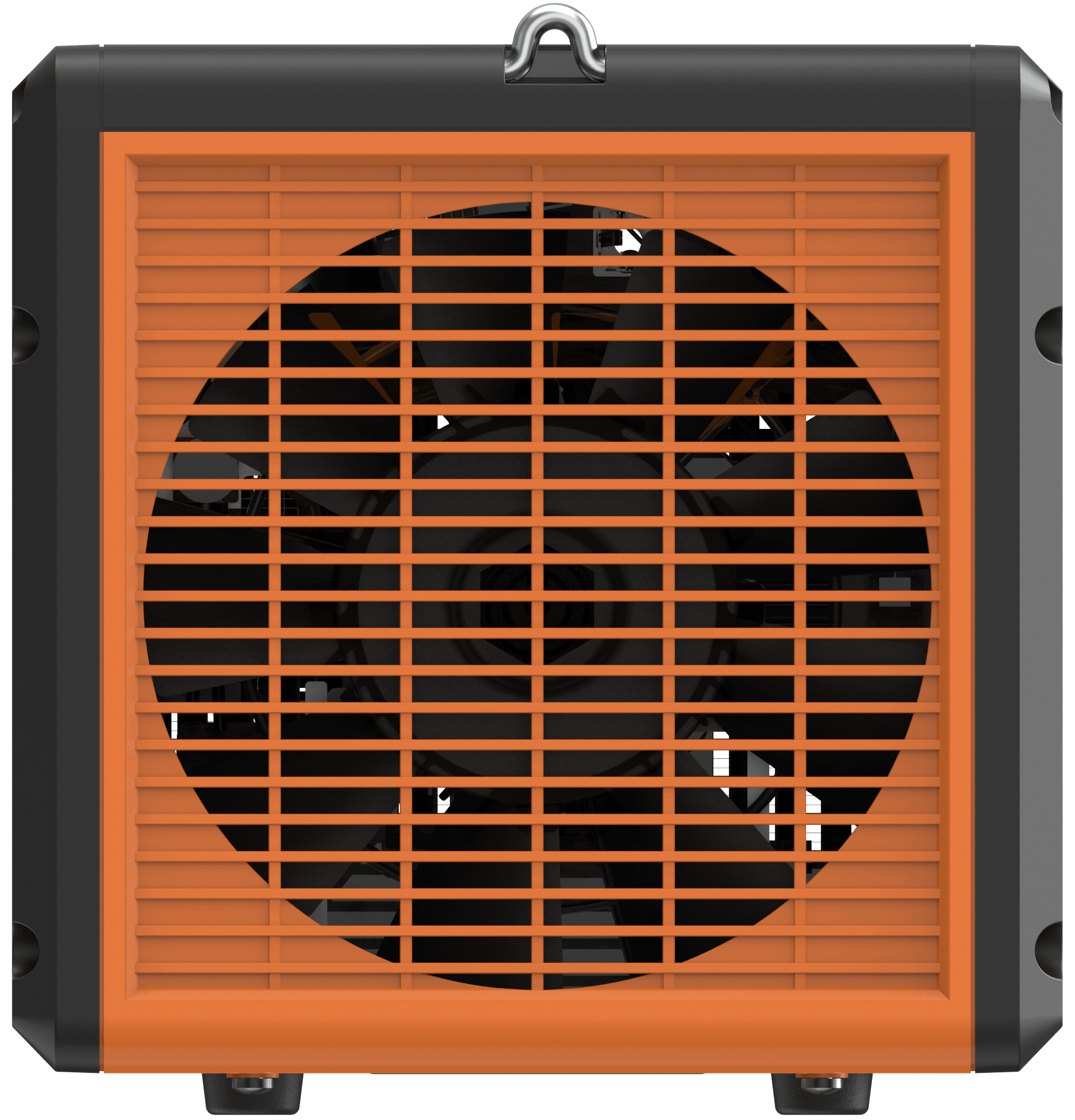

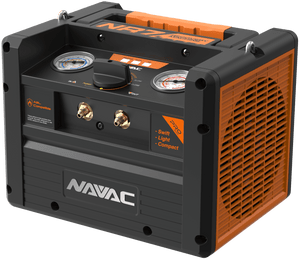

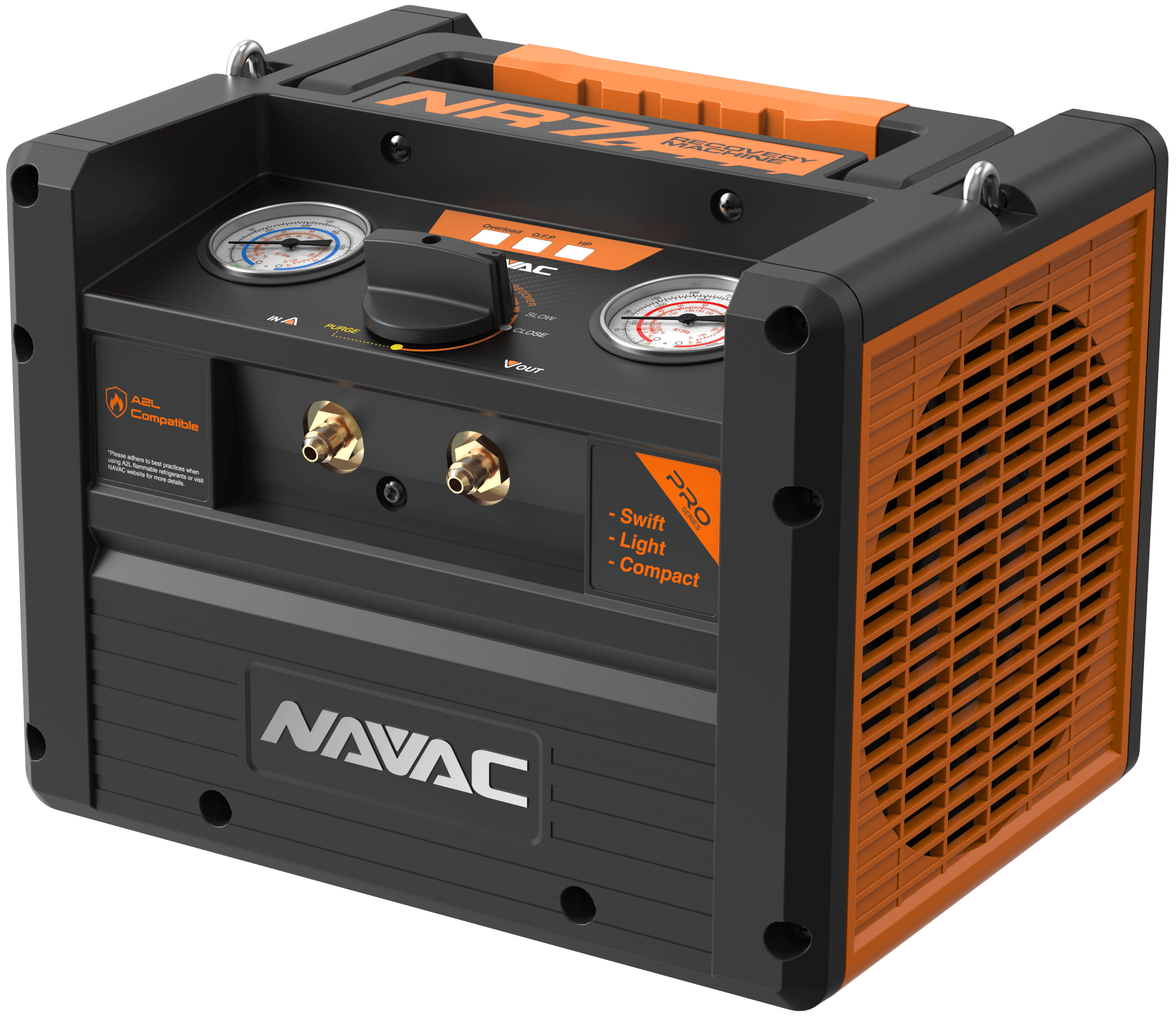

Introducing the NAVAC NR7 Recovery Unit: Compact, Efficient, and A2L-Compatible! This lightweight unit, at just 20.3 lbs, offers HVAC professionals easy storage and transportation solutions. The NR7 features a twin-cylinder structure for rapid refrigerant recovery and a brushless DC motor, enhancing both efficiency and A2L refrigerant compatibility. Its oil-free compressor is versatile, accommodating a wide range of common refrigerants. Additionally, the NR7’s purge function eliminates the risk of refrigerant mixing, ensuring a smooth operation. A standout feature is its three-row large condenser equipped with extra-dense fins, designed for quick heat dispersion from the refrigerant, elevating your job’s efficiency to new heights.
Moreover, the NR7 has CSA safety certification, providing technicians peace of mind with full-tank, overload, and high-pressure protection. Boasting an efficient design, twin-cylinder system, and one-key operation, the NR7 is a great choice for quick and reliable recoveries.
NR7 Model Specifications
| Specification | Details |
|---|---|
| Model | NR7 |
| Refrigerant Type |
Category III: R-12, R-134a, R-1234yf, R-401C, R-500 Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 |
| Power Supply | 115V / 60Hz |
| Motor | 1 HP |
| Max Current Draw | 12.5 A |
| Compressor | Oil-less, Air-cooled, Piston style |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| Recovery Rate (lbs/min, kg/min) |
R-410A: Direct Vapor: 0.54 (0.25), Direct Liquid: 12 (5.5), Push/Pull Liquid: 17 (7.8) R-22: Direct Vapor: 0.58 (0.27), Direct Liquid: 9 (4.1), Push/Pull Liquid: 15.8 (7.2) R-134a: Direct Vapor: 0.47 (0.21), Direct Liquid: 8 (3.6), Push/Pull Liquid: 15 (6.8) |
| Dimensions (inches) | 12.2 x 9.4 x 9.6 |
| Weight | 20.3 lbs |
| Warranty | 1 Year |
⚠ WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling, including wearing Personal Protective Equipment such as safety glasses and gloves.
Introducing the NAVAC NR7 Recovery Unit: Compact, Efficient, and A2L-Compatible! This lightweight unit, at just 20.3 lbs, offers HVAC professionals easy storage and transportation solutions. The NR7 features a twin-cylinder structure for rapid refrigerant recovery and a brushless DC motor, enhancing both efficiency and A2L refrigerant compatibility. Its oil-free compressor is versatile, accommodating a wide range of common refrigerants. Additionally, the NR7’s purge function eliminates the risk of refrigerant mixing, ensuring a smooth operation. A standout feature is its three-row large condenser equipped with extra-dense fins, designed for quick heat dispersion from the refrigerant, elevating your job’s efficiency to new heights.
Moreover, the NR7 has CSA safety certification, providing technicians peace of mind with full-tank, overload, and high-pressure protection. Boasting an efficient design, twin-cylinder system, and one-key operation, the NR7 is a great choice for quick and reliable recoveries.
NR7 Model Specifications
| Specification | Details |
|---|---|
| Model | NR7 |
| Refrigerant Type |
Category III: R-12, R-134a, R-1234yf, R-401C, R-500 Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 |
| Power Supply | 115V / 60Hz |
| Motor | 1 HP |
| Max Current Draw | 12.5 A |
| Compressor | Oil-less, Air-cooled, Piston style |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| Recovery Rate (lbs/min, kg/min) |
R-410A: Direct Vapor: 0.54 (0.25), Direct Liquid: 12 (5.5), Push/Pull Liquid: 17 (7.8) R-22: Direct Vapor: 0.58 (0.27), Direct Liquid: 9 (4.1), Push/Pull Liquid: 15.8 (7.2) R-134a: Direct Vapor: 0.47 (0.21), Direct Liquid: 8 (3.6), Push/Pull Liquid: 15 (6.8) |
| Dimensions (inches) | 12.2 x 9.4 x 9.6 |
| Weight | 20.3 lbs |
| Warranty | 1 Year |
⚠ WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling, including wearing Personal Protective Equipment such as safety glasses and gloves.

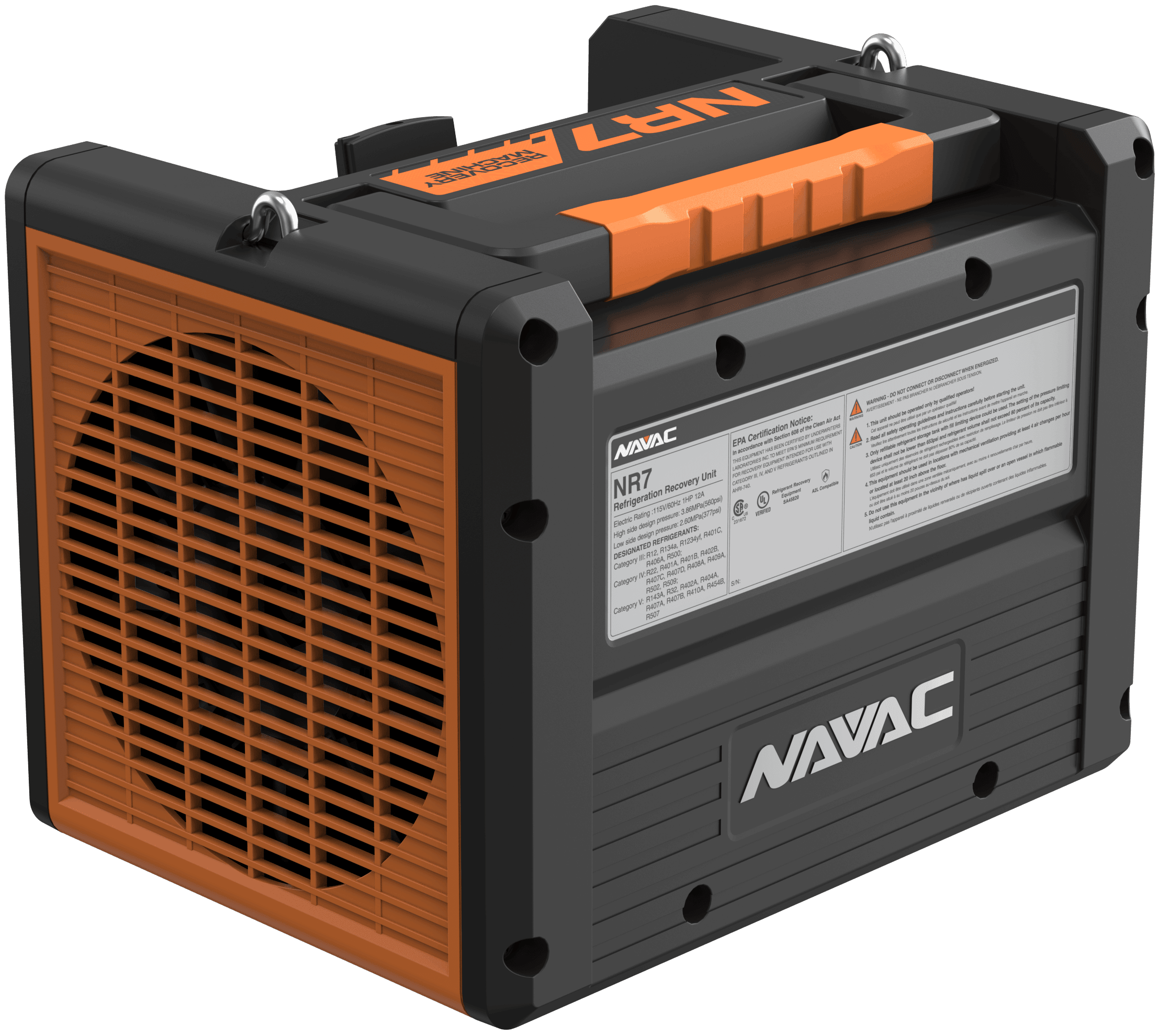

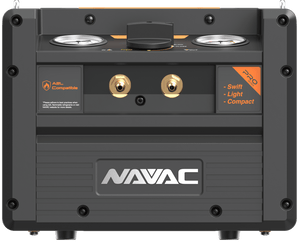

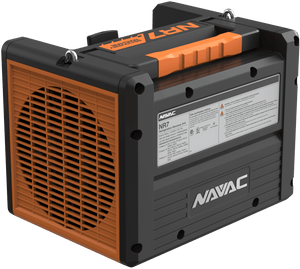

NAVAC NR7 - Refrigerant Recovery Unit, Compact, Efficient, A2L-Compatible
- Regular price
- $798.00
- Sale price
- $798.00
- Regular price
-
Free Shipping
Free ground shipping on orders over 100$
Use code: FREESHIP
