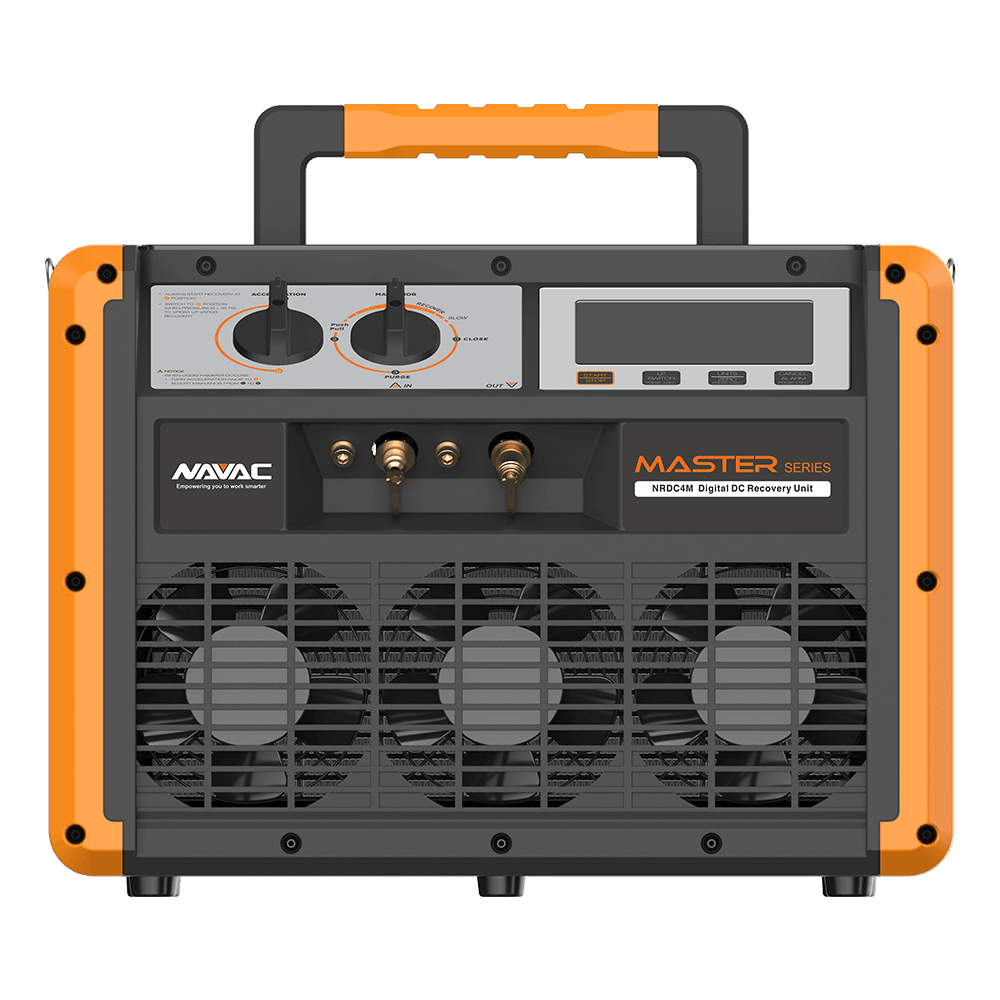

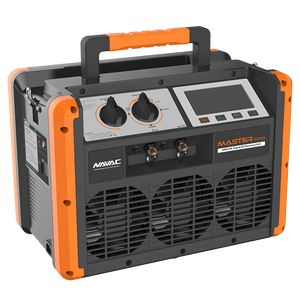

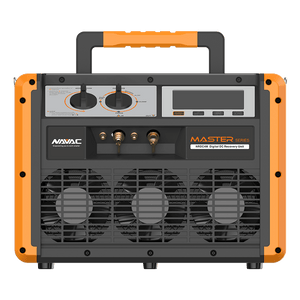

Tagged as the fastest and the most powerful machine in the current market, The NRDC4M recovery unit features a 4-cylinder structure that makes it up to 40% faster than the 2-cylinder unit. An oversized micro-channel coil with 3 high-speed cooling fans makes it the ideal recovery unit! The NRDC4M recovery unit is suitable for larger commercial systems and can be used for all commonly used refrigerants.
NRDC4M Model Specifications
| Specification | Details |
|---|---|
| Model | NRDC4M |
| Refrigerant Type |
Category III: R-12, R-134a, R-401C, R-500 Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 |
| Power Supply | 115V / 60Hz |
| FLA (Full Load Amps) | 12 A |
| Motor | 1.5 HP |
| Max Current Draw | 12 A |
| Compressor | Oil-less, Air-cooled, Piston style |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| UL Verified Recovery Rate (lbs/min, kg/min) |
R-410A: Direct Vapor: 1.06 (4.08), Direct Liquid: 16.82 (7.63), Push/Pull Liquid: 18.23 (8.27) R-22: Direct Vapor: 0.99 (0.45), Direct Liquid: 12.76 (5.79), Push/Pull Liquid: 16.76 (7.60) R-134a: Direct Vapor: 0.84 (0.38), Direct Liquid: 9.19 (4.17), Push/Pull Liquid: 15.08 (6.84) |
| Inlet/Outlet Port | Inlet: 3/8″, Outlet: 1/4″ |
| Dimensions (inches) | 17 × 10.7 × 12.2 |
| Weight | 41.9 lbs |
| Warranty | 2 Years |
⚠ WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling, including wearing Personal Protective Equipment such as safety glasses and gloves.
Tagged as the fastest and the most powerful machine in the current market, The NRDC4M recovery unit features a 4-cylinder structure that makes it up to 40% faster than the 2-cylinder unit. An oversized micro-channel coil with 3 high-speed cooling fans makes it the ideal recovery unit! The NRDC4M recovery unit is suitable for larger commercial systems and can be used for all commonly used refrigerants.
NRDC4M Model Specifications
| Specification | Details |
|---|---|
| Model | NRDC4M |
| Refrigerant Type |
Category III: R-12, R-134a, R-401C, R-500 Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 |
| Power Supply | 115V / 60Hz |
| FLA (Full Load Amps) | 12 A |
| Motor | 1.5 HP |
| Max Current Draw | 12 A |
| Compressor | Oil-less, Air-cooled, Piston style |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| UL Verified Recovery Rate (lbs/min, kg/min) |
R-410A: Direct Vapor: 1.06 (4.08), Direct Liquid: 16.82 (7.63), Push/Pull Liquid: 18.23 (8.27) R-22: Direct Vapor: 0.99 (0.45), Direct Liquid: 12.76 (5.79), Push/Pull Liquid: 16.76 (7.60) R-134a: Direct Vapor: 0.84 (0.38), Direct Liquid: 9.19 (4.17), Push/Pull Liquid: 15.08 (6.84) |
| Inlet/Outlet Port | Inlet: 3/8″, Outlet: 1/4″ |
| Dimensions (inches) | 17 × 10.7 × 12.2 |
| Weight | 41.9 lbs |
| Warranty | 2 Years |
⚠ WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling, including wearing Personal Protective Equipment such as safety glasses and gloves.

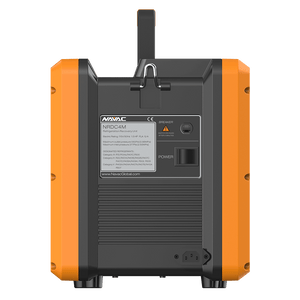

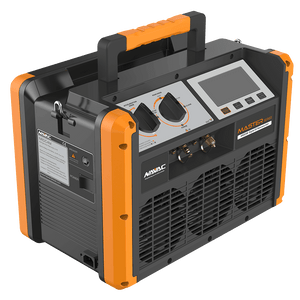

NAVAC NRDC4M - Brushless DC Refrigerant Recovery Unit, 4-cylinder, for larger commercial systems
- Regular price
- $1,739.00
- Sale price
- $1,739.00
- Regular price
-
Free Shipping
