Description

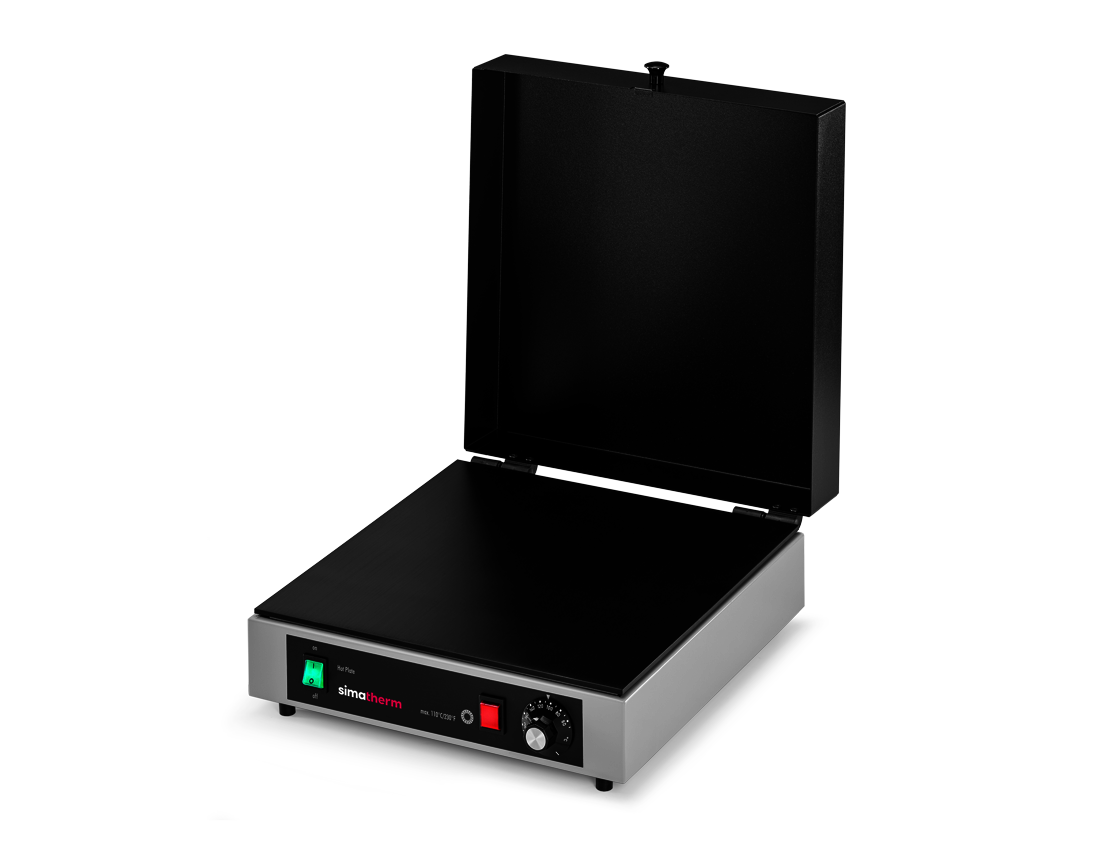

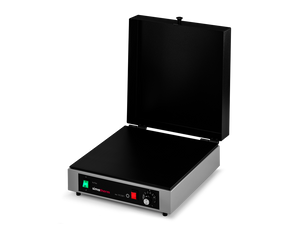

Electric heating plate with temperature control
The two electric heating plates with thermostat-controlled heating are especially suitable for small bearings and machine parts. The temperature can be continuously adjusted between 50 °C and 200 °C on the controller.
- HPS for workpieces weighing up to 5 kg; HPL for workpieces weighing up to 10 kg

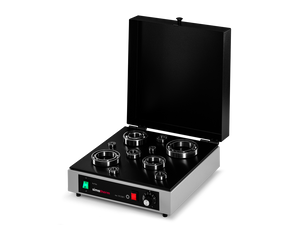

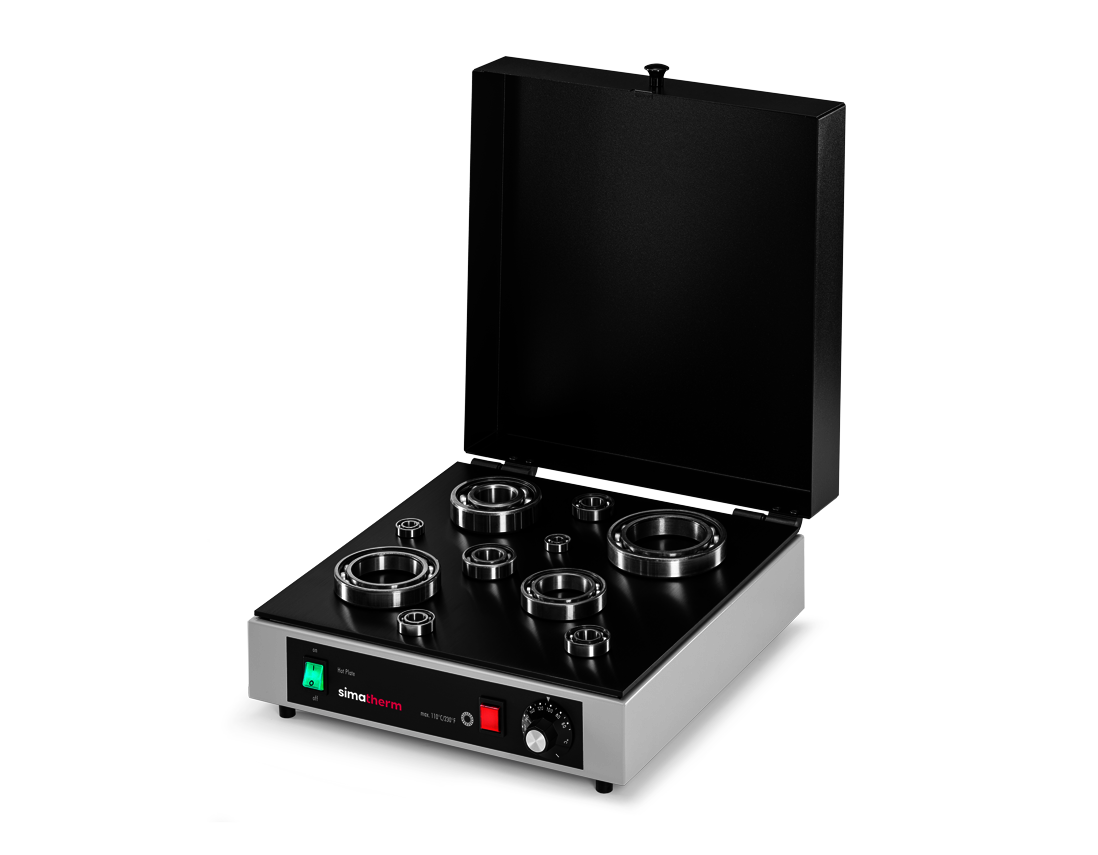

- Designed to heat multiple workpieces simultaneously
- Flat heating surface for gentle and uniform heating of the bearing
- Also suitable for heating non-ferritic workpieces such as aluminum or brass
- Available for voltages of 100–115 and 230V
- Control range from 50 to 200 °C
- 3 years manufacturer warranty

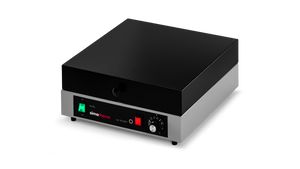

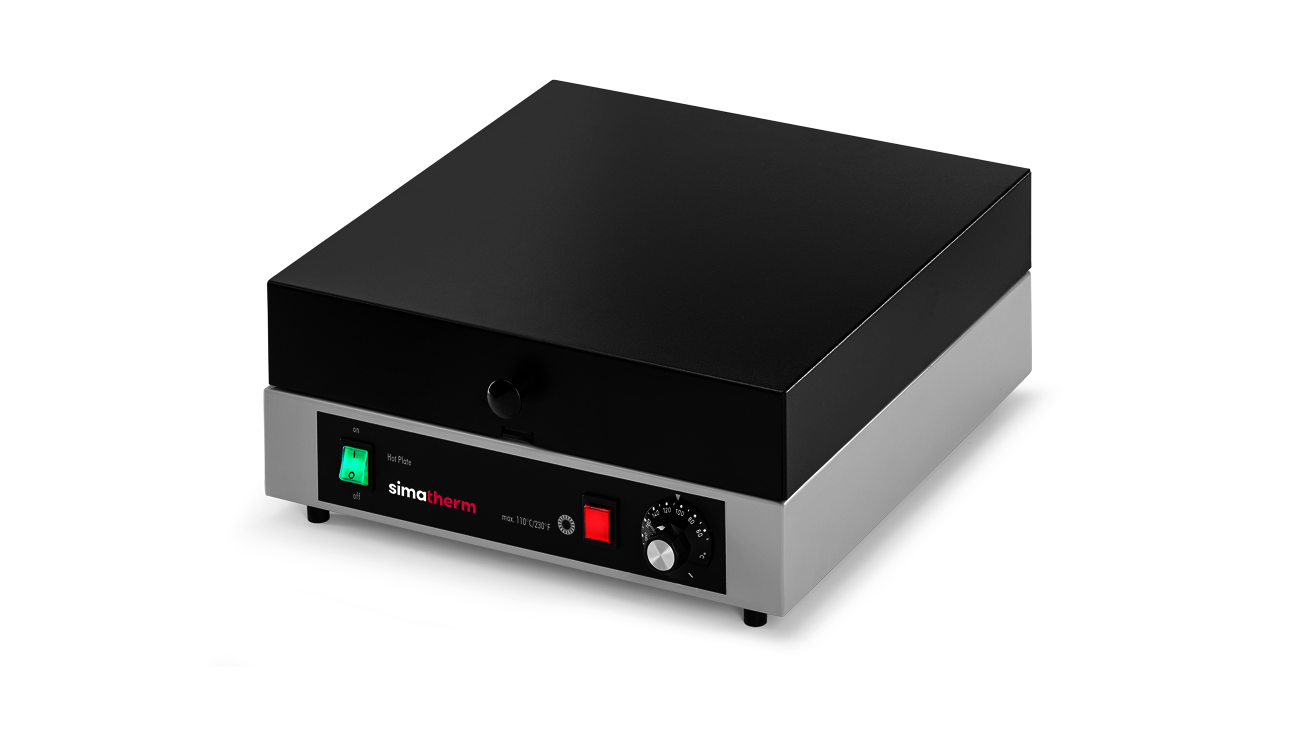

- The cover prevents contamination of the workpieces during heating. In addition, the workpieces are heated quicker when the cover is closed.
Hot Plate HPS and HPL Technical Data
| Category | Property | HPS | HPL |
|---|---|---|---|
| General | Designation | Heaters for small workpieces | |
| Voltage V / Hz | 220 – 240 V / 50 – 60 Hz, 100 – 120 V / 50 – 60 Hz | ||
| Workpiece | Maximum weight | 5 kg | 10 kg |
| Temperature Control | Range | 50 – 200°C | |
| Accuracy (electronic) | ± 5°C | ||
| Maximum temperature (approx.) | 200°C | ||
| Suitability | Suitable for heating sealed bearings | Yes | |
| Suitable for heating pre-greased bearings | Yes | ||
| Control | Control panel | Main switch, temperature control | |
| Dimensions | Size of the operating surface (LxW) | 380 x 180 mm | 380 x 380 mm |
| Measurements (LxWxH) | 390 x 190 x 150 mm | 390 x 390 x 170 mm | |
| Weight and Power | Overall weight | 6 kg (13.2 lbs) | 10 kg (22 lbs) |
| Maximum power consumption | 1.0 kVA | 2.0 kVA | |
Description
Electric heating plate with temperature control
The two electric heating plates with thermostat-controlled heating are especially suitable for small bearings and machine parts. The temperature can be continuously adjusted between 50 °C and 200 °C on the controller.
- HPS for workpieces weighing up to 5 kg; HPL for workpieces weighing up to 10 kg
- Designed to heat multiple workpieces simultaneously
- Flat heating surface for gentle and uniform heating of the bearing
- Also suitable for heating non-ferritic workpieces such as aluminum or brass
- Available for voltages of 100–115 and 230V
- Control range from 50 to 200 °C
- 3 years manufacturer warranty
- The cover prevents contamination of the workpieces during heating. In addition, the workpieces are heated quicker when the cover is closed.
Hot Plate HPS and HPL Technical Data
| Category | Property | HPS | HPL |
|---|---|---|---|
| General | Designation | Heaters for small workpieces | |
| Voltage V / Hz | 220 – 240 V / 50 – 60 Hz, 100 – 120 V / 50 – 60 Hz | ||
| Workpiece | Maximum weight | 5 kg | 10 kg |
| Temperature Control | Range | 50 – 200°C | |
| Accuracy (electronic) | ± 5°C | ||
| Maximum temperature (approx.) | 200°C | ||
| Suitability | Suitable for heating sealed bearings | Yes | |
| Suitable for heating pre-greased bearings | Yes | ||
| Control | Control panel | Main switch, temperature control | |
| Dimensions | Size of the operating surface (LxW) | 380 x 180 mm | 380 x 380 mm |
| Measurements (LxWxH) | 390 x 190 x 150 mm | 390 x 390 x 170 mm | |
| Weight and Power | Overall weight | 6 kg (13.2 lbs) | 10 kg (22 lbs) |
| Maximum power consumption | 1.0 kVA | 2.0 kVA | |
Simatec
by
Simatec
Simatec HPL 200, Electric hot plate with thermostat controlled bearing heating. (120V/60 Hz) (Copy)
- Regular price
- $1,950.00
- Sale price
- $1,950.00
- Regular price
-
5 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Free 90-day returns
Shop risk-free with easy returns.
Need Help?
Call us 1 (248) 429-9073
Free Shipping
Free ground shipping on orders over 100$
Use code: FREESHIP
