Description
The lightweight portable device with excellent performance

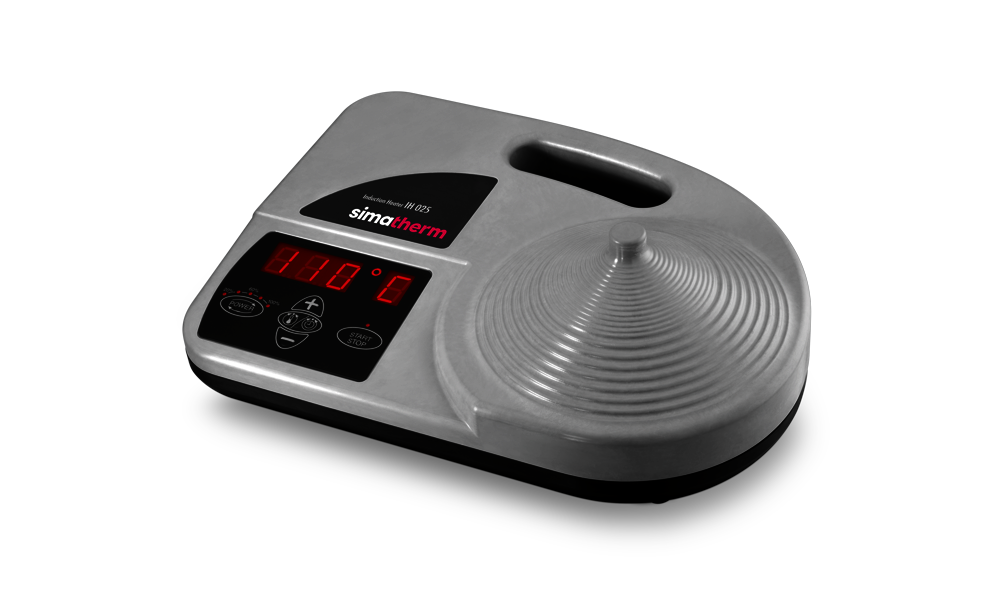

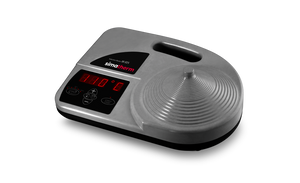

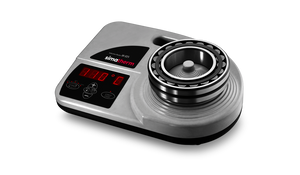

With a weight of only 3.5 kg, the simatherm IH 025 VOLCANO is the lightest portable induction heater in the world. The patented technology enables outstanding heating performance from an extremely light structure. You can use it to heat rolling bearings with an inner diameter as small as 20 mm up to on outer diameter of 160 mm and a weight of up to 10 kg.

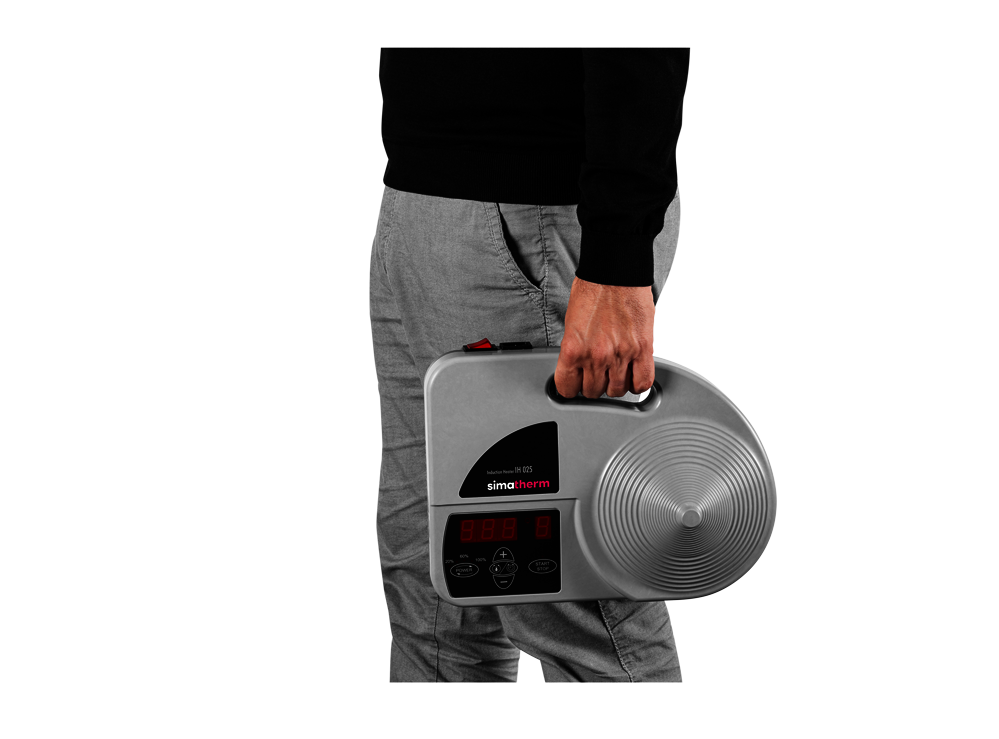

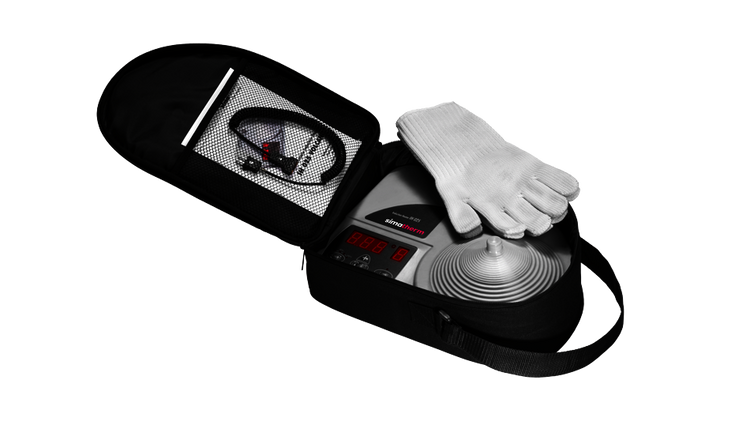

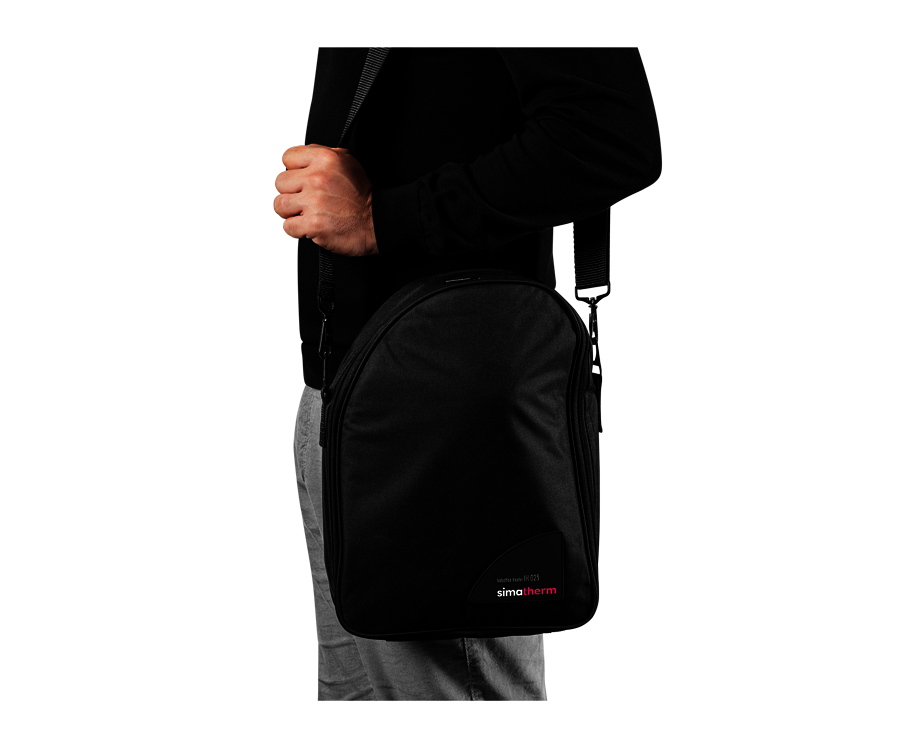

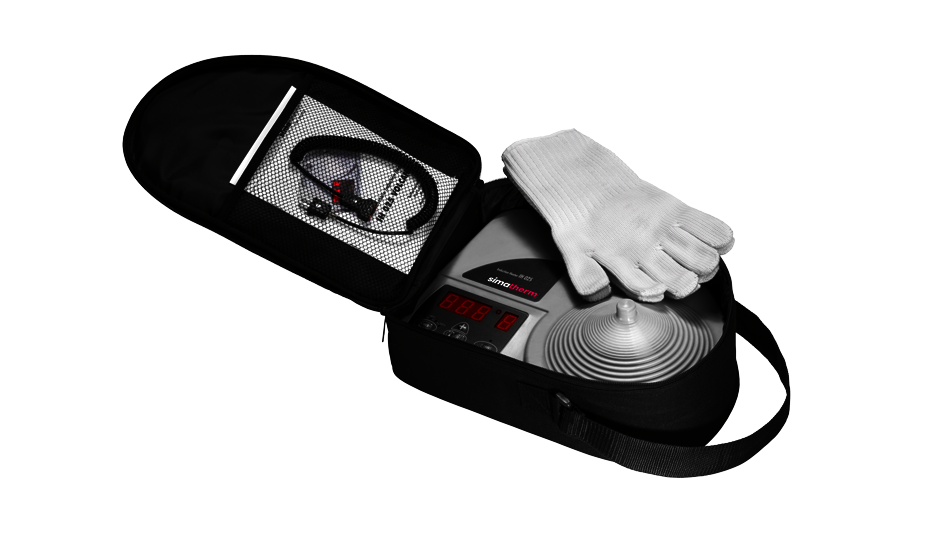

- Portable, compact and very light (3.5 kg) - comes in a practical carrying case

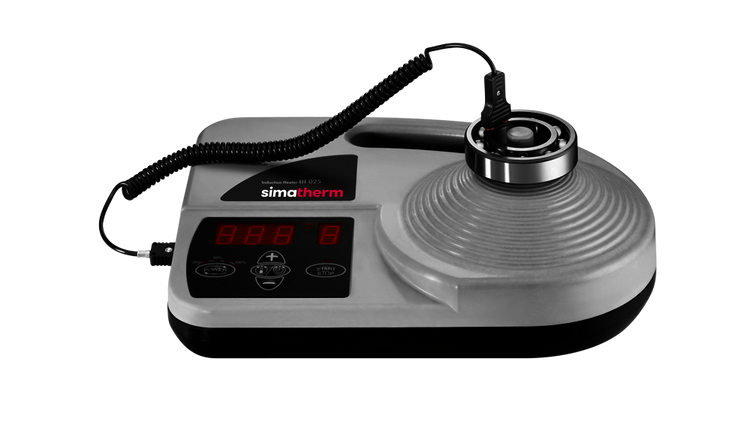

- No support yoke required – simply place the workpiece on the device
- A bearing weighing 5 kg can be heated to 110°C in under four minutes
- Predictive Temperature Control (PTC) for automatic temperature monitoring
- Automatic demagnetization
- For workpieces with a minimum inner diameter of 20 mm up to a maximum outer diameter of 160 mm
- For workpieces weighing up to 10 kg
- Multi-stage power reduction for heating smaller parts
- Silent in operation
- 3 year manufacturer warranty
Heater Specifications
| Category | Property | Specification |
|---|---|---|
| General | Designation | Heaters for small workpieces |
| Power | Voltage V / Hz / power | 220 – 240 V / 50 – 60 Hz / 1.5 kVA 110 – 120 V / 50 – 60 Hz / 1.15 kVA 100 V / 50 – 60 Hz / 1.0 kVA |
| Workpiece | Maximum weight | 10 kg |
| Bore diameter | From 20 mm inner diameter to 160 mm outer diameter | |
| Temperature Control | Range | 20 – 180 °C (68 – 356 °F) |
| Accuracy (electronic) | ± 3 °C to 110 °C (± 6 °F to 230 °F) | |
| Temperature Monitoring | Magnetic probe | Yes, type K |
| Maximum temperature (approx.) | 180 °C (356 °F) | |
| Time Control | Range | 0 – 10 minutes, in steps of 0.1 minutes |
| Modes | Thermometer mode | Yes |
| Bearing temperature mode | Yes | |
| Power Management | Power reduction | 8 levels: 10-20-30-40-50-60-80-100% (at each level, the performance can be additionally halved) |
| Magnetization | Automatic demagnetization / residual magnetism | Yes / < 2 A/cm |
| Suitability | Suitable for heating sealed bearings | Yes |
| Suitable for heating pre-greased bearings | Yes | |
| Suitability for precision bearings | Yes | |
| Safety | Error guide codes | Yes |
| Thermal overload protection | Yes | |
| Control | Control panel | Keyboard with LED-display |
| Physical | Dimensions (LxWxH) | 340 x 250 x 64 mm (over the cone 121 mm) |
| Overall weight | 3.5 kg | |
| Construction | Housing material | Plastic |
| Cooling fan | Yes |
Description
The lightweight portable device with excellent performance
With a weight of only 3.5 kg, the simatherm IH 025 VOLCANO is the lightest portable induction heater in the world. The patented technology enables outstanding heating performance from an extremely light structure. You can use it to heat rolling bearings with an inner diameter as small as 20 mm up to on outer diameter of 160 mm and a weight of up to 10 kg.
- Portable, compact and very light (3.5 kg) - comes in a practical carrying case
- No support yoke required – simply place the workpiece on the device
- A bearing weighing 5 kg can be heated to 110°C in under four minutes
- Predictive Temperature Control (PTC) for automatic temperature monitoring
- Automatic demagnetization
- For workpieces with a minimum inner diameter of 20 mm up to a maximum outer diameter of 160 mm
- For workpieces weighing up to 10 kg
- Multi-stage power reduction for heating smaller parts
- Silent in operation
- 3 year manufacturer warranty
Heater Specifications
| Category | Property | Specification |
|---|---|---|
| General | Designation | Heaters for small workpieces |
| Power | Voltage V / Hz / power | 220 – 240 V / 50 – 60 Hz / 1.5 kVA 110 – 120 V / 50 – 60 Hz / 1.15 kVA 100 V / 50 – 60 Hz / 1.0 kVA |
| Workpiece | Maximum weight | 10 kg |
| Bore diameter | From 20 mm inner diameter to 160 mm outer diameter | |
| Temperature Control | Range | 20 – 180 °C (68 – 356 °F) |
| Accuracy (electronic) | ± 3 °C to 110 °C (± 6 °F to 230 °F) | |
| Temperature Monitoring | Magnetic probe | Yes, type K |
| Maximum temperature (approx.) | 180 °C (356 °F) | |
| Time Control | Range | 0 – 10 minutes, in steps of 0.1 minutes |
| Modes | Thermometer mode | Yes |
| Bearing temperature mode | Yes | |
| Power Management | Power reduction | 8 levels: 10-20-30-40-50-60-80-100% (at each level, the performance can be additionally halved) |
| Magnetization | Automatic demagnetization / residual magnetism | Yes / < 2 A/cm |
| Suitability | Suitable for heating sealed bearings | Yes |
| Suitable for heating pre-greased bearings | Yes | |
| Suitability for precision bearings | Yes | |
| Safety | Error guide codes | Yes |
| Thermal overload protection | Yes | |
| Control | Control panel | Keyboard with LED-display |
| Physical | Dimensions (LxWxH) | 340 x 250 x 64 mm (over the cone 121 mm) |
| Overall weight | 3.5 kg | |
| Construction | Housing material | Plastic |
| Cooling fan | Yes |
Simatec
by
Simatec
Simatec IH 025 VOLCANO, lightweight portable induction heater (120V/60 Hz)
- Regular price
- $2,864.00
- Sale price
- $2,864.00
- Regular price
-
5 in Stock Now
Orders placed before 3:00pm (Est) ship same day
