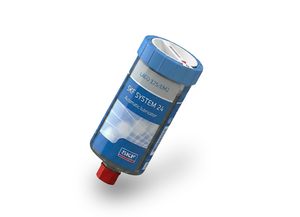

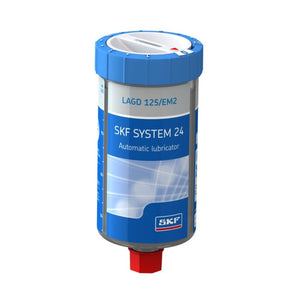

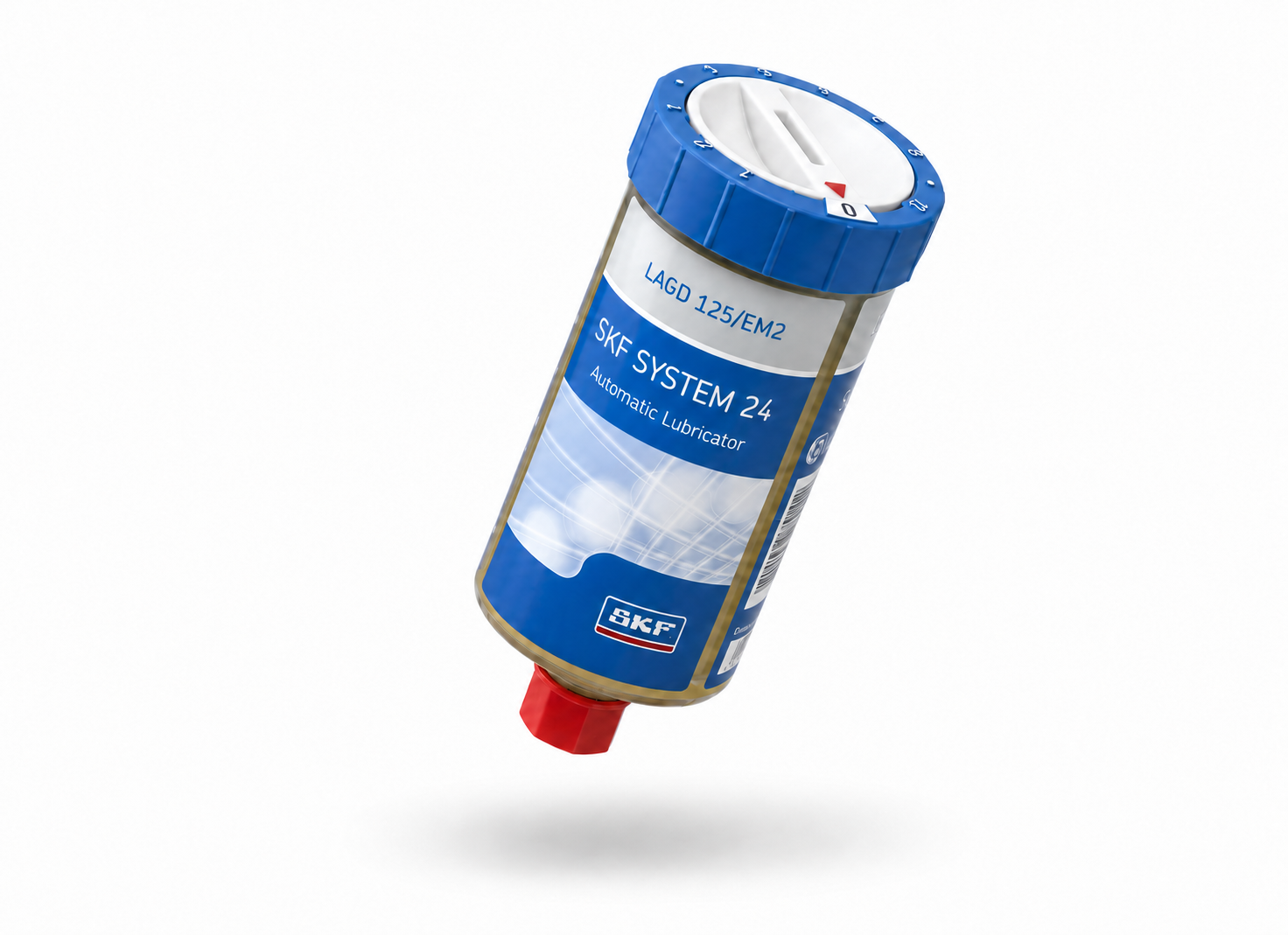

SKF SYSTEM 24 gas driven single point automatic lubricator

LAGD 125/EM2 is filled with SKF LGEM 2 high viscosity bearing grease with solid lubricants, recommended for low speeds and high loads and vibrations. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

Flexible dispense rate from 1 to 12 months
ATEX zone 0 approved
Transparent lubricant container allows visual inspection of dispense rate
Compact size, suitable for restrictive areas
Improved reliability and optimized maintenance

Properties

Lubricant	LGEM 2
Lubricant description	High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations
Lubricant operating temperature range	–20 to +120 °C
Recommended applications	Rolling element bearings running at kow speed and very high loads Jaw crushers Crane arms
Drive mechanism	Gas cell producing inert gas
Power source	Gas cell
Lubricant quantity	7.628 in³
Recommended storage temperature	20 °C
Maximum feed line length	0.984 ft
Maximum Pressure	72.519 psi
Nominal emptying time	Adjustable, 1–12 months
Nominal emptying time	1.0 – 12.0 mo
Intrinsically safe approval	II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Connecting thread	R 1/4
Degree of protection (IP)	IP 68
Shelf life	2 year
Ambient temperature range	-4.0 – 140.0 °F
Product weight	0.441 lb
