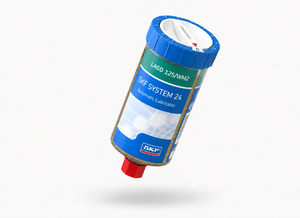

SKF SYSTEM 24 gas driven single point automatic lubricator

LAGD 125/WM2 is filled with SKF LGWM 2 grease for high loads, wet environments and fluctuating temperatures, recommended for conveyors and wind turbines. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

Flexible dispense rate from 1 to 12 months
ATEX zone 0 approved
Transparent lubricant container allows visual inspection of dispense rate
Compact size, suitable for restrictive areas
Improved reliability and optimized maintenance

Properties

Lubricant	LGWM 2
Lubricant description	Synthetic-mineral oil based grease for high loads, wet environments and fluctuating temperatures
Lubricant operating temperature range	–40 to +110 °C
Recommended applications	Wind turbines Marine and off-shore applications
Drive mechanism	Gas cell producing inert gas
Power source	Gas cell
Lubricant quantity	125 ml
Recommended storage temperature	20 °C
Maximum feed line length	0.3 m
Maximum Pressure	5 bar
Nominal emptying time	Adjustable, 1–12 months
Nominal emptying time	1.0 – 12.0 mo
Intrinsically safe approval	II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Connecting thread	R 1/4
Degree of protection (IP)	IP 68
Shelf life	2 year
Ambient temperature range	-20.0 – 60.0 °C
Product weight	0.2 kg

Description

SKF SYSTEM 24 gas driven single point automatic lubricator

Flexible dispense rate from 1 to 12 months
ATEX zone 0 approved
Transparent lubricant container allows visual inspection of dispense rate
Compact size, suitable for restrictive areas
Improved reliability and optimized maintenance

Properties

Lubricant	LGWM 2
Lubricant description	Synthetic-mineral oil based grease for high loads, wet environments and fluctuating temperatures
Lubricant operating temperature range	–40 to +110 °C
Recommended applications	Wind turbines Marine and off-shore applications
Drive mechanism	Gas cell producing inert gas
Power source	Gas cell
Lubricant quantity	125 ml
Recommended storage temperature	20 °C
Maximum feed line length	0.3 m
Maximum Pressure	5 bar
Nominal emptying time	Adjustable, 1–12 months
Nominal emptying time	1.0 – 12.0 mo
Intrinsically safe approval	II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Connecting thread	R 1/4
Degree of protection (IP)	IP 68
Shelf life	2 year
Ambient temperature range	-20.0 – 60.0 °C
Product weight	0.2 kg
