Removes bearing without dismantling machinery

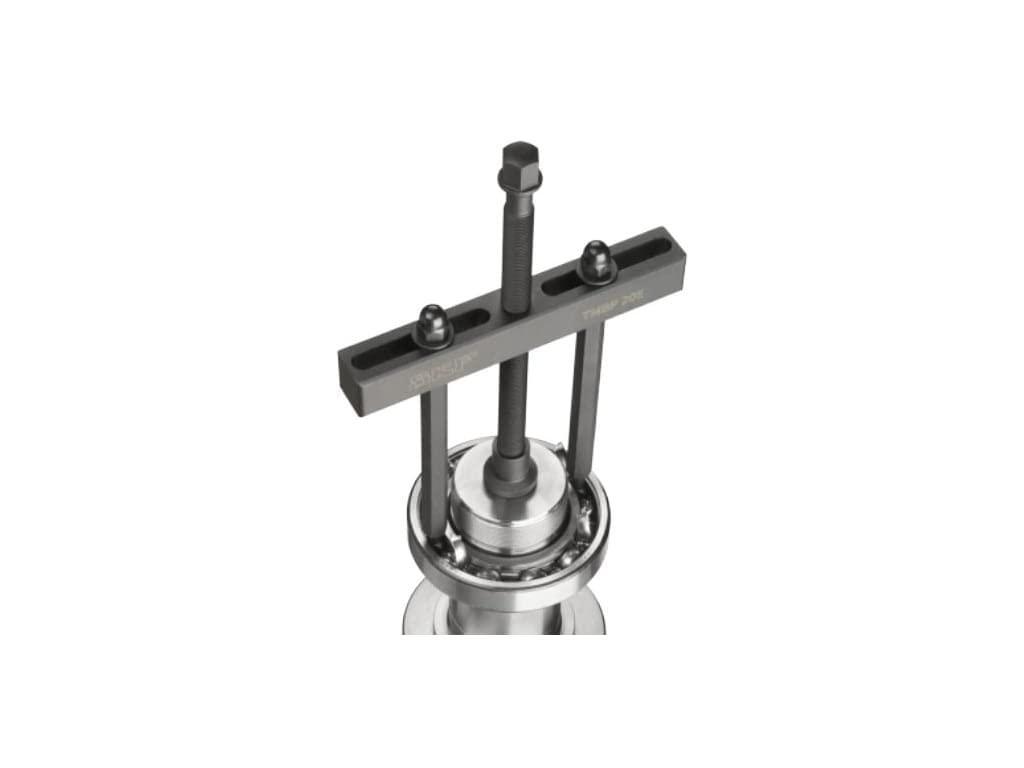

The TMBP 20E is an adapter type puller for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).
- Allows a wide of range of deep groove ball bearings to be dismounted
- Ball adapters designed for a long service life
- Extension rods allow a reach of up to 583 mm (23 in.)
- Spanner stop function on spindle for easy and safe handling
- Self-locking nose piece helps minimise damage to shaft, and improves puller stability

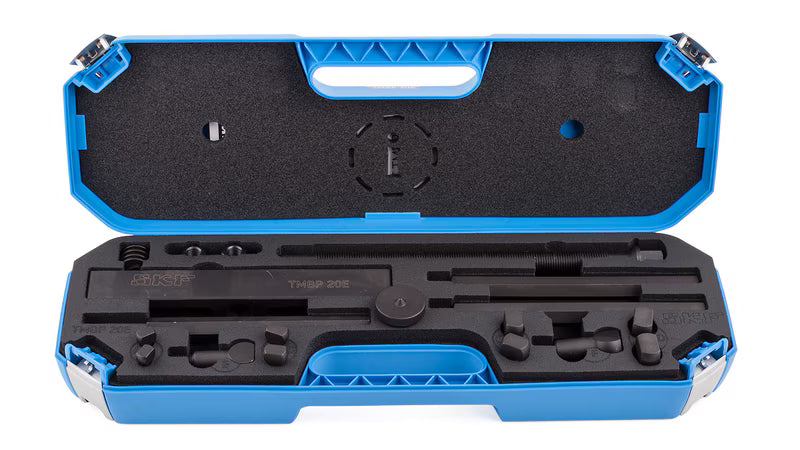

- Supplied in a sturdy carrying case
SKF TMBP 20E Blind Housing Puller Technical Data
| Category | Property | Specification |
|---|---|---|
| General | Designation | TMBP 20E |
| Suitable Bearings | Deep Groove Ball Bearings (60.. series) | 6021–6032 |
| Deep Groove Ball Bearings (62.. series) | 6213–6230 | |
| Deep Groove Ball Bearings (63.. series) | 6309–6320 | |
| Deep Groove Ball Bearings (64.. series) | 6406–6418 | |
| Deep Groove Ball Bearings (16… series) | 16026–16032 | |
| Dimensions | Effective arm length | 147–547 mm (5.8–21.5 in.) |
| Performance | Maximum pulling force | 55 kN (6.2 US ton) |
| Dimensions | Dimensions of case | 530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.) |
| Weight | Weight complete kit | 6.5 kg (14.3 lb) |
| Set Contents | Adapters | Size A to F (2 pcs each) |
| Main rods | 2 (with nut support rings and nuts) | |
| Extension rods | 4 | |
| Spindle | 1 | |
| Nose piece for spindle | 1 | |
| Beam | 1 | |
| Carrying case | 1 |
Removes bearing without dismantling machinery
The TMBP 20E is an adapter type puller for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).
- Allows a wide of range of deep groove ball bearings to be dismounted
- Ball adapters designed for a long service life
- Extension rods allow a reach of up to 583 mm (23 in.)
- Spanner stop function on spindle for easy and safe handling
- Self-locking nose piece helps minimise damage to shaft, and improves puller stability
- Supplied in a sturdy carrying case
SKF TMBP 20E Blind Housing Puller Technical Data
| Category | Property | Specification |
|---|---|---|
| General | Designation | TMBP 20E |
| Suitable Bearings | Deep Groove Ball Bearings (60.. series) | 6021–6032 |
| Deep Groove Ball Bearings (62.. series) | 6213–6230 | |
| Deep Groove Ball Bearings (63.. series) | 6309–6320 | |
| Deep Groove Ball Bearings (64.. series) | 6406–6418 | |
| Deep Groove Ball Bearings (16… series) | 16026–16032 | |
| Dimensions | Effective arm length | 147–547 mm (5.8–21.5 in.) |
| Performance | Maximum pulling force | 55 kN (6.2 US ton) |
| Dimensions | Dimensions of case | 530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.) |
| Weight | Weight complete kit | 6.5 kg (14.3 lb) |
| Set Contents | Adapters | Size A to F (2 pcs each) |
| Main rods | 2 (with nut support rings and nuts) | |
| Extension rods | 4 | |
| Spindle | 1 | |
| Nose piece for spindle | 1 | |
| Beam | 1 | |
| Carrying case | 1 |
SKF TMBP 20E Blind Housing Puller Kit
- Regular price
- $1,000.00
- Sale price
- $1,000.00
