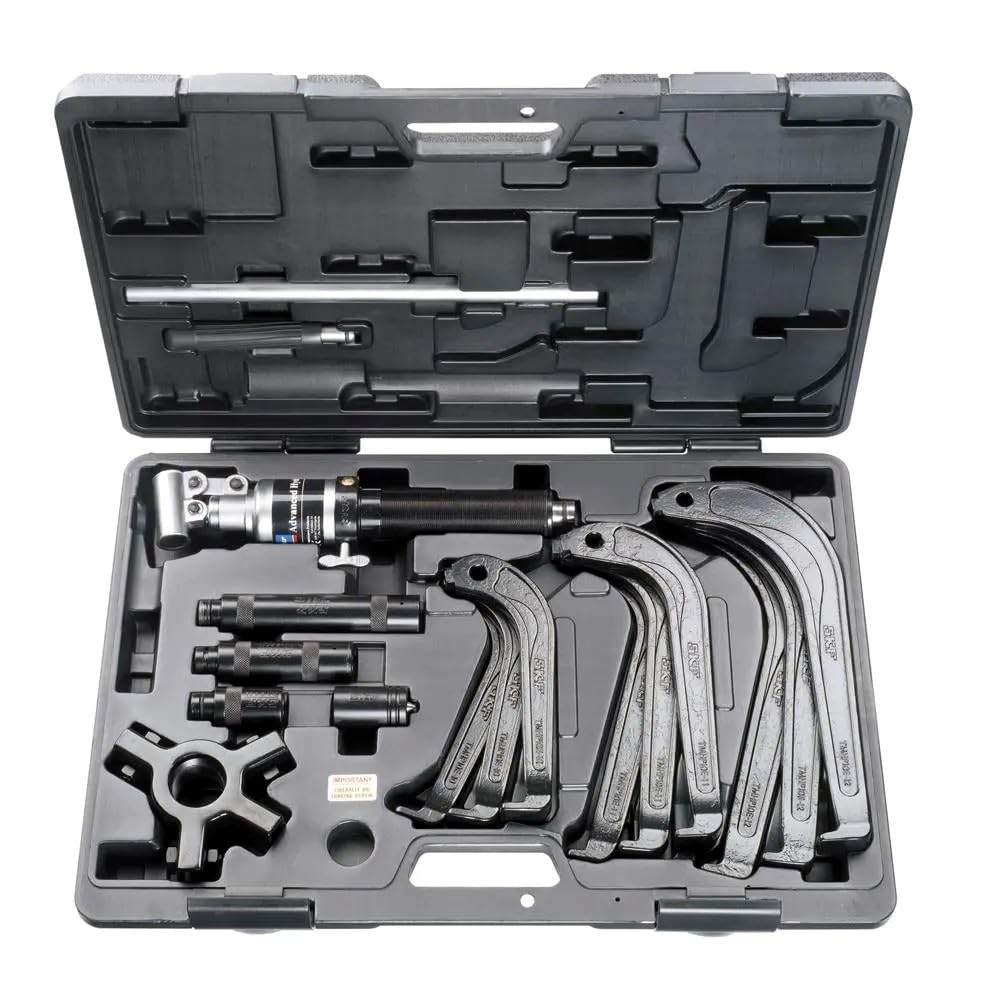

SKF TMHP 10E Hydraulic jaw puller kit up to 100 kN (11.2 US ton force)
- Regular price
- $1,690.00
- Sale price
- $1,690.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Description
The SKF TMHP 10E jaw puller kit is equipped with a hydraulic spindle, which facilitates effortless bearing dismounting up to 100 kN (11.2 ton US). The versatile puller kit includes three different arm sizes and can be assembled as a two-arm puller or a three-arm puller depending on the space and demand of the application.
- High load rating of 100 kN (11.2 ton US) makes the puller suitable for a variety of dismounting jobs
- The 3 different arm sizes, with a maximum effective arm length of 200 mm (7.9 in), make the TMHP 10E suitable for use in a wide range of applications
- The self-locking arms minimise the risk of the puller slipping from the application when under load
- Hydraulic spindle facilitates effortless dismounting
- The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload by limiting the applied force to 100 kN (11.2 ton US)
- Long stroke of hydraulic spindle, 80 mm (3.1 in), facilitates dismounting in one operation
- Extension pieces of the hydraulic spindle allow quick adaptation to pulling length
- The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage
SKF TMHP 10E Advanced Hydraulic Jaw Puller Kit Technical Data
| Category | Property | Specification |
|---|---|---|
| General | Designation | TMHP 10E |
| General | Description | Advanced hydraulic jaw puller kit |
| Contents | Arm-assembly stand | 1 |
| Arms, 115 mm (4.5 in.) | 3 | |
| Arms, 160 mm (6.3 in.) | 3 | |
| Arms, 200 mm (7.8 in.) | 3 | |
| Hydraulic spindle | TMHS 100 | |
| Extension pieces for hydraulic spindle | 50, 100, 150 mm (2, 4, 6 in.) | |
| Contents | Nosepiece with centre point for hydraulic spindle | 1 |
| Hydraulic Specifications | Maximum stroke | 80 mm (3.1 in.) |
| Nominal working force | 100 kN (11.2 US ton force) | |
| Safety valve setting hydraulic cylinder | 105 kN (11.8 US ton force) | |
| Hydraulic Cylinder | Threading | UN 1½'' x 16 tpi |
| Hydraulic Cylinder | Cycle life | Minimum 5000 cycles up to 100 kN (11.2 US ton force) |
| Dimensions | Carrying case dimensions | 578 x 410 x 70 mm (23 x 16 x 2.8 in.) |
| Weight | Weight complete kit | 14.5 kg (32 lb) |
| Arm Set 1 (3 x TMHP 10E-10) | Effective arms length | 115 mm (4.5 in.) |
| Width of grip | 75–170 mm (2.9–6.7 in.) | |
| Claw height | 8 mm (0.3 in.) | |
| Arm Set 2 (3 x TMHP 10E-11) | Effective arms length | 160 mm (6.3 in.) |
| Width of grip | 80–250 mm (3.1–9.8 in.) | |
| Claw height | 8 mm (0.3 in.) | |
| Arm Set 3 (3 x TMHP 10E-12) | Effective arms length | 200 mm (7.8 in.) |
| Width of grip | 110–280 mm (4.3–11 in.) | |
| Claw height | 8 mm (0.3 in.) |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
