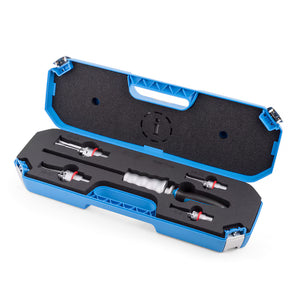

SKF TMIP 7-28 Internal bearing puller kit designed for dismounting bearings from housings
- Regular price
- $920.00
- Sale price
- $920.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features
- Designed to remove bearings from housings where the interference fit is on the outer ring
- Suitable for bearing bore diameters from 7 to 28 mm (0.28 to 1.10 in.)
- Unique SKF spring-loaded extractors install quickly and easily in one action
- Specially designed claws provide a strong, secure grip behind the bearing’s inner ring
- High-strength construction supports powerful and reliable bearing removal
- Slide hammer applies controlled impact force to extract the bearing
Description
The SKF TMIP 7-28 Internal Bearing Puller Kit is designed for fast, safe and efficient removal of bearings installed in housings where the interference fit is on the bearing’s outer ring. Covering bearing bore diameters from 7 to 28 mm, this professional bearing removal set is ideal for industrial maintenance, machinery repair, electric-motor service and gearbox rebuilding.

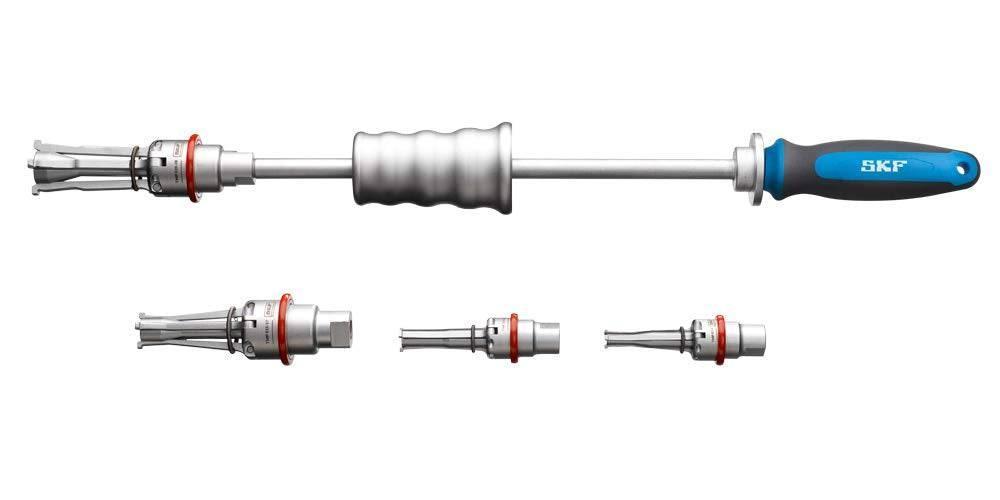

The SKF TMIP 7-28 features a unique spring-loaded extractor design that allows each puller to be quickly installed through the bearing bore in one simple action. Once positioned, the specially designed claws expand behind the bearing’s inner ring to create a strong and secure grip. The included slide hammer then applies controlled impact force to extract the bearing from the housing.
Four extractor sizes are included to cover bearing bores from 7–9 mm, 10–12 mm, 15–17 mm and 20–28 mm. This wide operating range makes the kit suitable for removing many common deep-groove ball bearings, self-aligning ball bearings, angular-contact ball bearings and smaller spherical roller bearings.

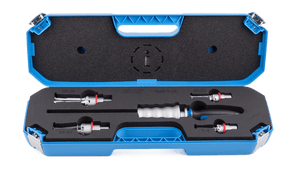

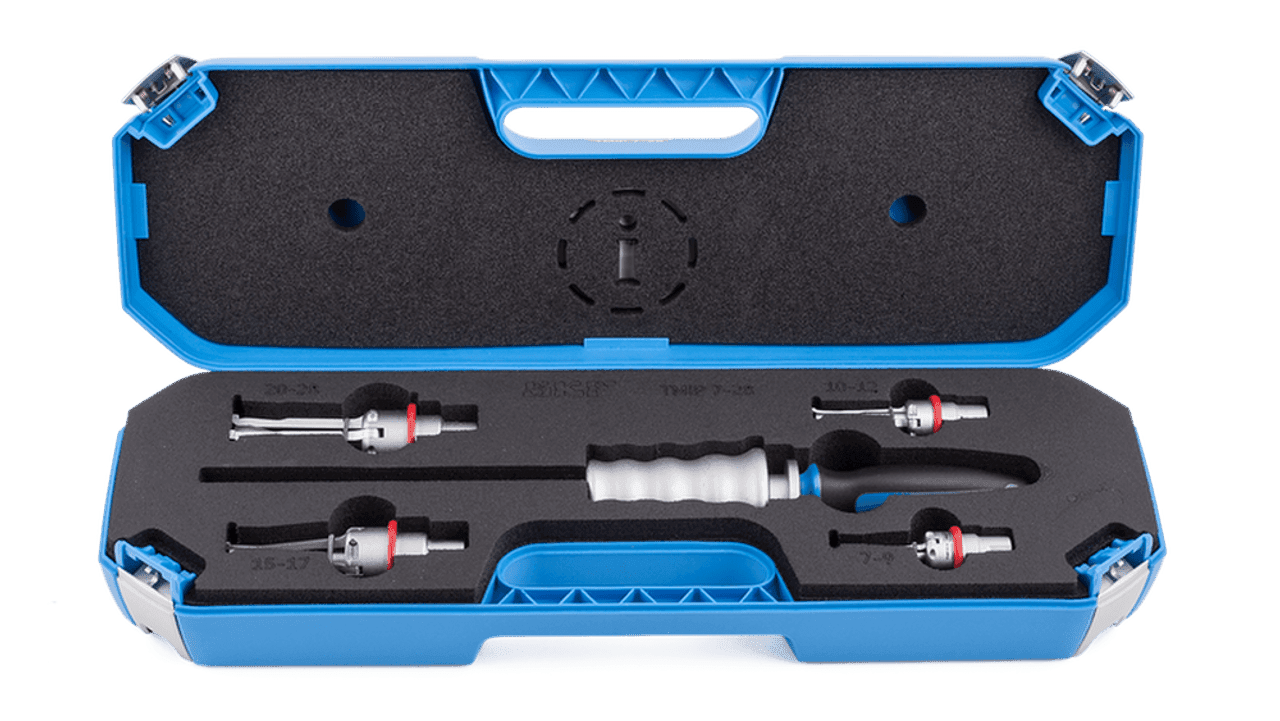

Built from high-strength materials for durability and repeated professional use, the SKF TMIP 7-28 bearing puller set helps reduce bearing removal time while improving grip, control and operator safety. The complete kit is supplied in a durable carrying case that keeps the extractors and slide hammer organized, protected and ready for use in the workshop or field.
Specifications
Dimensions
| Width of Grip Internal | 0.2756 – 1.1024 in |
| Workpiece Width (Max.) | TMIP E7-9: 0.40 in TMIP E10-12: 0.43 in TMIP E15-17: 0.70 in TMIP E20-28: 0.95 in |
| Housing Depth (Max.) | TMIP E7-9: 1.5 in TMIP E10-12: 1.8 in TMIP E15-17: 2.2 in TMIP E20-28: 2.4 in |
| Needed Free Depth Behind Workpiece | TMIP E7-9: 0.24 in TMIP E10-12: 0.24 in TMIP E15-17: 0.29 in TMIP E20-28: 0.40 in |
| Extractor Hexagonal Head Size | All: 19/32" |
| Total Extractor Length | TMIP E7-9: 3.6 in TMIP E10-12: 3.6 in TMIP E15-17: 4.6 in TMIP E20-28: 5.0 in |
| Slide Hammer Total Length | 16.4 in |
| Case Dimensions (L x H x W) | 20.9 x 3.4 x 7.0 in |
Properties
| Recommended Applications | For the dismounting of bearings, gears, pulleys and other industrial ring-shaped components in industrial, construction and agricultural applications with an interference fit inside a housing |
| Suitable for Workpiece Dismounting from a Cylindrical Seating (Straight Shaft) | No |
| Suitable for Bearing Dismounting from a Tapered Seating (Conical Shaft) | No |
| Suitable for Bearing Dismounting from a Sleeve (Adapter or Withdrawal Sleeve) | No |
| Suitable for Workpiece Dismounting from a Blind Arrangement (Housing with Shaft) | No |
| Suitable for Workpiece Dismounting from a Housing | Yes |
| Suitable for Bearing Type(s) | All |
| Dismounting Force Generation | Sliding hammer |
| Special Features | Unique spring-loaded grip system for easy operation |
| Total Number of Extractors in Kit | 4x: TMIP E7-9, TMIP E10-12, TMIP E15-17, TMIP E20-28 |
| Slide Hammer Weight | 2.2 lb |
| Total Number of Sliding Hammers in Kit | 1x TMIP S1 |
| Material | Medium carbon steels and alloy engineering steels, hardened and tempered |
| Handle Material | Opener handle: steel Slide hammer: thermoplastic elastomer |
| Coating | Zinc coated |
Kit Contents
| Extractors | 4x extractors, sizes E7-9 to E20-28 |
| Slide Hammer | 1x slide hammer, size S1 |
| Instructions for Use | 1x printed Instructions for Use (language free) |
| Carrying Case | 1x carrying case (size X) |
