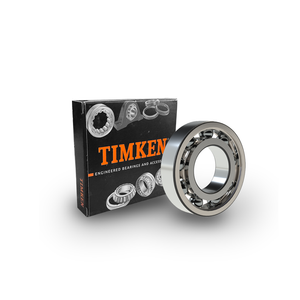

Timken 6203-NR Single Row Deep Groove Ball Bearing, Metric Series, 17mm Bore, 40mm OD, 12mm Width, Open, Cylindrical Bore, Steel Cage, C0 Clearance, ISO P0 Tolerance, Snap Ring.
- Regular price
- $9.00
- Sale price
- $9.00
- Regular price
-
$12.00
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Easy to interchange, designed as metric bearings and dimensionally interchangeable with competitor metric products
- Long bearing life through high-quality steel material
- Optimized internal geometry allows for quiet and reliable operation even at high speeds
- Includes Polyrex™ EM premium lubricant on sealed and shielded deep grove bearings for reduced torque and quieter operation
- Minimize vibration and noise in electric motor applications through super finishing, preferred clearance designation and premium grease
- Two-piece riveted steel cage ensures high rigidity and strength by reducing frictional torque
Description
Timken Ball Bearings
Timken® Ball Bearings are precision-engineered components designed to deliver reliable performance, high efficiency, and long service life across a wide range of industrial and automotive applications. Built with premium-grade steel and advanced heat treatment, Timken bearings provide exceptional load capacity, superior wear resistance, and smooth rotational motion even in demanding environments.
Each bearing is manufactured to exacting standards for dimensional accuracy and noise reduction, ensuring dependable operation in motors, gearboxes, pumps, conveyors, and other rotating equipment. With optimized internal geometry and advanced sealing technology, Timken ball bearings help minimize friction, extend lubrication intervals, and reduce downtime.
Why Choose Timken:
Timken has been a trusted name in motion technology for over a century, delivering innovation and performance that set the standard for bearing reliability. Whether for OEM use or replacement applications, Timken ball bearings offer consistent performance you can depend on.
Specifications
Key Dimensions
| Bore | 0.6693 in / 17 mm |
| Outside Diameter | 1.5748 in / 40 mm |
| Width | 0.472 in / 12 mm |
Performance
| Dynamic Load Rating C | 2160 lbs / 9600 N |
| Static Load Rating Co | 1080 lbs / 4800 N |
| Enclosure | Open |
| Cage | Steel |
| Radial Internal Clearance | C0 |
| Unit System | Metric |
| Special Features | Snap Ring on OD |
Mounting Dimensions
| Max Shaft/Housing Fillet Radius | 0.02 in / 0.6 mm |
