About

Description

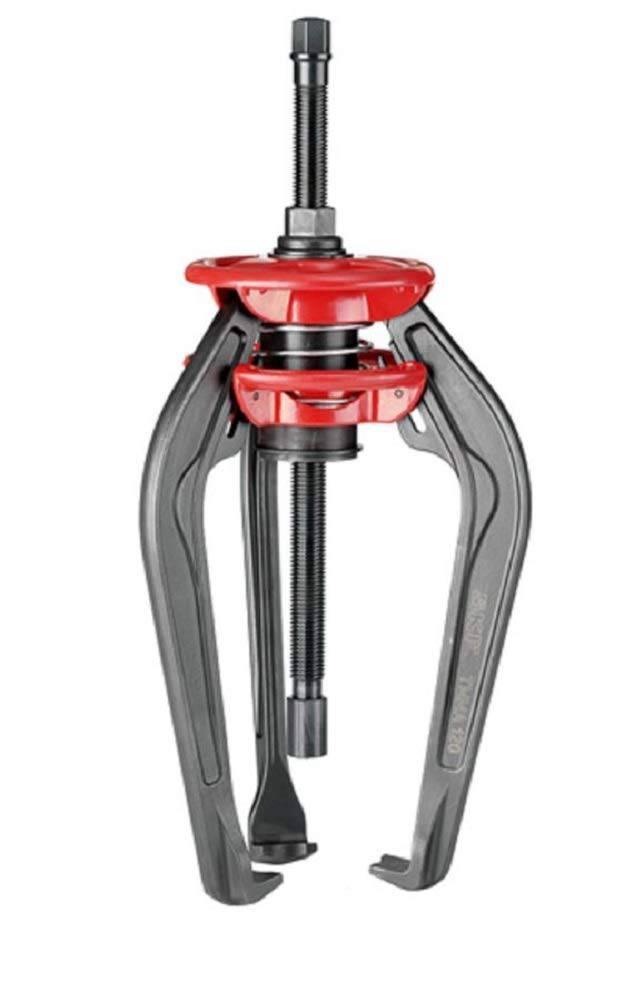

Safe and simple bearing dismounting

Equipped with spring-operated arms and a solid design, the SKF EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.

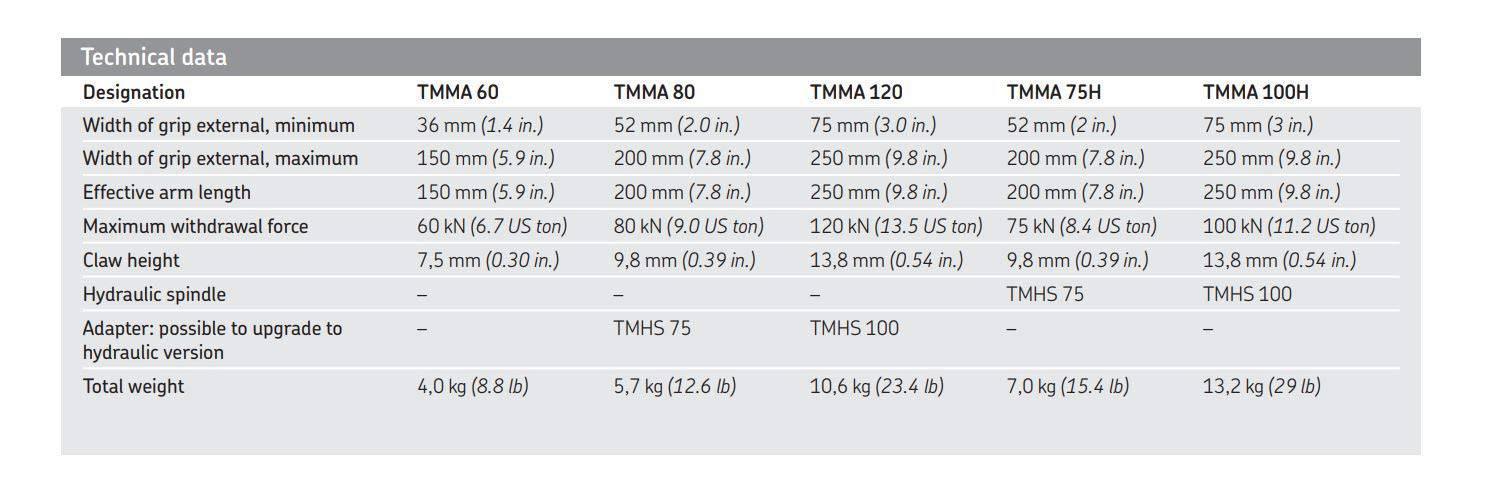

TMMA 120 Puller Technical Data

Category Property Value
General Width of grip external, minimum 75 mm (3.0 in.)
Width of grip external, maximum 250 mm (9.8 in.)
Effective arm length 250 mm (9.8 in.)
Maximum withdrawal force 120 kN (13.5 ton US)
Total weight 10.6 kg (23.4 lb)
Claw dimensions Claw height 13.8 mm (0.54 in.)
Claw length 24 mm (0.9 in.)
Claw width 40 mm (1.6 in.)
Force generators Hexagon on puller or adapter 32 mm
Hexagon on mechanical spindle 24 mm
Max torque 265 Nm (195 lbf ft)
Other Diameter nose piece 28 mm (1.1 in.)
Adapter: possible to upgrade to hydraulic version Yes
Description

Safe and simple bearing dismounting

Equipped with spring-operated arms and a solid design, the SKF EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.

TMMA 120 Puller Technical Data

Category Property Value
General Width of grip external, minimum 75 mm (3.0 in.)
Width of grip external, maximum 250 mm (9.8 in.)
Effective arm length 250 mm (9.8 in.)
Maximum withdrawal force 120 kN (13.5 ton US)
Total weight 10.6 kg (23.4 lb)
Claw dimensions Claw height 13.8 mm (0.54 in.)
Claw length 24 mm (0.9 in.)
Claw width 40 mm (1.6 in.)
Force generators Hexagon on puller or adapter 32 mm
Hexagon on mechanical spindle 24 mm
Max torque 265 Nm (195 lbf ft)
Other Diameter nose piece 28 mm (1.1 in.)
Adapter: possible to upgrade to hydraulic version Yes
