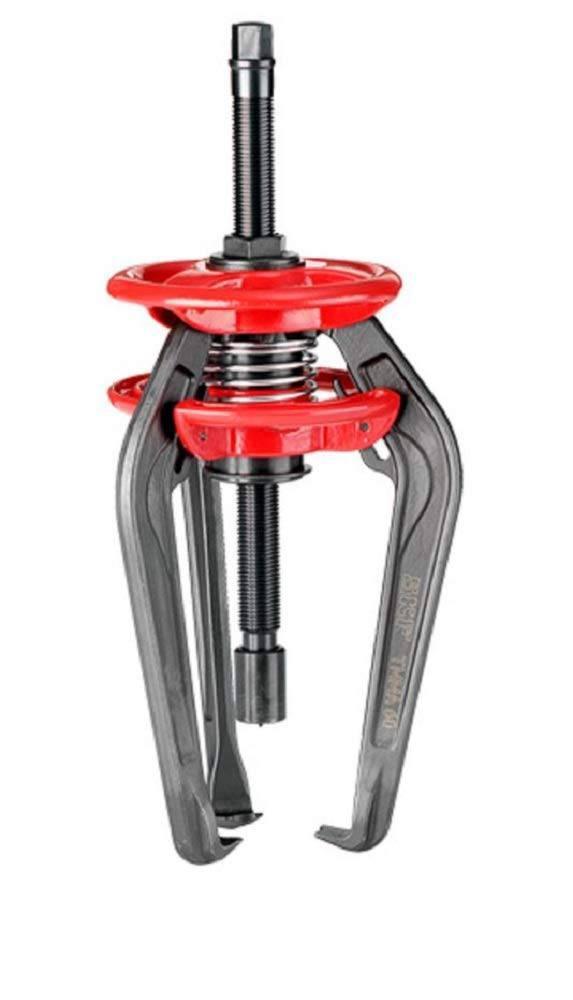

SKF TMMA 60 EasyPull Mechanical Puller, 3 Jaws, 67 Ton Capacity
Brand:
SKF
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
$600.00
Shipping calculated at checkout.
1 in Stock Now
Free shipping on orders over $100
Use code at checkout.
FREESHIP
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Need Help?
Call us 1 (248) 429-9073
Description
Safe and simple bearing dismounting
Equipped with spring-operated arms and a solid design, the SKF EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.
TMMA 60 Puller Technical Data
| Category | Property | Value |
|---|---|---|
| General | Width of grip external, minimum | 36 mm (1.4 in.) |
| Width of grip external, maximum | 150 mm (5.9 in.) | |
| Effective arm length | 150 mm (5.9 in.) | |
| Maximum withdrawal force | 60 kN (6.7 ton US) | |
| Total weight | 4.0 kg (8.8 lb) | |
| Claw dimensions | Claw height | 7.5 mm (0.30 in.) |
| Claw length | 15 mm (0.6 in.) | |
| Claw width | 20 mm (0.8 in.) | |
| Force generators | Hexagon on puller or adapter | 27 mm |
| Hexagon on mechanical spindle | 17 mm | |
| Max torque | 105 Nm (75 lbf ft) | |
| Other | Diameter nose piece | 24 mm (0.9 in.) |
| Adapter: possible to upgrade to hydraulic version | No |
