Description

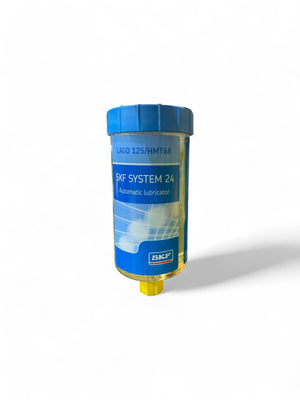

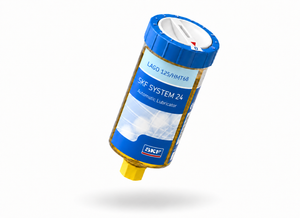

LAGD 125/HMT68
SKF SYSTEM 24 gas driven single point automatic lubricator
- Flexible dispense rate from 1 to 12 months
- ATEX zone 0 approved
- Transparent lubricant container allows visual inspection of dispense rate
- Compact size, suitable for restrictive areas
- Improved reliability and optimized maintenance
|
Designation |
LAGD 60 and LAGD 125 |
|
| Grease capacity | LAGD 60 | 60 ml (2 US fl. oz) |
| LAGD 125 | 125 ml (4.2 US fl. oz) | |
| Nominal emptying time |
Adjustable; 1–12 months |
|
| Ambient temperature range |
–20 to +60 °C (–5 to +140 °F) |
|
| Maximum operating pressure |
5 bar (75 psi) (at start-up) |
|
| Drive mechanism |
Gas cell producing inert gas |
|
| Connection thread |
R1/4 |
|
| Maximum feed line length with: | Grease | 300 mm (11.8 in.) |
| Oil | 1 500 mm (59.1 in.) | |
| Intrinsically safe approval |
II 1G Ex ia IIC T6 Ga II 1D Ex ia IIIC T200 85°C Da I M1 Ex ia I Ma |
|
| EC Type Examination Certificate |
DEKRA 21ATEX0015 X |
|
| Protection class |
IP 68 |
|
| Recommended storage temperature |
20 °C (70 °F) |
|
| Storage life of lubricator |
2 years |
|
| Weight |
LAGD 125 approx 200 g (7.1 oz) LAGD 60 approx 130 g (4.6 oz) Lubricant included |
|
| Note: If ambient temperature is constant between 40 °C and 60 °C (105 °F and 140 °F), do not select a setting of more than 6 months for optimum performance. | ||
