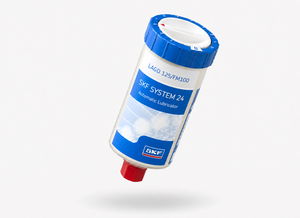

The SKF LAGD 125/FM100 is a 125 ml SKF SYSTEM 24 automatic single-point lubricator prefilled with SKF LFFM 100 food-grade chain oil. Unlike the grease-filled versions, this unit is designed to dispense oil for chain applications requiring a clean, controlled, continuous supply of lubricant.
SKF LFFM 100 is a high-performance synthetic food-grade chain oil with excellent performance in moist and low-temperature environments. It is suitable for food and beverage applications where NSF H1 food-grade lubrication is required for incidental food contact. The transparent reservoir allows easy visual inspection of oil level, while the adjustable dispensing rate can be set from 1 to 12 months depending on the application.
Ideal for general chain lubrication in food processing, confectionery production, fruit and vegetable processing, packaging equipment, conveyor chains, and other food-grade chain applications.
Key Features
- Flexible dispense rate from 1 to 12 months
- ATEX zone 0 approved
- Transparent lubricant container allows visual inspection of dispense rate
- Compact size, suitable for restrictive areas
- Improved reliability and optimized maintenance
Specifications
Performance
| Maximum Pressure | 5 bar |
Properties
| Ambient Temperature Range | -20 to 60 °C |
| Certifications | NSF H1, Halal, Kosher |
| Connecting Thread | R 1/4 |
| Degree of Protection (IP) | IP68 |
| Drive Mechanism | Gas cell producing inert gas |
| Intrinsically Safe Approval | II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma |
| Lubricant | LFFM 100 |
| Lubricant Description | High-performance synthetic food grade chain oil |
| Lubricant Operating Temperature Range | -30 to +130 °C |
| Lubricant Quantity | 125 ml |
| Maximum Feed Line Length | 1.5 m |
| Nominal Emptying Time | Adjustable, 1–12 months |
| Power Source | Integrated gas cell |
| Recommended Applications | General chain lubrication in confectionery industries and fruit and vegetable processing |
| Recommended Storage Temperature | 20 °C |
| Shelf Life | 2 years |
Logistics
| Country of Manufacturing (COM Code) | 12 - Finland |
| Product Net Weight | 0.18 kg |
| eClass Code | 23-06-10-14 |
| UNSPSC Code | 15121902 |
