Industrial induction heater with digital control panel for bearing installation
SKF TIH 100M/230V, Induction Heater TIH 100M (230V version)
    Industrial induction heater with digital control panel for bearing installation
    SKF TIH 100M/230V, Induction Heater TIH 100M (230V version)
Industrial induction heater with digital control panel for bearing installation
SKF TIH 100M/230V, Induction Heater TIH 100M (230V version)
Industrial induction heater with digital control panel for bearing installation
SKF TIH 100M/230V, Induction Heater TIH 100M (230V version)
    Industrial induction heater with digital control panel for bearing installation
    SKF TIH 100M/230V, Induction Heater TIH 100M (230V version)
Industrial induction heater with digital control panel for bearing installation
SKF TIH 100M/230V, Induction Heater TIH 100M (230V version)

SKF TIH 100M/230V, Induction Heater TIH 100M (230V version)

  • Bearings up to 120 kg (264 lb)
  • Bore 20 to 400 mm (0.8 to 15.7 in)
  • 200 to 240 V, 50 to 60 Hz
Brand: SKF

Genuine SKF product, SKF

Regular price
$6,227.97
Sale price
$6,227.97
Regular price
$13,704.58
Shipping calculated at checkout.
Call 1 (248) 429-9073 for Availability

Free shipping on orders over $100

Use code at checkout.

Request a quote

Tell us the tool and the quantity. We reply with pricing and lead time.

Why Apollo USA

SKF maintenance tools from Apollo Industries, Oxford, Michigan

Apollo Industries supplies bearings, seals and maintenance tools to businesses across the US, with real people on the phone when you need help choosing a tool.

  • Same-day shipping

    Order by 3 PM EST for same-day shipping.

  • Free shipping over $100

    All orders over $100 ship free by ground with code FREESHIP.

  • 90-day returns

    Hassle-free returns on unused items within 90 days.

  • Price match

    Show us a competitor's advertised price on the same item and we will match it.

  • Expert support

    Support staff available by phone, web chat or email.

  • Need tax exemption or quantity pricing?

    We offer special rates for businesses and bulk orders.

    Contact us

Map of Oxford, Michigan
Oxford, Michigan

Talk to a specialist

(248) 429-9073

sales@apollousa.com

2695 Lake George Rd
Oxford, MI 48370

Overview

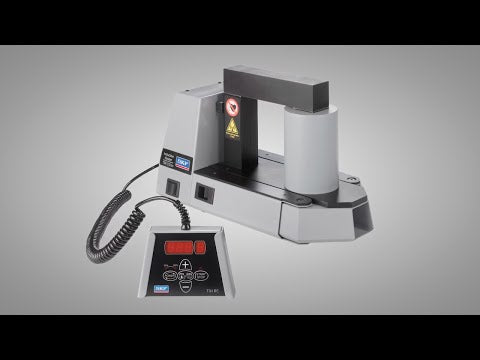

SKF TIH 100m/230V induction heater

The SKF medium induction heater TIH 100m has the same high standards of efficiency and performance as the smaller heater TIH 030m, combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating and controls on rate of temperature increase.

Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 120 kg (264 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 100m is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes and is available in two executions: 230V/50-60Hz or 400-460V/50-60Hz.

Full description and technical data

Medium induction heater

High heating capacity of up to 120 kg bearing

The SKF medium induction heater TIH 100m has the same high standards of efficiency and performance as the smaller heater TIH 030m, combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating and controls on rate of temperature increase.

Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 120 kg (264 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 100m is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes and is available in two executions: 230V/50-60Hz or 400-460V/50-60Hz.

  • Standard swivel arm for large size yoke
  • Capable of heating a 97 kg (213 lb) bearing in less than 20 minutes, saving time and energy
  • 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
  • Temperature mode pre–set at 110 °C (230 °F) to help prevent bearing over–heating
  • Automatic demagnetization
  • Foldable bearing support arms allow larger diameter bearings to be heated, and reduce the risk of the bearing toppling during heating

Key features

  • Standard swivel arm for large size yoke
  • Capable of heating a 97 kg (213 lb) bearing in less than 20 minutes, saving time and energy
  • 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption

In the case

What comes with the SKF TIH 100m/230V

SKF TIH 100m/230V video Play video

6 items

  • Heater
  • Remote control
  • Temperature probe TIH P20
  • 3 standard yokes
  • Heat resistant gloves TMBA G11
  • Tube of anti-fretting paste

Specifications

SKF TIH 100m/230V specifications

Units
Maximum bearing weight
264 lb120 kg
Bearing bore diameter
0.8 to 15.7 in20 to 400 mm
Voltage
200 to 240 V, 50 to 60 Hz
Maximum power consumption
3.6 kVA
Temperature control
68 to 482 °F20 to 250 °C
Temperature mode preset
230 °F110 °C
Demagnetisation
Automatic, below 2 A/cm
Standard yokes
3, for bores from 3.1, 1.6 and 0.8 in3, for bores from 80, 40 and 20 mm
Operating area, width × height
6.1 × 8 in155 × 205 mm
Coil diameter
4.3 in110 mm
Dimensions, width × depth × height
22.4 × 9 × 13.7 in570 × 230 × 350 mm
Total weight with yokes
92 lb42 kg
Brand
SKF
Designation
TIH 100m/230V
UPC / EAN
07316572520444

Values as published by the manufacturer.
