SKF TKSA 51 Shaft Alignment Tool – Laser Precision and Efficiency for Optimal Performance

  • Wireless laser
  • Runs on your phone or tablet
  • Up to 5 m (16.4 ft) between units
  • Vertical machines too
Brand: SKF

Genuine SKF product, SKF

Regular price
$6,990.54
Sale price
$6,990.54
Regular price
$8,120.00
Shipping calculated at checkout.
green lightning bolt icon for industrial tools and equipment
9 in Stock Now

Same-day shipping

Order by 3 PM ET for same-day shipping

Free shipping on orders over $100

Use code at checkout.

Request a quote

Tell us the tool and the quantity. We reply with pricing and lead time.

Why Apollo USA

Alignment tools from Apollo Industries, Oxford, Michigan

Apollo Industries supplies bearings, seals and maintenance tools to businesses across the US, with real people on the phone when you need help choosing a tool.

  • Same-day shipping

    Order by 3 PM EST for same-day shipping.

  • Free shipping over $100

    All orders over $100 ship free by ground with code FREESHIP.

  • 90-day returns

    Hassle-free returns on unused items within 90 days.

  • Price match

    Show us a competitor's advertised price on the same item and we will match it.

  • Expert support

    Support staff available by phone, web chat or email.

  • Need tax exemption or quantity pricing?

    We offer special rates for businesses and bulk orders.

    Contact us

Map of Oxford, Michigan
Oxford, Michigan

Talk to a specialist

(248) 429-9073

sales@apollousa.com

2695 Lake George Rd
Oxford, MI 48370

Overview

SKF TKSA 51 shaft alignment tool

SKF TKSA 51 Wireless Laser Shaft Alignment Tool | Comprehensive Smartphone & Tablet System

Experience the ultimate flexibility in shaft alignment. The SKF TKSA 51 is a versatile wireless laser alignment system that works seamlessly with your smartphone or tablet, supporting both horizontal and vertical shaft alignments with only 40° rotation required—perfect for entry-level to expert applications.


Versatile Alignment for Every Application

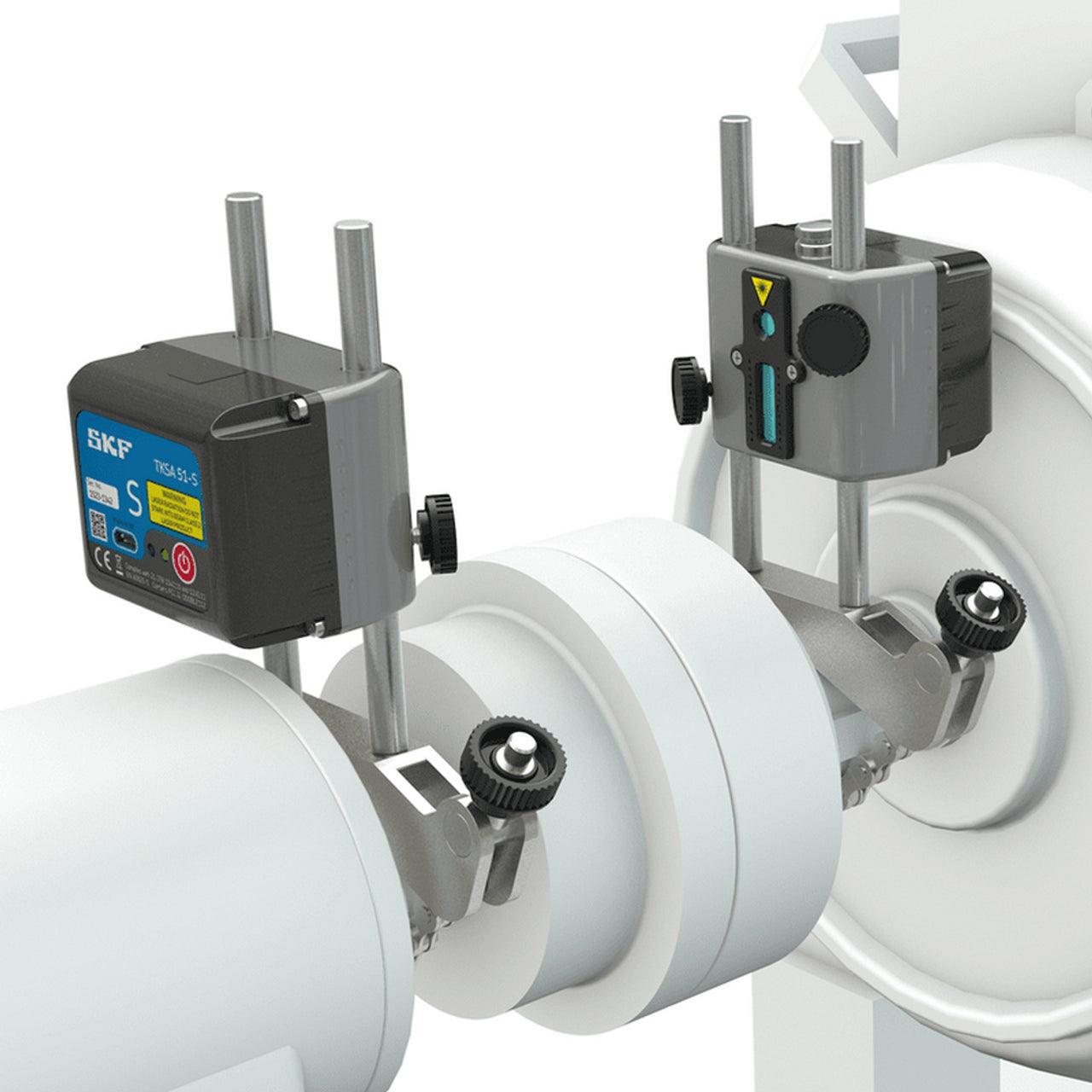

The SKF TKSA 51 shaft alignment tool delivers exceptional measurement flexibility and performance suitable for entry-level to expert alignment jobs. Designed to work with dedicated SKF alignment apps on iOS and Android devices, this intuitive wireless system requires no special training while providing professional-grade results. The comprehensive accessory package—including magnetic mounting brackets, extension rods, and chains—enables the TKSA 51 to handle a wide range of alignment applications including motors, drives, fans, pumps, gearboxes, and both horizontal and vertical shaft configurations. Despite its versatility, the system remains compact, lightweight, and easy to transport, making it the broadest-capability tool in the TKSA family.



Why Choose the SKF TKSA 51?

For Maintenance Teams of All Skill Levels — From beginners to experts, the intuitive app-based interface with tutorial videos makes precision alignment accessible. No special training required—the apps guide you through every step with clear visual instructions and 3-D positioning feedback.

For Space-Constrained Applications — The 40° minimum rotation capability is a game-changer for tight installations where traditional 180° rotation is impossible. Align machinery in applications previously considered inaccessible with standard tools.

For Facilities with Diverse Equipment — One system handles horizontal shafts, vertical shafts, and soft foot detection across all your rotating machinery. Eliminate the need for multiple specialized tools and standardize on a single, comprehensive platform.

Ideal Applications

Horizontal shaft alignments (motors, pumps, gearboxes, compressors, fans, blowers) | Vertical shaft alignments (mixers, agitators, vertical pumps) | Space-constrained installations requiring minimal rotation | Applications with limited shaft access | Equipment mounted on vibration isolators | Facilities requiring both horizontal and vertical alignment capability | Mobile maintenance teams | Multi-site operations needing standardized digital reporting | Preventive maintenance programs | Any rotating machinery requiring professional alignment with maximum flexibility

Key features

  • Measurement flexibility - The well-known, three-position measurement gains additional flexibility as measurements can start at any angle and require a total minimal rotation of only 40 degrees. This enables operators to perform alignments of applications with limited space.
  • Automatic reports - Alignment reports are generated automatically and can be customised with notes, a machine picture and a signature via touchscreen. These reports can be exported as PDF files and shared with other mobile apps.
  • Comprehensive and compact - A range of included components, such as magnetic mounting brackets and extension rods and chains, increase the TKSA 51's versatility, yet it remains compact, lightweight and easy to carry.

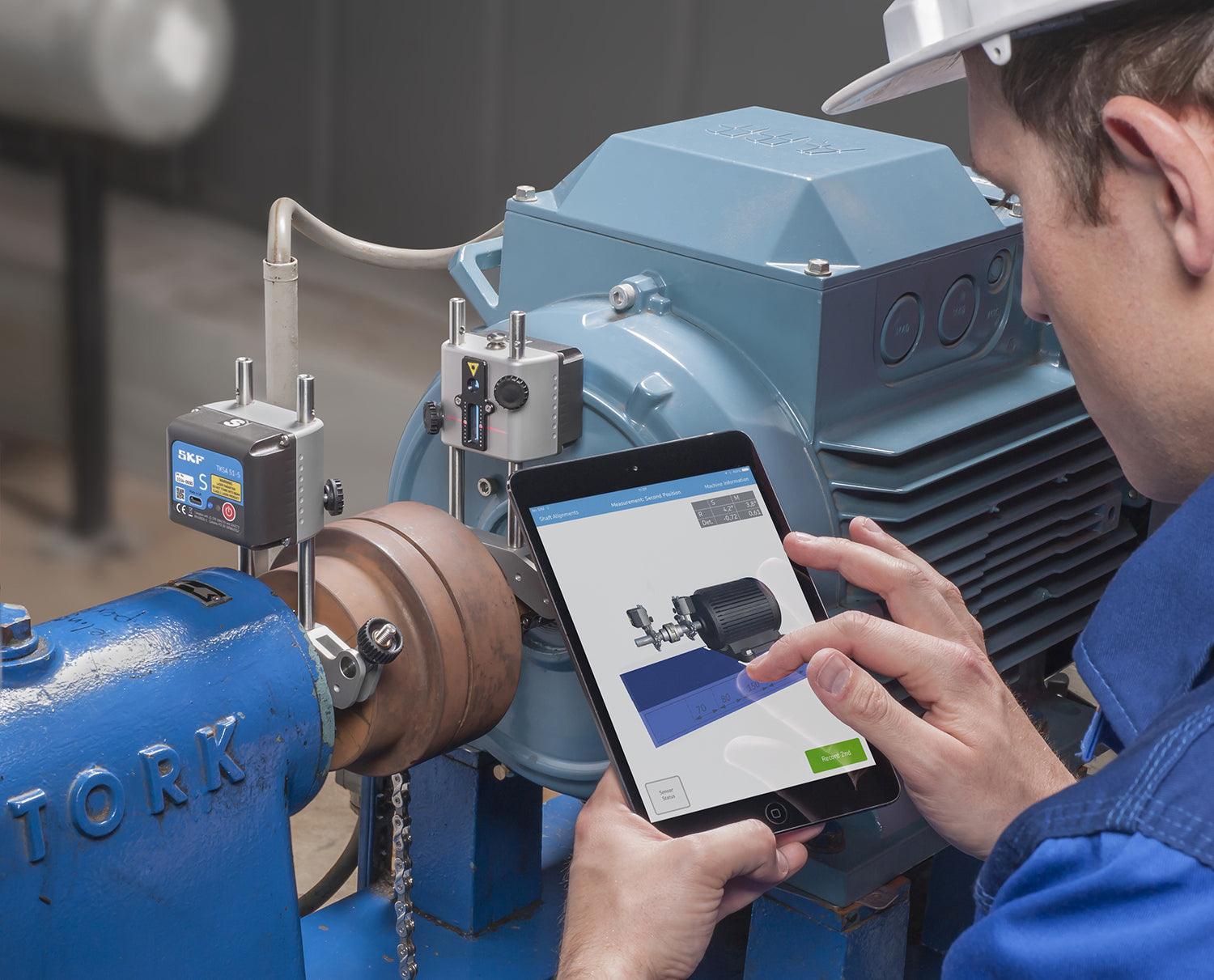

  • 3-D live view - This feature enables intuitive positioning of heads for quick alignment measurements and displays live when horizontal/vertical alignment correction is achieved. The app enables 3-D rotation of the virtual motor to correspond with the actual machine position.
  • Disturbance compensation - Measurement values are averaged over time to provide accuracy in presence of vibration or other external disturbances.
  • The TKSA 51 is supplied in a sturdy SKF carrying case
  • Extensive range of accessories is available.
See every SKF alignment tool

In the case

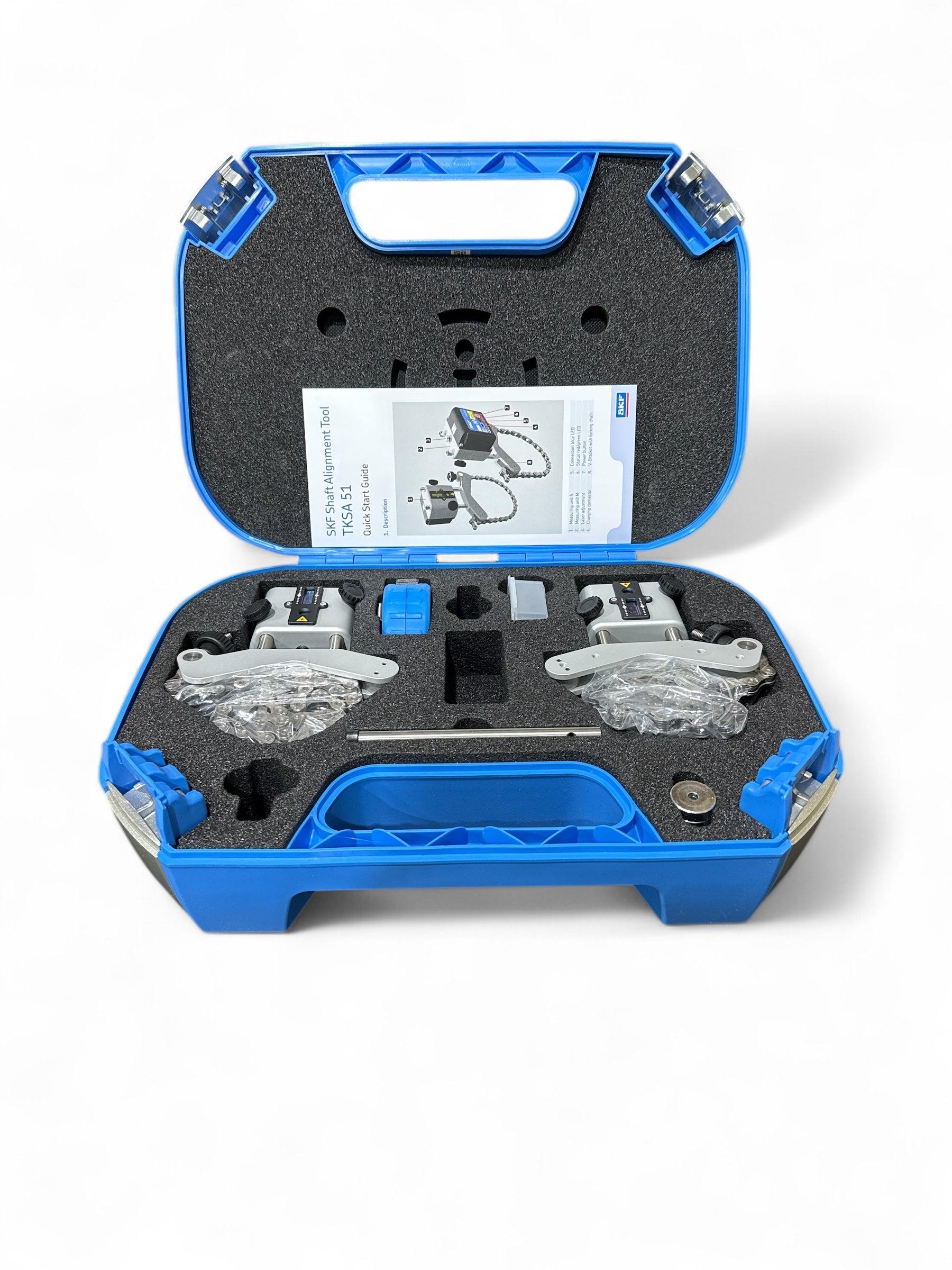

What comes with the SKF TKSA 51

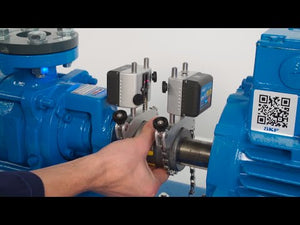

SKF shaft alignment tool TKSA 51: instruction and demonstration Play video

10 items in the kit

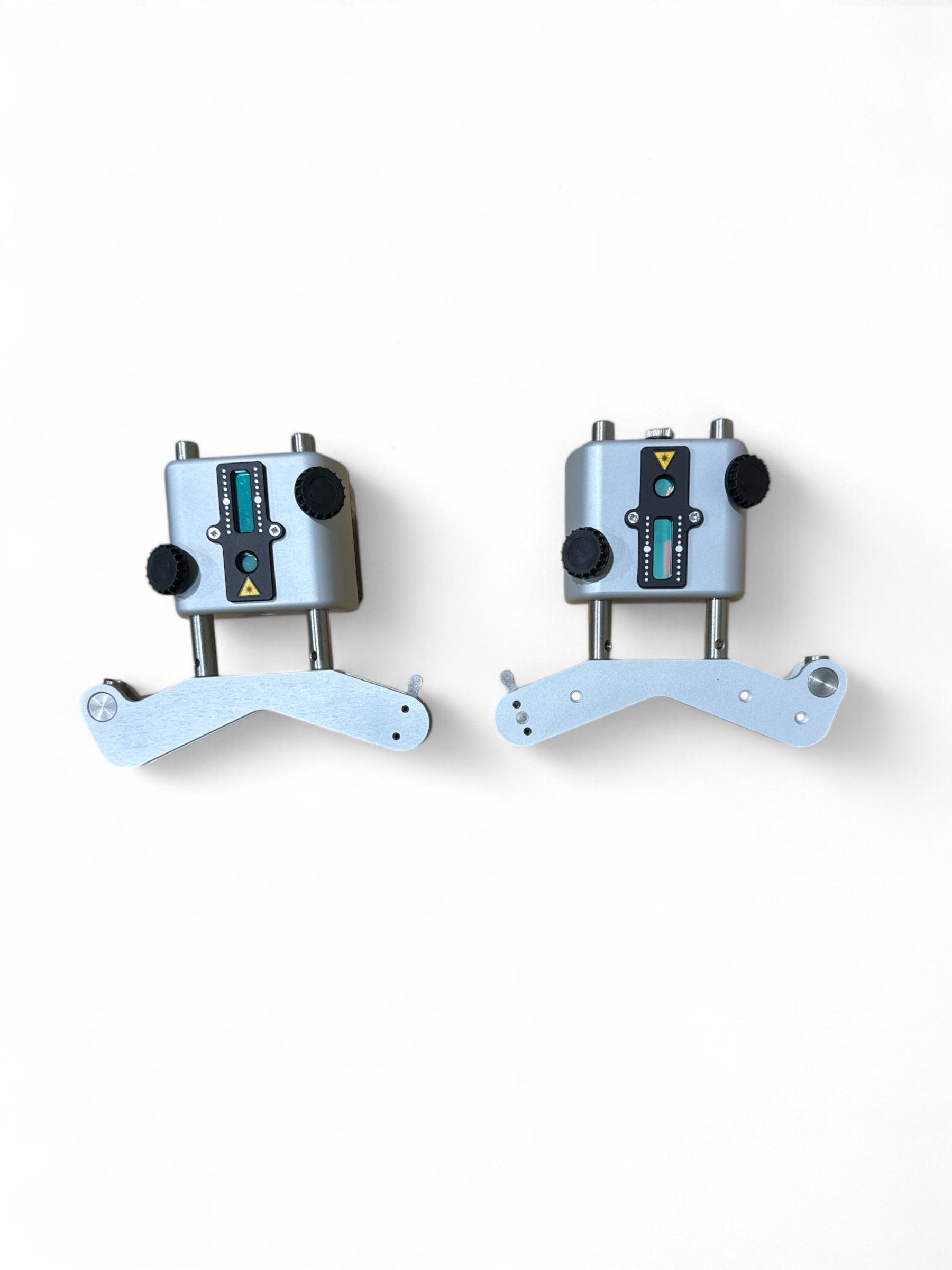

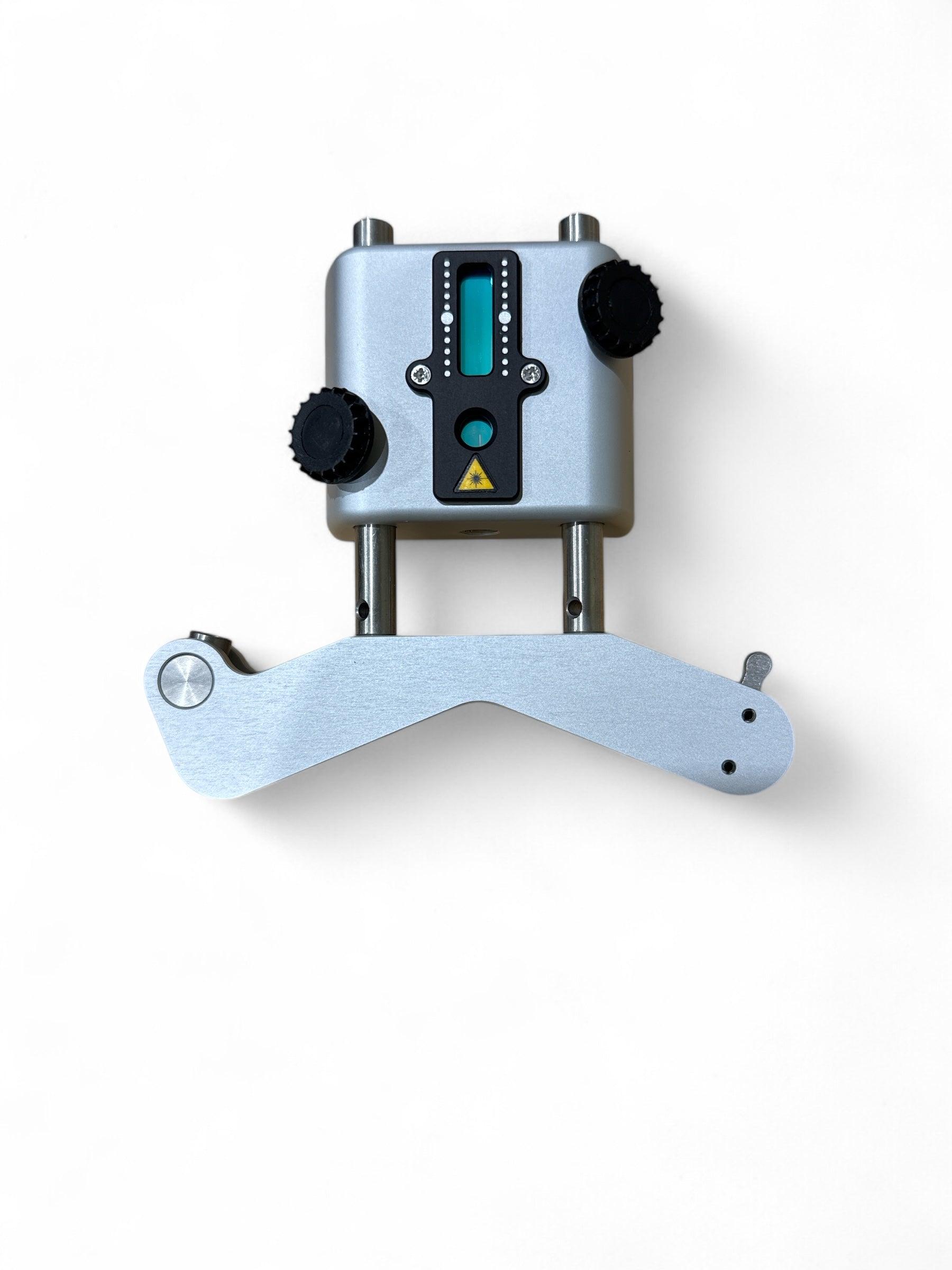

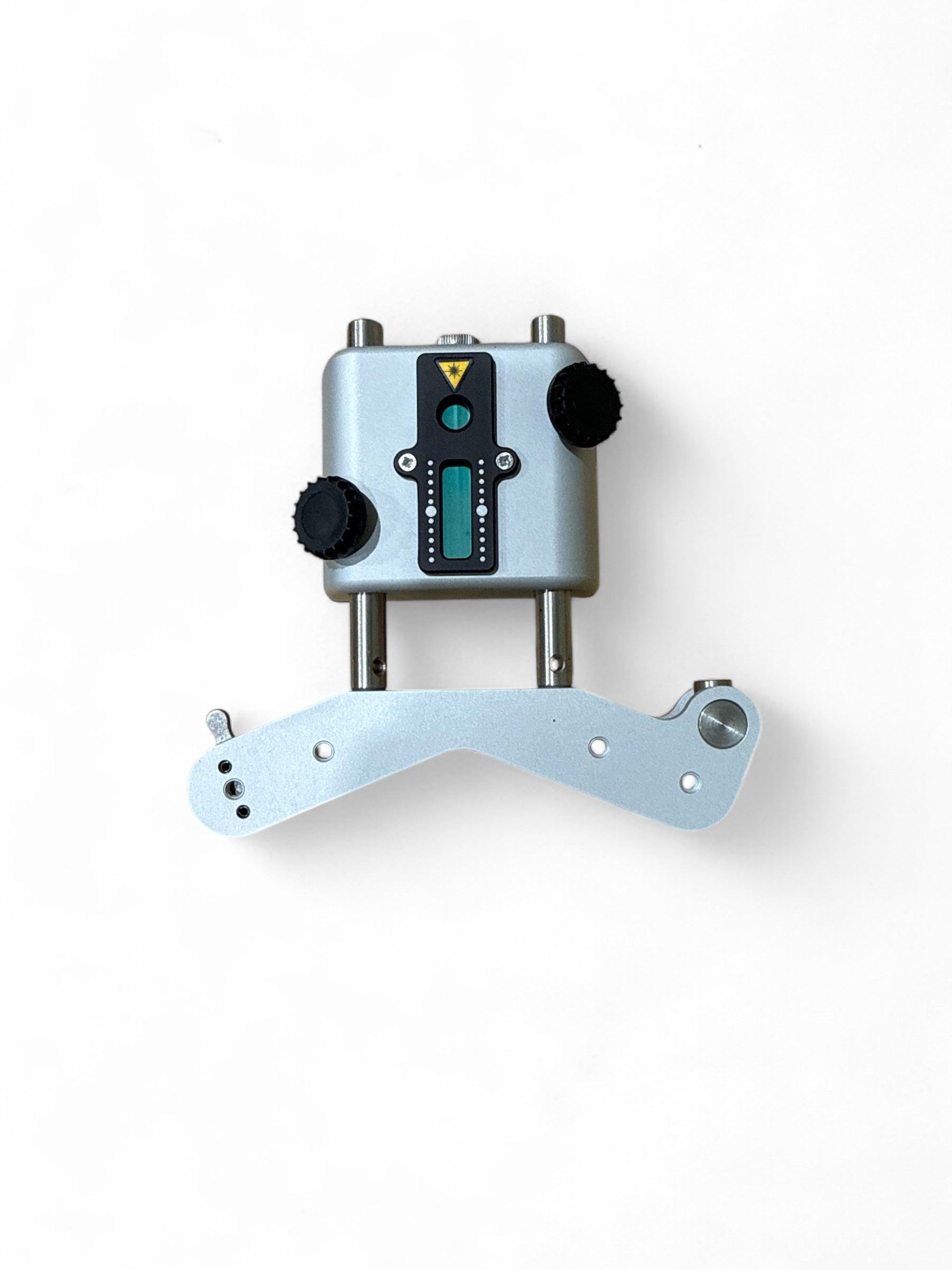

  • 2 measuring units (M and S)
  • 2 shaft brackets with chains 480 mm (18.9 in), threaded rods 80 mm (3.2 in) and magnets
  • 4 threaded extension rods 120 mm (4.7 in)
  • 2 extension chains 980 mm (38.6 in)
  • Micro USB to USB split charging cable
  • Measuring tape
  • 2 A5 sheets of 6 QR code stickers (12 stickers)
  • Printed certificate of calibration and conformance
  • Printed quick start guide
  • SKF carrying case

The calibration certificate is valid for two years.

Specifications

SKF TKSA 51 specifications

Units
How the SKF TKSA 51 measures: 0.07 to 5 m between the measuring units S M 40° sweep ⌀ 0.8 to 5.9 in ⌀ 20 to 150 mm 0.23 to 16.4 ft 0.07 to 5 m
Schematic, not to scale. Point at a value to find it on the drawing.

Wireless laser alignment on your phone or tablet, for horizontal and vertical machines up to 5 m apart.

Measuring method
Red line laser, 20 mm PSD detectors, inclinometer ±0.1°
Connection
Bluetooth 4.0 LE
Display
Your phone or tablet, SKF shaft alignment apps (iOS, Android)
Distance between units
0.23 to 16.4 ft0.07 to 5 m
Measuring error
1%
Shaft rotation
Free, 40° in all
Vertical machines
Yes
Machine trains
No
Shaft diameter
0.8 to 5.9 in, 17.7 in with the chains in the kit20 to 150 mm, 450 mm with the chains in the kit
Battery
10 h
Protection
IP54
Case and weight
14.2 × 4.3 × 10.2 in, 6.66 lb360 × 110 × 260 mm, 3.02 kg
Brand
SKF
Designation
TKSA 51
UPC / EAN
7316576798863

Specifications as SKF publishes them on skf.com.

Full technical data

SKF Wireless Shaft Alignment Tool TKSA 51 – Technical Specifications

Sensors & Communication

Sensors20 mm (0.8 in) PSD with line laser Class 2
Inclinometer ±0.1°
CommunicationBluetooth 4.0 LE
System Measuring Distance0.07 to 5 m (0.23 to 16.4 ft)
Measuring Errors<1 % ±10 µm

Measuring Units (M & S)

Housing MaterialAnodized aluminium front + PC/ABS plastic back
Operating TimeUp to 8 hours
Fast charging: 10 min = 1 h usage
BatteryRechargeable Li-ion
Dimensions (each)52 × 64 × 50 mm (2.1 × 2.5 × 2 in)
Weight (each)190 g (0.4 lb)

App & Device Compatibility

Recommended DeviceiPad Mini
Compatible DevicesiPad, iPhone SE, iPod Touch, Samsung Galaxy series
OS RequirementsiOS 9 or higher / Android 9 or higher
Software UpdateApple App Store / Google Play Store

Alignment Capabilities

Alignment MethodsHorizontal & vertical shafts, 3-position 9–12–3, automatic measurement, soft foot
Live CorrectionVertical and horizontal
Extra FeaturesMachine library, QR code reading, target values, disturbance compensation, 3D free view, automatic PDF report

Mechanical & Mounting

Fixture2 × V-brackets with chains, width 15 mm (0.6 in)
Shaft Diameter Range20 to 150 mm (0.8 to 5.9 in)
Up to 450 mm (17.7 in) with included extension chains
Max. Coupling Height45 mm (1.8 in) with standard rods
+170 mm (6.7 in) per set of extension rods
Power / ChargingMicro USB 5 V (split cable included)
Compatible with standard 5 V USB chargers
Operating Temperature0 to 45 °C (32 to 113 °F)
IP RatingIP 54
Carrying Case Dimensions355 × 250 × 110 mm (14 × 9.8 × 4.3 in)
Total Weight (incl. case)2.9 kg (6.4 lb)

Spare Parts

DesignationDescription
TKSA 51-MMeasuring unit M (incl. calibration certificate)
TKSA 51-SMeasuring unit S (incl. calibration certificate)
TKSA 51-VBKStandard chain bracket + 480 mm chain with 4 magnets

Compare

How the TKSA 51 compares

The TKSA 51 beside the rest of its SKF range. Pick tools to set against it, or switch on Differences only.

Compare with

Specification Entry levelTKSA 11 Wired laserTKSA 31 Wireless laserTKSA 41 This tool TKSA 51 Up to 10 mTKSA 71 TKSA 71 with accessoriesTKSA 71/PRO
Measuring method2 inductive sensors and 3 reference bars, no laserRed line laser, 29 mm CCD detectors, inclinometer ±0.5°Red line laser, 29 mm CCD detectors, inclinometer ±0.5°Red line laser, 20 mm PSD detectors, inclinometer ±0.1°Red line laser, 20 mm PSD detectors, inclinometer ±0.1°Red line laser, 20 mm PSD detectors, inclinometer ±0.1°
ConnectionBluetooth 4.0 LEUSB cablesBluetooth 4.0 LE or USBBluetooth 4.0 LEBluetooth 4.0 LEBluetooth 4.0 LE
DisplayYour phone or tablet, free TKSA 11 app (iOS, Android)5.6 in touch display unit, in the kit5.6 in touch display unit with camera and QR reader, in the kitYour phone or tablet, SKF shaft alignment apps (iOS, Android)Your phone or tablet, SKF shaft alignment apps (iOS, Android)Your phone or tablet, SKF shaft alignment apps (iOS, Android)
Distance between units0 to 7.3 in0 to 185 mm0.23 to 6.6 ft, 13.1 ft with extension cables0.07 to 2 m, 4 m with extension cables0.23 to 13.1 ft0.07 to 4 m0.23 to 16.4 ft0.07 to 5 m0.23 to 32.8 ft0.07 to 10 m0.23 to 32.8 ft0.07 to 10 m
Measuring error2%0.5%0.5%1%1%1%
Shaft rotation9, 12 and 3 o’clock positions9, 12 and 3 o’clock, 140° in allFree, 90° in allFree, 40° in allFree, 40° in allFree, 40° in all
Vertical machinesNoNoNoYesYesYes
Machine trainsNoNoNoNoYes, and spacer shaftsYes, and spacer shafts
Shaft diameter0.8 to 6.3 in, 12.6 in with optional chains20 to 160 mm, 320 mm with optional chains0.8 to 5.9 in, 11.8 in with optional chains20 to 150 mm, 300 mm with optional chains0.8 to 5.9 in, 11.8 in with optional chains20 to 150 mm, 300 mm with optional chains0.8 to 5.9 in, 17.7 in with the chains in the kit20 to 150 mm, 450 mm with the chains in the kit0.8 to 5.9 in, 17.7 in with the chains in the kit20 to 150 mm, 450 mm with the chains in the kit0.8 to 5.9 in, 17.7 in with the chains in the kit20 to 150 mm, 450 mm with the chains in the kit
Battery18 hDisplay unit 7 h, measuring units run on its cablesDisplay unit 8 h, measuring units up to 16 h10 h8 h, wireless charging pads8 h, wireless charging pads
ProtectionIP54IP54IP54IP54IP67, measuring units and caseIP67, measuring units
Case and weight14.2 × 4.3 × 10.2 in, 4.67 lb360 × 110 × 260 mm, 2.12 kg20.9 × 4.3 × 14.2 in, 10.4 lb530 × 110 × 360 mm, 4.72 kg20.9 × 4.3 × 14.2 in, 10.4 lb530 × 110 × 360 mm, 4.72 kg14.2 × 4.3 × 10.2 in, 6.66 lb360 × 110 × 260 mm, 3.02 kg14.4 × 6.7 × 11.6 in, 9.55 lb365 × 170 × 295 mm, 4.33 kgTrolley case 24 × 10.4 × 16.9 in, 27.3 lbTrolley case 610 × 265 × 430 mm, 12.4 kg
In the kitMeasuring unit, 3 reference bars, 2 shaft brackets with 480 mm chains and 80 mm rods, charging cable, measuring tape, calibration certificate, quick start guide, caseMeasuring units M and S, display unit, 2 shaft brackets with 400 mm chains and 150 mm rods, chain tightening rod, power supply, 2 USB cables, measuring tape, calibration certificate, quick start guide, caseMeasuring units M and S, display unit, 2 shaft brackets with 400 mm chains and 150 mm rods, 4 × 90 mm rods, chain tightening rod, power supply, 2 USB cables, 12 QR code stickers, measuring tape, calibration certificate, quick start guide, caseMeasuring units M and S, 2 magnetic shaft brackets with 480 mm chains and 80 mm rods, 4 × 120 mm rods, 2 × 980 mm extension chains, charging cable, 12 QR code stickers, measuring tape, calibration certificate, quick start guide, caseMeasuring units M and S, 2 magnetic shaft brackets with 480 mm chains and 80 mm rods, 4 × 120 mm rods, 2 × 1 m extension chains, 2 wireless charging pads, charging cable, measuring tape, calibration certificate, quick start guide, caseThe TKSA 71 kit with 8 × 120 mm rods instead of 4, plus 2 magnetic bases, 2 sliding brackets, 2 × 50 mm offset brackets and a trolley case
Price

$2,870.66 $3,150.00

In stock

$5,399.99 $6,511.00

In stock

$6,920.10 $7,920.00

In stock

$6,990.54 $8,120.00

In stock

$10,910.00 $14,326.24

In stock

$15,100.00

In stock

Specifications as SKF publishes them on skf.com, checked October 2026.

See every SKF alignment tool

Accessories

Accessories that fit the TKSA 51

Made by SKF for the TKSA 51. Tick what you need and add it with one click.

The TKSA 51 kit already holds magnetic brackets, 4 × 120 mm rods and 2 × 980 mm extension chains.

All SKF alignment tool accessories

Manuals & documents

SKF TKSA 51 manuals & documents

Data sheets, quick start guides and manuals from the manufacturer. They open in a new tab.

About the brand

About SKF

Inventor of the self-aligning ball bearing and the spherical roller bearing.

SKF (AB Svenska Kullagerfabriken) was founded in Gothenburg, Sweden, on 16 February 1907, on one invention: the double-row self-aligning ball bearing of Sven Wingquist, a maintenance supervisor at a Gothenburg textile factory. The factory stood on clay, so the building moved, the line shafts fell out of alignment and the rigid ball bearings of the day overheated and failed. Wingquist's bearing let the shaft run out of line without shortening its service life.

SKF invented the spherical roller bearing in 1919 and launched the spherical roller thrust bearing in 1939, the CARB toroidal roller bearing in 1995 and SKF Explorer bearings in 1999. Explorer bearings have optimized internal designs and surfaces that reduce friction and heat and carry heavier loads, for a longer service life.

In 1926 an SKF subsidiary, AB Volvo, built a trial series of cars; the first Volvo rolled out in Gothenburg in 1927.

Genuine SKF product

  • Founded

    1907

  • Headquarters

    Gothenburg, Sweden

  • Employees (2025)

    37,271

  • Present in

    About 130 countries

Known for

  • Self-aligning ball bearings
  • Spherical roller bearings
  • SKF Explorer bearings
  • CARB toroidal roller bearings
  • INSOCOAT and hybrid bearings
SKF website (opens in a new tab)

Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.

FAQ

TKSA 51 questions & answers

TKSA 51 or TKSA 71?

Both use 20 mm PSD detectors, read to a 1% measuring error, align vertical machines and run on your phone or tablet. The TKSA 71 adds machine trains and spacer shafts, doubles the distance between units to 10 m, has IP67 measuring units against IP54 and charges wirelessly.

Can I use my own phone or tablet with the TKSA 51?

Yes. The TKSA 51 has no display of its own: it runs on SKF’s free apps for iOS and Android over Bluetooth.

Which SKF shaft alignment tool do I need?

Start from the distance and the machines. The TKSA 11 covers two horizontal machines close-coupled, with up to 185 mm between its brackets, on your own phone or tablet. The TKSA 31 (wired) and TKSA 41 (wireless) add a laser, SKF’s display unit and 2 m or 4 m between units. The TKSA 51 reaches 5 m and also aligns vertical machines. The TKSA 71 reaches 10 m and handles machine trains and spacer shafts.

What tolerance should I align to?

The machine maker’s tolerance comes first. Without one, SKF’s built-in table in the TKSA 31 and 41 allows, at the coupling: 0.10 mm offset and 0.08 mm/100 mm angle up to 2,000 rpm; 0.07 mm and 0.07 mm/100 mm to 3,000 rpm; 0.04 mm and 0.06 mm/100 mm to 4,000 rpm; 0.03 mm and 0.05 mm/100 mm to 6,000 rpm.

Does the TKSA 51 come calibrated?

Yes. The TKSA 51 ships with a calibration certificate that is valid for two years.

Which shims do I need?

SKF TMAS shims are pre-cut squares with the size and thickness marked on each one. The TMAS 50/KIT, 75/KIT and 100/KIT hold one size each (50, 75 or 100 mm) in thicknesses from 0.05 to 2.00 mm; the TMAS 340 holds 100 and 125 mm shims and the TMAS 380 50 and 75 mm. Pick the size that covers the machine’s foot.

Do you ship the TKSA 51 the same day?

In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.

Can I get quantity pricing or buy tax-exempt?

Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.

Is this a genuine SKF TKSA 51?

Yes. Apollo Industries sells genuine SKF products, purchased through independent channels. Apollo is not an authorized distributor, reseller, or representative of SKF.

Customer Reviews

Overall rating: 5.0 / 5 from 3 reviews.

Check Out These Related Products

  • SKF LAGD 125/WA2 Automatic Lubricator | High-Performance Grease Lubrication for Bearings and Machinery
    Regular price
    $45.20
    Sale price
    $45.20
    Regular price
    $85.00
  • SKF TKSA 11 - Affordable Advanced Laser Shaft Alignment Tool System
    Regular price
    $2,870.66
    Sale price
    $2,870.66
    Regular price
    $3,150.00
  • SKF TKSA 41 Advanced Shaft Alignment Tool – High-Precision Laser Alignment
    Regular price
    $6,920.10
    Sale price
    $6,920.10
    Regular price
    $7,920.00
  • SKF TKSA 31 Shaft Alignment Tool - Precision, Efficiency & Durability
    Regular price
    $5,399.99
    Sale price
    $5,399.99
    Regular price
    $6,511.00
  • SKF TKBA 40 Red Laser High-accuracy tool for V-belt pulley alignment
    Regular price
    $2,199.00
    Sale price
    $2,199.00
    Regular price
  • SKF TMFT 36 Bearing Fitting Tool Kit – Accurate and Damage-Free Bearing Installation
    Regular price
    $865.98
    Sale price
    $865.98
    Regular price
    $1,200.00
