About

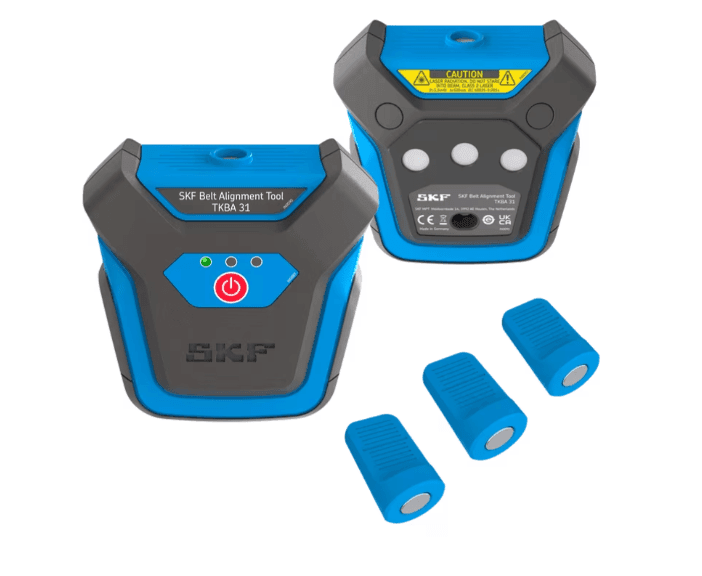

The tool has two components: a laser-transmitting unit and a receiver unit. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 31 can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets. A laser line is projected from the transmitter to the receiver – which is mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle and parallel misalignment – including combinations of all three.

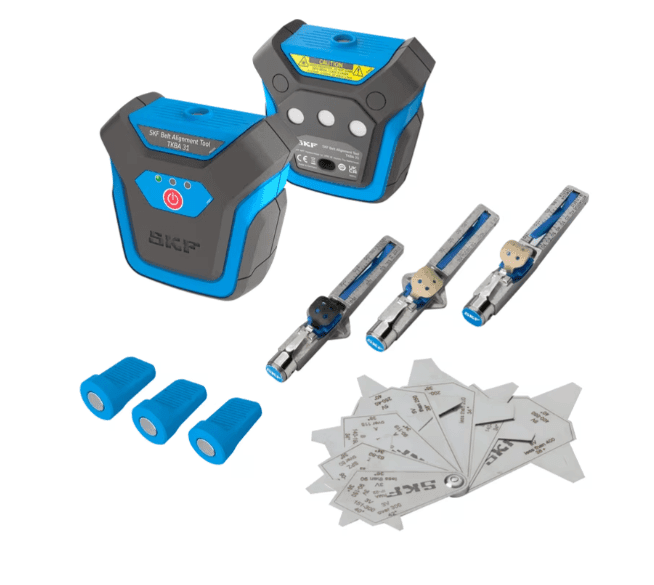

- Two laser receiver units
- Each unit uses a green laser diode and can be used for distances up to 6 m (20 ft) – including outdoors in sunny conditions
- Three targets
- Three belt tension checkers
- Wear check gauges
- Fast, easy attachment – using powerful magnets
- Simplified alignment process
- Simultaneous adjustment of tension and alignment
- Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets
The tool has two components: a laser-transmitting unit and a receiver unit. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 31 can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets. A laser line is projected from the transmitter to the receiver – which is mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle and parallel misalignment – including combinations of all three.
- Two laser receiver units
- Each unit uses a green laser diode and can be used for distances up to 6 m (20 ft) – including outdoors in sunny conditions
- Three targets

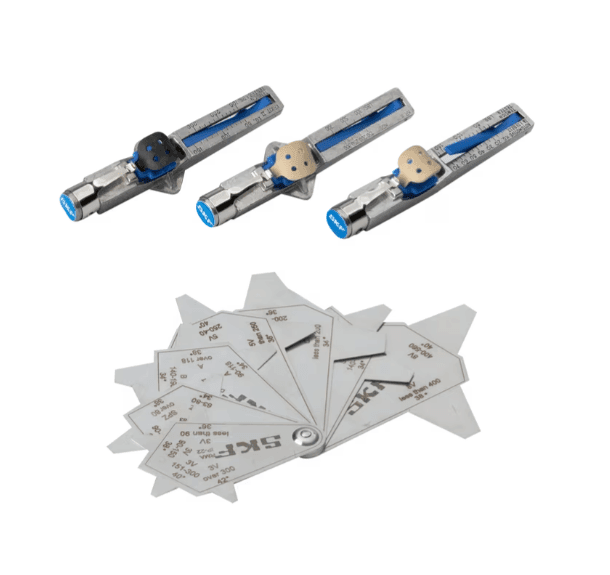

- Three belt tension checkers
- Wear check gauges
- Fast, easy attachment – using powerful magnets
- Simplified alignment process
- Simultaneous adjustment of tension and alignment
- Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets
SKF TKBA 31 Pro advanced Belt alignment tool
- Regular price
- $2,326.00
- Sale price
- $2,326.00
- Regular price
-
