SKF TKSA 11 - Affordable Advanced Laser Shaft Alignment Tool System
Brand:
SKF
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
$3,150.00
Shipping calculated at checkout.
Free shipping on orders over $100
Use code at checkout.
FREESHIP
18 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Need Help?
Call us 1 (248) 429-9073
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Live Instrument View: Real-time display of instrument and motor positions ensures intuitive measurements and precise horizontal alignment.
- App with Demo Mode: The TKSA 11 app features a fully functional demo mode, letting users explore the entire alignment process without purchasing the tool.
- Cost-Effective Solution: Designed to deliver a fast return on investment, the TKSA 11 is budget-friendly while maintaining premium performance.
- Advanced Sensor Technology: Equipped with inductive proximity sensors, the tool ensures accurate and reliable measurements, unaffected by bright sunlight or backlash influence.
- Mobile-Friendly: Leverage high-resolution graphics, automatic software updates, and the flexibility to use various display devices for enhanced functionality.
- Automatic Reporting: Generate comprehensive alignment reports that can be easily shared via email or cloud services for efficient documentation.

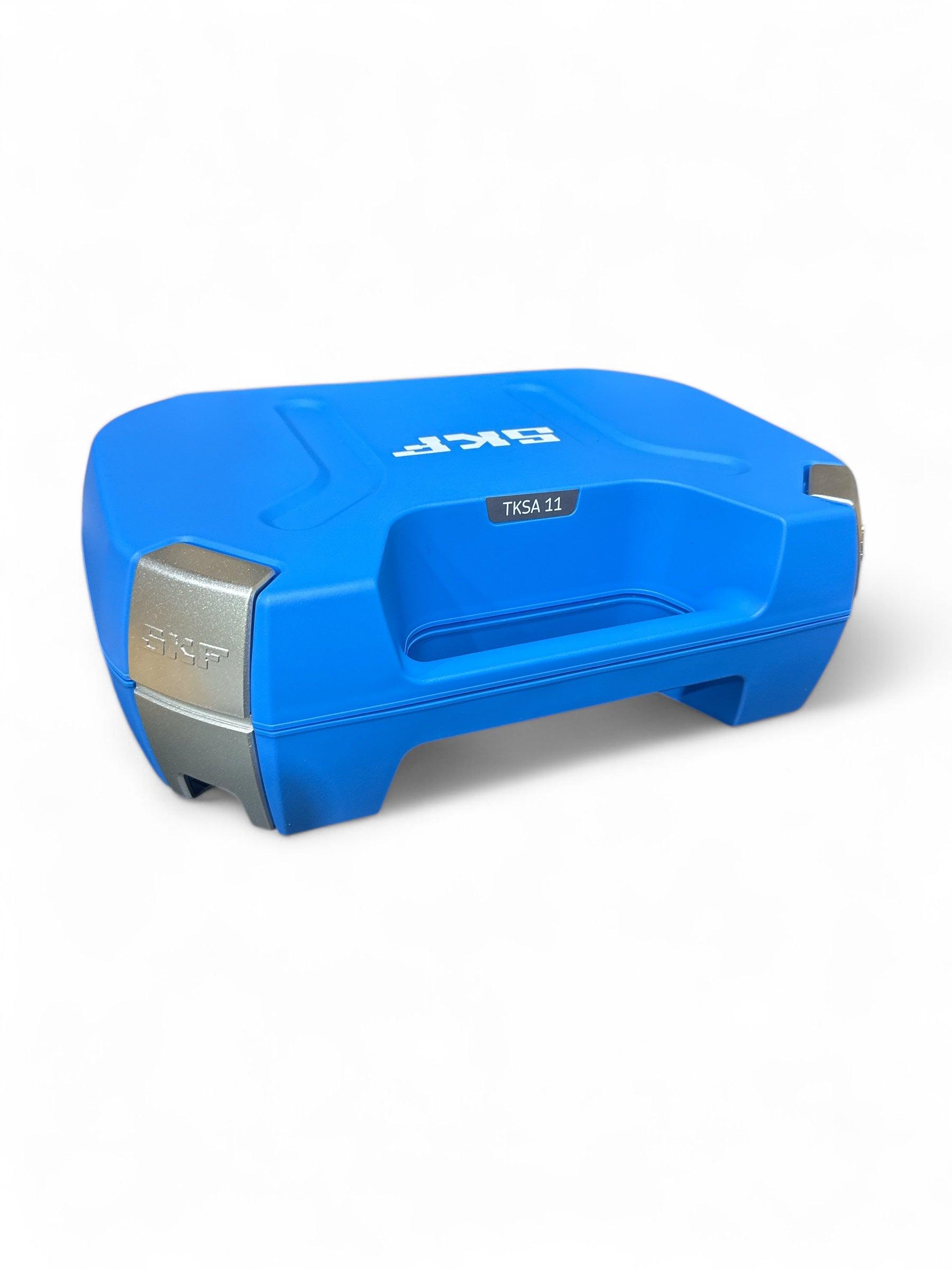

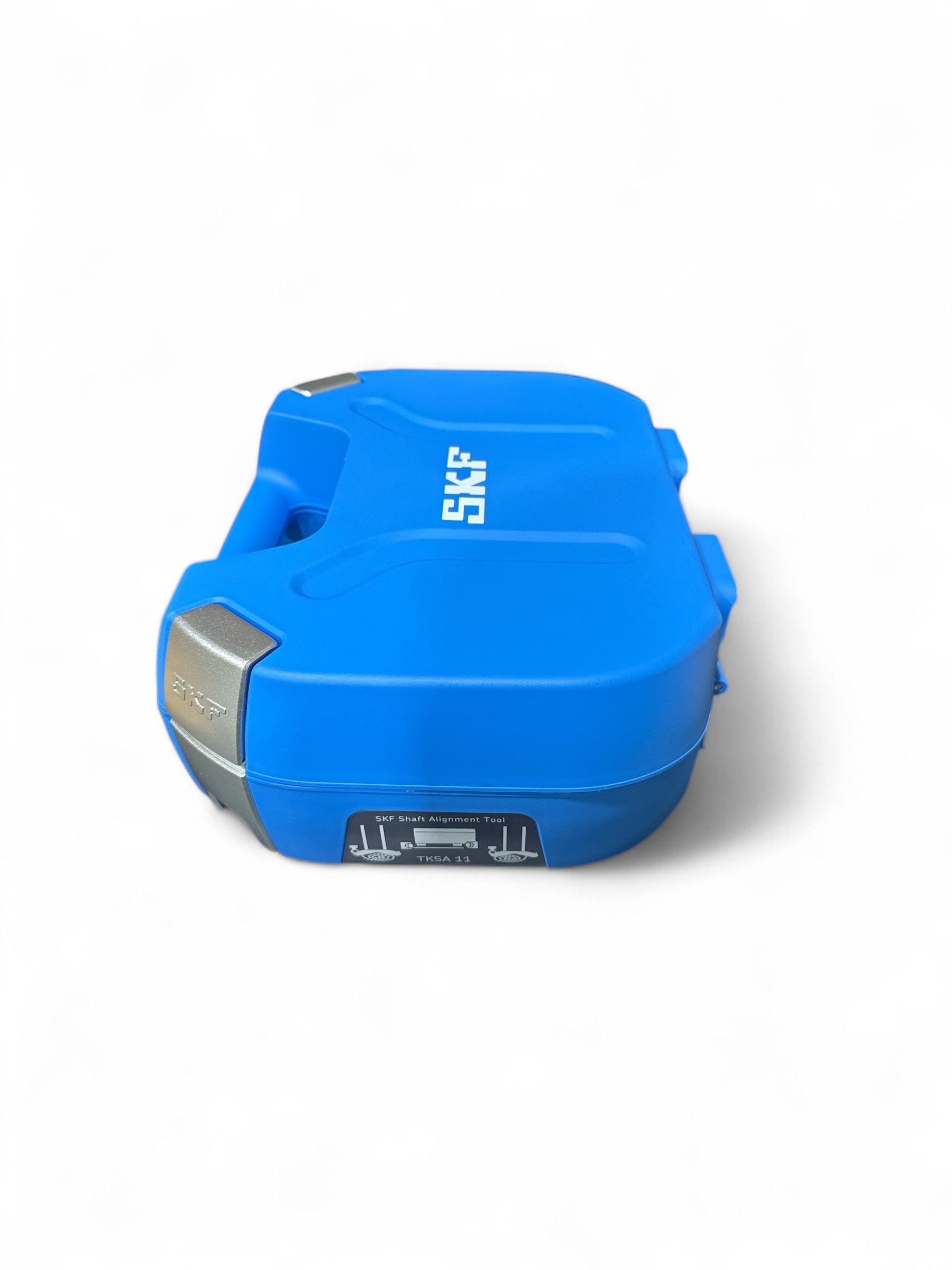

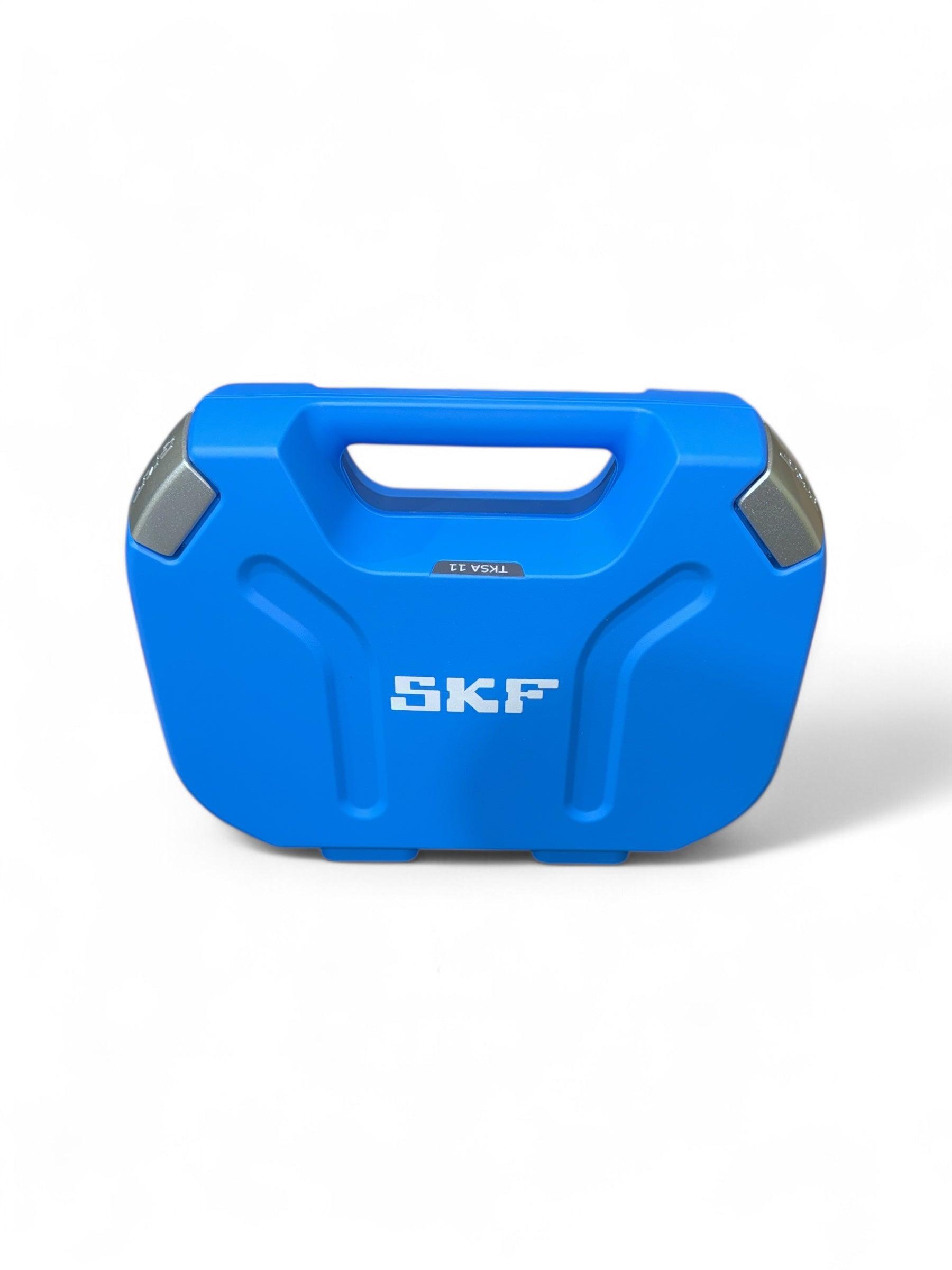

- Durable Design: Supplied in a sturdy SKF carrying case for protection and easy portability.
Description

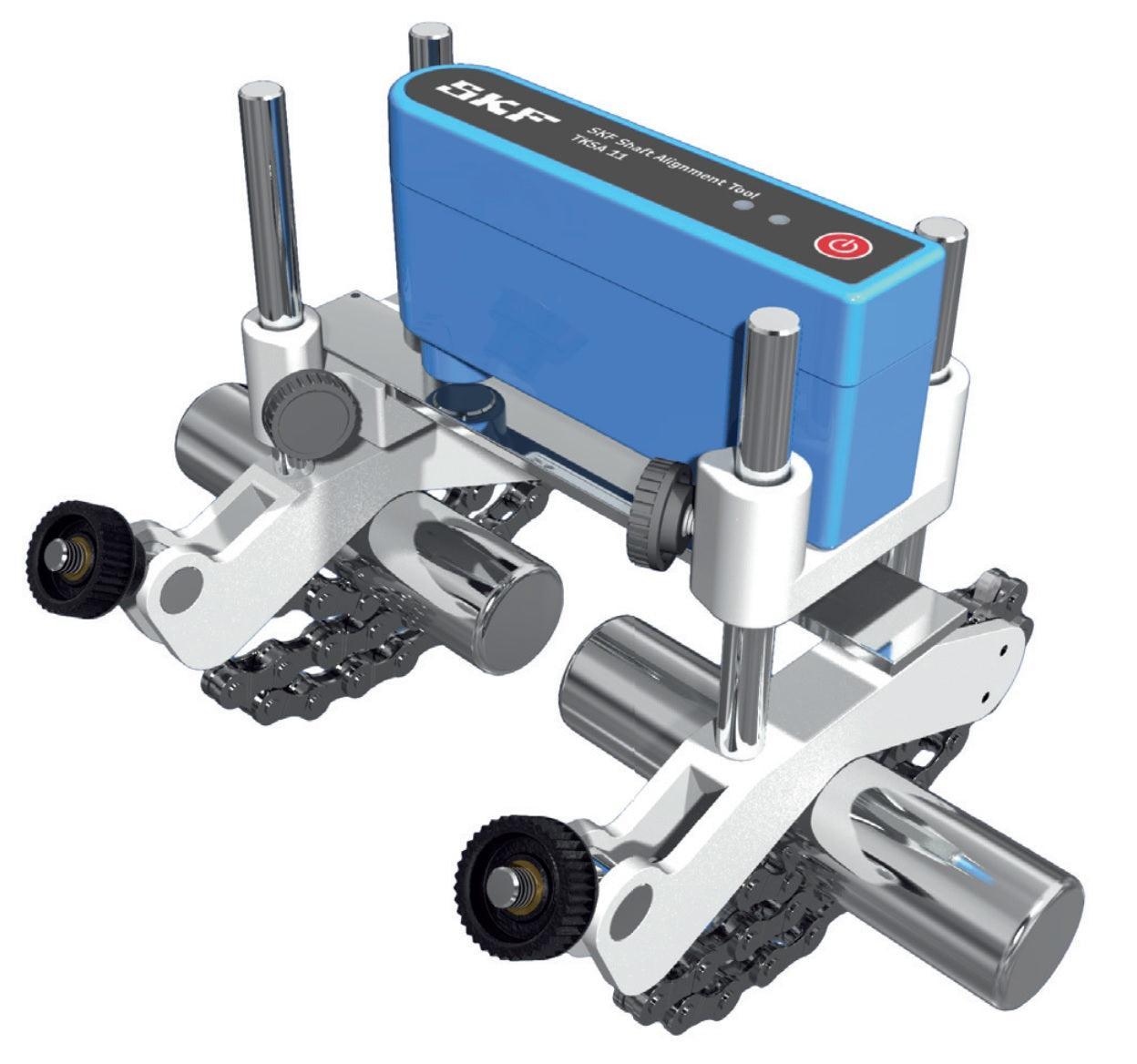

Shaft alignment tool TKSA 11
New technology makes shaft alignment easier and more affordable

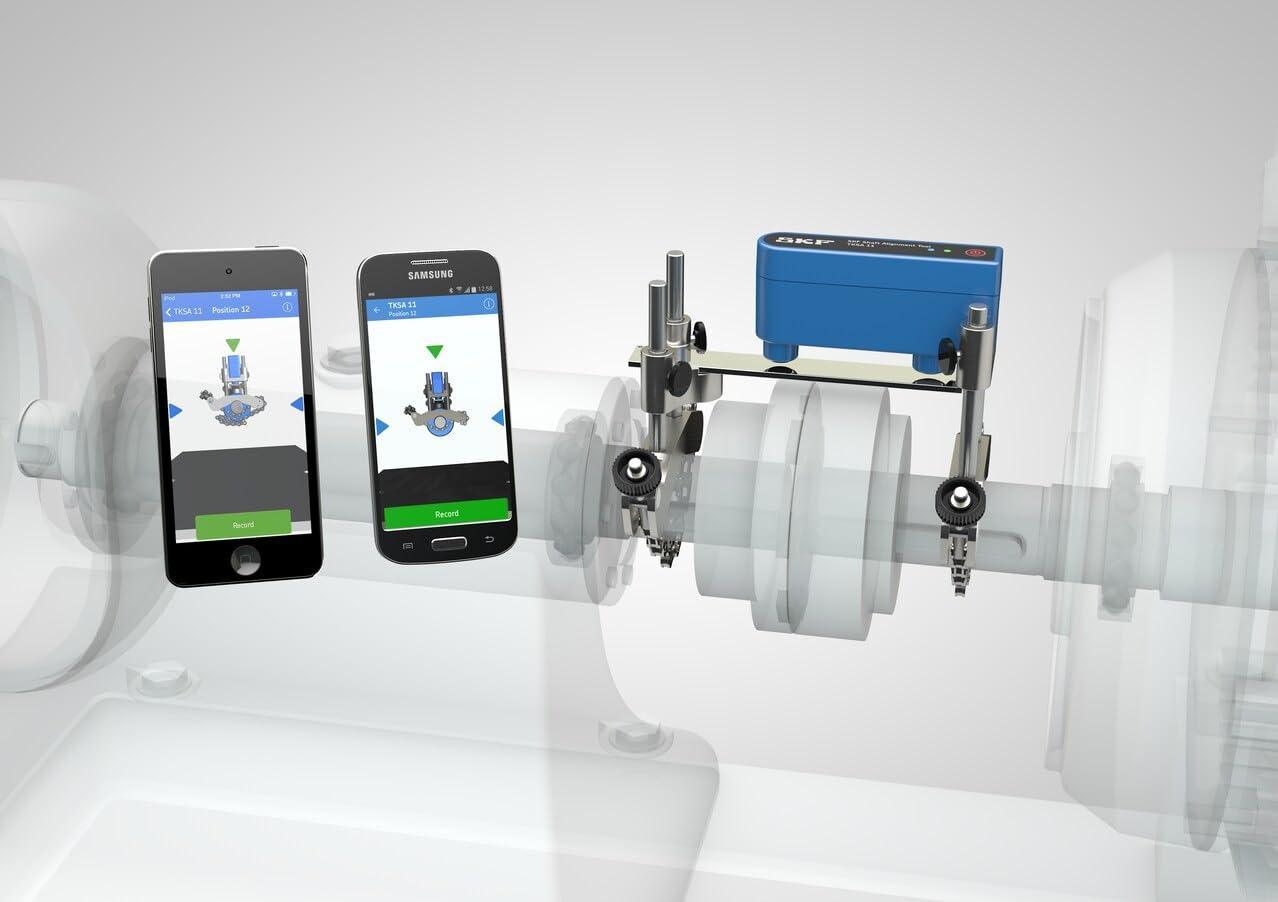

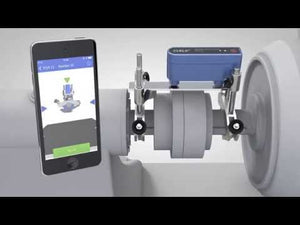

The SKF TKSA 11 is an innovative shaft alignment tool that uses smartphones and tablets and intuitively guides the user through the shaft alignment process.. With a focus on the core alignment tasks, the TKSA 11 is designed to be a very easy-to-use instrument is especially suitable for alignment learners and compact applications. The SKF TKSA 11 is the first instrument on the market that uses inductive proximity sensors, enabling accurate and reliable shaft alignment to be affordable for every budget.
Specifications
Technical Specifications
| Designation | TKSA 11 |
| Sensors and communication | 2× Inductive proximity sensors Inclinometer ±0.5° Bluetooth 4.0 LE |
| System measuring distance | 0 to 185 mm (0 to 7.3 in.) between brackets 3 × reference bars included up to 200 mm (7.9 in.) |
| Measuring errors | <2% |
| Housing material | PC/ABS plastic |
| Operating time | Up to 18 hours, rechargeable LiPo battery |
| Dimensions | 105 × 55 × 55 mm (4.1 × 2.2 × 2.2 in.) |
| Weight | 155 g (0.34 lb) |
| Operating device (not included) | iPad Mini recommended iPad, iPod Touch, iPhone SE, Galaxy devices |
| Software/App update | Apple AppStore or on Google Play Store |
| Operating system requirements | Apple iOS 9 or Android 9 (and above) |
| Alignment method | Alignment of horizontal shafts 3 position measurement 9–12–3 |
| Live correction values | Only for horizontal |
| Extra features | Automatic .pdf report |
| Fixture | 2× V-brackets with chains, width 15 mm (0.6 in.) |
| Shaft diameters | 20 to 160 mm (0.8 to 6.3 in.) |
| Max. coupling height | 55 mm (2.2 in.) with standard 80 mm rods (Unit should be mounted on the coupling when possible) |
| Power adapter | Charging via micro USB port (5V) Micro USB to USB charging cable supplied Compatible with 5V USB chargers (not included) |
| Operating temperature | 0 to 45 °C (32 to 113 °F) |
| IP rating | IP 54 |
| Carrying case dimensions | 355 × 250 × 110 mm (14 × 9.8 × 4.3 in.) |
| Total weight (incl. case) | 2.1 kg (4.6 lb) |
| Calibration certificate | Supplied with 2 years validity |

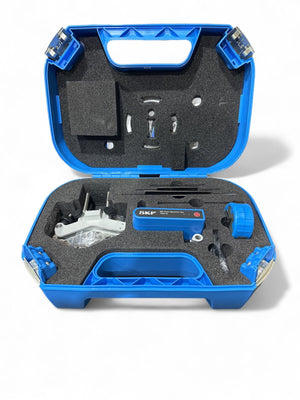

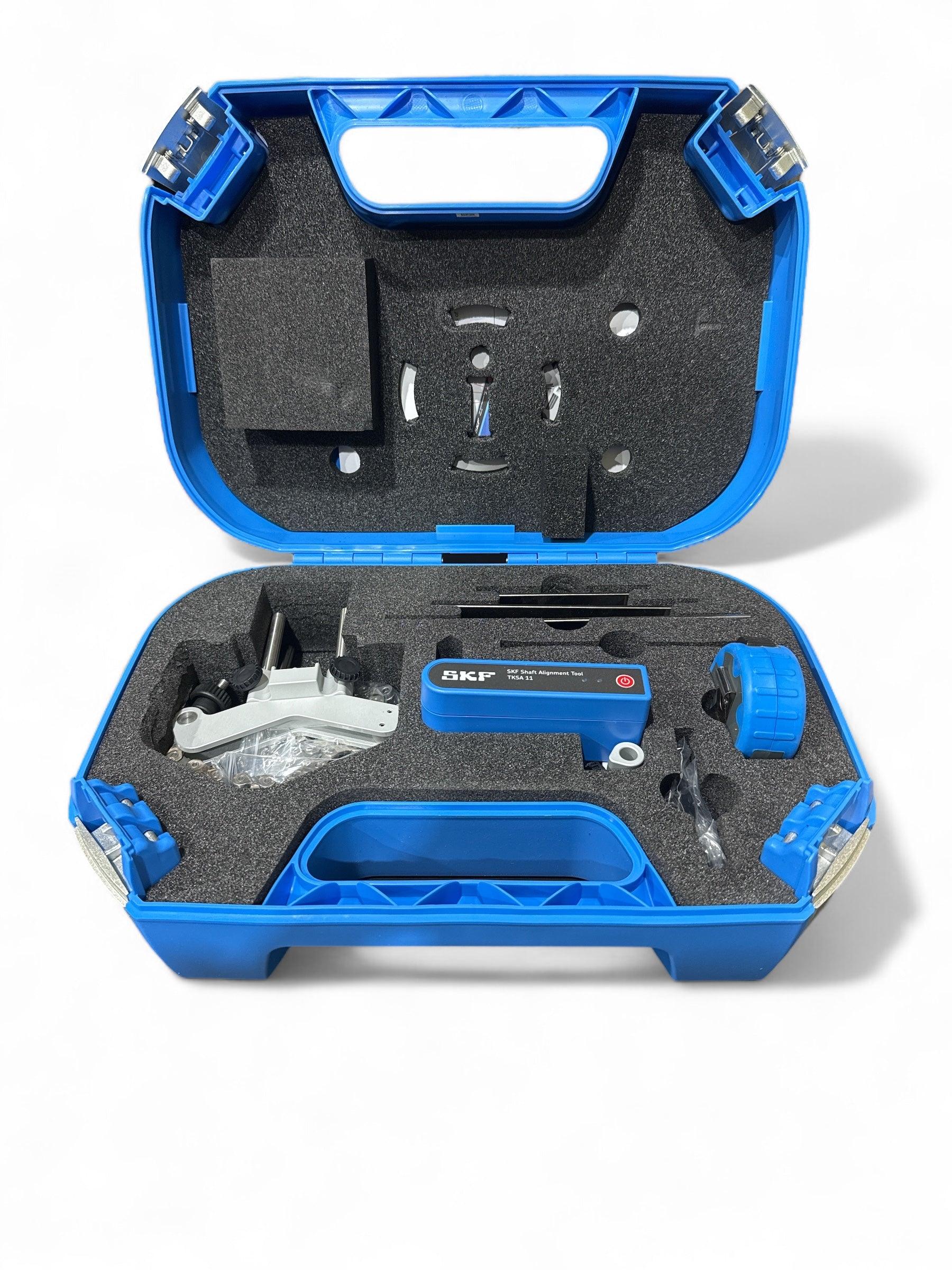

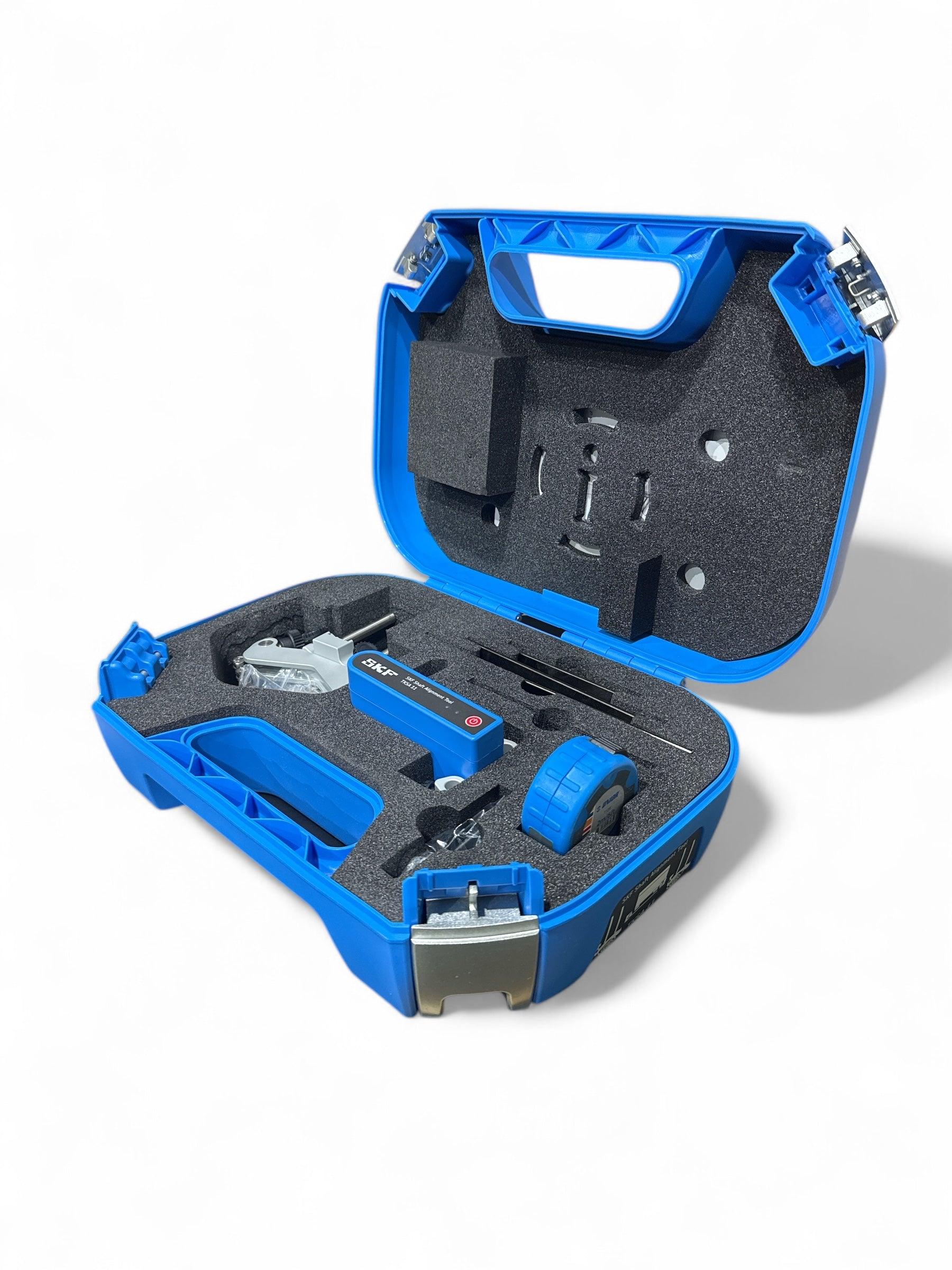

| Case content | Measuring unit; 3 reference bars 2 shaft brackets with chains 480 mm (18.9 in.) and rods 80 mm (3.1 in.) Micro USB to USB charging cable Measuring tape 2 m (6.6 ft.) Printed certificate of calibration and conformance Printed quick start guide (EN) SKF carrying case |
Spare Parts
| Designation | Description |
|---|---|
| TKSA 11-MBH | 1x Magnetic bar holder |
| TKSA 11-RB | 1x Reference bars set (100 mm, 150 mm, 200 mm) |

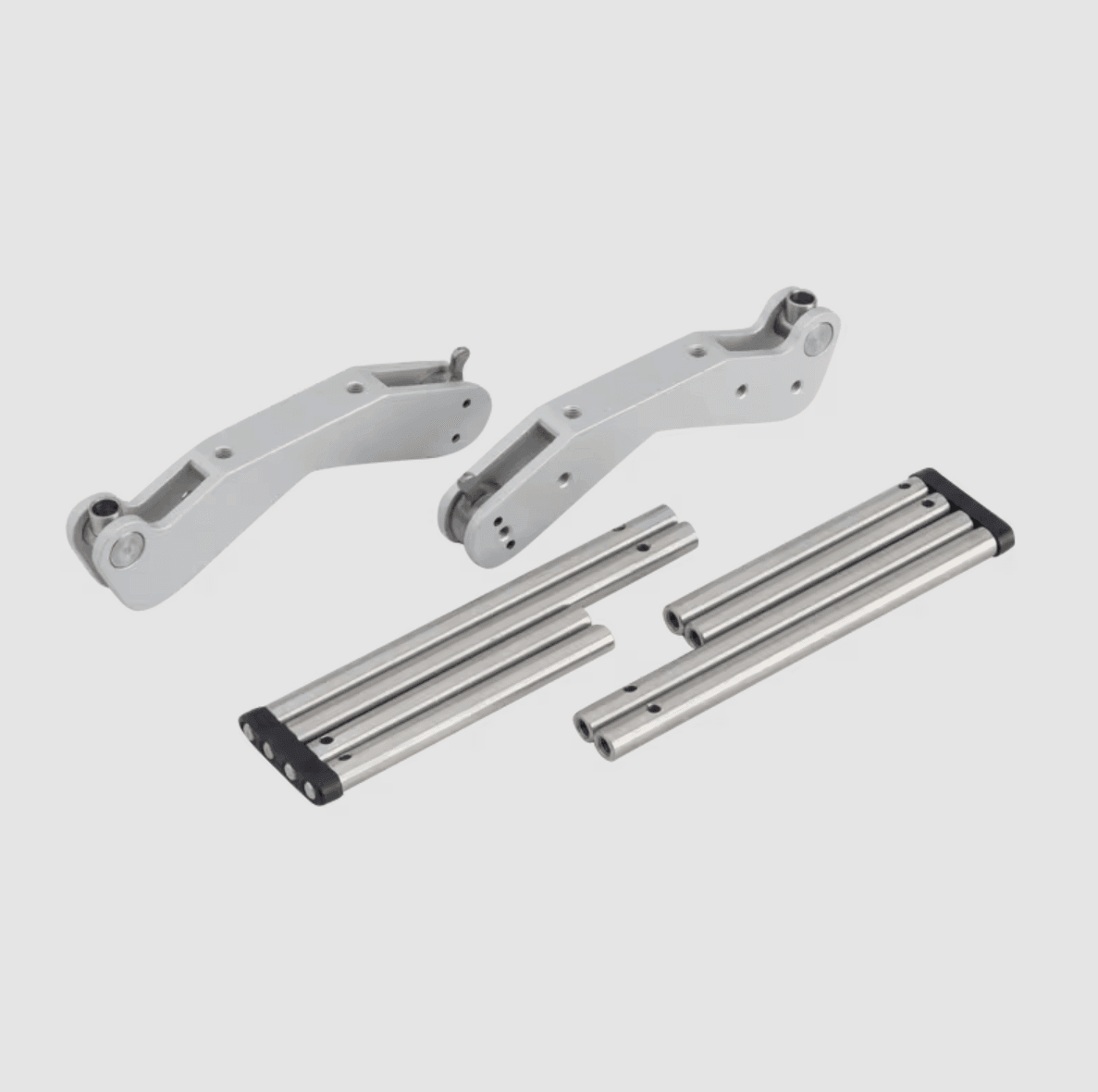

| TKSA 11-VBK | 1x Standard chain bracket including 80 mm rods and 1x standard chain 480 mm |
| TDTC 1/B | Toolcase without inlay |
$900.00
$1,250.00
$516.46
$250.00
$195.24
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Compare SKF Alignment Tools
| Product |
SKF TKSA 11 - Affordable Advanced Laser Shaft Alignment Tool System
|
SKF TKSA 31 Shaft Alignment Tool - Precision, Efficiency & Durability
|
SKF TKSA 41 Advanced Shaft Alignment Tool – High-Precision Laser Alignment
|
SKF TKSA 51 Shaft Alignment Tool – Laser Precision and Efficiency for Optimal Performance
Vendor:
SKF
SKF TKSA 51 Shaft Alignment Tool – Laser Precision and Efficiency for Optimal Performance
|
SKF TKSA 71 Shaft Alignment Tool - Precision and Reliability for Optimal Machinery Performance
Vendor:
SKF
SKF TKSA 71 Shaft Alignment Tool - Precision and Reliability for Optimal Machinery Performance
|
| Availability | Availability: In stock | Availability: In stock | Availability: In stock | Availability: In stock | Availability: In stock |
| User Interface | User Interface: iOS & Android | User Interface: Touch screen | User Interface: Touch screen | User Interface: iOS & Android | User Interface: iOS & Android |
| Measurement Distance | Measurement Distance: 18,5 cm | Measurement Distance: 2 m* | Measurement Distance: 4 m | Measurement Distance: 5 m | Measurement Distance: 10 m |
| Type of Display Device | Type of Display Device: Phone, Tablet | Type of Display Device: Display device | Type of Display Device: Display device | Type of Display Device: Phone, Tablet | Type of Display Device: Phone, Tablet |
| Display Device Included | Display Device Included: false | Display Device Included: true | Display Device Included: true | Display Device Included: false | Display Device Included: false |
| Measurement Positions | Measurement Positions: 9-12-3 | Measurement Positions: 9-12-3 | Measurement Positions: Free | Measurement Positions: Free | Measurement Positions: Free |
| Wireless Measuring Heads | Wireless Measuring Heads: YES | Wireless Measuring Heads: NO | Wireless Measuring Heads: YES | Wireless Measuring Heads: YES | Wireless Measuring Heads: YES |
| Minimal Shaft Rotation | Minimal Shaft Rotation: 180° | Minimal Shaft Rotation: 140° | Minimal Shaft Rotation: 90° | Minimal Shaft Rotation: 40° | Minimal Shaft Rotation: 40° |
| Machine View | Machine View: Fixed 2D view | Machine View: Fixed 3D view | Machine View: Fixed 3D view | Machine View: Free 3D rotation | Machine View: Free 3D rotation |
| Vertical Shaft Alignment | Vertical Shaft Alignment: NO | Vertical Shaft Alignment: NO | Vertical Shaft Alignment: NO | Vertical Shaft Alignment: YES | Vertical Shaft Alignment: YES |
| Soft Foot Correction | Soft Foot Correction: NO | Soft Foot Correction: YES | Soft Foot Correction: YES | Soft Foot Correction: YES | Soft Foot Correction: YES |
| Spacer Shaft | Spacer Shaft: NO | Spacer Shaft: NO | Spacer Shaft: NO | Spacer Shaft: NO | Spacer Shaft: YES |
| Digital Dial Gauge Mode | Digital Dial Gauge Mode: NO | Digital Dial Gauge Mode: NO | Digital Dial Gauge Mode: NO | Digital Dial Gauge Mode: NO | Digital Dial Gauge Mode: YES |
