SKF TMFT 36/PRO Bearing fitting tool kit, professional version, Aluminum Sleeves, Strong, Lightweight.
- Regular price
- $1,598.68
- Sale price
- $1,598.68
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features

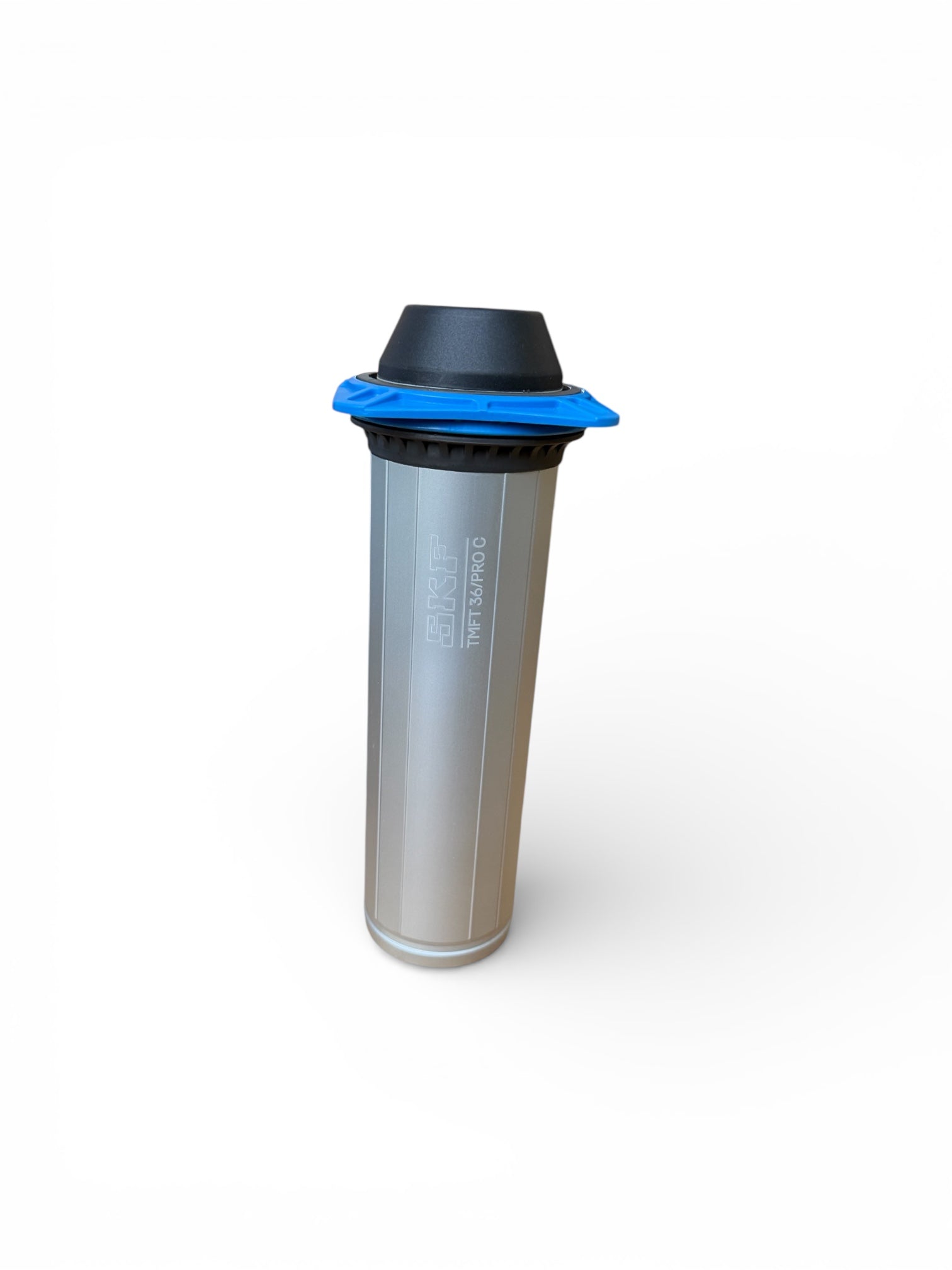

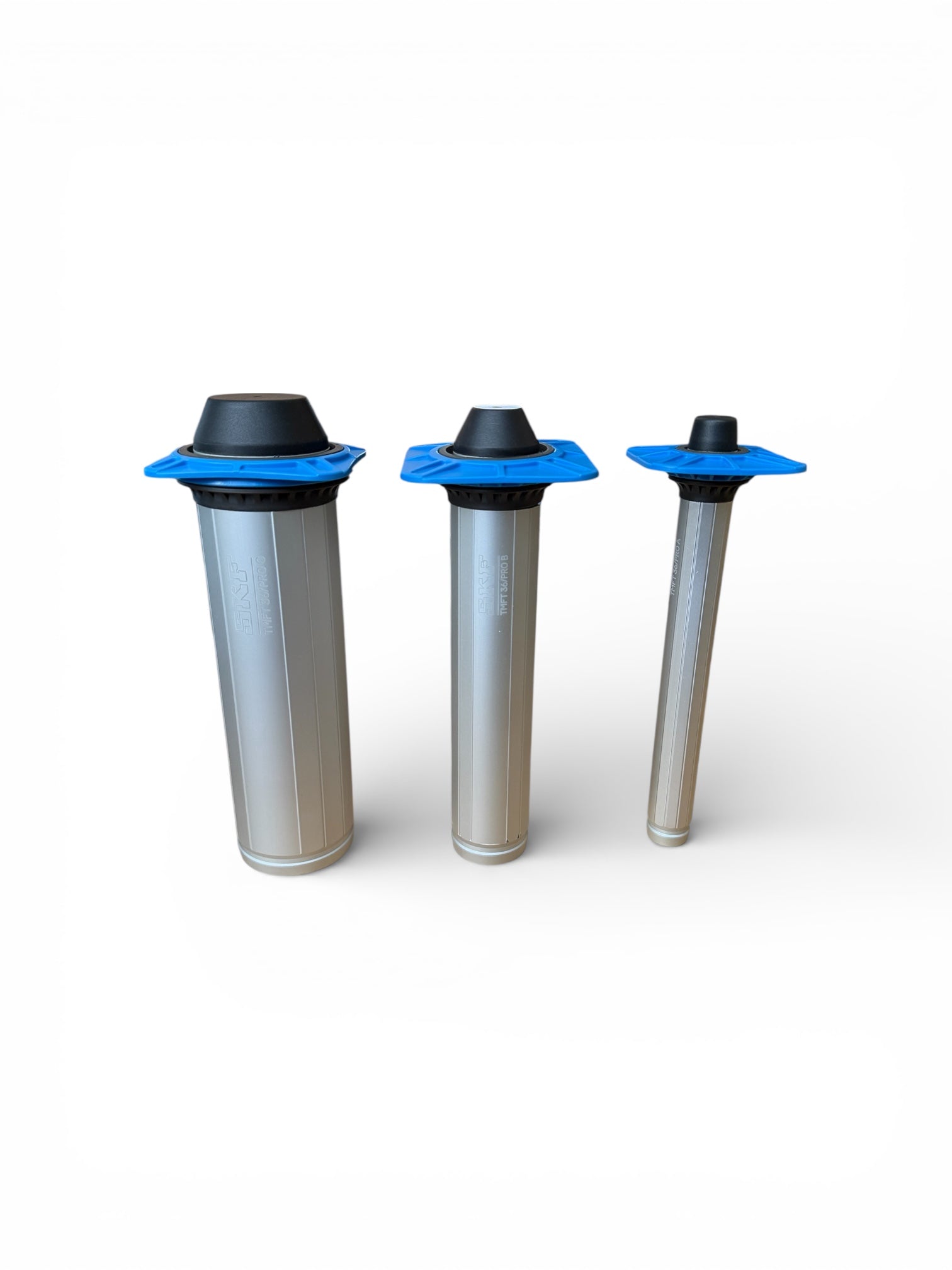

- Sleeves made from aluminum
- Hand protection

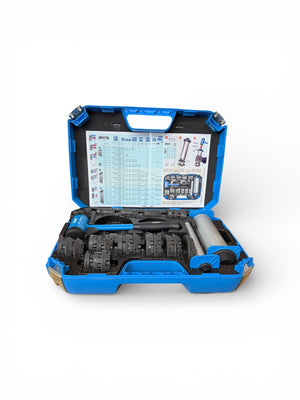

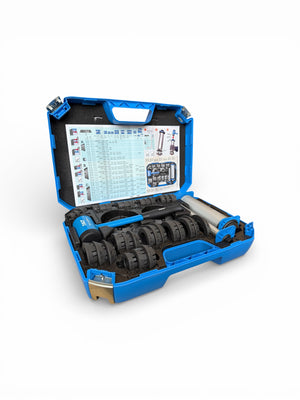

- Instructions visible on the lid
- Easy click connection between the impact ring and sleeve
- Facilitates correct mounting on shaft, housing and blind applications
- Diameter of impact ring precisely fits the inner and outer diameters of the bearing
- Impact rings made of high-impact resistant polyamide
- Impact rings with clear marketing of the ring’s size
- Nylon double-sided headed dead-blow hammer with ergonomic hand grip

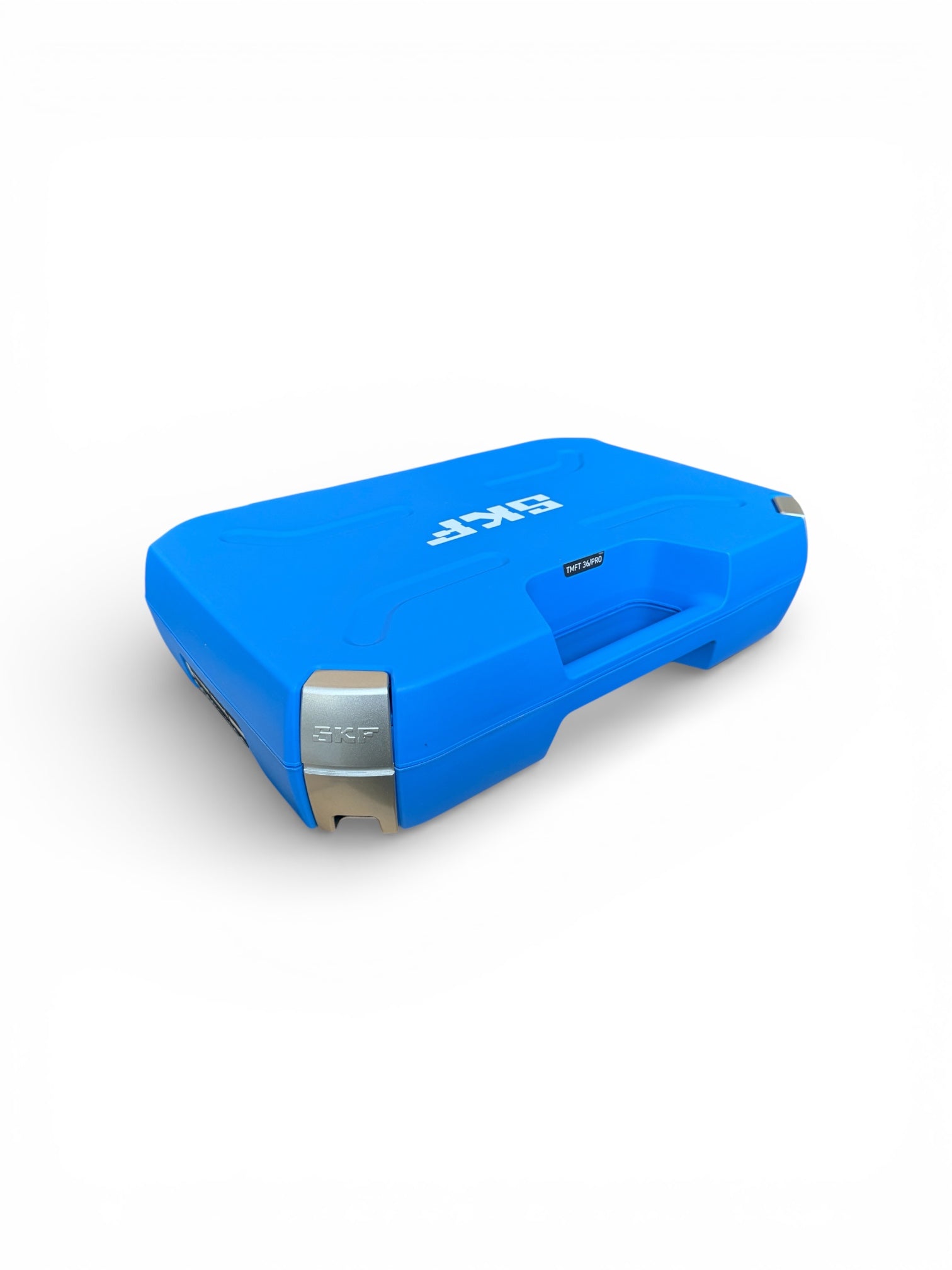

- Packed in a strong, lightweight portable tool case
WHAT'S INCLUDED
-
12x Impact rings A
-
12x Impact rings B
-
12x Impact rings C
-
1x Impact sleeve A with handguard
-
1x Impact sleeve B with handguard
-
1x Impact sleeve C with handguard
-
1x Hammer (PRO)
-
1x printed instructions for use
-
1x Carrying case (size C)
Description
The PRO fitting tool ensures that the task of mounting bearings has become quicker, safer and easier. Due to the supplied ‘heavy weight’ hammer it only requires a few hits to tap the bearing or seal into place. The sleeves come with handguard protection to protect hands while hammering is taking place, and the instructions for use are clearly visible on the lid of the case. The PRO version’s sleeve material is made from aluminum. This durable material will improve longevity and mounting efficiency.
Specifications
Dimensions
| Workpiece bore diameter (mounting) | 10 – 55 mm |
| Workpiece outer diameter | 26 – 120 mm |
| Sleeve outer lengths | A: 240 mm B: 245 mm C: 248 mm |
| Sleeve outer diameter | A: 26 mm B: 46 mm C: 67 mm |
| Handprotection outer dimension | A: □ 75 mm B: □ 90 mm C: □ 90 mm |
| Hammer length | 345 mm |
| Hammer width | 115 mm |
| Case dimensions (L × H × W) | 530 × 110 × 360 mm |
Properties
| Recommended applications | For manual mounting of bearings, bushings, seals, rings, pulleys in industrial, construction and agricultural applications |
| Mounting force generation | Hammer |
| Suitable for workpiece mounting on a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing mounting on a Tapered seating (conical shaft) | Not recommended |
| Suitable for bearing mounting on a Sleeve (adapter or withdrawal) | Not recommended |
| Suitable for workpiece mounting in a Blind arrangement (housing with shaft) | Yes |
| Suitable for workpiece mounting in a Housing | Yes |
| Mounting depth | A: 211 mm B: 211 mm C: 211 mm |
| Provided with Handprotectors | Yes |
| Models of rings | Three, named A, B, C |
| Number of rings | 36 |
| Ring material | Impact resistant glassfiber filled polyamide (PA) |
| Number of sleeves | 3x, named A, B, C |
| Sleeve material | Anodized aluminium |
| Hammer type | Deadblow hammer, Heavy duty |
| Hammer weight | 1.25 kg |
| Hammerhead | Sturdy polyurethane (PU) preventing damage to the sleeve heads |
| Hammer material | Steel, PU |
| Allowed temperature of the mounting object | -30 – 110 °C |
