About
The TMHN 7 set of lock nut spanners is especially designed for mounting self–aligning ball bearings as well as small spherical roller and CARB bearings on tapered seatings. Using the TMHN 7 minimises the risk of over–tightening of the lock nut, which can result in removing the bearing’s radial clearance and bearing damage.
- 7 different–sized spanners to fit nut sizes 5 to 11
- Each spanner is equipped with a protractor and is clearly marked with the correct tightening angle for mounting SKF Self aligning ball bearings
- 4 grip points on each spanner giving better and safer grip on the nut
- Reduced risk of damaging bearing by over–tightening
- Suitable for use with lock nuts of the KM series either on shaft or in SNL housings

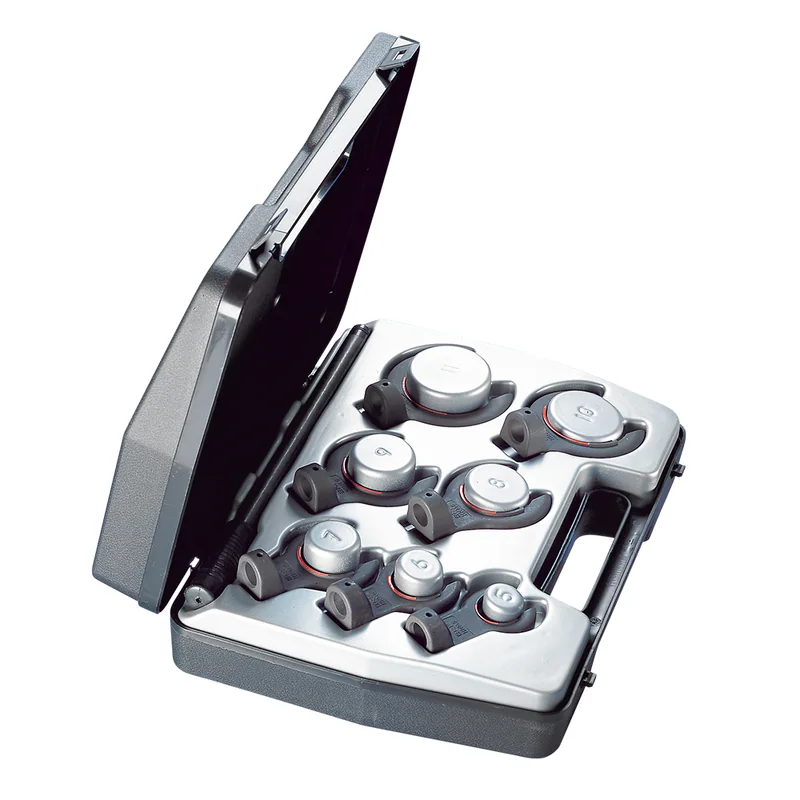

- Supplied in a carrying case
Spanner Selection Chart
| Spanner | Bearing Designations |
|---|---|
| HNM 5 | 1205 EK, 2205 EK, 1305 EK |
| HNM 6 | 1206 EK, 2206 EK, 1306 EK, 2306 K |
| HNM 7 | 1207 EK, 2207 EK, 1307 EK, 2307 EK |
| HNM 8 | 1208 EK, 2208 EK, 1308 EK, 2308 EK |
| HNM 9 | 1209 EK, 2209 EK, 1309 EK, 2309 EK |
| HNM 10 | 1210 EK, 2210 EK, 1310 EK, 2310 K |
| HNM 11 | 1211 EK, 2211 EK, 1311 EK, 2311 K |
The TMHN 7 set of lock nut spanners is especially designed for mounting self–aligning ball bearings as well as small spherical roller and CARB bearings on tapered seatings. Using the TMHN 7 minimises the risk of over–tightening of the lock nut, which can result in removing the bearing’s radial clearance and bearing damage.
- 7 different–sized spanners to fit nut sizes 5 to 11
- Each spanner is equipped with a protractor and is clearly marked with the correct tightening angle for mounting SKF Self aligning ball bearings
- 4 grip points on each spanner giving better and safer grip on the nut
- Reduced risk of damaging bearing by over–tightening
- Suitable for use with lock nuts of the KM series either on shaft or in SNL housings
- Supplied in a carrying case
Spanner Selection Chart
| Spanner | Bearing Designations |
|---|---|
| HNM 5 | 1205 EK, 2205 EK, 1305 EK |
| HNM 6 | 1206 EK, 2206 EK, 1306 EK, 2306 K |
| HNM 7 | 1207 EK, 2207 EK, 1307 EK, 2307 EK |
| HNM 8 | 1208 EK, 2208 EK, 1308 EK, 2308 EK |
| HNM 9 | 1209 EK, 2209 EK, 1309 EK, 2309 EK |
| HNM 10 | 1210 EK, 2210 EK, 1310 EK, 2310 K |
| HNM 11 | 1211 EK, 2211 EK, 1311 EK, 2311 K |
SKF TMHN 7 Lock nut spanner set, For achieving the correct radial clearance
- Regular price
- $1,550.00
- Sale price
- $1,550.00
