About
Multi-purpose kits for quick and easy mounting and dismounting
The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from shafts, housings and blind housings.
The TMMK 10-35 suits bearings with bore diameters from 10 to 35 mm, whereas the TMMK 20-50 suits bearings with bore diameters from 20 to 50 mm. For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products.
Multi-purpose fitting tools enable the mounting of a wide range of bearings and associated items. SKF deep groove ball bearings can be easily removed from blind housings and shafts, using a unique three-armed puller with a sliding hammer.
Bearing Mounting and Dismounting Specifications
| Category | Bearing Type | Series/Designations |
|---|---|---|
| Mounting | Deep groove ball bearing | 6000–6007, 6200–6207, 6300–6307, 6403–6407, 629, 62/22, 62/28, 63/22, 63/28, 16002–16007, 16100–16101, 98203–98206 |
| Deep groove ball bearing (sealed) | 62200–62207, 62300–62307, 63000–63007 | |
| Self-aligning ball bearing | 1200–1207, 129, 1301–1307, 2200–2207, 2301–2307, 11207 | |
| Tapered roller bearing | 30203–30207, 30302–30307, 31305–31307, 32004–32007, 32205–32207, 32303–32307, 33205–33207 | |
| Spherical roller bearing | 21305–21307, 22205/20, 22205–22207 | |
| Cylindrical roller bearing | N 1005–N 1007, N 202–N 207, N 2203–N 2207, N 2304–N 2307, N 3004–N 3007, N 303–N 307 | |
| Single-row angular contact ball bearing | 7000–7007, 7200–7207, 7301–7307 | |
| Double-row angular contact ball bearing | 3200–3207, 3302–3307 | |
| CARB toroidal roller bearing | C 2205–C 2207, C 6006 | |
| Dismounting | Deep groove ball bearing | 60.. series: 6000–6017, 62.. series: 6200–6211, 62/22, 62/28, 63.. series: 6300–6307, 63/22, 63/28, 64.. series: 6403, 16… series: 16002–16003, 16011 |
Multi-purpose kits for quick and easy mounting and dismounting
The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from shafts, housings and blind housings.
The TMMK 10-35 suits bearings with bore diameters from 10 to 35 mm, whereas the TMMK 20-50 suits bearings with bore diameters from 20 to 50 mm. For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products.
Multi-purpose fitting tools enable the mounting of a wide range of bearings and associated items. SKF deep groove ball bearings can be easily removed from blind housings and shafts, using a unique three-armed puller with a sliding hammer.
Bearing Mounting and Dismounting Specifications
| Category | Bearing Type | Series/Designations |
|---|---|---|
| Mounting | Deep groove ball bearing | 6000–6007, 6200–6207, 6300–6307, 6403–6407, 629, 62/22, 62/28, 63/22, 63/28, 16002–16007, 16100–16101, 98203–98206 |
| Deep groove ball bearing (sealed) | 62200–62207, 62300–62307, 63000–63007 | |
| Self-aligning ball bearing | 1200–1207, 129, 1301–1307, 2200–2207, 2301–2307, 11207 | |
| Tapered roller bearing | 30203–30207, 30302–30307, 31305–31307, 32004–32007, 32205–32207, 32303–32307, 33205–33207 | |
| Spherical roller bearing | 21305–21307, 22205/20, 22205–22207 | |
| Cylindrical roller bearing | N 1005–N 1007, N 202–N 207, N 2203–N 2207, N 2304–N 2307, N 3004–N 3007, N 303–N 307 | |
| Single-row angular contact ball bearing | 7000–7007, 7200–7207, 7301–7307 | |
| Double-row angular contact ball bearing | 3200–3207, 3302–3307 | |
| CARB toroidal roller bearing | C 2205–C 2207, C 6006 | |
| Dismounting | Deep groove ball bearing | 60.. series: 6000–6017, 62.. series: 6200–6211, 62/22, 62/28, 63.. series: 6300–6307, 63/22, 63/28, 64.. series: 6403, 16… series: 16002–16003, 16011 |

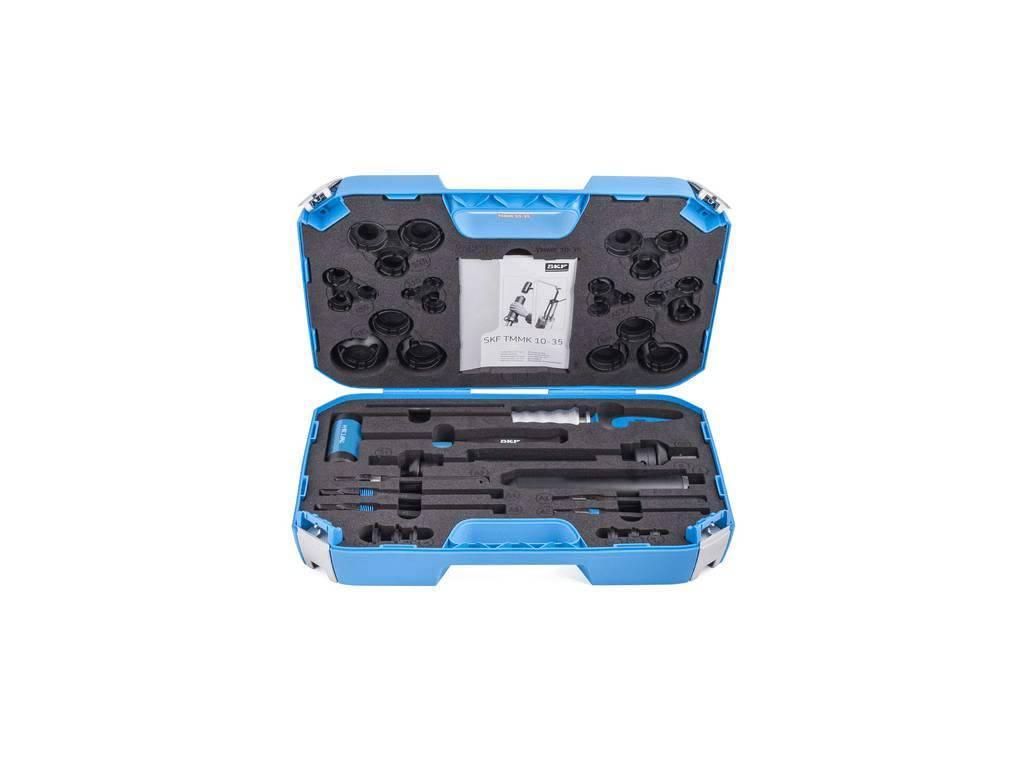

SKF TMMK 10-35 Bearing Installation Combo Tool Kit, Multi-purpose kits for quick and easy mounting and dismounting
