About

Description

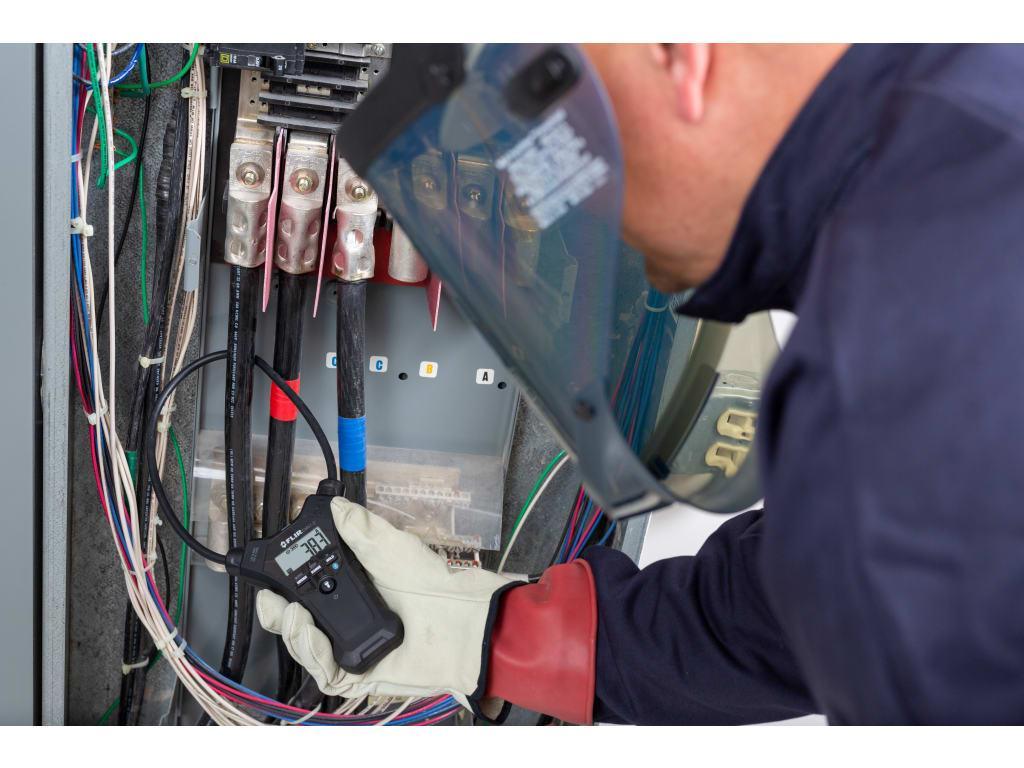

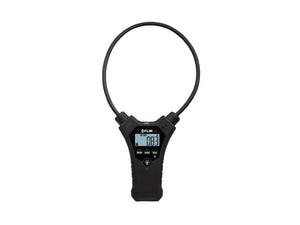

The FLIR CM57-2 is a flexible clamp meter designed for difficult current measurements. With its 18-inch (45.72 cm) flexible coil clamp, the CM57-2 allows you to take measurements in tight spots, making it ideal for multiple-conductor measurements and double-wrap requirements. The meter also features dual LED work lights for better visibility, and AC current ranges from 30.00 A to 3000 A. Stream live data in real time from the CM57-2 to your mobile device over Bluetooth using the METERLiNK® app to visually compare log files, customize alarm thresholds, create reports, and share readings instantly with team members.



Category Specification Details
Measurement & Analysis AC Current Bandwidth 45–500 Hz (sine wave)
AC Current Ranges and Resolution 30.00 A, 300.0 A, 3000 A
AC Response True RMS
Basic AC Current Accuracy ±3.0% + 5 digits
Display Rate 2 times per second
Flex Coil Length 45 cm (18 in)
Flex Coil Tip Diameter 13 mm (0.5 in)
Inrush Current Minimum 0.5 A, 100 mS
Max Conductor Diameter 12 cm (4.7 in)
Maximum AC Current 3000 A AC
Maximum Resolution 0.01 A
Measurement Rate 1.5 samples per second, nominal
Positional Error [distance from optimum] 35 mm (1.4 in) ±1.0%, 50 mm (2.0 in) ±1.5%, 60 mm (2.4 in) ±2.0%
Communication & Data Storage Bluetooth Range Max 10 m (32 ft)
Data Record Mode 20,000 points; 1 minute sample rate
Wireless ID# Max Up to 20
User Interface Display 3000-count LCD with backlight and multi‐function indicators
Power Auto Power Off Approximately 10 minutes
Battery Life 100 hours with alkaline batteries (calculated)
Battery Type 2 x 1.5 V AAA
General Coil Bend Radius 80 mm (3.1 in)
Coil Diameter 7.5 mm (0.3 in)
Display Indications Progressive low battery, over range, hold
Maximum Conductor Diameter 12 cm (4.7 in)
Size [L × W × H] 330 mm × 175 mm × 28.45 mm (13 in × 6.89 in × 1.12 in)
Weight 233 g (0.51 lb) with batteries
Worklights 2x LEDs
Environmental & Certifications Certifications UL, CE, FCC, IC, UKCA, CSAUS
Drop Test 3 m (9.8 ft)
IP Rating IP54 dust-protected and splash-resistant
Operating Altitude 2000 m (6562 ft) max
Operating Humidity Maximum 80% up to 35°C (95°F) decreasing linearly to 60% at 45°C (113°F)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Safety Rating CAT IV-600 V, CAT III-1000 V
Standards
  • Safety (UL): IEC 61010-1:2010, IEC 61010-2-032:2012
  • EMC (FCC): 47 CFR Part 15 Subpart B
  • EMC (CE): EN IEC 61326-1:2021, EN IEC 61326-2-2:2021
  • RF: ETSI EN 300 328 V2.2.2, EN 62479:2010, EN 50663:2017
Storage Humidity 80% relative humidity (maximum)
Storage Temperature -20°C to 60°C (-4°F to 140°F) without batteries
Temperature Coefficient 0.2 × specified accuracy/°C, <64.5°F (18°C), >82.4°F (28°C)
Description

The FLIR CM57-2 is a flexible clamp meter designed for difficult current measurements. With its 18-inch (45.72 cm) flexible coil clamp, the CM57-2 allows you to take measurements in tight spots, making it ideal for multiple-conductor measurements and double-wrap requirements. The meter also features dual LED work lights for better visibility, and AC current ranges from 30.00 A to 3000 A. Stream live data in real time from the CM57-2 to your mobile device over Bluetooth using the METERLiNK® app to visually compare log files, customize alarm thresholds, create reports, and share readings instantly with team members.



Category Specification Details
Measurement & Analysis AC Current Bandwidth 45–500 Hz (sine wave)
AC Current Ranges and Resolution 30.00 A, 300.0 A, 3000 A
AC Response True RMS
Basic AC Current Accuracy ±3.0% + 5 digits
Display Rate 2 times per second
Flex Coil Length 45 cm (18 in)
Flex Coil Tip Diameter 13 mm (0.5 in)
Inrush Current Minimum 0.5 A, 100 mS
Max Conductor Diameter 12 cm (4.7 in)
Maximum AC Current 3000 A AC
Maximum Resolution 0.01 A
Measurement Rate 1.5 samples per second, nominal
Positional Error [distance from optimum] 35 mm (1.4 in) ±1.0%, 50 mm (2.0 in) ±1.5%, 60 mm (2.4 in) ±2.0%
Communication & Data Storage Bluetooth Range Max 10 m (32 ft)
Data Record Mode 20,000 points; 1 minute sample rate
Wireless ID# Max Up to 20
User Interface Display 3000-count LCD with backlight and multi‐function indicators
Power Auto Power Off Approximately 10 minutes
Battery Life 100 hours with alkaline batteries (calculated)
Battery Type 2 x 1.5 V AAA
General Coil Bend Radius 80 mm (3.1 in)
Coil Diameter 7.5 mm (0.3 in)
Display Indications Progressive low battery, over range, hold
Maximum Conductor Diameter 12 cm (4.7 in)
Size [L × W × H] 330 mm × 175 mm × 28.45 mm (13 in × 6.89 in × 1.12 in)
Weight 233 g (0.51 lb) with batteries
Worklights 2x LEDs
Environmental & Certifications Certifications UL, CE, FCC, IC, UKCA, CSAUS
Drop Test 3 m (9.8 ft)
IP Rating IP54 dust-protected and splash-resistant
Operating Altitude 2000 m (6562 ft) max
Operating Humidity Maximum 80% up to 35°C (95°F) decreasing linearly to 60% at 45°C (113°F)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Safety Rating CAT IV-600 V, CAT III-1000 V
Standards
  • Safety (UL): IEC 61010-1:2010, IEC 61010-2-032:2012
  • EMC (FCC): 47 CFR Part 15 Subpart B
  • EMC (CE): EN IEC 61326-1:2021, EN IEC 61326-2-2:2021
  • RF: ETSI EN 300 328 V2.2.2, EN 62479:2010, EN 50663:2017
Storage Humidity 80% relative humidity (maximum)
Storage Temperature -20°C to 60°C (-4°F to 140°F) without batteries
Temperature Coefficient 0.2 × specified accuracy/°C, <64.5°F (18°C), >82.4°F (28°C)
