Description

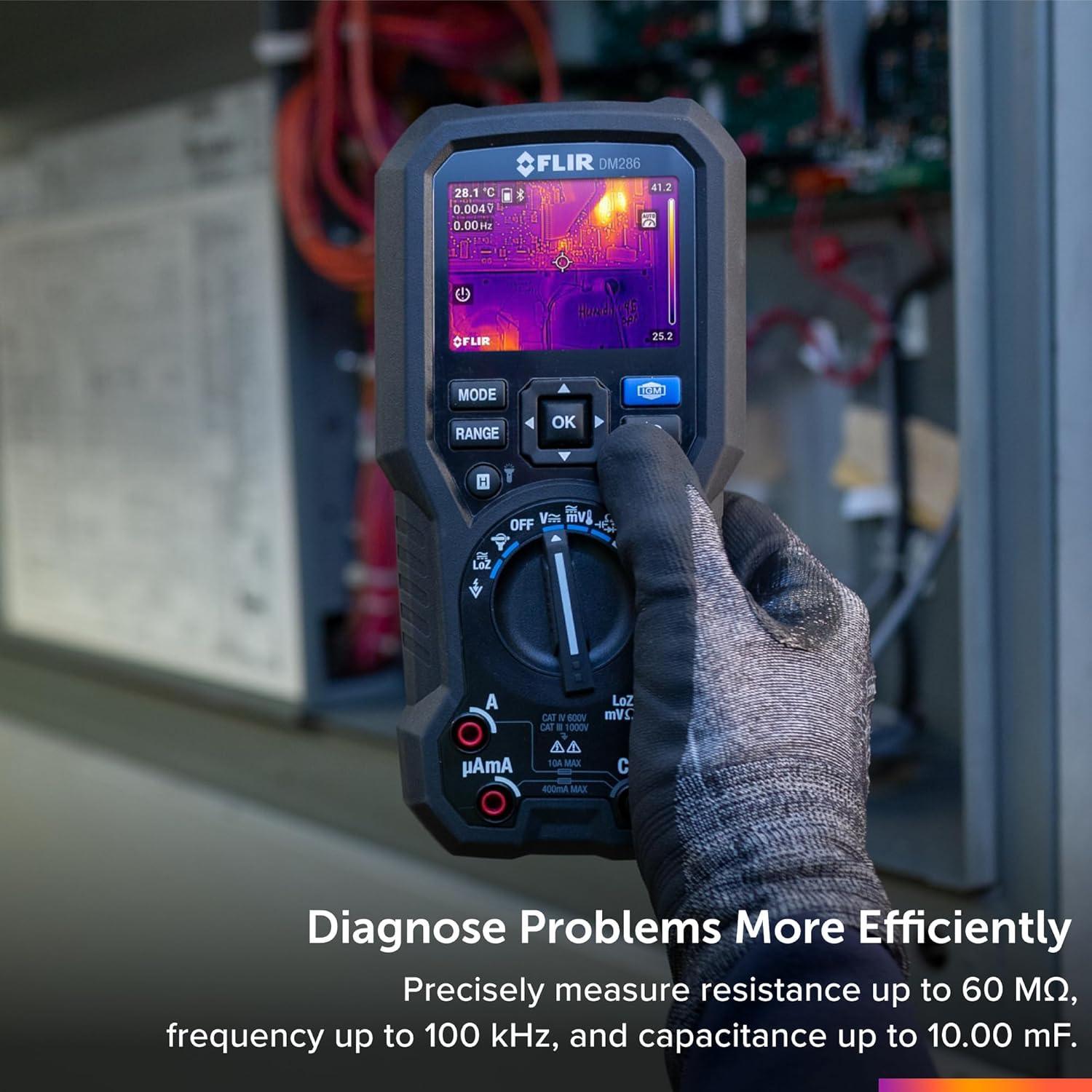

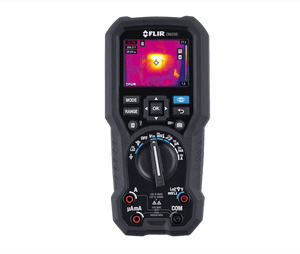

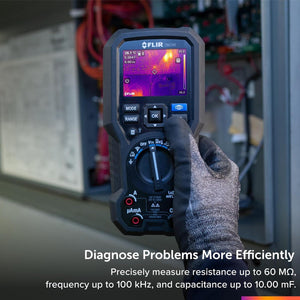

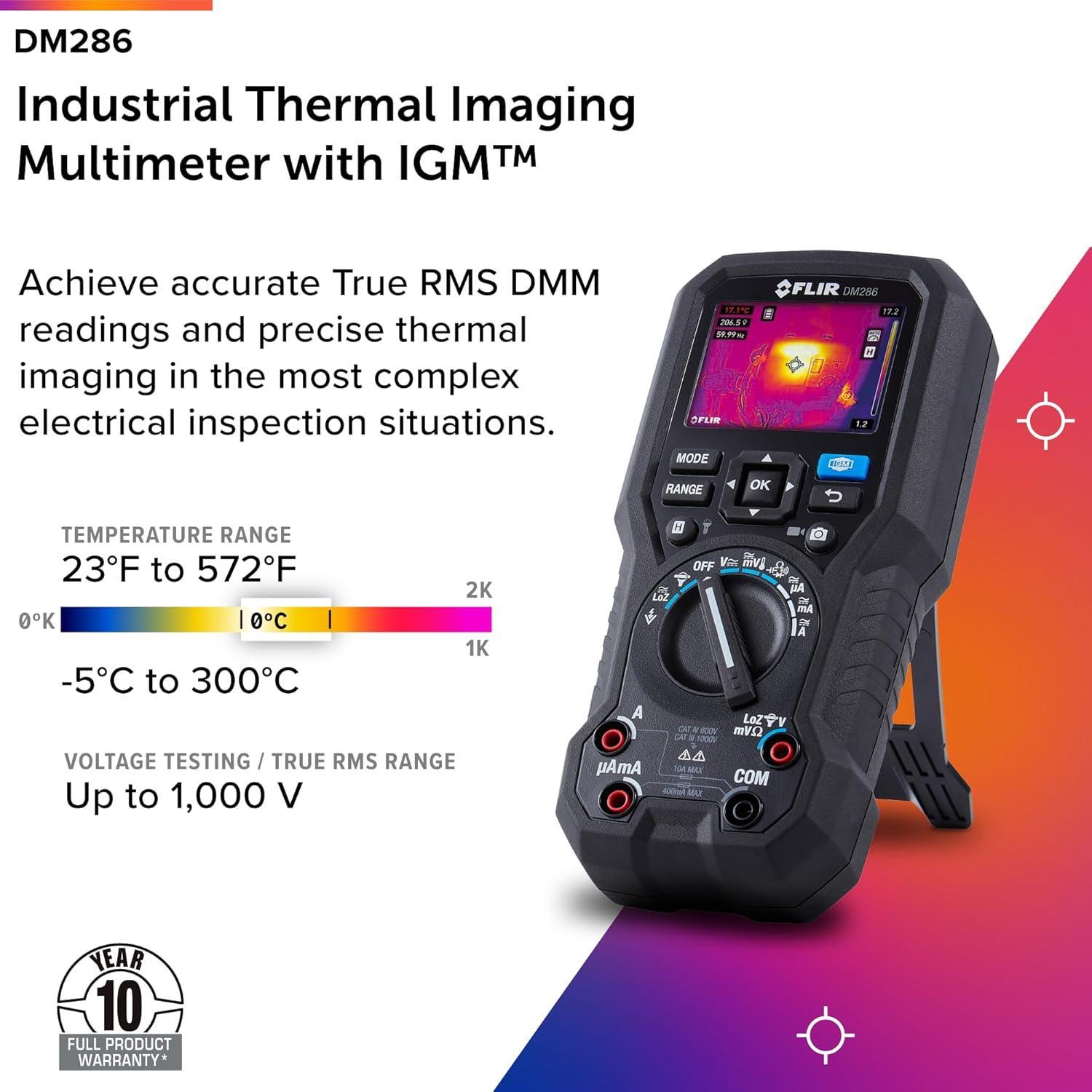

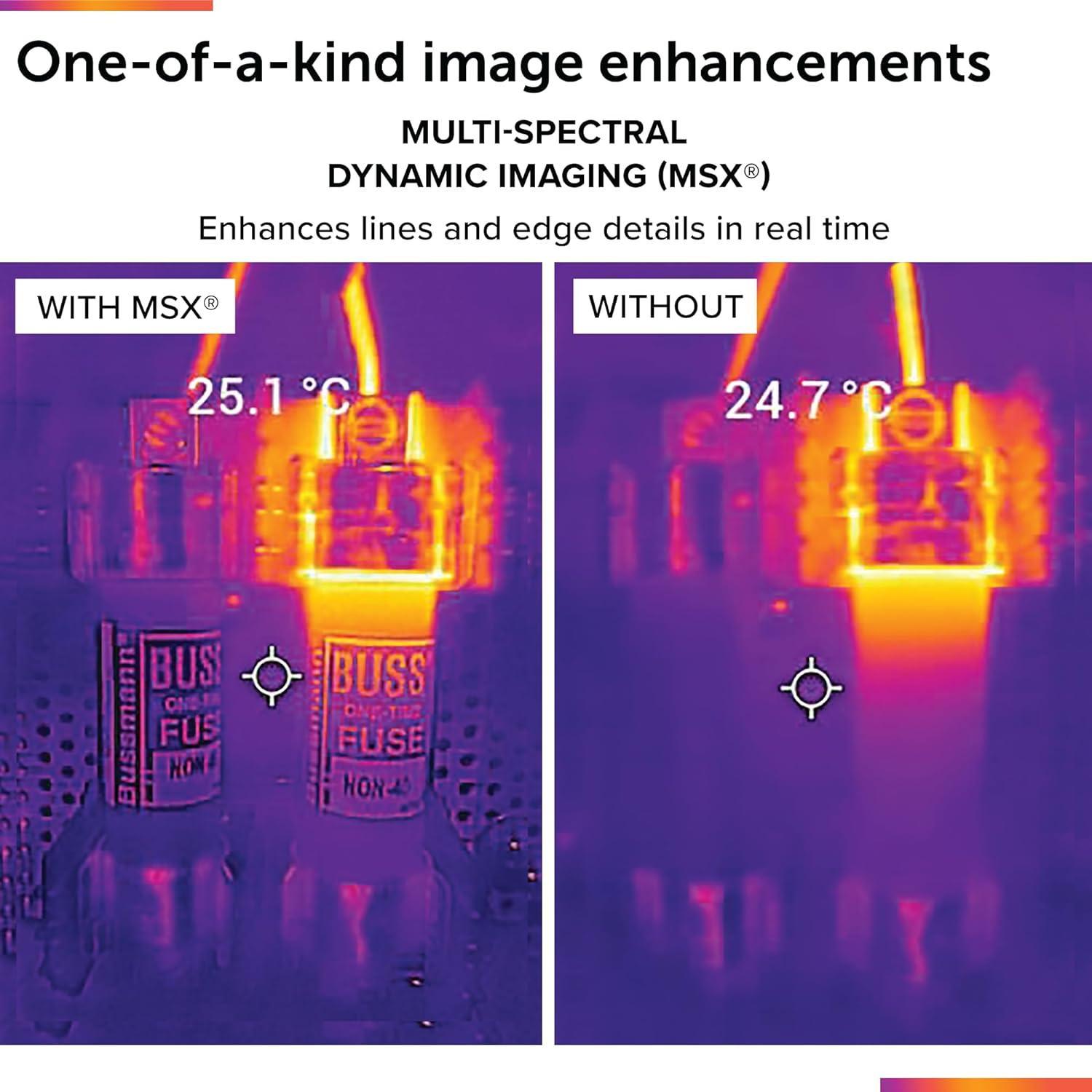

The FLIR DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings. With IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.



Category Specifications Details
General Specifications IR Resolution 160 × 120 (19,200 pixels)
Display Counts 6000
AC/DC Voltage 1000 V AC RMS ±(1.0%+3) 1000 V DC ±(0.09%+3)
AC/DC Amps 10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)
Connectivity Bluetooth BLE
Imaging & Optical Color Palettes Iron, rainbow, arctic, white hot, and black hot
Field of view - visual 71° × 56°
Focus Fixed
Frame Rate 9 Hz
Image Modes Thermal MSX (Multi Spectral Dynamic Imaging), Thermal Camera only, Digital Camera only
IR Sensitivity 150 mK (0.15°C)
Spectral Response 8–14 µm
Thermal Imaging Detector FLIR Lepton® microbolometer
Visual Focus and FOV Fixed focus, 71° × 56° FOV
Measurement & Analysis AC/DC Amps 10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)
AC/DC LoZ V 1000 V AC RMS or 1000 V DC ±(1.3%+4)
AC/DC mVolt AC 600.0 mV ±(1.0%+3) DC 600.0 mV±(0.2%+3)
Calibration Cycle Once per year, recommended
Capacitance 10.00 mF ±(4.0%+5)
Contact Temperature Type K thermocouple -40°C to 400°C DMM ± (1.0% + 3°C) / IGM ± (1.0% + 5°C)
(-40°F to 752°F DMM ± (1.0% + 5.4°F) / IGM ± (1.0% + 9°F))
Continuity check threshold 10–100Ω
Diode Test 1.500 V ± 0.9%
Frequency Counter 100.00 kHz ±(0.1%+5)
Measuring Rate 3 samples per second
Resistance 6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5)
Temperature Accuracy ±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C (77°F) ±5°C for temperatures -10°C to 25°C (14°F to 77°F)

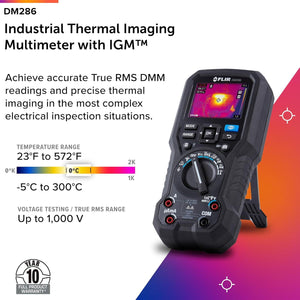

Temperature Range –5°C to 300°C (23°F to 572°F)
Communication & Data Storage Communication Protocol METERLiNK
Image File Format Radiometric
Storage 40,000 readings per memory set
Power Auto Power Off For Meter: set to OFF, 2, 5, or 10 minutes
For Worklight only: set to OFF, 5, 15, or 30 minutes
Battery TA04, Lithium Polymer Rechargeable, 3050 mAh. Two supplied.
Battery Life Approx. 6.5 hours in IGM mode with display brightness set to medium.
Approx. 10 hours in Multimeter mode (medium brightness)
Non_Contact Voltage Detector [NCV] Yes
VFD AC V: 1000 V AC RMS, ±(1.3%+4) at 45∽65 Hz

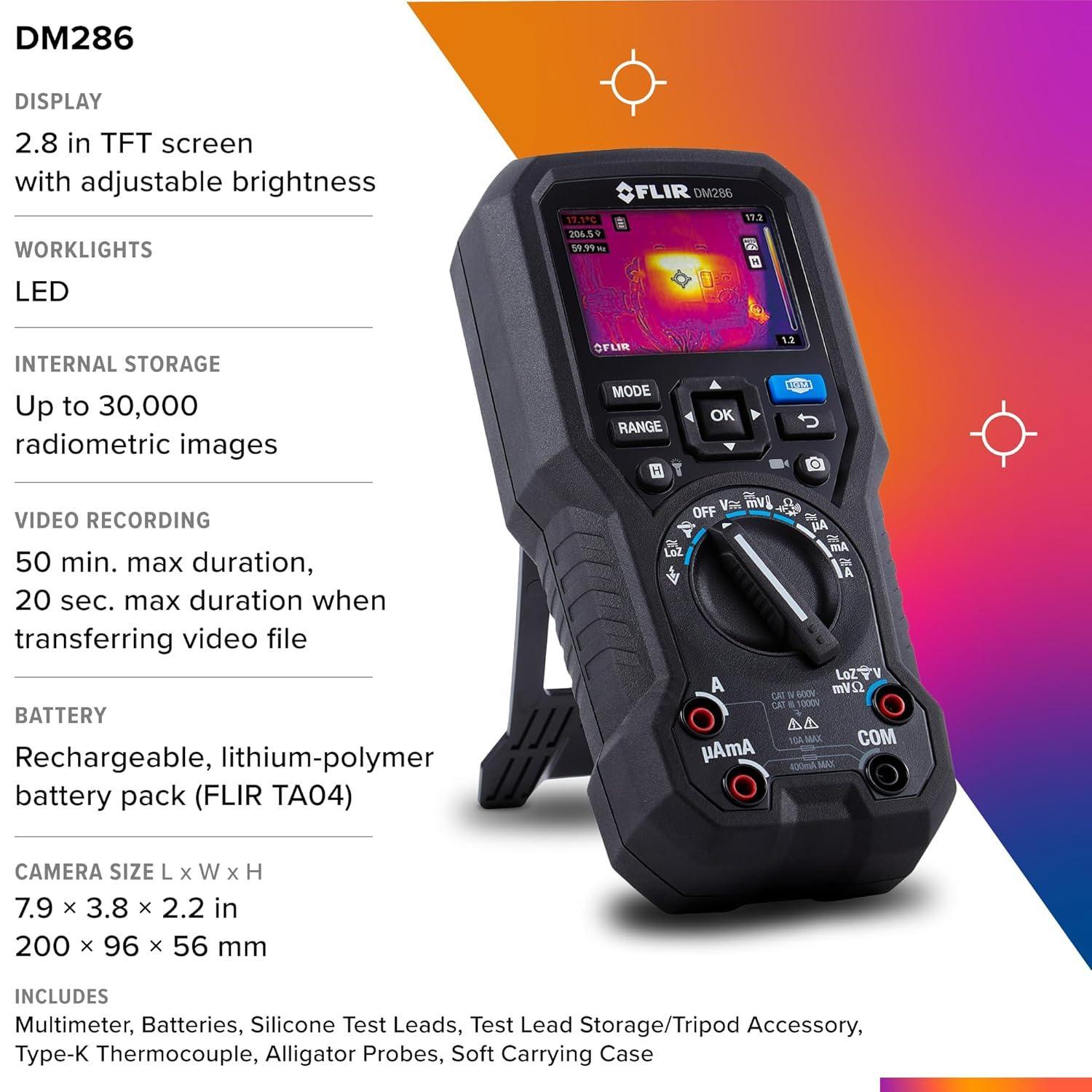

General Dimensions (L x W x H) 20 cm × 9.6 cm × 5.6 cm (7.9 in × 3.8 in × 2.2 in)
Included
  • 1 x DM286 Industrial Thermal Imaging Multimeter
  • 1 set of CATIV 600V Test Lead
  • 1 set of CATIV 600V Alligator Clip
  • 1 x Type-A to Micro-USB Cable (with Data transfer capability)
  • 1 x K-type Thermocouple (-30°C to 260°C)
  • 1 x Soft-sided carrying case
  • 1 x FLIR Quick Start Guide
  • 1 x FLIR Warranty Card
  • 2 x TA04 Rechargeable Battery Cell
Scanning Mode Continuous scan. Crosshairs and laser pointer targeting.
Weight 569 g (1.25 lb) without battery (approx.)

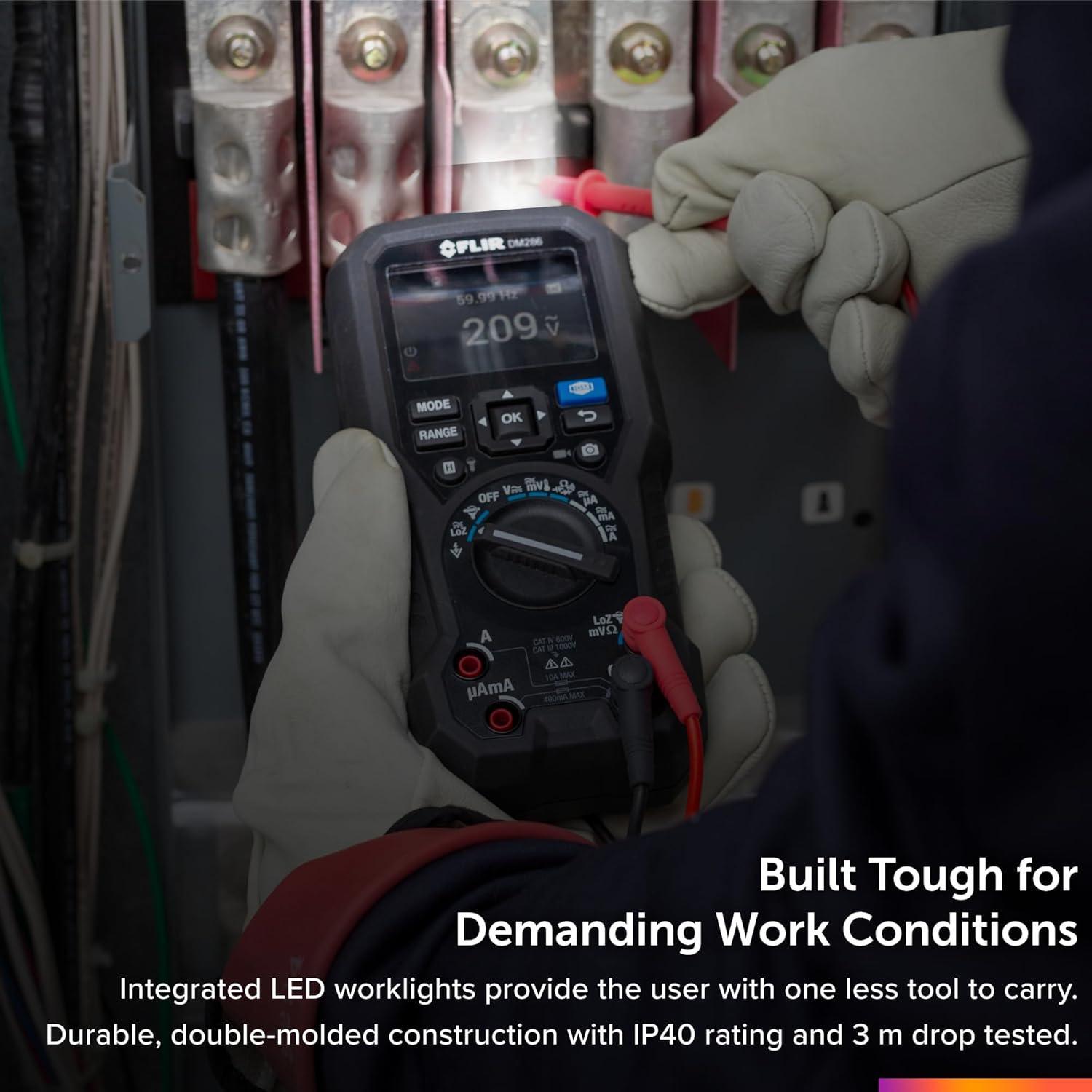

Worklights x1 LED
Environmental & Certifications Certifications ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689
Drop test 2 m (6.6 ft)
EMC EN61326-1
Emissivity Settings 0.10 to 1.00 (default is 0.95); select from four presets or set manually.
IP Rating IP40
Laser Pointer Power ≤0.39 mW
Laser Type Class I (red)
Laser Wavelength 640 nm to 660 nm
Operating Altitude 2000 m (6560 ft)
Operating Temp & Humidity -10°C to 30°C (14°F to 86°F) <85% RH
30°C to 40°C (86°F to 104°F) <75% RH
Pollution Degree 2.0
Safety IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V
Storage temperature and relative humidity [RH] -20°C to 60°C (-4°F to 140°F) 0–80% RH (without batteries)
Warranty Limited 10-Year Warranty https://www.flir.com/testwarranty
Accessories Software FLIR METERLiNK® app
