Description

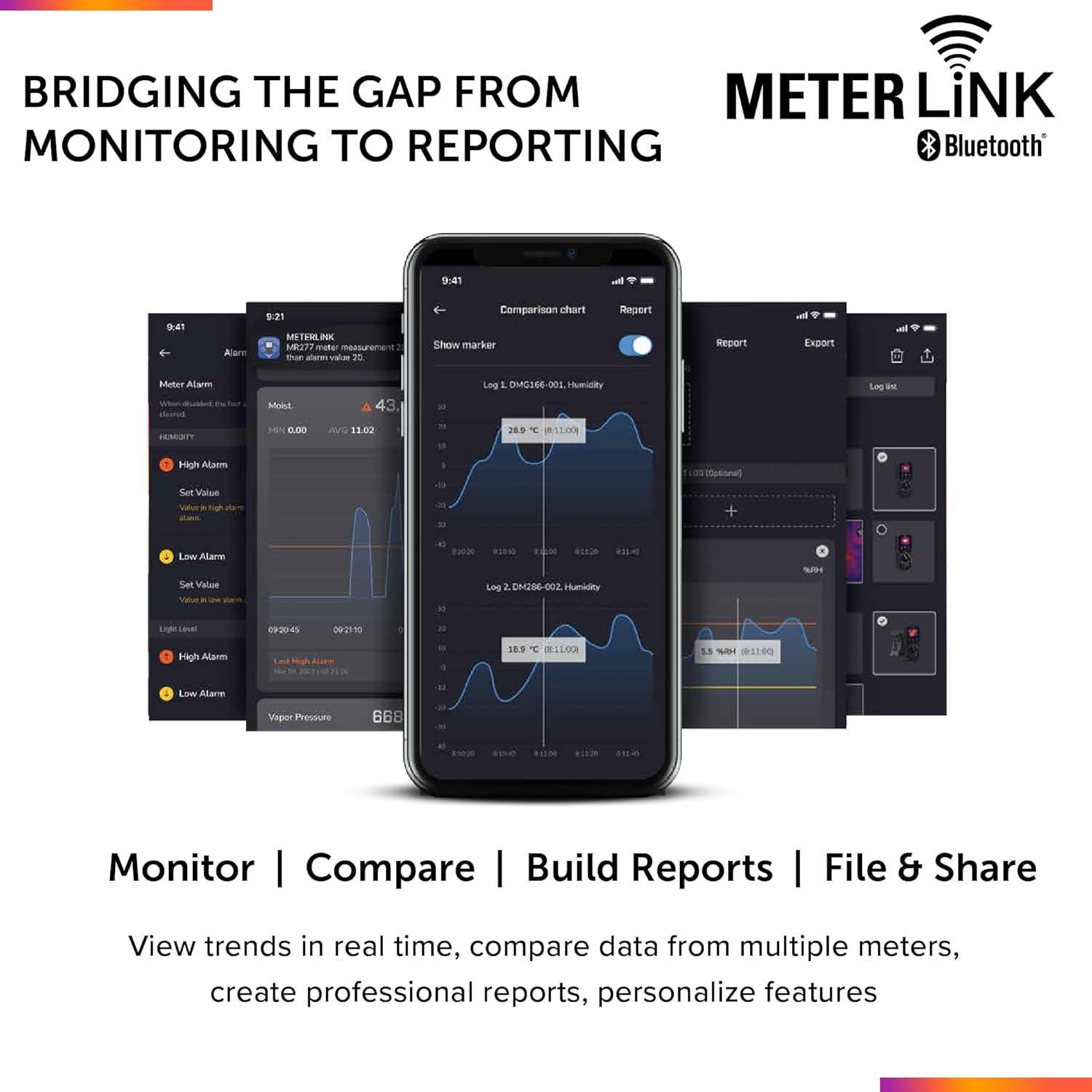

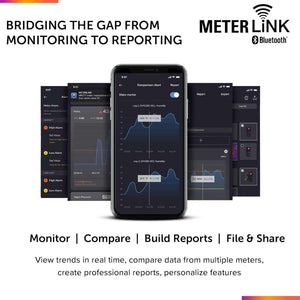

The FLIR DM93-2 is a world-class digital multimeter with advanced variable-frequency drive (VFD) filtering to help you accurately analyze non-traditional sine waves and noisy signals found in VFD-controlled equipment. No matter what electrical challenge you’re up against, the DM93-2’s powerful lighting and durable design is up to the job. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.

Category Specifications Details
Specifications Display Counts 40,000
Measurement & Analysis AC Current 10.000 A ± 1.0%
AC Voltage 1000.0 V ± 0.5%
Capacitance 40.00 mF ± 0.9%
Category Rating CAT IV-600 V, CAT III-1000 V
Contact Temperature Type K thermocouple Yes
Continuity Threshold 30 Ω ± 0.2%
DC Current 10.000 A ± 0.2%
DC Voltage 1000.0 V ± 0.05%
Diode Test 2 V ± 1.5%
Frequency 100.00 kHz ± 5 digits
Measuring Rate 10 samples per second
Resistance 40.00 MΩ ± 0.2%
Temperature Range -200°C to 1200°C (-328°F to 2192°F) ±1.0%
VFD AC Voltage 1000.0 V ± 0.5%
Communication & Data Storage Bluetooth range max 10 m (32 ft)
Data Recording 10,000 records with METERLiNK
Memory 99 internal storage locations
Power Auto Power Off Default: 10 minutes
Battery Life ~100 hours with alkaline batteries (backlight, worklight, and Bluetooth off)
Battery Type 6 × 1.5 V AAA alkaline batteries

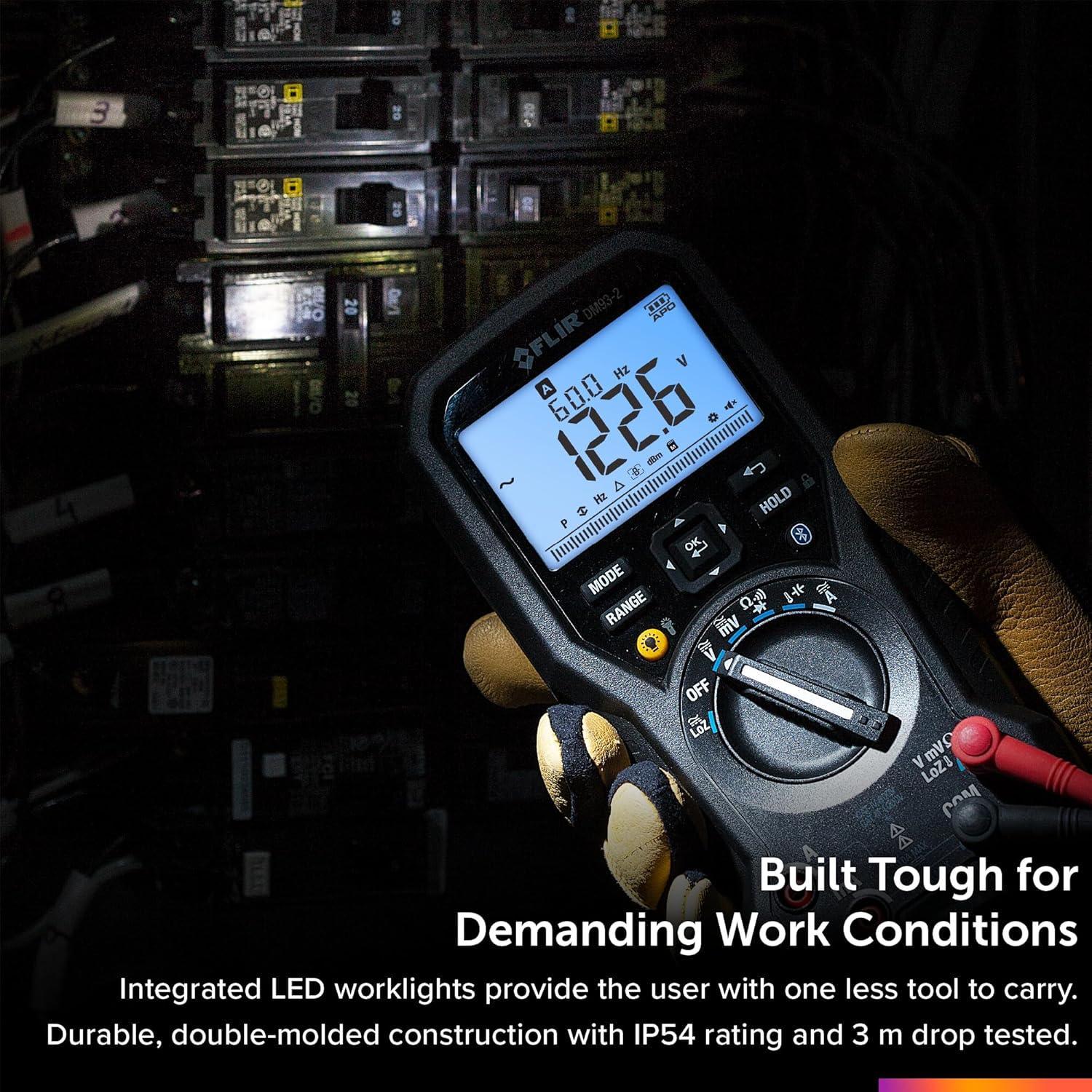

Worklights Yes
General Packaging Size 28.5 cm × 15 cm × 10.4 cm (11.22 in × 5.91 in × 4.09 in)
Size (L x W x H) 207.1 mm × 98.1 mm × 60.7 mm (8.15 in × 3.86 in × 2.39 in)
Weight 601 g (1.33 lb) including batteries
Environmental & Certifications Certifications UL, CE, FCC, UKCA
Drop test 3 m (9.8 ft)
IP Rating IP54 dust-protected and splash-resistant
Warranty Limited 10-Year Warranty
Operating Temperature 0°C to 50°C (32°F to 122°F)

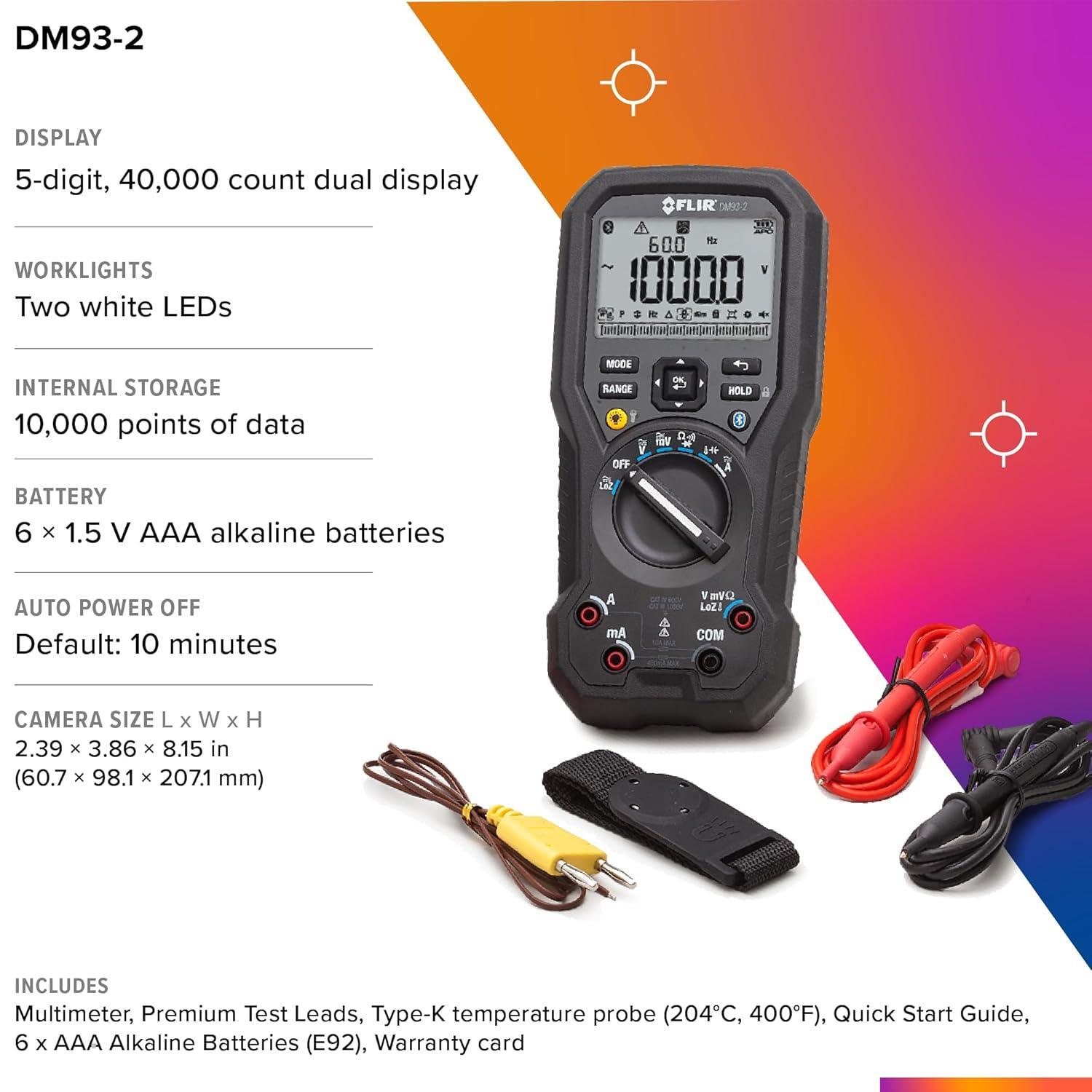

Accessories Accessories In the Box
  • Premium test leads
  • Type K temperature probe (204°C, 400°F)
  • Warranty card
  • 6 × AAA Energizer batteries
  • Quick Start Guide
Description

The FLIR DM93-2 is a world-class digital multimeter with advanced variable-frequency drive (VFD) filtering to help you accurately analyze non-traditional sine waves and noisy signals found in VFD-controlled equipment. No matter what electrical challenge you’re up against, the DM93-2’s powerful lighting and durable design is up to the job. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.

Category Specifications Details
Specifications Display Counts 40,000
Measurement & Analysis AC Current 10.000 A ± 1.0%
AC Voltage 1000.0 V ± 0.5%
Capacitance 40.00 mF ± 0.9%
Category Rating CAT IV-600 V, CAT III-1000 V
Contact Temperature Type K thermocouple Yes
Continuity Threshold 30 Ω ± 0.2%
DC Current 10.000 A ± 0.2%
DC Voltage 1000.0 V ± 0.05%
Diode Test 2 V ± 1.5%
Frequency 100.00 kHz ± 5 digits
Measuring Rate 10 samples per second
Resistance 40.00 MΩ ± 0.2%
Temperature Range -200°C to 1200°C (-328°F to 2192°F) ±1.0%
VFD AC Voltage 1000.0 V ± 0.5%
Communication & Data Storage Bluetooth range max 10 m (32 ft)
Data Recording 10,000 records with METERLiNK
Memory 99 internal storage locations
Power Auto Power Off Default: 10 minutes
Battery Life ~100 hours with alkaline batteries (backlight, worklight, and Bluetooth off)
Battery Type 6 × 1.5 V AAA alkaline batteries
Worklights Yes
General Packaging Size 28.5 cm × 15 cm × 10.4 cm (11.22 in × 5.91 in × 4.09 in)
Size (L x W x H) 207.1 mm × 98.1 mm × 60.7 mm (8.15 in × 3.86 in × 2.39 in)
Weight 601 g (1.33 lb) including batteries
Environmental & Certifications Certifications UL, CE, FCC, UKCA
Drop test 3 m (9.8 ft)
IP Rating IP54 dust-protected and splash-resistant
Warranty Limited 10-Year Warranty
Operating Temperature 0°C to 50°C (32°F to 122°F)
Accessories Accessories In the Box
  • Premium test leads
  • Type K temperature probe (204°C, 400°F)
  • Warranty card
  • 6 × AAA Energizer batteries
  • Quick Start Guide
