This message only appears in theme editor.Description

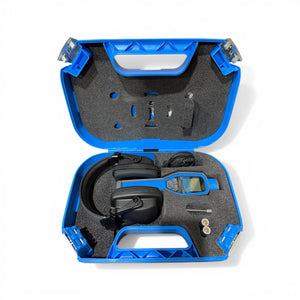

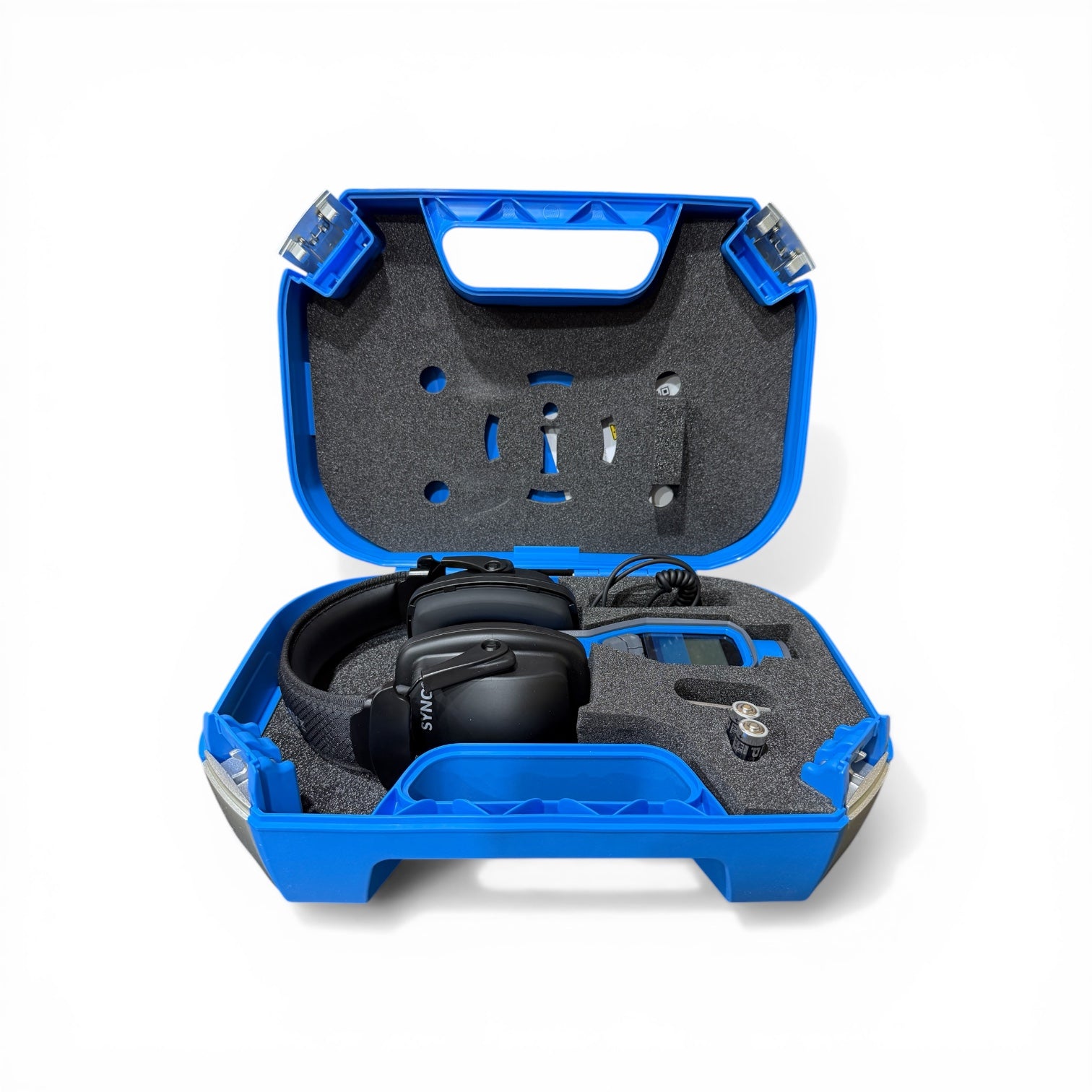

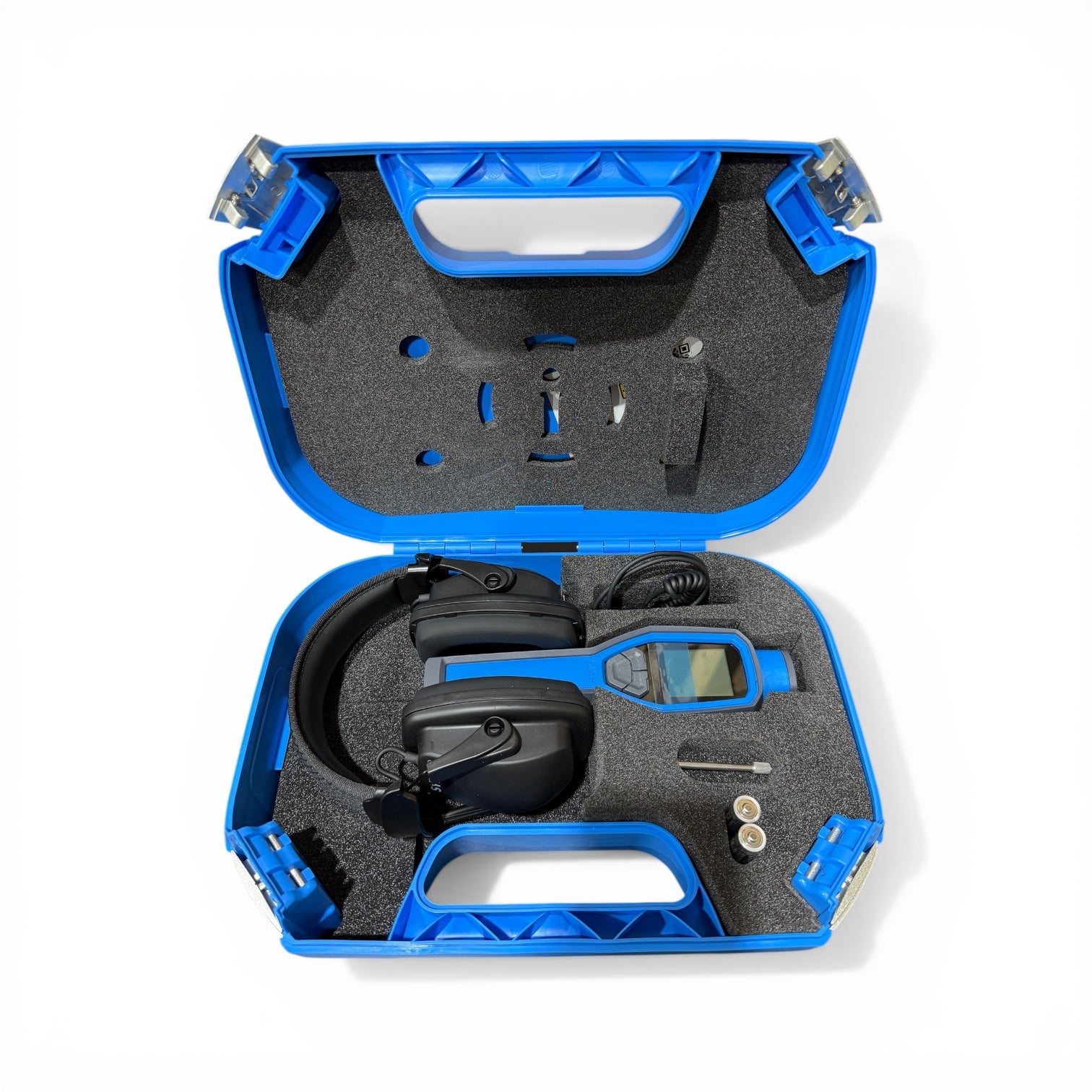

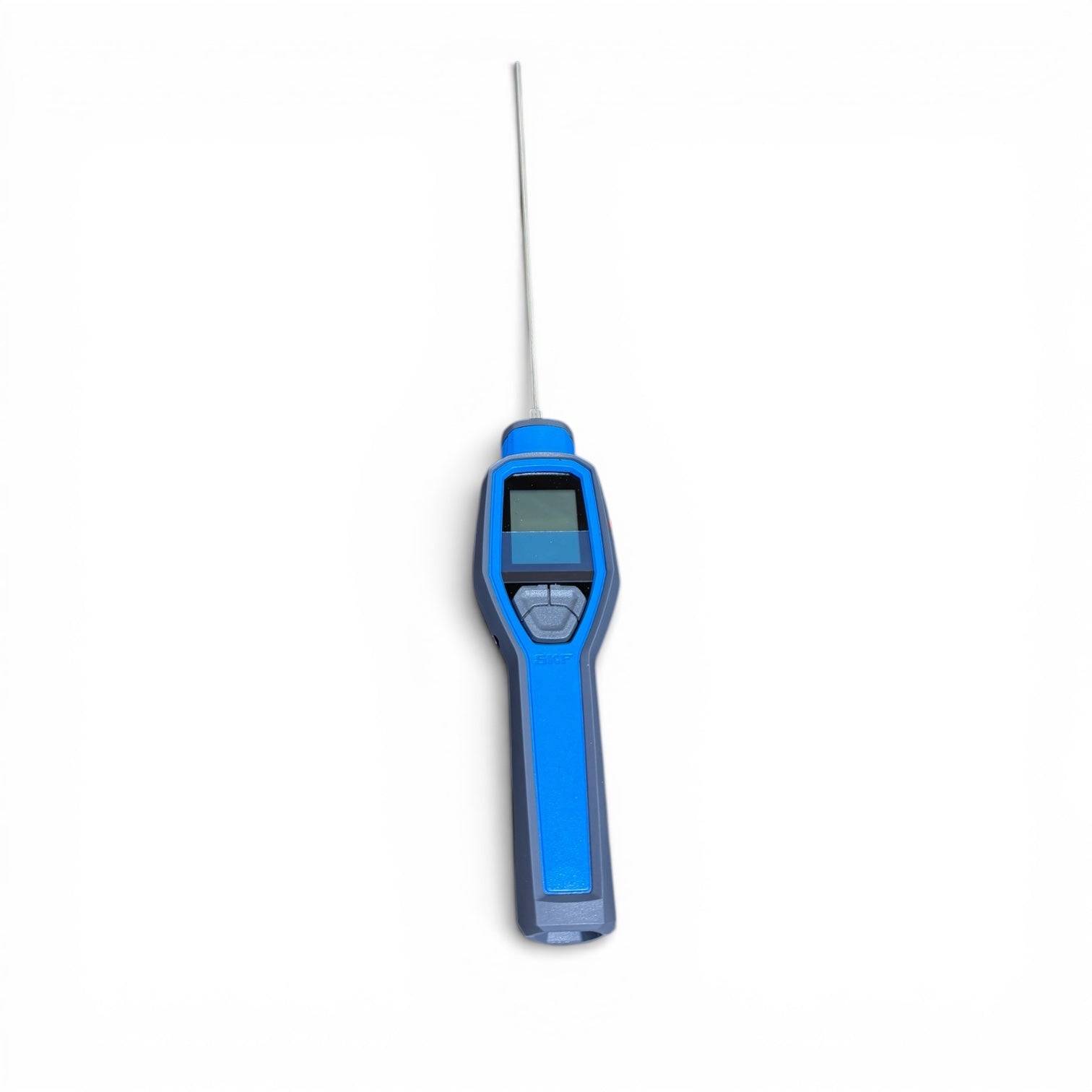

The TKST 11 is a hand-held stethoscope that is supplied in a sturdy carrying case complete with two probes, headset and batteries. The noise or vibration from the machine is picked up by the stick probe and transmitted to an acoustic sensor where the vibrations are converted into an electrical signal, which is processed and amplified by the electronics of the instrument. The handset has two outputs for the amplified signal (headset and recorder connection). The headset is an approved ear defender.
Key Features
- Lightweight ergonomic design
- Easy to operate with one hand
- Excellent sound quality
- Approved ear defender headphone
- Online pre-recorded demo samples available
- Supplied with two probes
- Adjustable volume control.
Specifications
TKST 11 Specifications
| Category | Property | Specification |
|---|---|---|
| Properties | Frequency | 30.0 – 15,000.0 Hz |
| Software features | Volume control, Battery level, Auto switch off | |
| Max recorder output | 250 mV | |
| Headset impedance | 32 Ω | |
| Headset weight | 290 g | |
| Auto switch off | Yes, after 10 min | |
| Volume adjustment steps | 10 | |
| Housing material | PC/ABS blend, overmoulded with TPU rubber | |
| Colour | Blue, Dark Grey | |
| Battery | 2x AA (Alkaline (incl.) or Rechargeable) | |
| Operating Conditions | Battery life | 30 h |
| Operating temperature range | 0.0 – 40.0 °C | |
| Storage and Environmental | Recommended storage temperature | -20.0 – 45.0 °C |
| Relative humidity | 10 to 90%, non-condensing | |
| Degree of protection (IP) | IP 40 | |
| Dimensions and Weight | Instrument dimensions | 230 × 70 × 38 mm |
| Instrument weight | 290 g | |
| Probes | Probe lengths | 70 mm, 300 mm |
| Case dimensions (l x h x w) | 360 x 110 x 260 mm | |
| Content | Handset | 1x TKST 11 Handset |
| Headset | 1x Headset | |
| Probe | 1x Probe 70 mm | |
| Probe | 1x Probe 300 mm | |
| Batteries | 2x AA batteries | |
| Instructions | 1x Printed instructions for use | |

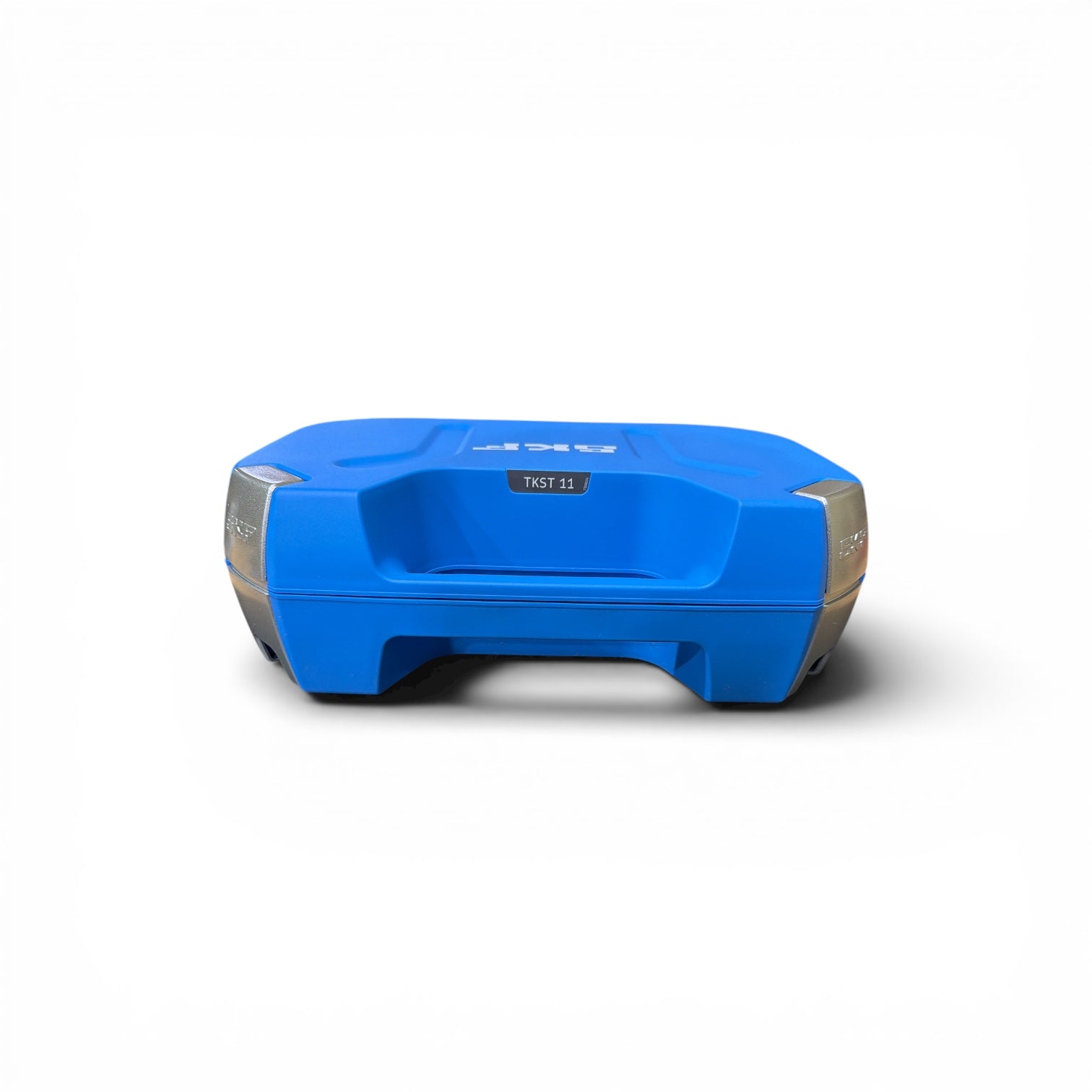

| Carrying case | 1x Carrying case (size B) | |
| Logistics | Total product weight | 1.65 kg |
| eClass code | 23-05-19-01 | |
| UNSPSC code | 41112202 |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
