Description

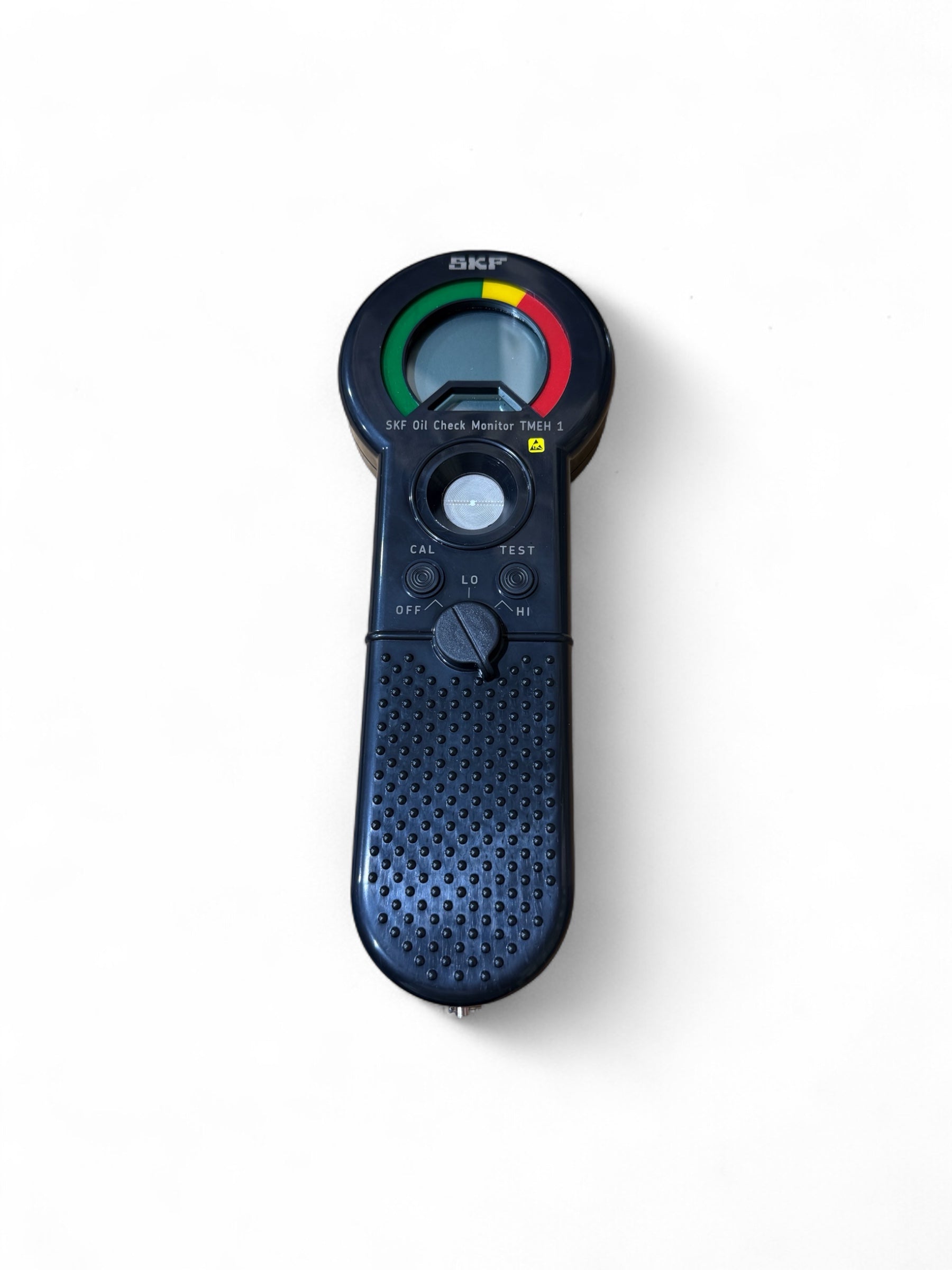

The SKF TMEH 1 Oil Check Monitor is a portable, easy-to-use instrument designed to quickly detect changes in the condition of mineral and synthetic oils. By measuring changes in the oil’s dielectric constant, the TMEH 1 helps identify oil degradation and contamination before they contribute to excessive wear, unplanned downtime or equipment failure.
Simply calibrate the instrument using a fresh sample of the same oil and compare it with oil taken from the machine. Results are displayed immediately through clear green and red condition indicators and a numerical reading from –999 to +999. With better than 95% repeatability, the SKF TMEH 1 provides maintenance teams with a fast and consistent way to monitor lubricant condition between laboratory oil analyses.
Compact and battery-powered, this SKF oil condition monitor is ideal for preventive maintenance, industrial machinery inspections, troubleshooting and routine lubrication programs. It works with many common lubricating, hydraulic and engine oils, making it a practical tool for evaluating oil condition in gearboxes, hydraulic systems, compressors, engines and other oil-lubricated equipment.
Key Features
- Quickly detects changes in oil condition
- Measures changes in the oil’s dielectric constant
- Suitable for mineral and synthetic oils
- Provides immediate results without laboratory testing
- Green and red indicators provide easy condition grading
- Compact, lightweight and portable design
- Powered by a standard 9V alkaline battery
Specifications
Technical Data
| Suitable Oil Types | Mineral and synthetic oils |
| Repeatability | Better than 95% |
| Read-Out | Green/red grading + numerical value (-999 to 999) |
| Battery | 9V Alkaline IEC 6LR61 |
| Battery Lifetime | > 150 hours or 3,000 tests |
Dimensions & Weight
| Instrument Dimensions | 250 x 95 x 32 mm (9.8 x 3.7 x 1.3 in.) |

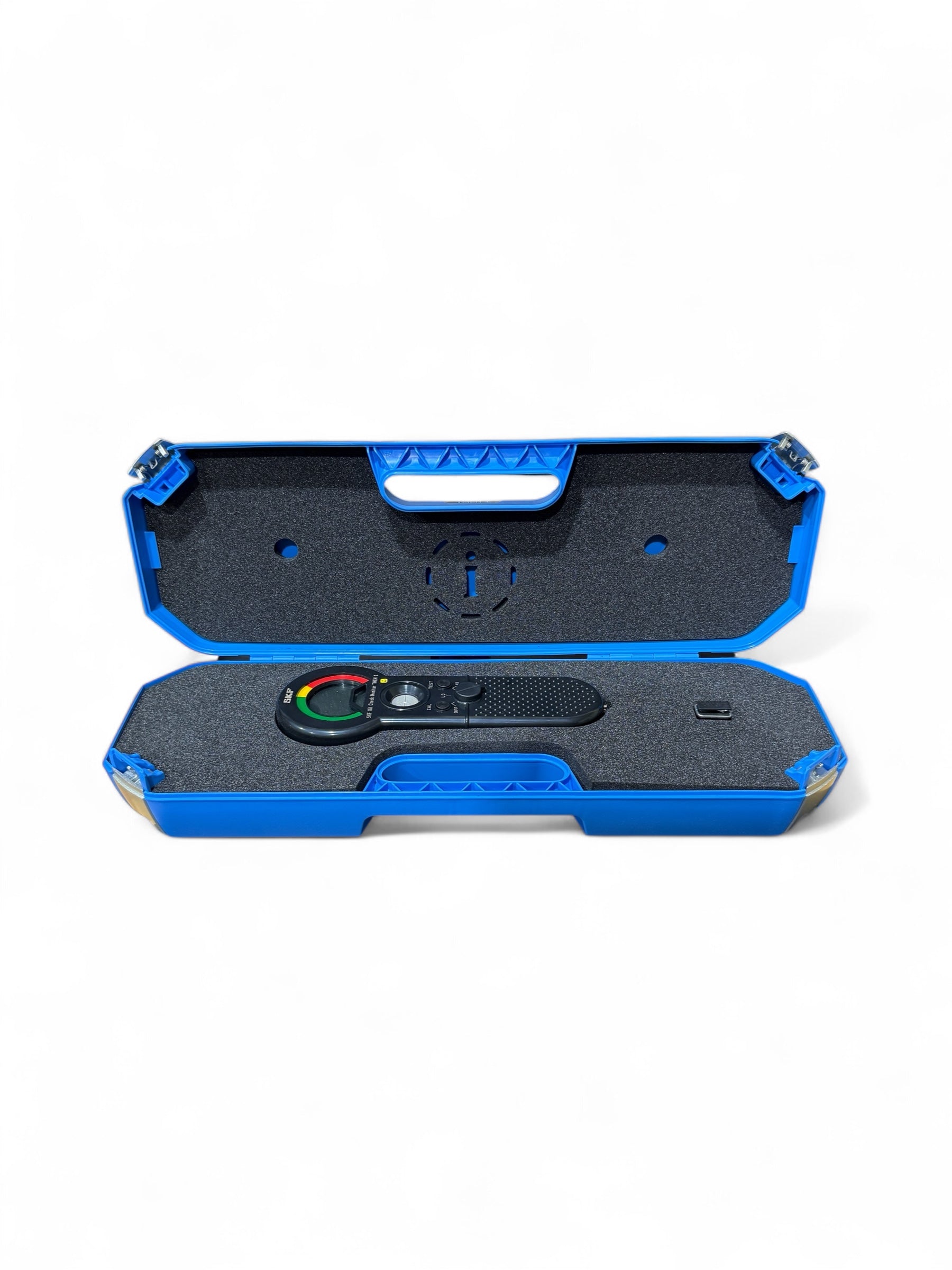

| Carry Case Dimensions | 530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.) |
| Instrument Weight | 385 g (14 oz) |
| Complete Weight in Carry Case | 1.2 kg (2.6 lb) |
