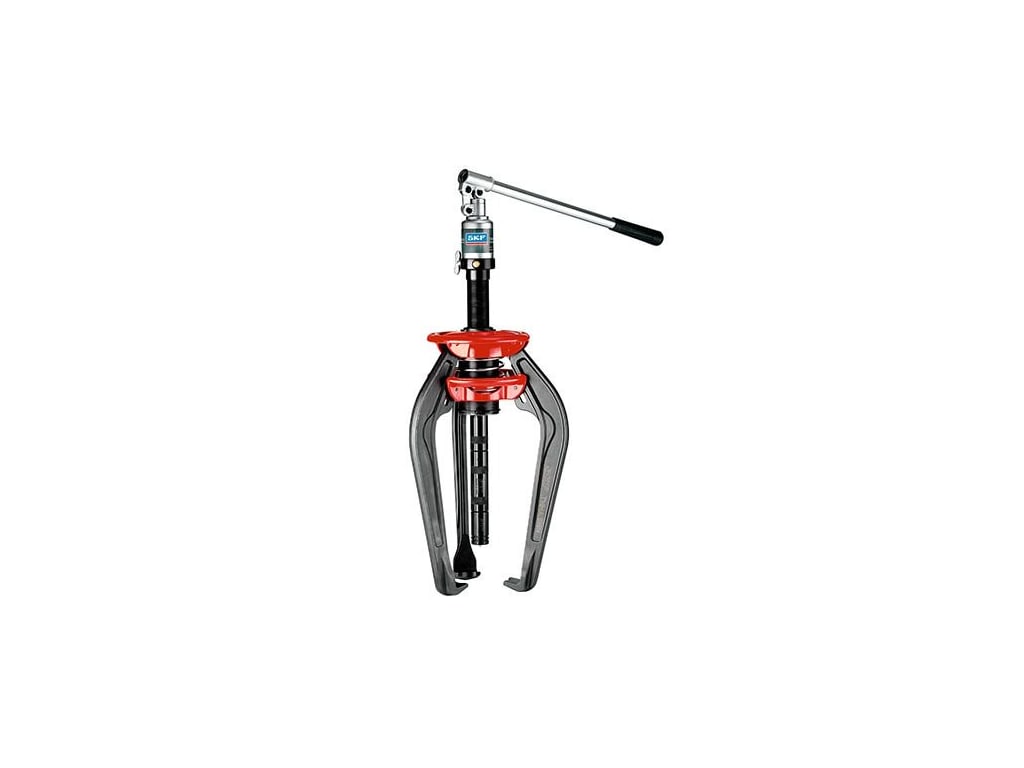

SKF TMMA 75H EasyPull Hydraulic Puller, 3 Jaws, 84 Ton Capacity
Brand:
SKF
- Regular price
- $1,200.00
- Sale price
- $1,200.00
- Regular price
-
$1,300.00
Shipping calculated at checkout.
Call 1 (248) 429-9073 for Availability
Free shipping on orders over $100
Use code at checkout.
FREESHIP
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Need Help?
Call us 1 (248) 429-9073

Description
Quick and effortless bearing dismounting
Equipped with spring-operated arms and a solid design, the SKF EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.
TMMA 75H Puller Technical Data
Category | Property | Value |
---|---|---|
General | Width of grip external, minimum | 52 mm (2.0 in.) |
Width of grip external, maximum | 200 mm (7.8 in.) | |
Effective arm length | 200 mm (7.8 in.) | |
Maximum withdrawal force | 75 kN (8.4 ton US) | |
Total weight | 7.0 kg (15.4 lb) | |
Claw dimensions | Claw height | 9.8 mm (0.39 in.) |
Claw length | 18 mm (0.7 in.) | |
Claw width | 28 mm (1.1 in.) | |
Force generator | Hydraulic spindle | TMHS 75 |
Piston stroke | 75 mm (3.0 in.) | |
Body thread | UN 1.25"x12 | |
Diameter nose piece | 35 mm (1.4 in.) |
