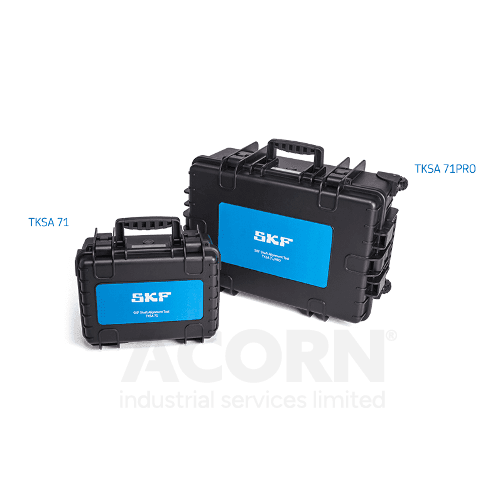

SKF TKSA 71 and TKSA 71PRO alignment tool hard cases, black with blue label, side by side

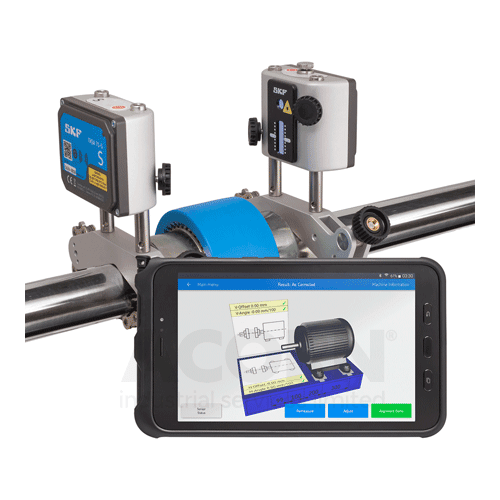

Industrial shaft alignment tool system with sensors and digital tablet interface

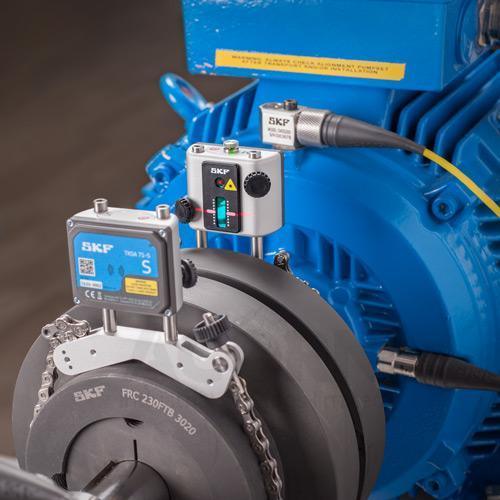

SKF shaft alignment tool mounted on industrial motor and coupling system

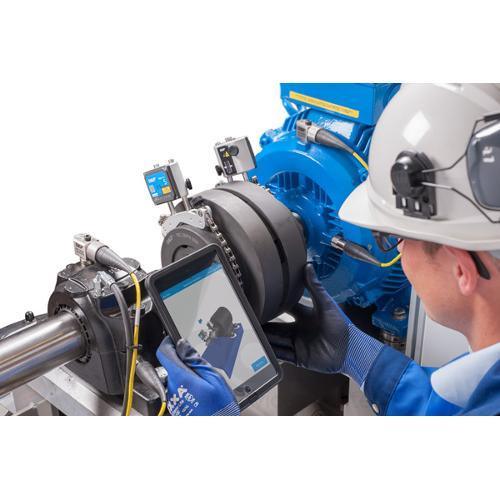

Technician using laser shaft alignment tool on industrial machinery with tablet interface
    SKF TKSA 71 and TKSA 71PRO alignment tool hard cases, black with blue label, side by side
    Industrial shaft alignment tool system with sensors and digital tablet interface
    SKF shaft alignment tool mounted on industrial motor and coupling system
    Technician using laser shaft alignment tool on industrial machinery with tablet interface
SKF TKSA 71 and TKSA 71PRO alignment tool hard cases, black with blue label, side by side
Industrial shaft alignment tool system with sensors and digital tablet interface
SKF shaft alignment tool mounted on industrial motor and coupling system
Technician using laser shaft alignment tool on industrial machinery with tablet interface
SKF TKSA 71 and TKSA 71PRO alignment tool hard cases, black with blue label, side by side
Industrial shaft alignment tool system with sensors and digital tablet interface
SKF shaft alignment tool mounted on industrial motor and coupling system
Technician using laser shaft alignment tool on industrial machinery with tablet interface
    SKF TKSA 71 and TKSA 71PRO alignment tool hard cases, black with blue label, side by side
    Industrial shaft alignment tool system with sensors and digital tablet interface
    SKF shaft alignment tool mounted on industrial motor and coupling system
    Technician using laser shaft alignment tool on industrial machinery with tablet interface
SKF TKSA 71 and TKSA 71PRO alignment tool hard cases, black with blue label, side by side
Industrial shaft alignment tool system with sensors and digital tablet interface
SKF shaft alignment tool mounted on industrial motor and coupling system
Technician using laser shaft alignment tool on industrial machinery with tablet interface

TKSA 71/PRO, SKF, High performance shaft alignment tool

  • TKSA 71 with accessories
  • Up to 10 m (32.8 ft) between units
  • Machine trains and spacer shafts
  • Trolley case
Brand: SKF

Genuine SKF product, SKF

Regular price
$15,100.00
Sale price
$15,100.00
Regular price
Shipping calculated at checkout.
green lightning bolt icon for industrial tools and equipment
1 in Stock Now

Same-day shipping

Order by 3 PM ET for same-day shipping

Free shipping on orders over $100

Use code at checkout.

Request a quote

Tell us the tool and the quantity. We reply with pricing and lead time.

Why Apollo USA

Alignment tools from Apollo Industries, Oxford, Michigan

Apollo Industries supplies bearings, seals and maintenance tools to businesses across the US, with real people on the phone when you need help choosing a tool.

  • Same-day shipping

    Order by 3 PM EST for same-day shipping.

  • Free shipping over $100

    All orders over $100 ship free by ground with code FREESHIP.

  • 90-day returns

    Hassle-free returns on unused items within 90 days.

  • Price match

    Show us a competitor's advertised price on the same item and we will match it.

  • Expert support

    Support staff available by phone, web chat or email.

  • Need tax exemption or quantity pricing?

    We offer special rates for businesses and bulk orders.

    Contact us

Map of Oxford, Michigan
Oxford, Michigan

Talk to a specialist

(248) 429-9073

sales@apollousa.com

2695 Lake George Rd
Oxford, MI 48370

Overview

SKF TKSA 71/PRO shaft alignment tool

The SKF Shaft Alignment Tool TKSA 71/PRO is designed for professional alignments in harsh industrial environments. The instrument offers a variety of features for alignment experts and demanding applications while the great app intuitiveness supports an easy usage and effective shaft alignments. The TKSA 71 is very versatile with ultra-compact measuring units for use in extremely narrow spaces. The comprehensive assortment of included accessories prepares the user for an even wider range of alignment situations. Its dedicated software applications allow convenient alignments of different types of applications, including horizontal and vertical shafts, spacer shafts and machine trains.

In the case

What comes with the SKF TKSA 71/PRO

SKF shaft alignment tool TKSA 71 Play video

13 items in the kit

  • 2 measuring units (M and S)
  • 2 shaft brackets with chains 480 mm (18.9 in), threaded rods 80 mm (3.2 in) and magnets
  • 8 threaded extension rods 120 mm (4.7 in)
  • 2 extension chains 1 m (3.3 ft)
  • 2 magnetic bases
  • 2 sliding brackets
  • 2 offset brackets 50 mm (2 in)
  • Micro USB to USB split charging cable
  • 2 wireless charging pads
  • Measuring tape
  • Printed certificate of calibration and conformance
  • Printed quick start guide
  • Trolley case, 610 × 265 × 430 mm (24 × 10.4 × 16.9 in)

The calibration certificate is valid for two years.

Specifications

SKF TKSA 71/PRO specifications

Units
How the SKF TKSA 71/PRO measures: 0.07 to 10 m between the measuring units S M 40° sweep ⌀ 0.8 to 5.9 in ⌀ 20 to 150 mm 0.23 to 32.8 ft 0.07 to 10 m
Schematic, not to scale. Point at a value to find it on the drawing.

The TKSA 71 with magnetic bases, sliding and 50 mm offset brackets and twice the rods, in a trolley case.

Measuring method
Red line laser, 20 mm PSD detectors, inclinometer ±0.1°
Connection
Bluetooth 4.0 LE
Display
Your phone or tablet, SKF shaft alignment apps (iOS, Android)
Distance between units
0.23 to 32.8 ft0.07 to 10 m
Measuring error
1%
Shaft rotation
Free, 40° in all
Vertical machines
Yes
Machine trains
Yes, and spacer shafts
Shaft diameter
0.8 to 5.9 in, 17.7 in with the chains in the kit20 to 150 mm, 450 mm with the chains in the kit
Battery
8 h, wireless charging pads
Protection
IP67, measuring units
Case and weight
Trolley case 24 × 10.4 × 16.9 in, 27.3 lbTrolley case 610 × 265 × 430 mm, 12.4 kg
Brand
SKF
Designation
TKSA 71/PRO

Specifications as SKF publishes them on skf.com.

Compare

How the TKSA 71/PRO compares

The TKSA 71/PRO beside the rest of its SKF range. Pick tools to set against it, or switch on Differences only.

Compare with

Specification Entry levelTKSA 11 Wired laserTKSA 31 Wireless laserTKSA 41 Phone and tabletTKSA 51 Up to 10 mTKSA 71 This tool TKSA 71/PRO
Measuring method2 inductive sensors and 3 reference bars, no laserRed line laser, 29 mm CCD detectors, inclinometer ±0.5°Red line laser, 29 mm CCD detectors, inclinometer ±0.5°Red line laser, 20 mm PSD detectors, inclinometer ±0.1°Red line laser, 20 mm PSD detectors, inclinometer ±0.1°Red line laser, 20 mm PSD detectors, inclinometer ±0.1°
ConnectionBluetooth 4.0 LEUSB cablesBluetooth 4.0 LE or USBBluetooth 4.0 LEBluetooth 4.0 LEBluetooth 4.0 LE
DisplayYour phone or tablet, free TKSA 11 app (iOS, Android)5.6 in touch display unit, in the kit5.6 in touch display unit with camera and QR reader, in the kitYour phone or tablet, SKF shaft alignment apps (iOS, Android)Your phone or tablet, SKF shaft alignment apps (iOS, Android)Your phone or tablet, SKF shaft alignment apps (iOS, Android)
Distance between units0 to 7.3 in0 to 185 mm0.23 to 6.6 ft, 13.1 ft with extension cables0.07 to 2 m, 4 m with extension cables0.23 to 13.1 ft0.07 to 4 m0.23 to 16.4 ft0.07 to 5 m0.23 to 32.8 ft0.07 to 10 m0.23 to 32.8 ft0.07 to 10 m
Measuring error2%0.5%0.5%1%1%1%
Shaft rotation9, 12 and 3 o’clock positions9, 12 and 3 o’clock, 140° in allFree, 90° in allFree, 40° in allFree, 40° in allFree, 40° in all
Vertical machinesNoNoNoYesYesYes
Machine trainsNoNoNoNoYes, and spacer shaftsYes, and spacer shafts
Shaft diameter0.8 to 6.3 in, 12.6 in with optional chains20 to 160 mm, 320 mm with optional chains0.8 to 5.9 in, 11.8 in with optional chains20 to 150 mm, 300 mm with optional chains0.8 to 5.9 in, 11.8 in with optional chains20 to 150 mm, 300 mm with optional chains0.8 to 5.9 in, 17.7 in with the chains in the kit20 to 150 mm, 450 mm with the chains in the kit0.8 to 5.9 in, 17.7 in with the chains in the kit20 to 150 mm, 450 mm with the chains in the kit0.8 to 5.9 in, 17.7 in with the chains in the kit20 to 150 mm, 450 mm with the chains in the kit
Battery18 hDisplay unit 7 h, measuring units run on its cablesDisplay unit 8 h, measuring units up to 16 h10 h8 h, wireless charging pads8 h, wireless charging pads
ProtectionIP54IP54IP54IP54IP67, measuring units and caseIP67, measuring units
Case and weight14.2 × 4.3 × 10.2 in, 4.67 lb360 × 110 × 260 mm, 2.12 kg20.9 × 4.3 × 14.2 in, 10.4 lb530 × 110 × 360 mm, 4.72 kg20.9 × 4.3 × 14.2 in, 10.4 lb530 × 110 × 360 mm, 4.72 kg14.2 × 4.3 × 10.2 in, 6.66 lb360 × 110 × 260 mm, 3.02 kg14.4 × 6.7 × 11.6 in, 9.55 lb365 × 170 × 295 mm, 4.33 kgTrolley case 24 × 10.4 × 16.9 in, 27.3 lbTrolley case 610 × 265 × 430 mm, 12.4 kg
In the kitMeasuring unit, 3 reference bars, 2 shaft brackets with 480 mm chains and 80 mm rods, charging cable, measuring tape, calibration certificate, quick start guide, caseMeasuring units M and S, display unit, 2 shaft brackets with 400 mm chains and 150 mm rods, chain tightening rod, power supply, 2 USB cables, measuring tape, calibration certificate, quick start guide, caseMeasuring units M and S, display unit, 2 shaft brackets with 400 mm chains and 150 mm rods, 4 × 90 mm rods, chain tightening rod, power supply, 2 USB cables, 12 QR code stickers, measuring tape, calibration certificate, quick start guide, caseMeasuring units M and S, 2 magnetic shaft brackets with 480 mm chains and 80 mm rods, 4 × 120 mm rods, 2 × 980 mm extension chains, charging cable, 12 QR code stickers, measuring tape, calibration certificate, quick start guide, caseMeasuring units M and S, 2 magnetic shaft brackets with 480 mm chains and 80 mm rods, 4 × 120 mm rods, 2 × 1 m extension chains, 2 wireless charging pads, charging cable, measuring tape, calibration certificate, quick start guide, caseThe TKSA 71 kit with 8 × 120 mm rods instead of 4, plus 2 magnetic bases, 2 sliding brackets, 2 × 50 mm offset brackets and a trolley case
Price

$2,870.66 $3,150.00

In stock

$5,399.99 $6,511.00

In stock

$6,920.10 $7,920.00

In stock

$6,990.54 $8,120.00

In stock

$10,910.00 $14,326.24

In stock

$15,100.00

In stock

Specifications as SKF publishes them on skf.com, checked October 2026.

See every SKF alignment tool

Accessories

Accessories that fit the TKSA 71/PRO

Made by SKF for the TKSA 71/PRO. Tick what you need and add it with one click.

The TKSA 71/PRO kit already holds magnetic brackets, magnetic bases, sliding brackets, 50 mm offset brackets, 8 × 120 mm rods and 2 × 1 m extension chains.

All SKF alignment tool accessories

About the brand

About SKF

Inventor of the self-aligning ball bearing and the spherical roller bearing.

SKF (AB Svenska Kullagerfabriken) was founded in Gothenburg, Sweden, on 16 February 1907, on one invention: the double-row self-aligning ball bearing of Sven Wingquist, a maintenance supervisor at a Gothenburg textile factory. The factory stood on clay, so the building moved, the line shafts fell out of alignment and the rigid ball bearings of the day overheated and failed. Wingquist's bearing let the shaft run out of line without shortening its service life.

SKF invented the spherical roller bearing in 1919 and launched the spherical roller thrust bearing in 1939, the CARB toroidal roller bearing in 1995 and SKF Explorer bearings in 1999. Explorer bearings have optimized internal designs and surfaces that reduce friction and heat and carry heavier loads, for a longer service life.

In 1926 an SKF subsidiary, AB Volvo, built a trial series of cars; the first Volvo rolled out in Gothenburg in 1927.

Genuine SKF product

  • Founded

    1907

  • Headquarters

    Gothenburg, Sweden

  • Employees (2025)

    37,271

  • Present in

    About 130 countries

Known for

  • Self-aligning ball bearings
  • Spherical roller bearings
  • SKF Explorer bearings
  • CARB toroidal roller bearings
  • INSOCOAT and hybrid bearings
SKF website (opens in a new tab)

Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.

FAQ

TKSA 71/PRO questions & answers

TKSA 51 or TKSA 71?

Both use 20 mm PSD detectors, read to a 1% measuring error, align vertical machines and run on your phone or tablet. The TKSA 71 adds machine trains and spacer shafts, doubles the distance between units to 10 m, has IP67 measuring units against IP54 and charges wirelessly.

What does the TKSA 71/PRO add to the TKSA 71?

The measuring units, the performance and the apps are the same. The TKSA 71/PRO kit has 8 threaded extension rods of 120 mm instead of 4 and adds 2 magnetic bases, 2 sliding brackets and 2 offset brackets of 50 mm, in a trolley case.

Can I use my own phone or tablet with the TKSA 71/PRO?

Yes. The TKSA 71/PRO has no display of its own: it runs on SKF’s free apps for iOS and Android over Bluetooth.

Which SKF shaft alignment tool do I need?

Start from the distance and the machines. The TKSA 11 covers two horizontal machines close-coupled, with up to 185 mm between its brackets, on your own phone or tablet. The TKSA 31 (wired) and TKSA 41 (wireless) add a laser, SKF’s display unit and 2 m or 4 m between units. The TKSA 51 reaches 5 m and also aligns vertical machines. The TKSA 71 reaches 10 m and handles machine trains and spacer shafts.

What tolerance should I align to?

The machine maker’s tolerance comes first. Without one, SKF’s built-in table in the TKSA 31 and 41 allows, at the coupling: 0.10 mm offset and 0.08 mm/100 mm angle up to 2,000 rpm; 0.07 mm and 0.07 mm/100 mm to 3,000 rpm; 0.04 mm and 0.06 mm/100 mm to 4,000 rpm; 0.03 mm and 0.05 mm/100 mm to 6,000 rpm.

Does the TKSA 71/PRO come calibrated?

Yes. The TKSA 71/PRO ships with a calibration certificate that is valid for two years.

Which shims do I need?

SKF TMAS shims are pre-cut squares with the size and thickness marked on each one. The TMAS 50/KIT, 75/KIT and 100/KIT hold one size each (50, 75 or 100 mm) in thicknesses from 0.05 to 2.00 mm; the TMAS 340 holds 100 and 125 mm shims and the TMAS 380 50 and 75 mm. Pick the size that covers the machine’s foot.

Do you ship the TKSA 71/PRO the same day?

In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.

Can I get quantity pricing or buy tax-exempt?

Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.

Is this a genuine SKF TKSA 71/PRO?

Yes. Apollo Industries sells genuine SKF products, purchased through independent channels. Apollo is not an authorized distributor, reseller, or representative of SKF.
