About

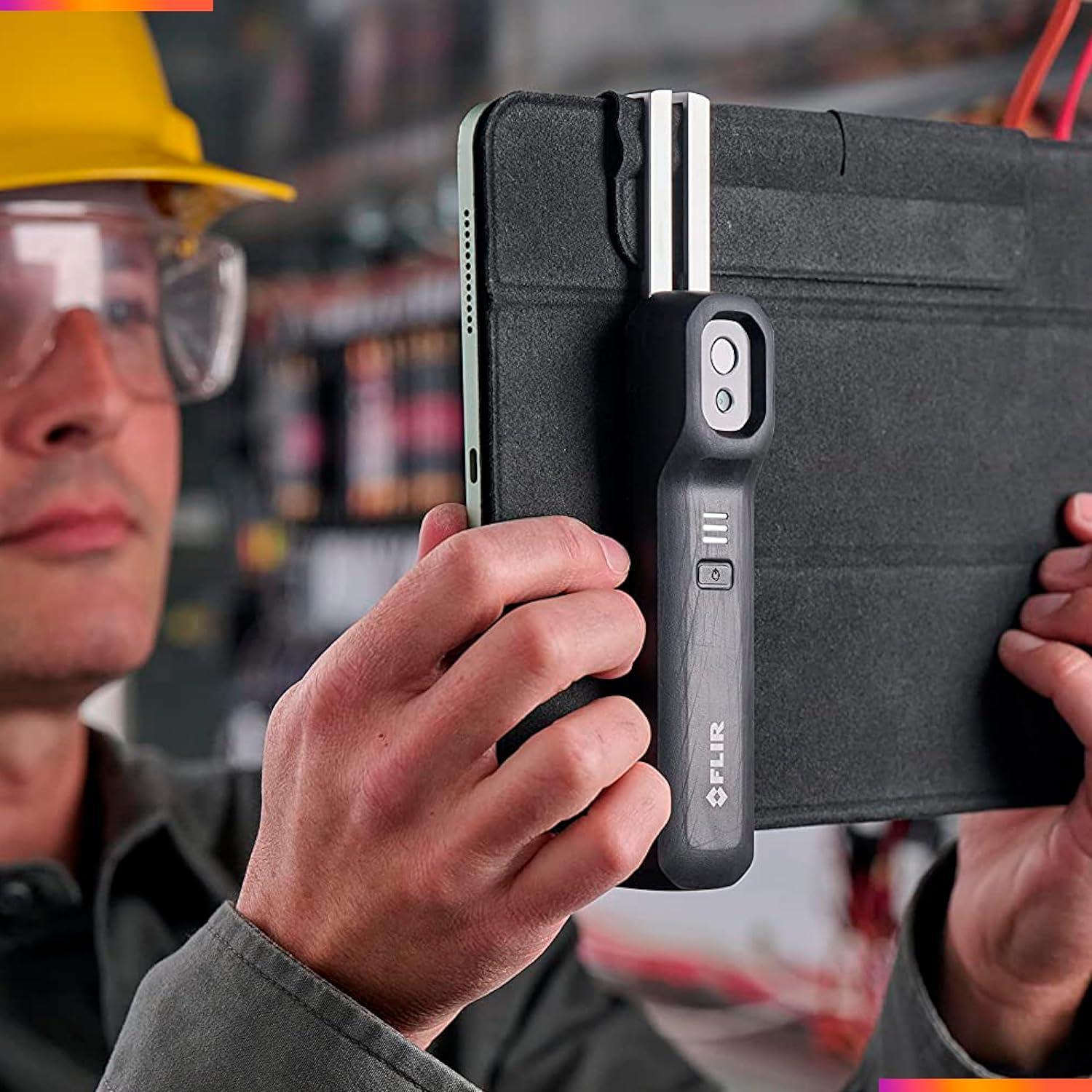

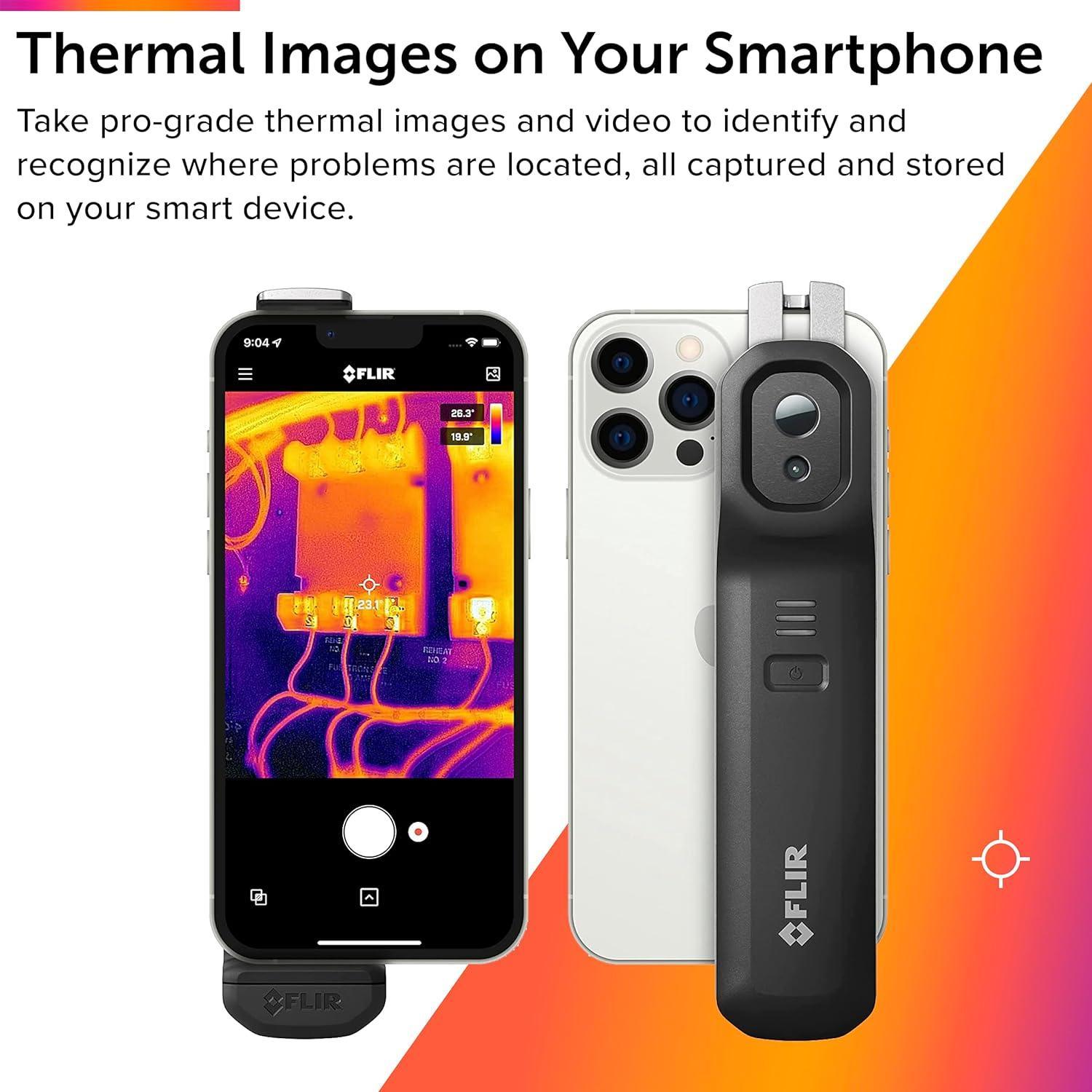

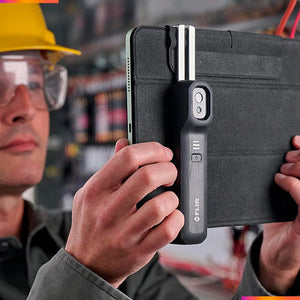

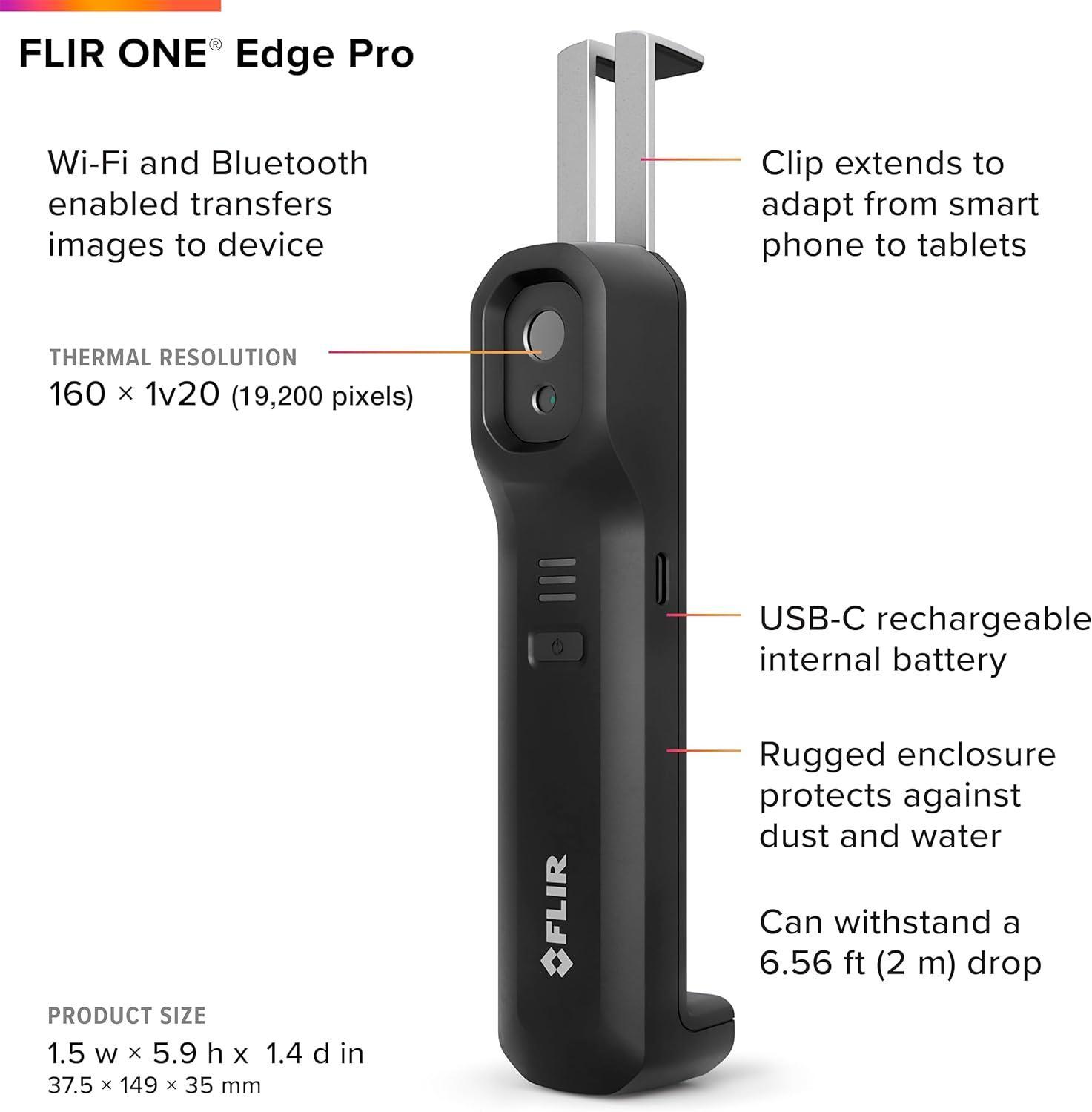

The innovative FLIR ONE Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach – or clip it onto your phone or tablet for one-handed operation. This thermal camera for smart phones combines VividIR™ and FLIR MSX® (Multi-Spectral Dynamic Imaging) so you can take crisp thermal images from any angle. Improved battery time and ruggedness makes sure the camera is ready to use in more industrial environments. The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your friends and colleagues. All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use. Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow.

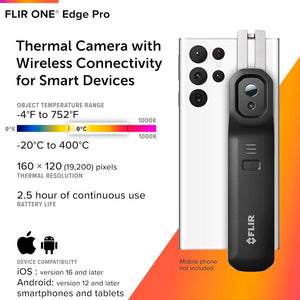

| Category | Specification | Details |
|---|---|---|
| Imaging & Optical | Thermal Resolution | 160 × 120 (19,200 pixels) |
| Adjustable MSX Distance | 30 cm — Infinity | |
| Focus | Fixed 30 cm — Infinity | |
| Frame Rate | 8.7 Hz | |
| HFOV/VFOV | 54° ±1° / 42° ±1° | |
| Imaging Modes | Image Modes | Infrared, visual, MSX |
| Palette | Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava, and Color Wheel | |
| Shutter | Automatic/Manual | |
| Thermal Sensitivity/NETD | 70 mK | |
| Thermal Sensor | Pixel size 12 µm, 8 — 14 µm spectral range | |
| Visual Resolution | 640 × 480 | |
| VividIR | Yes | |
| Power | Battery Charge Time | 60–90 min for fully charged |
| Battery Life | Approximately 2 hours 30 minutes | |
| Charging Method | Female USB-C (5V/1A) | |
| Battery Charge Monitor | 0 — 100% | |
| Measurement & Analysis | Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up |
| Measurement Corrections | Emissivity; Reflected apparent temperature (22°C / 72°F) | |
| Object Temperature Range | -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F) | |
| Spot Meter | Hottest, Coldest, and 3 spot measurement | |
| General | Clip Span | 130 mm (min) / 195 mm (max) |

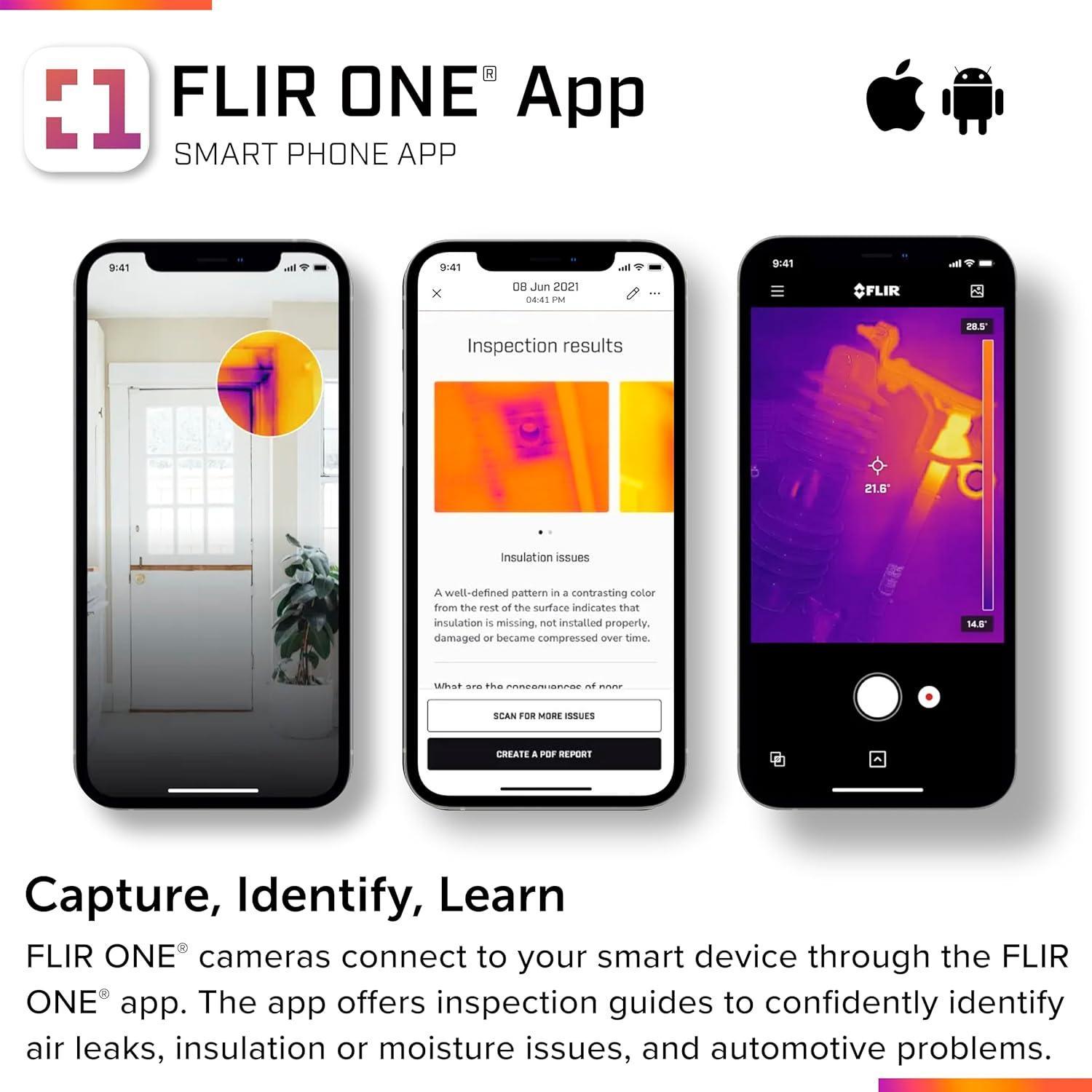

| Compatible with FLIR Software | FLIR ONE app, FLIR Ignite, FLIR Thermal Studio | |
| Device Compatibility | iOS (version 16 and later) or Android (version 12 and later) | |
| Dimensions (H × W × D) | 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in) | |

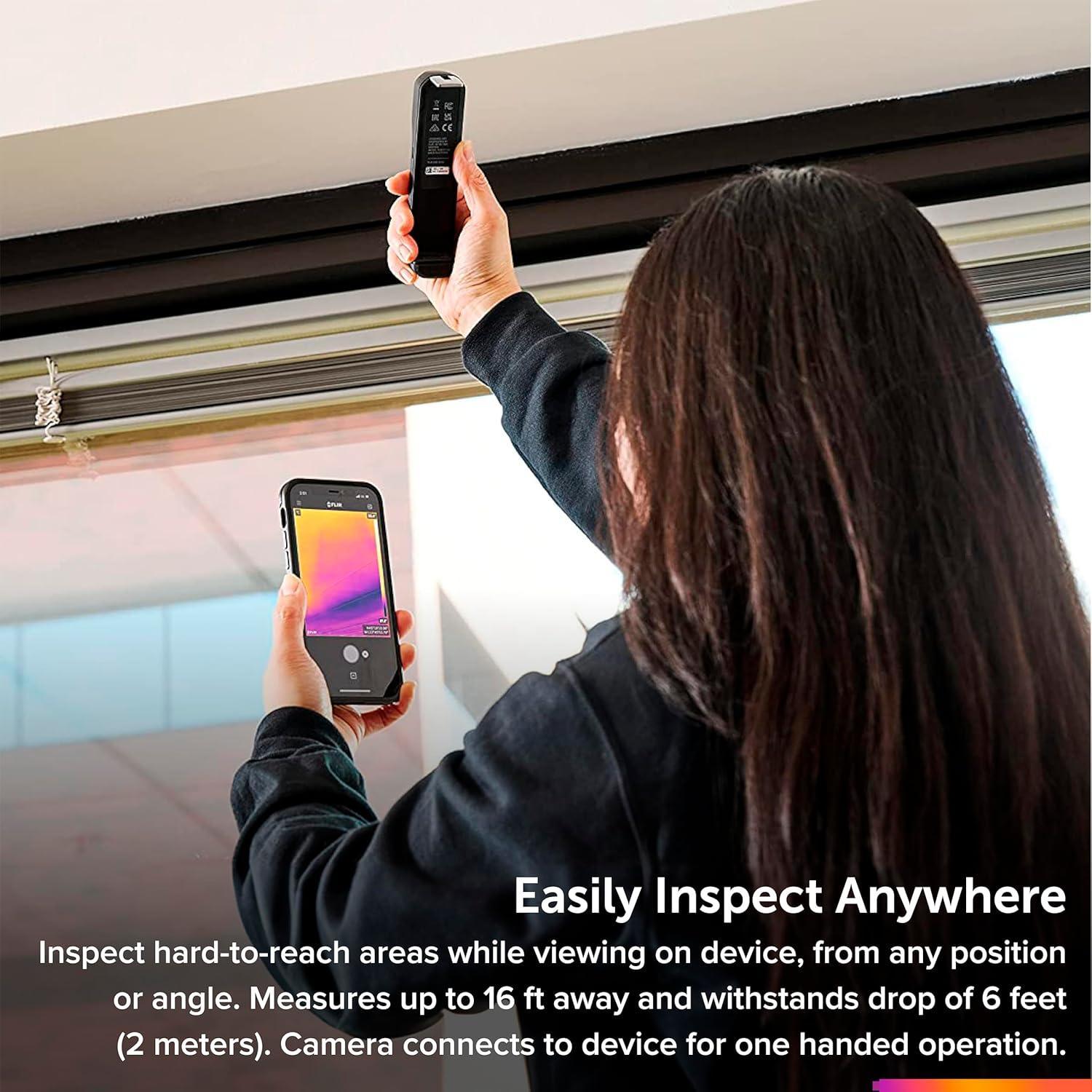

| Remote Operation | Up to 5 m (16.4 ft) from smart device via Wi-Fi | |
| Weight | 153 g (5.4 oz) | |
| Environmental & Certifications | Certifications | RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54 |
| Drop Test | Drop from 2 m (6.56 ft) | |
| Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% | |
| Non-Operating Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) | |
| Communication & Data Storage | Bluetooth | Uses Bluetooth to set up the peer-to-peer Wi-Fi network |
| Capture Modes | Video, Still image | |
| Charging | Female USB-C (5V/1A) | |
| File Formats | Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android)) | |
| WiFi | IEEE 802.11 a/b/g/n |
The innovative FLIR ONE Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach – or clip it onto your phone or tablet for one-handed operation. This thermal camera for smart phones combines VividIR™ and FLIR MSX® (Multi-Spectral Dynamic Imaging) so you can take crisp thermal images from any angle. Improved battery time and ruggedness makes sure the camera is ready to use in more industrial environments. The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your friends and colleagues. All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use. Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow.
| Category | Specification | Details |
|---|---|---|
| Imaging & Optical | Thermal Resolution | 160 × 120 (19,200 pixels) |
| Adjustable MSX Distance | 30 cm — Infinity | |
| Focus | Fixed 30 cm — Infinity | |
| Frame Rate | 8.7 Hz | |
| HFOV/VFOV | 54° ±1° / 42° ±1° | |
| Imaging Modes | Image Modes | Infrared, visual, MSX |
| Palette | Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava, and Color Wheel | |
| Shutter | Automatic/Manual | |
| Thermal Sensitivity/NETD | 70 mK | |
| Thermal Sensor | Pixel size 12 µm, 8 — 14 µm spectral range | |
| Visual Resolution | 640 × 480 | |
| VividIR | Yes | |
| Power | Battery Charge Time | 60–90 min for fully charged |
| Battery Life | Approximately 2 hours 30 minutes | |
| Charging Method | Female USB-C (5V/1A) | |
| Battery Charge Monitor | 0 — 100% | |
| Measurement & Analysis | Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up |
| Measurement Corrections | Emissivity; Reflected apparent temperature (22°C / 72°F) | |
| Object Temperature Range | -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F) | |
| Spot Meter | Hottest, Coldest, and 3 spot measurement | |
| General | Clip Span | 130 mm (min) / 195 mm (max) |
| Compatible with FLIR Software | FLIR ONE app, FLIR Ignite, FLIR Thermal Studio | |
| Device Compatibility | iOS (version 16 and later) or Android (version 12 and later) | |
| Dimensions (H × W × D) | 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in) | |
| Remote Operation | Up to 5 m (16.4 ft) from smart device via Wi-Fi | |
| Weight | 153 g (5.4 oz) | |
| Environmental & Certifications | Certifications | RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54 |
| Drop Test | Drop from 2 m (6.56 ft) | |
| Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% | |
| Non-Operating Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) | |
| Communication & Data Storage | Bluetooth | Uses Bluetooth to set up the peer-to-peer Wi-Fi network |
| Capture Modes | Video, Still image | |
| Charging | Female USB-C (5V/1A) | |
| File Formats | Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android)) | |
| WiFi | IEEE 802.11 a/b/g/n |

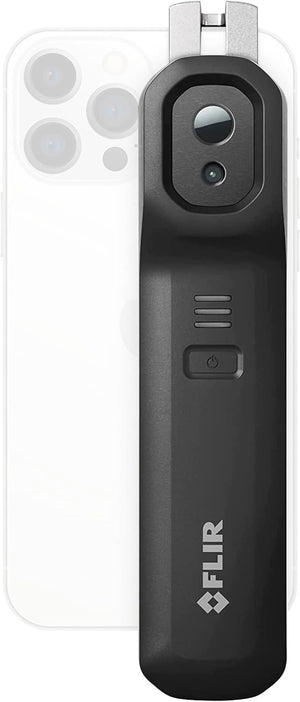

FLIR ONE Edge Pro Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices
- Regular price
- $499.99
- Sale price
- $499.99
